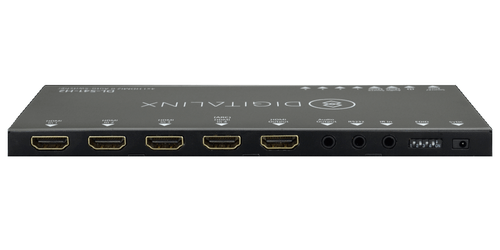

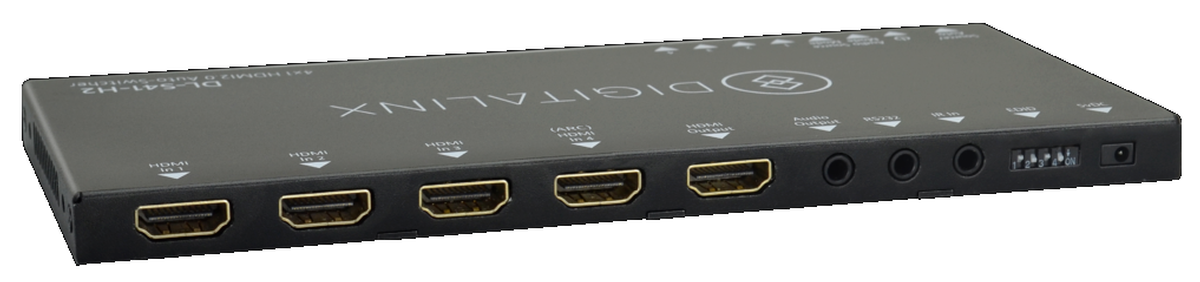

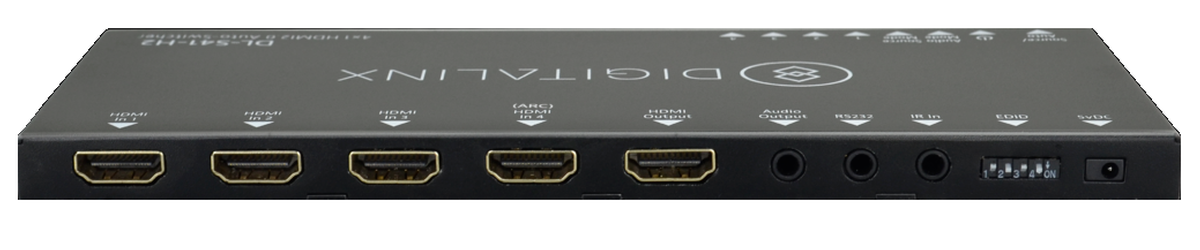

Liberty AV DL-S41-H2
18 Gbps HDMI 2.0b 4x1 HDMI Auto-Switcher

Description

The DL-S41-H2 is an slimline HDMI 2.0b auto switcher with four HDMI video inputs and one HDMI output. This switcher supports HDMI video resolutions up to 4Kx2K@60Hz 4:4:4, HDR, and multichannel audio. In addition to passing EDID information from the display, there are multiple built-in EDID settings to simplify an installation. The switcher will de-embed digital stereo audio to provide an analog audio source for an existing audio system. The switcher also supports audio return channel (ARC) for transmitting audio back to HDMI input and audio output ports from display device.

When in auto-switch mode, the switcher will switch to an HDMI input as soon as a new source is connected. When the active is removed, the switcher will select the first source on the lowest numbered input. The switcher may also be controlled via RS232, IR with the included remote, or from the source button on the front of the switcher.

Features and Benefits

• Auto-switch or manual switch between four HDMI inputs

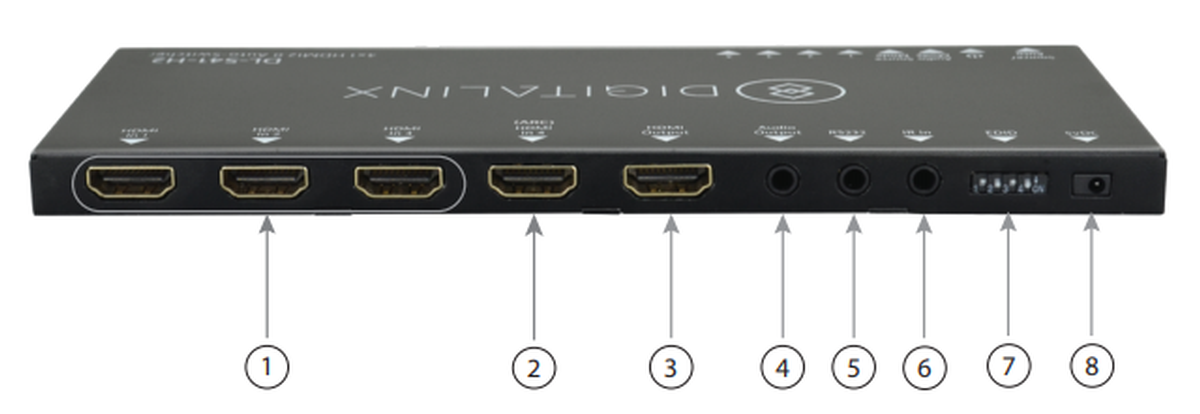

• (1) HDMI and (1) 3.5mm TRS audio (ARC and audio de-embedding) output

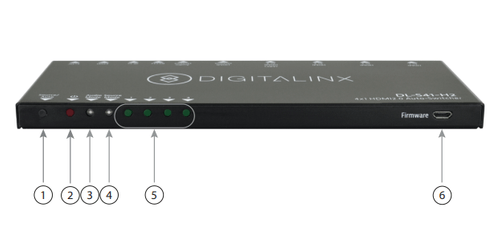

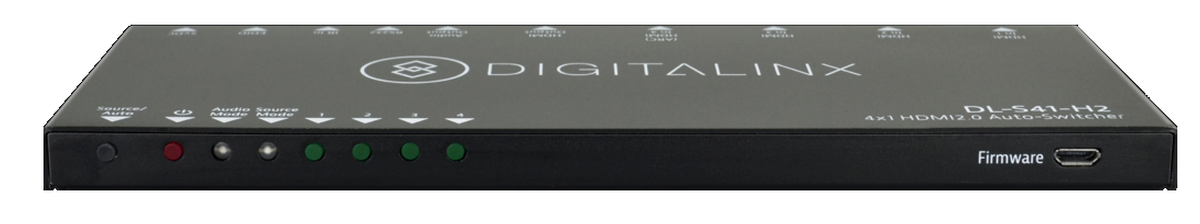

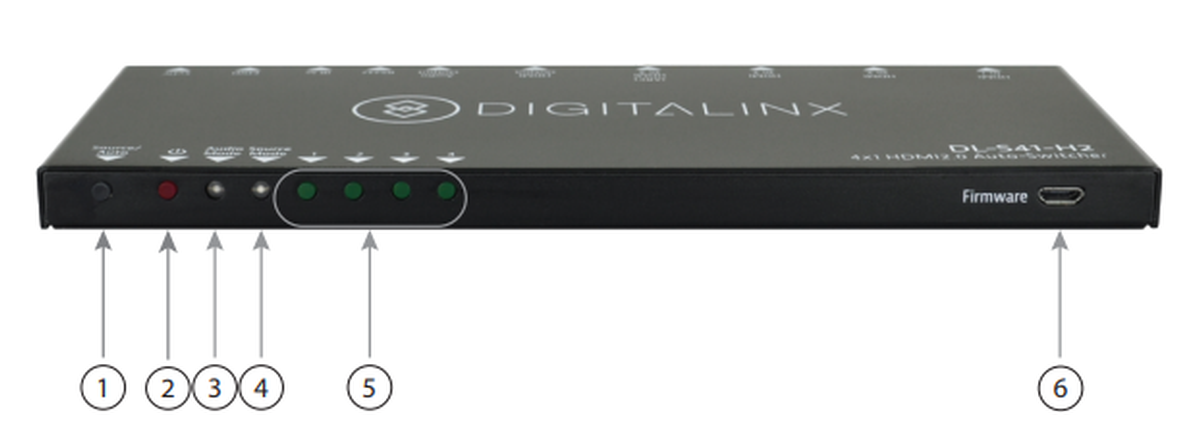

• Front panel, IR, and RS232 control
• Supports resolutions up to 4k@60Hz, 4:4:4. 8 bit deep color
• Supports HDR formats, HDCP 2.2 compliant
• Supports EDID management
• Supports CEC pass through control of source / display
• Super slim design only .5" tall
• Micro USB Firmware update port
• Included: 5VDC 1A universal power supply with international power adapters

Applications

• Residential / Home Theater
• Conference Spaces
• Training Rooms / Classrooms

Specifications

• Video Output: (1) HDMI
• Video Output Connector: (1) HDMI type A
• Output Video Signal: HDMI
• Input Resolutions Supported: Up to 3840 x 2160 @ 60Hz, 4:4:4, 8bit color depth
• Standards: Compliant with HDMI 2.0b & HDCP2.2
• AUDIO
• Supported Output Formats: PCM 2.0
• Audio Output: Stereo analog
• Audio Output Connector: (1) 3.5mm TRS audio jack
• Audio Output Impedance: 70 Ohms
• Frequency Response: 20Hz~20K Hz
• CONTROL
• Control Port / Connector: (1) IR / 3.5mm connector / (1) RS232 / 3.5mm connector
• OTHER
• System Bandwidth: 18Gbps
• Operating Temperature: -10C ~ +55C
• Storage Temperature: -25C ~ +70C
• Humidity: 10% ~ 90%
• Power Supply Input: 100V~240V AC
• Output: 5V DC 1A
• Power Consumption: 5 watts
• Dimension (W*H*D): 7.6" * .47" * 3.2"
• Weight: 0.4 lbs
• Warranty: 2 years
• Certification: CE, FCC, RoHS

Downloads

• Liberty AV DL-S41-H2 Specifications (PDF)
