Liberty AV DL-1H1V-WPKT-H2
DigitaLinx HDMI & VGA 4K Auto Switching Wall Plate Extender Set
- Transmit 1080P AV signals up to 230ft/70m or 4K AV signals up to 131ft/40m via a single category CAT6+ cable (Supporting up to 4K60 4:4:4)
- Automatically or from a push button located on the wall plate
- Easy Configuration: EDID settings will be found on the receiver, which allows for the video source to send out a video signal that is supported by the display
Description
The Liberty AV DL-1H1V-WPKT-H2 DigitaLinx represents a cutting-edge solution for professional audiovisual installations, combining advanced HDBaseT technology with intelligent auto-switching capabilities. This comprehensive wall plate extender set enables seamless transmission of both HDMI and VGA signals up to impressive distances while supporting stunning 4K resolution at 60Hz with 4:4:4 color sampling. Designed for educational, commercial, and medical environments, this system delivers the reliability and performance that modern presentation spaces demand.
Engineered with commercial-grade housing and backed by Liberty AV's exceptional 5-year warranty and lifetime technical support, the DL-1H1V-WPKT-H2 provides integrators with confidence in every installation. The single-gang wall plate transmitter features both HDMI and VGA inputs, automatically detecting and switching between sources for effortless operation. Signal extension capabilities are remarkable transmitting 1080p content up to 230 feet or 4K content up to 131 feet over a single CAT6 cable, eliminating the need for expensive, bulky HDMI cables over long distances.

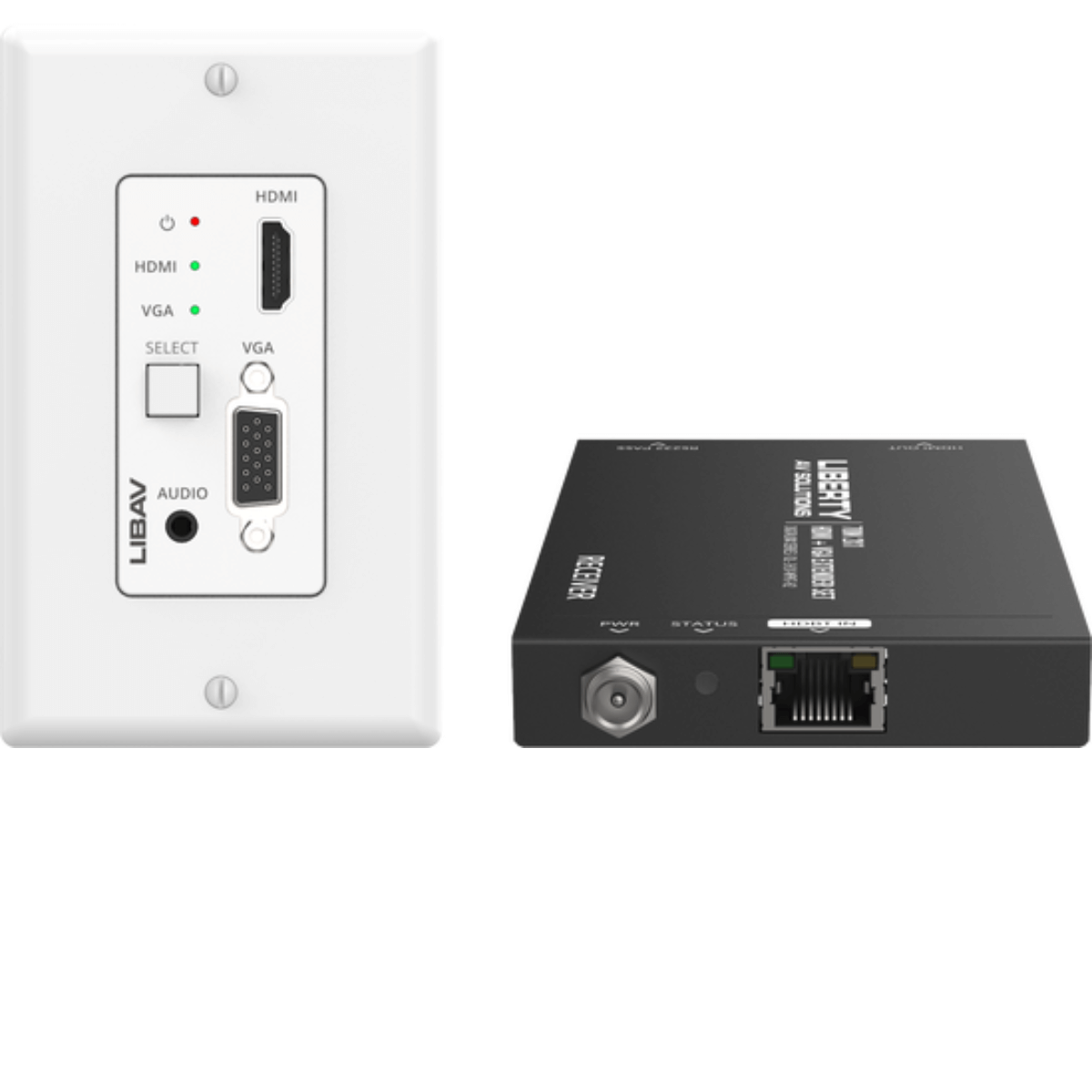

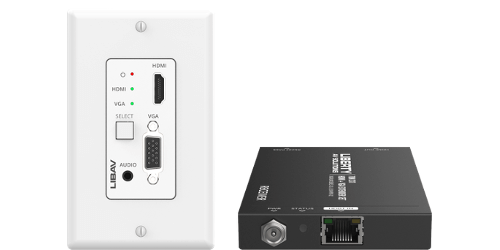

Power management is simplified through innovative Power over HDBaseT technology, with the receiver unit powering the wall plate transmitter over the same category cable used for signal transmission. This one-way PoH implementation reduces installation complexity and eliminates the need for additional power supplies at the transmitter location. The system includes a complete package: wall plate transmitter, receiver unit, power supply, quick start guide, and cover plate, ensuring everything needed for a professional installation is included right out of the box.
Frequently Asked Questions
What cable type is required for this extender system?
The DL-1H1V-WPKT-H2 requires CAT6 or higher category twisted pair cable for optimal performance. For maximum distance capability—230 feet at 1080p or 131 feet at 4K—it's recommended to use high-quality CAT6 or CAT6a cable. The system leverages HDBaseT technology to transmit both video signals and power over this single cable connection, dramatically simplifying installation compared to traditional HDMI extension methods.
How does the automatic source switch feature work?
The DL-1H1V-WPKT-H2 features intelligent automatic switching that detects active video sources on both HDMI and VGA inputs. When a laptop or other device is connected and powered on, the system automatically selects that input for transmission to the display. Users can also manually switch between sources using a convenient push button located on the wall plate, providing flexibility for various presentation scenarios without requiring separate control systems.
Can this system work with legacy VGA sources alongside modern HDMI devices?
Yes, the DL-1H1V-WPKT-H2 is specifically designed to accommodate both legacy VGA and modern HDMI sources simultaneously. This dual-input capability makes it ideal for educational institutions and corporate environments where older laptops with VGA outputs still coexist with newer HDMI-equipped devices. The system seamlessly handles switching between these different source types, ensuring compatibility across diverse equipment inventories.
Does the wall plate require a separate power connection?
No separate power connection is required at the wall plate location. The DL-1H1V-WPKT-H2 utilizes Power over HDBaseT technology, where the receiver unit powers the wall plate transmitter through the same CAT6 cable that carries the video signals. The receiver connects to a standard power outlet using the included power supply, making installation cleaner and eliminating the need for electrical work at the wall plate location.
