Liberty AV DL-1H1A-WPKT-W
Wall Plate Single Decora HDMI and Audio Over HDBaseT Kit

Description

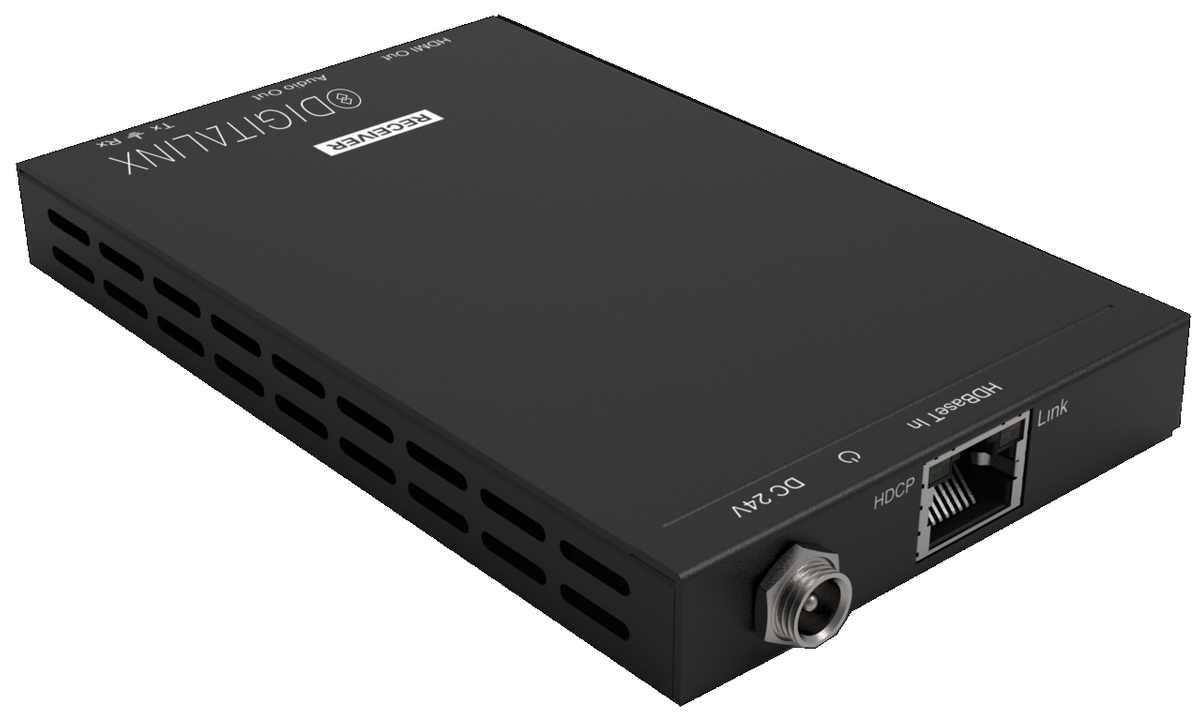

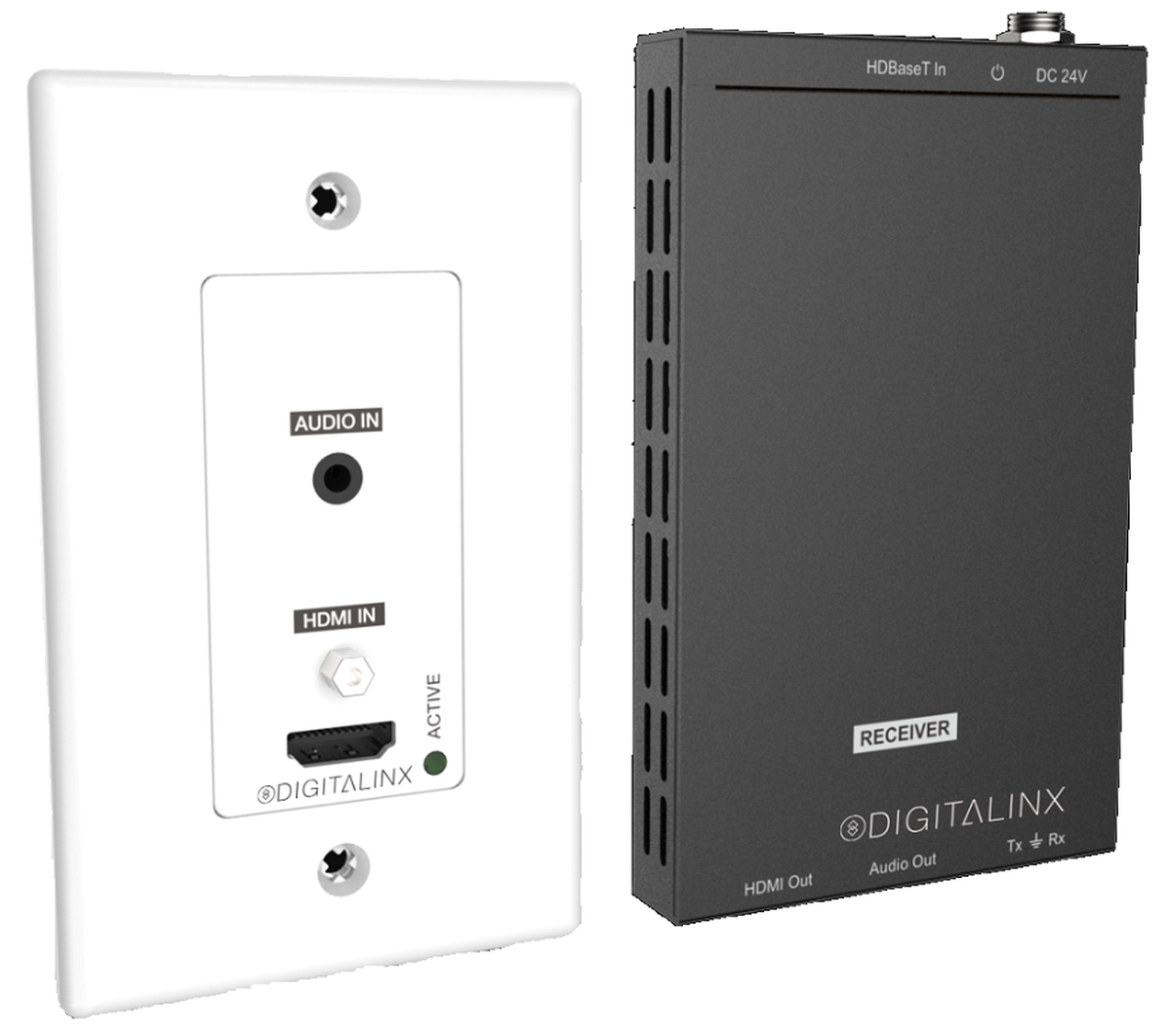

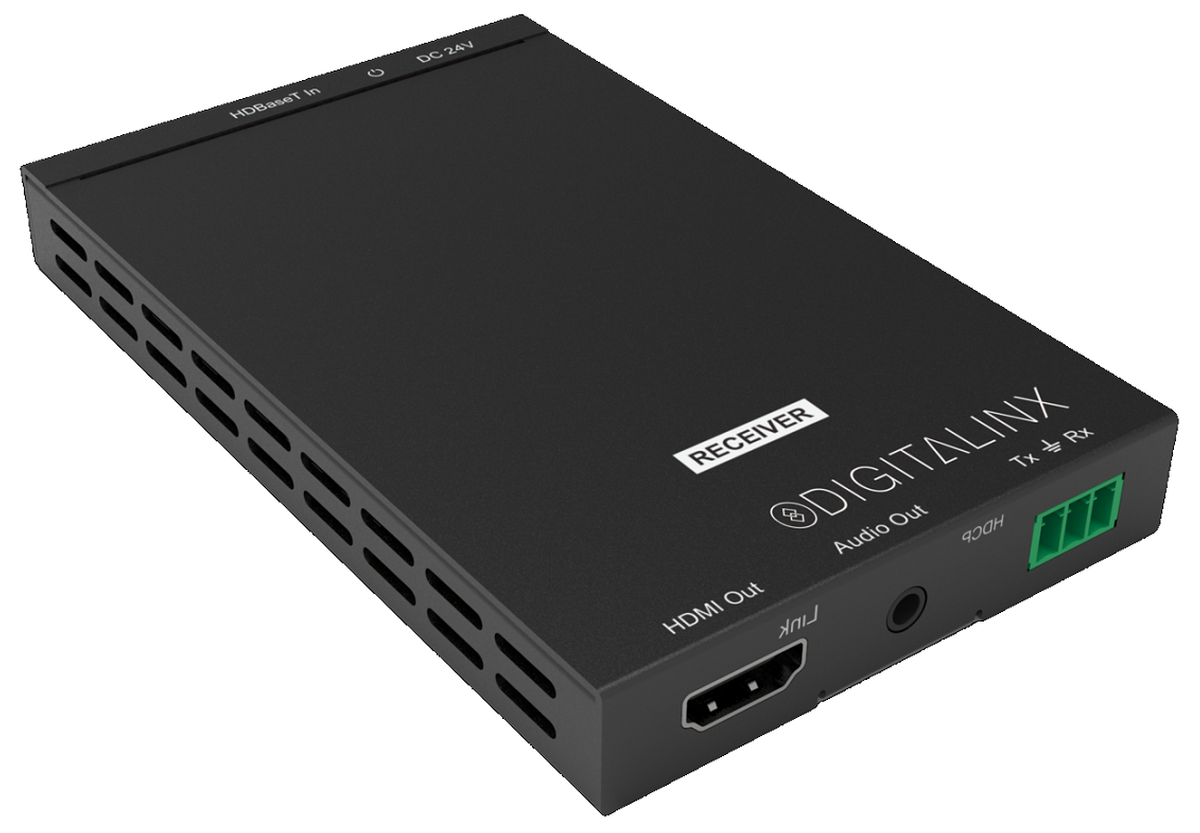

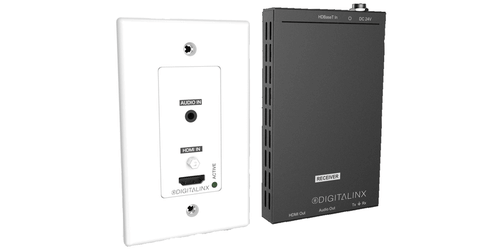

The Digitalinx DL-1H1A-WPKT-W HDBaseT extender set transmits HDMI, audio and RS232 over single category 6 twisted pair cable. The DL-1H1A-WPKT-W can transmit 4K resolutions up to 4K@60Hz, 4:2:0 up to 40m / 120’ and 1080P up to 70m / 230’. The audio circuit is completely separate and is not dependent on the HDMI input source to be active. The Digitalinx DL-1H1A-WPKT-W is HDCP 2.2 compliant. The DL-1H1A-WPKT-W HDBaseT receiver powers wall plate transmitter via HDBaseT so there is no need for an external power supply for the wall plate.

The DL-1H1A-WPKT-W is sold only as a set. The individual transmitter and receiver are not compatible with other HDBaseT devices due to proprietary PoE circuitry.

Specifications

• Supports up to 4K2K@30Hz (4:4:4), 4K2K@60Hz (4:2:0) 10.2G
• Supports all HDMI audio formats
• Single cable 40m for 4K / 70m for 1080P
• RS232 & CEC pass-through
• Dedicated 3.5mm audio independent from the HDMI signal
• Remote power from receiver to wall plate transmitter

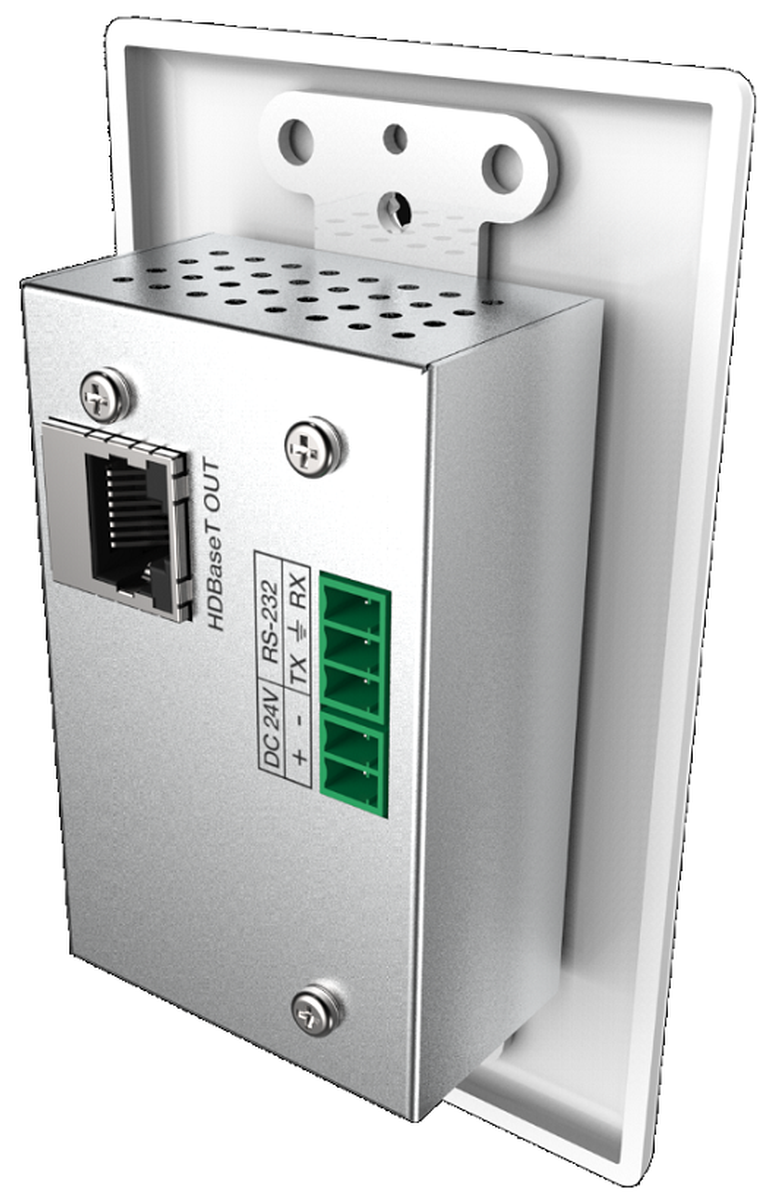

• TX is standard US 1-gang decorator format
• HDCP 2.2 compliant

Downloads

• Liberty AV DL-1H1A-WPKT-W Specifications (PDF)
• Diagram (PDF)
