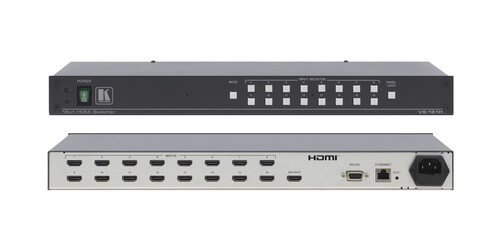

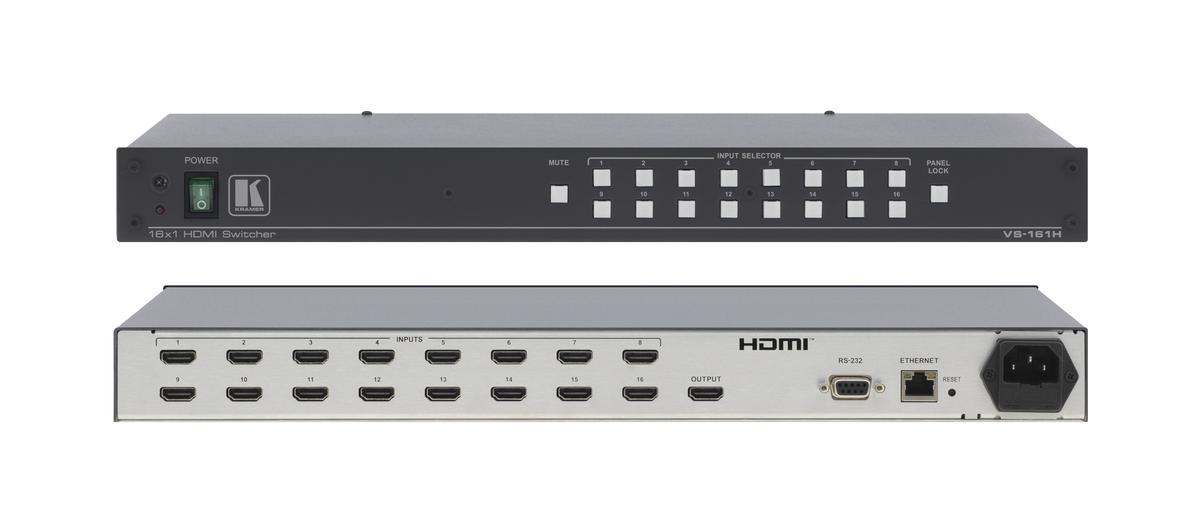

Kramer AV VS-161H
Large Venue 16x1 1080P HDMI Switcher

Description

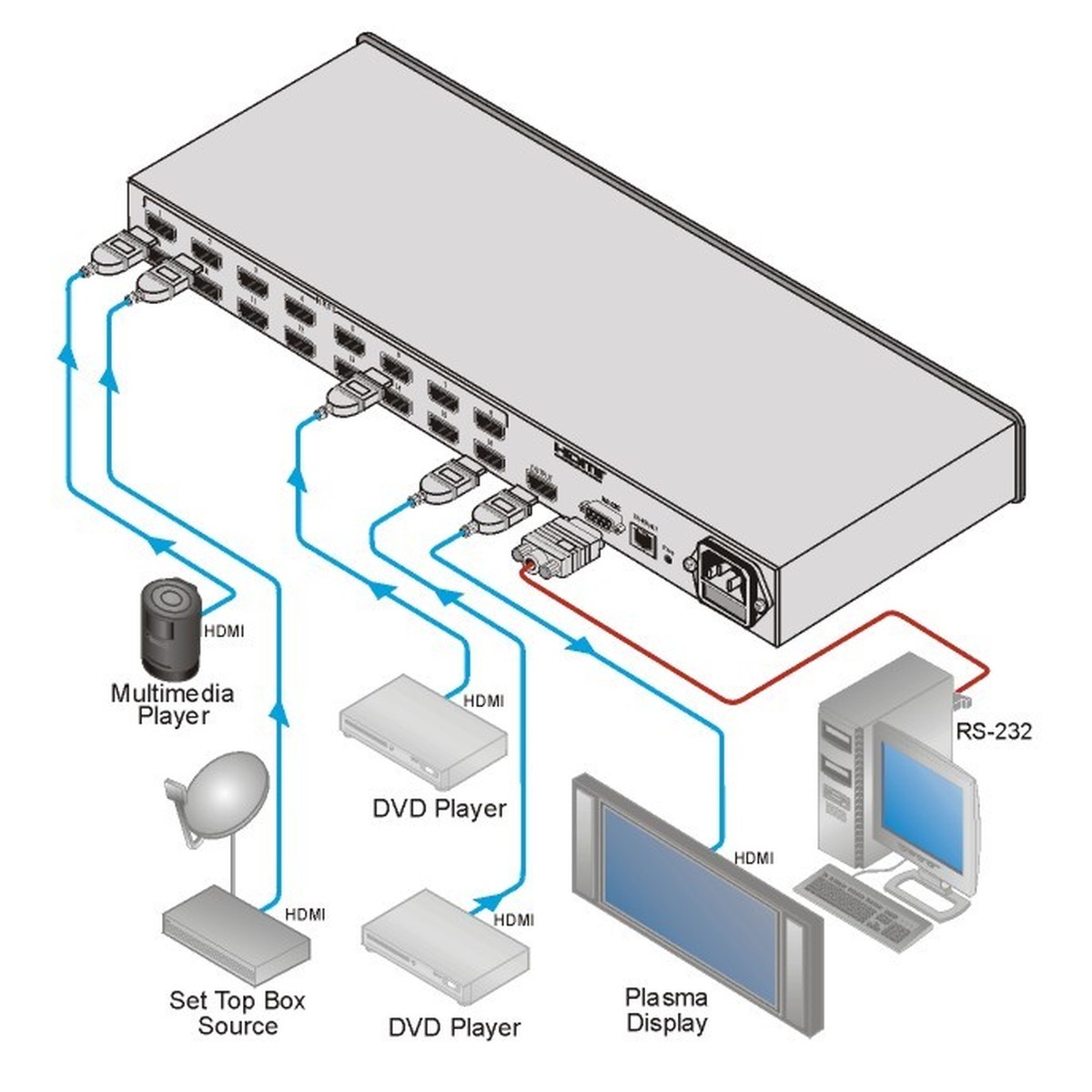

The Kramer VS-161H is a high performance HDMI switcher for any large switching application, it can accept up to 16 HDMI inputs and then switch them over a single HDMI output.  The included remote control makes switching fast and easy, the switcher can also be controlled by the front control panel, Ethernet, and RS-232. You can be ensured that your output is just as good as the original, Kramer reclocks and equalizes the signal for perfect picture quality.  The switcher supports EDID capture and HD audio pass through, as well as a front panel lock and dual mode buttons on the front panel.  The switcher features a 7 year warranty and is an affordable way to switch reliably between 16 devices, the switcher also comes with rack ears for easy rack mounting.

Specifications

• Bandwidth: 6.75Gbps (1.65Gbps per graphic channel)
• HDCP compliant
• HDMI v1.2 compliant
• EDID capture
• Dimensions: 19" x 7" x 1RU (W, D, H)
• Weight: 5.5lbs
• Warranty: 7 years
• Includes: Power cord, null modem adapter, rack ears, IR remote

Downloads

• Kramer AV VS-161H Specifications (PDF)
• Kramer AV VS-161H Manual (PDF)
