Kramer AV VP-200K
1:2 XGA DA with KR-ISP Signal Processing, Selectable Sync Input

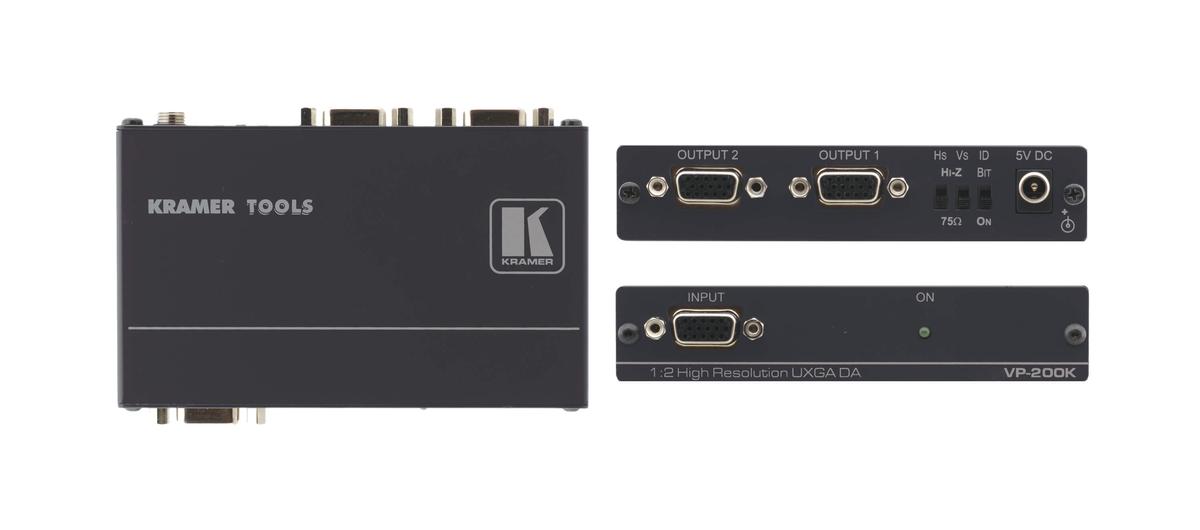

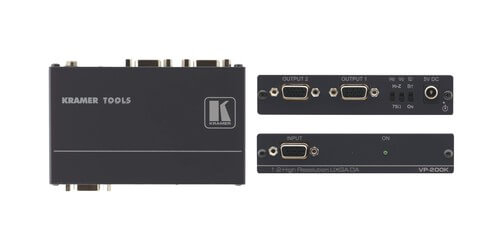

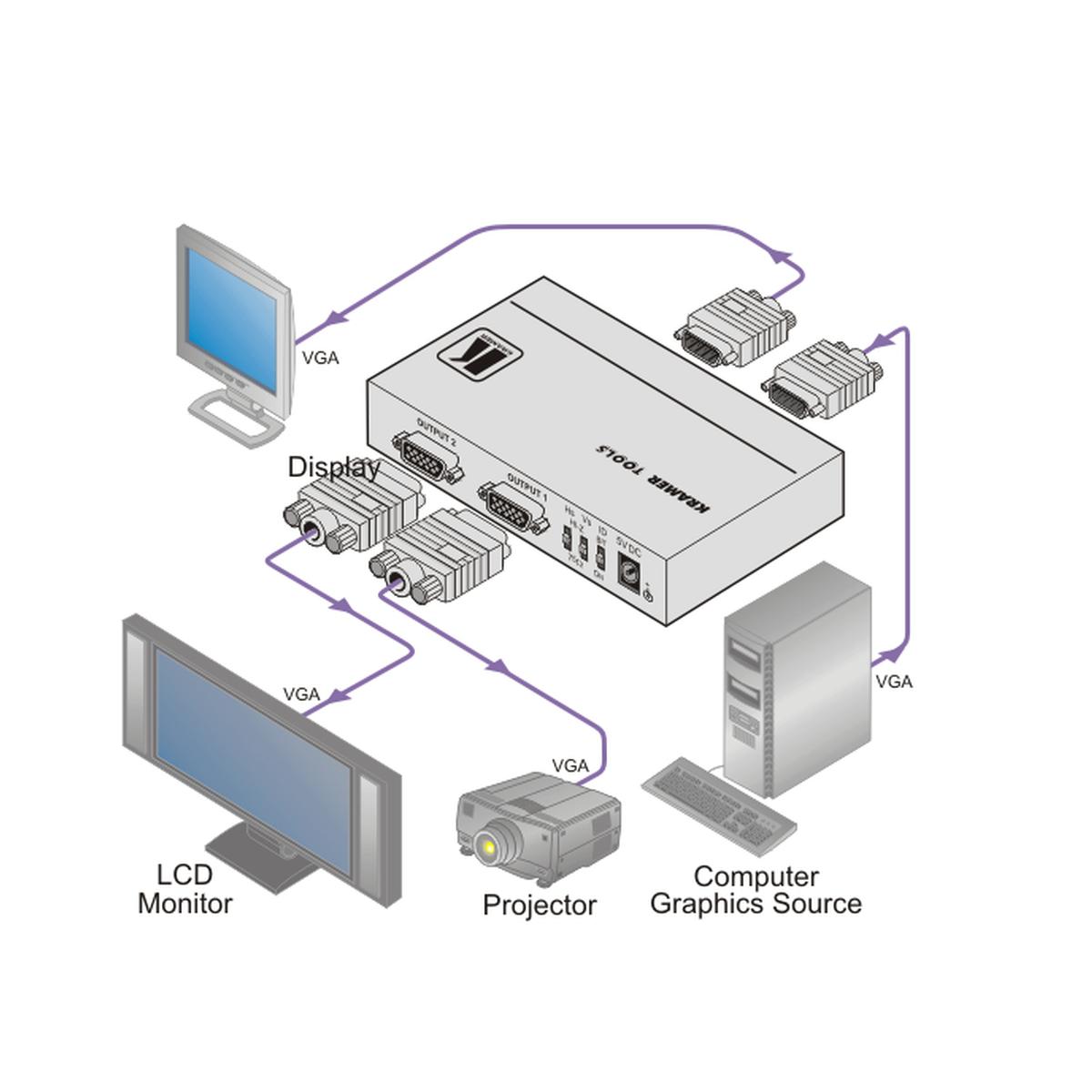

The VP-200K from Kramer is a 1x2 computer graphics distribution amplifier that has resolutions up to an exceeding UXGA. This device features Kramer's Kr-isp Advanced Sync Processing which ensures compatibility with a wide range of computers (even if the sync level is too low) by restoring the sync the signal waveform. The Kr-isp feature can equally be enabled or disabled. The distribution amplifier works by taking one input, provides the correct buffering and isolation, then distributes the signal to two identical outputs on high-density 15-pin HD connectors. Ideal applications for use are in dual monitor systems, stores, point of sales, and in high-performance presentation systems, where you have one computer graphics source and need to send an identical signal to multiple displays or a monitor, pojector, and a display for example. Features for the VP-200K include a high-bandwidth of 400MHz to ensure transparency even at high-resolutions, HDTV compatible, ID Bit Control, and EDID PassThru which passes EDID signal from display to source via output. The VP-200K also has DDC (Display Data Channel) communication support between the input and output 1 high-density 15-pin HD connectors on pins 11, 12 and 15, and has a selectable sync input impedance.
The compact size of this device makes it so 3 of these units can be rack mounted side-by-side in a 1U rack space using the optional recommended rack adapter RK-3T. The VP-200K comes backed by a 7 Year warranty from Kramer.
- DC Coupling
- HDTV Compatible
- EDID PassThru: Passes EDID signal from display to source via output 1
- Selectable Sync Input Impedance: 75 (video), 510 (Graphics/TTL)
- Max. Output Level: 2.2Vpp
- Bandwidth: 400Mhz
- Power Consumption: 5V DC
- Included Accessories: Power Supply, Mounting Bracket, 3ft 15-pin HD Cable
- Warranty: 7 Years
