Kramer AV TBUS-6xl-KIT2
HDMI and VGA Table Well Box with Retracting Lid

Description

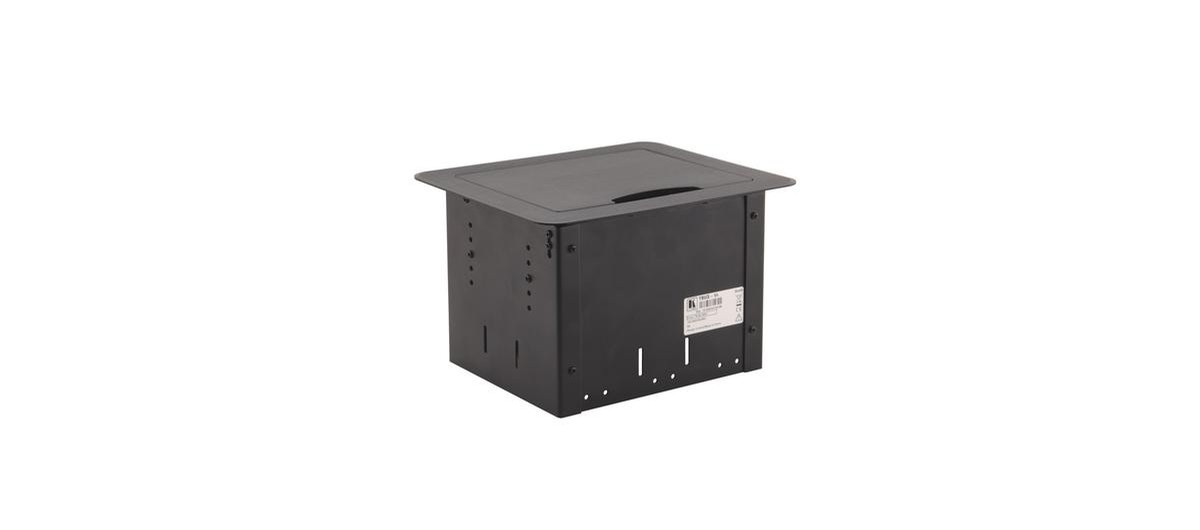

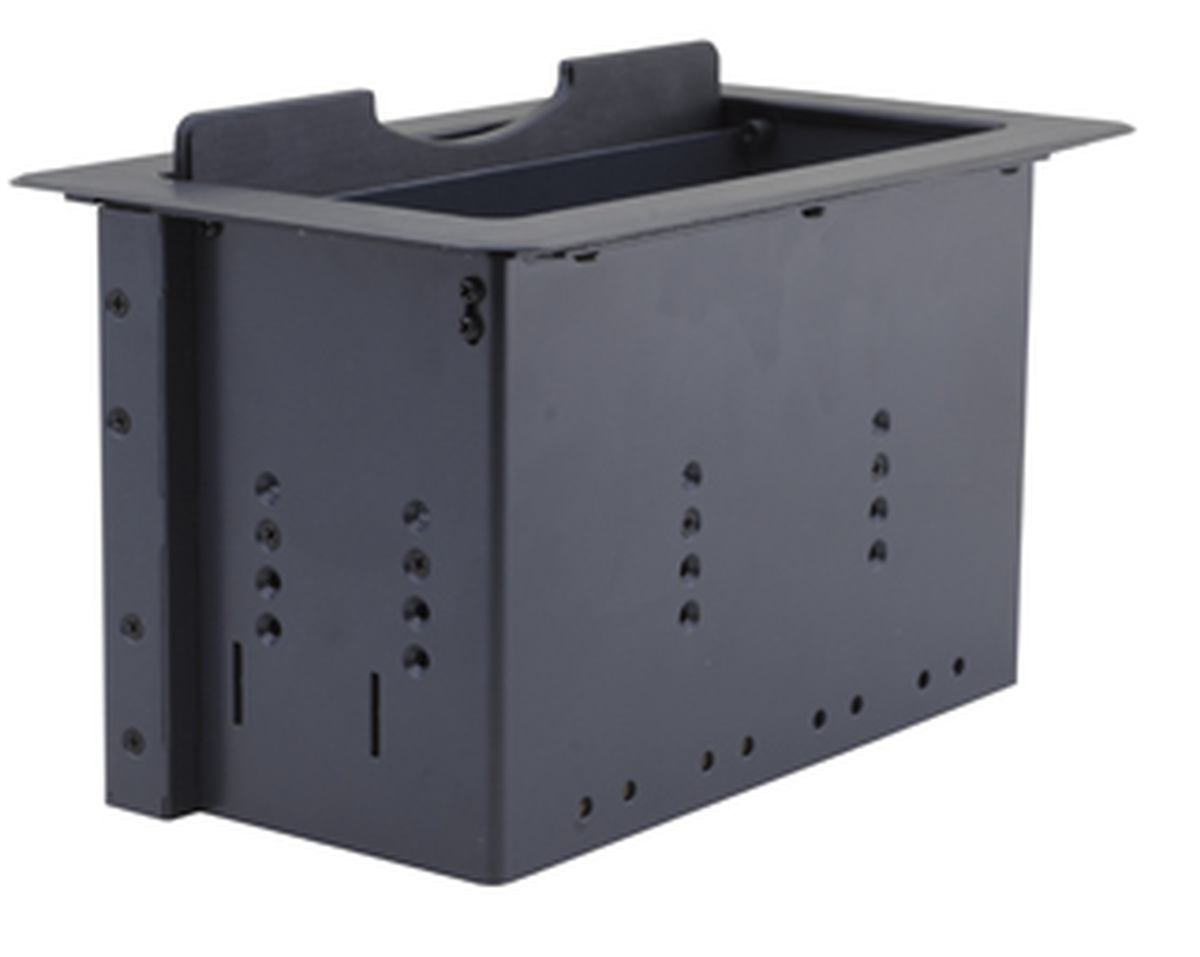

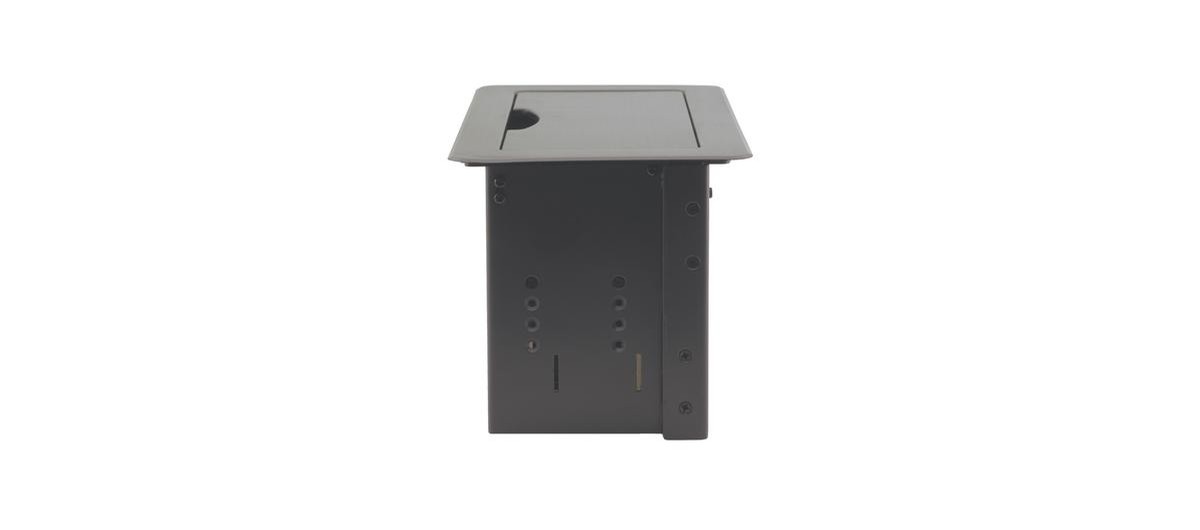

The Kramer TBUS-6xl-KIT2 is a configured table mount enclosure with a tilt up lid that can retract back down in the unit.   The lid also has a small pass through opening for cables, this allows cables to be plugged in with the lid closed.

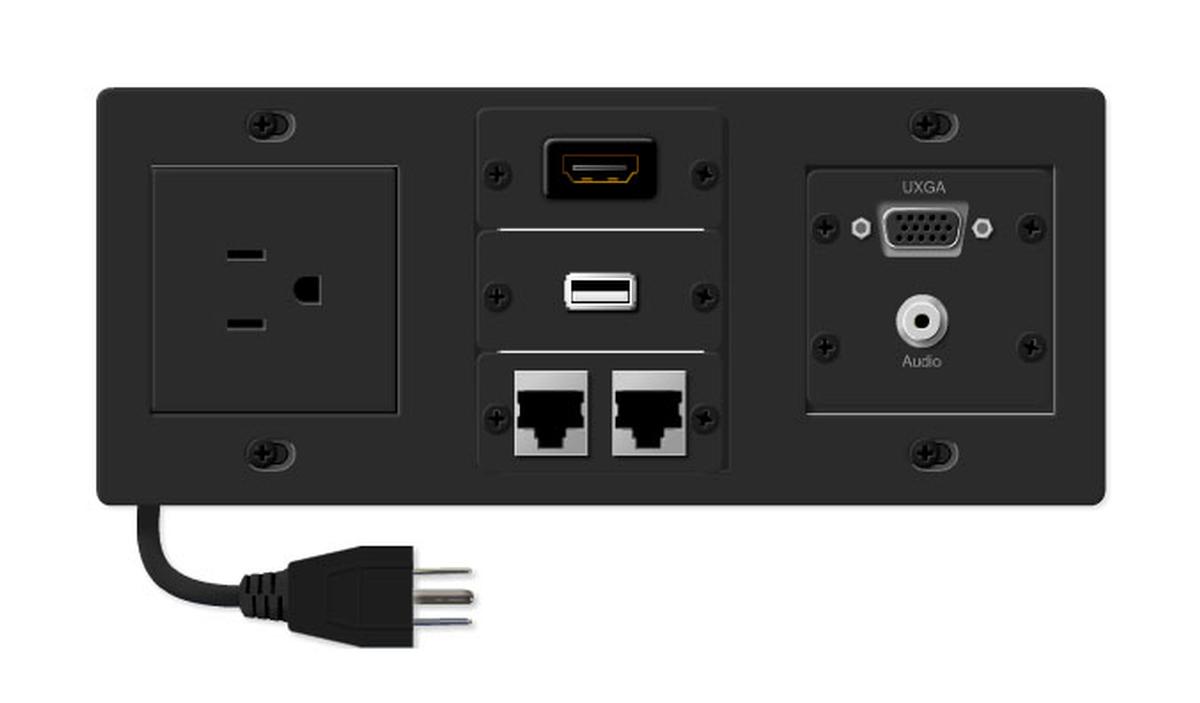

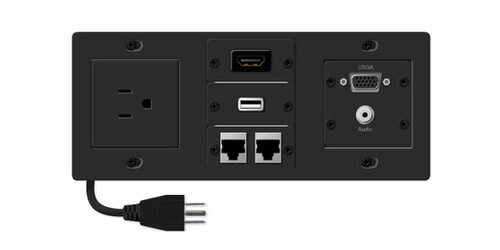

The kit includes the most desired connections:  1 power with 6' cord, 1 VGA with audio, 1 USB, 2 RJ45, and 1 HDMI.  All connections are F-F for ease of installing cables up to the backside of the connections.

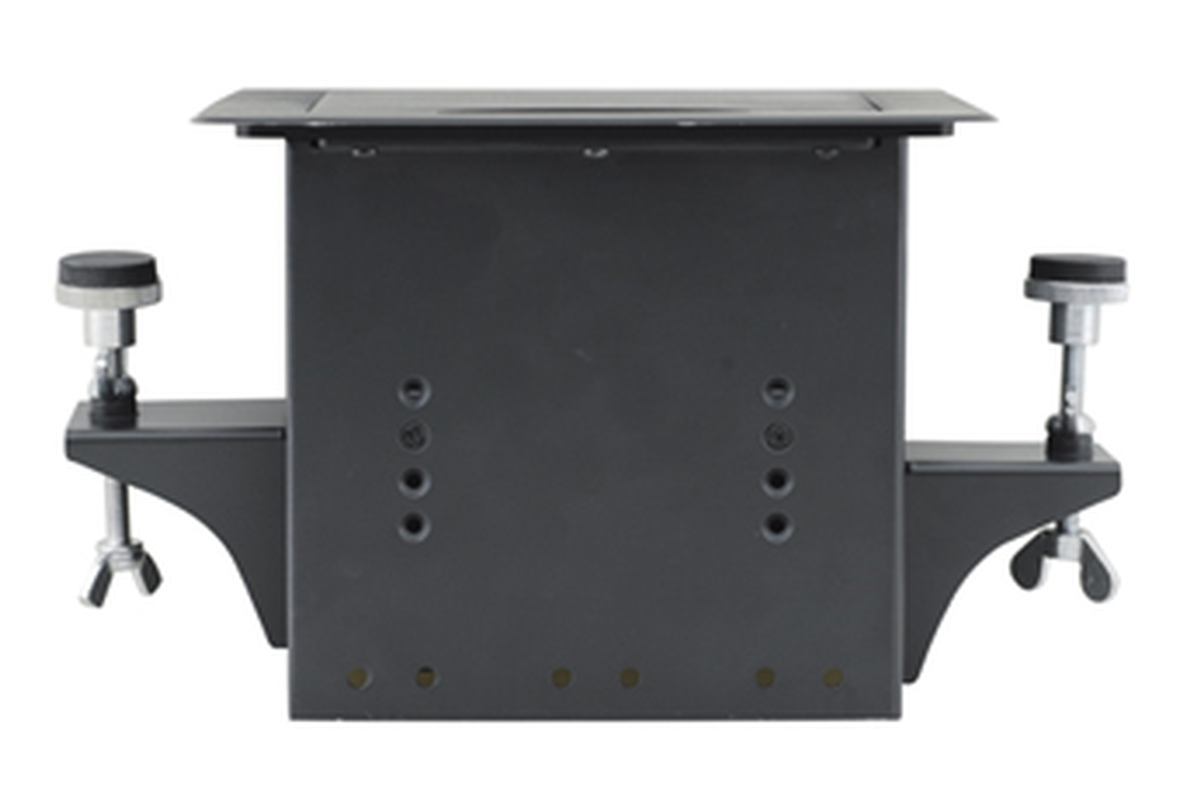

To install just cut your hole, drop it in, and secure with the included clamps to the underside of your table.

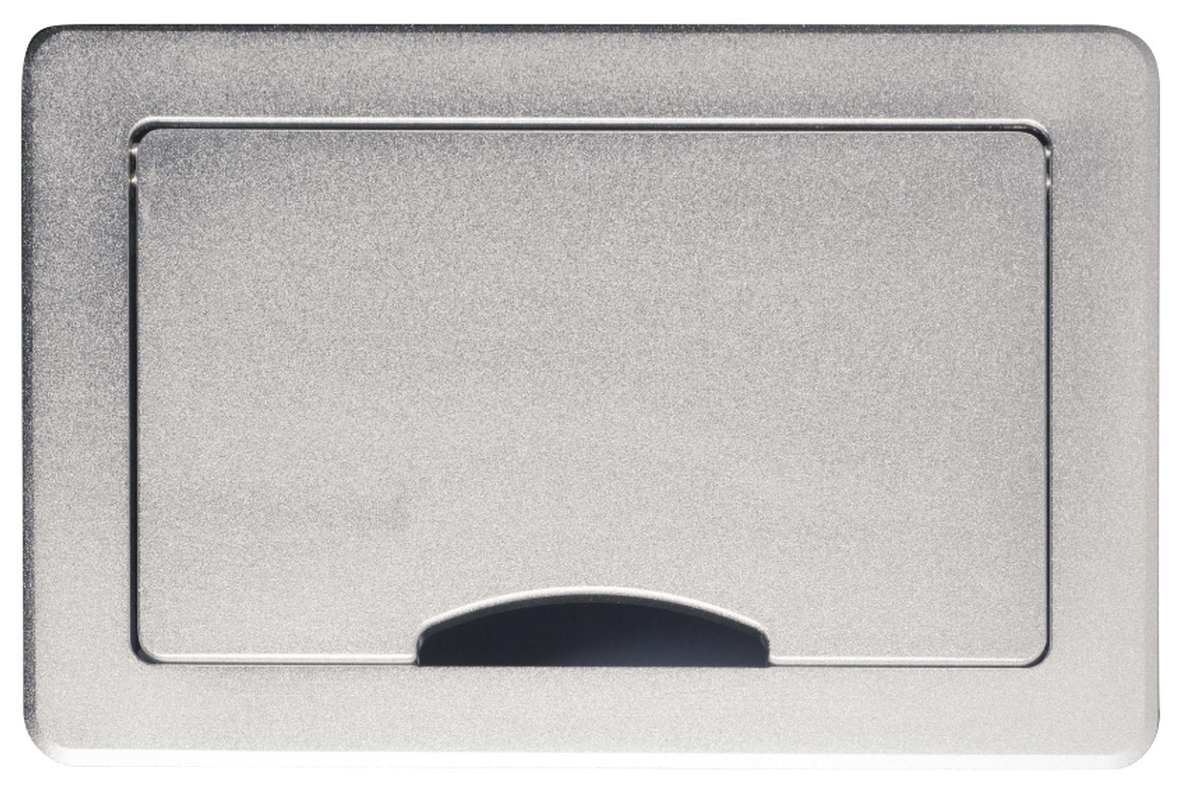

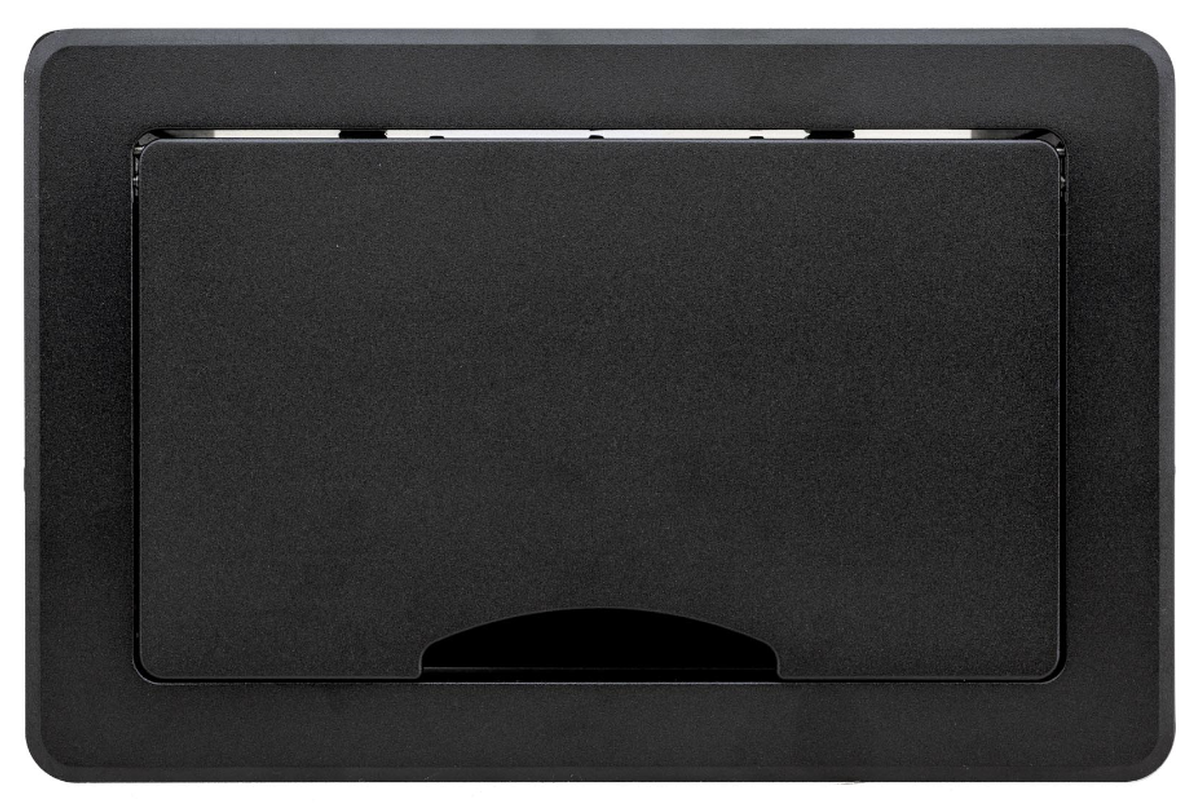

Choose between black anodized aluminum and (silver) clear anodized aluminum.

Applications include: boardrooms, conference rooms, training facilities, lab tables, classrooms and lecterns.

In order to ensure a short lead time, minor assembly is required on most TBUS items.

Not seeing the connections you want? We can help! To request a quote for a different configuration please call us at 888-999-3759, click here to email us, or via Live Chat.

Specifications

• Works in tables up to 3" thick
• Box dimensions: 9.6"W x 5.5"D x 5.1"H
• Table cutout: 8.85" x 4.85"
• Mounting hardware included
• Warranty: 7 years
• UL and CE Qualified

Downloads

• Kramer AV TBUS-6xl-KIT2 Specifications (PDF)
• Kramer TBUS-6xl(B)-KIT2 Manual (PDF)
• Kramer TBUS-6xl(B)-KIT2 Cutout Template (PDF)
• Kramer AV TBUS-6xl-KIT2 AutoCAD Drawing
