Kramer AV TBUS-10xl-KIT9
Table Box with 4K Auto Switcher w/ HDBaseT Out & Receiver

Part #: TBUS-10xl-KIT9
Satisfaction Guaranteed!
MSRP: $2,421.00
Our Price: $1,936.80
Free Shipping* | 30 Day Returns* | Authorized Dealer
Color Choice:
Top TBUS-10xl-KIT9 Specifications
  • Tilting lid, retractable
  • Includes: 2 power w/ 6' cord, 1 HDMI, 1 VGA, 1 audio, 2 USB (2A each) charging ports
  • Black or silver
  • Single HDBaseT out 4K auto switcher with embedded audio
"Customer Service was knowledgeable and answered all questions quickly. Great Service!"
-Gregory W.
Contact a product specialist!
Proudly supporting our customers since 2008

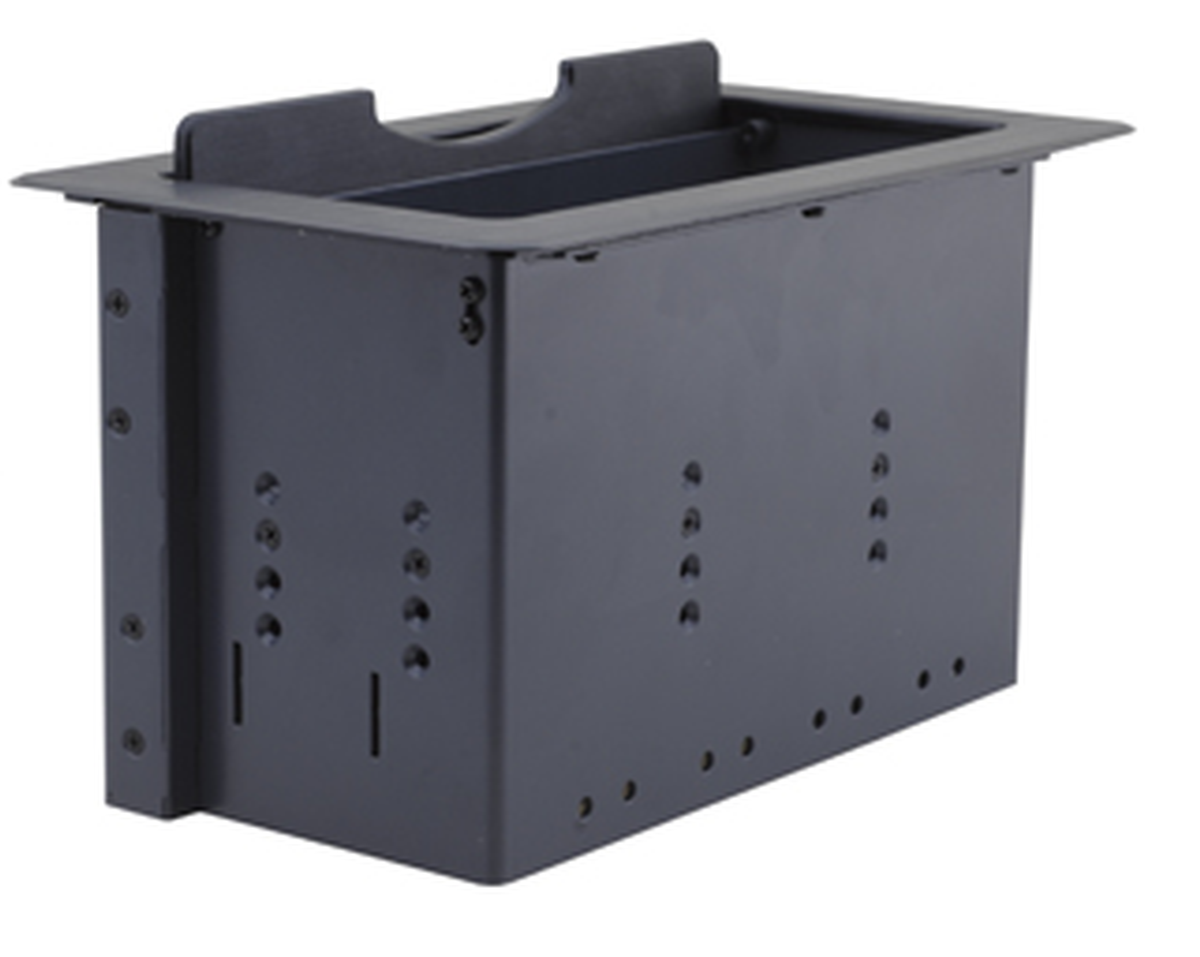

The Kramer TBUS-10xl-KIT9 is a table well box with integrated auto switching that has HDBaset out and also includes the Kramer TP-580R receiver.  The box features a manual tilt up lid that also retracts down into the unit when needed, this allows the lid to be out of the way for users on either side of the table.  The lid also has an opening that allows cables to be plugged in with the lid closed if desired, the material is a stylish high quality anodized aluminum.

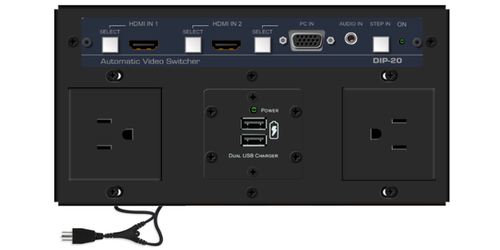

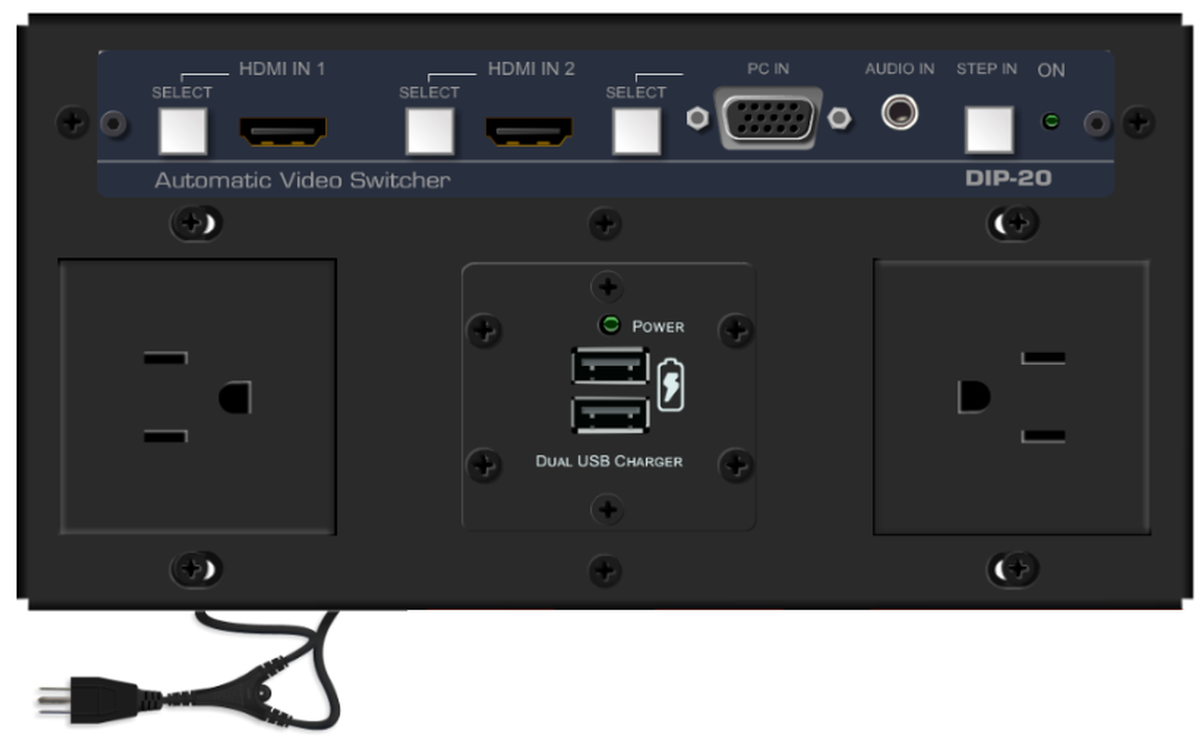

This box includes an integrated 4K auto switcher, the Kramer DIP-20 with a single HDBaseT out. It features 2 HDMI and 1 VGA with audio connection.  The switcher takes all these connections and outputs all this over a single Cat6 cable with embedded audio. It also provides auto switching, it works by detecting the last plugged in input and automatically switching on your TV, alternatively you can also manually select the inputs via the select button.

The kit also includes 2 power with a single 6' cord, and dual USB charging ports. Each port provides 2 amps of power.

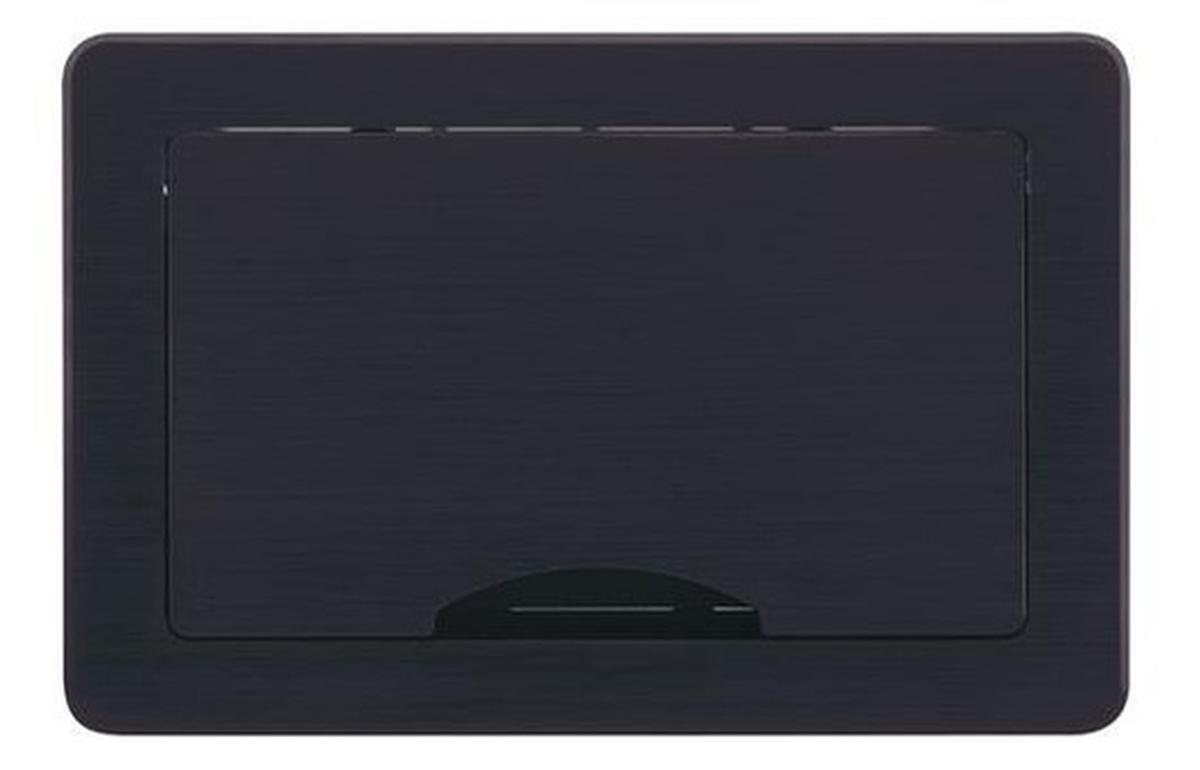

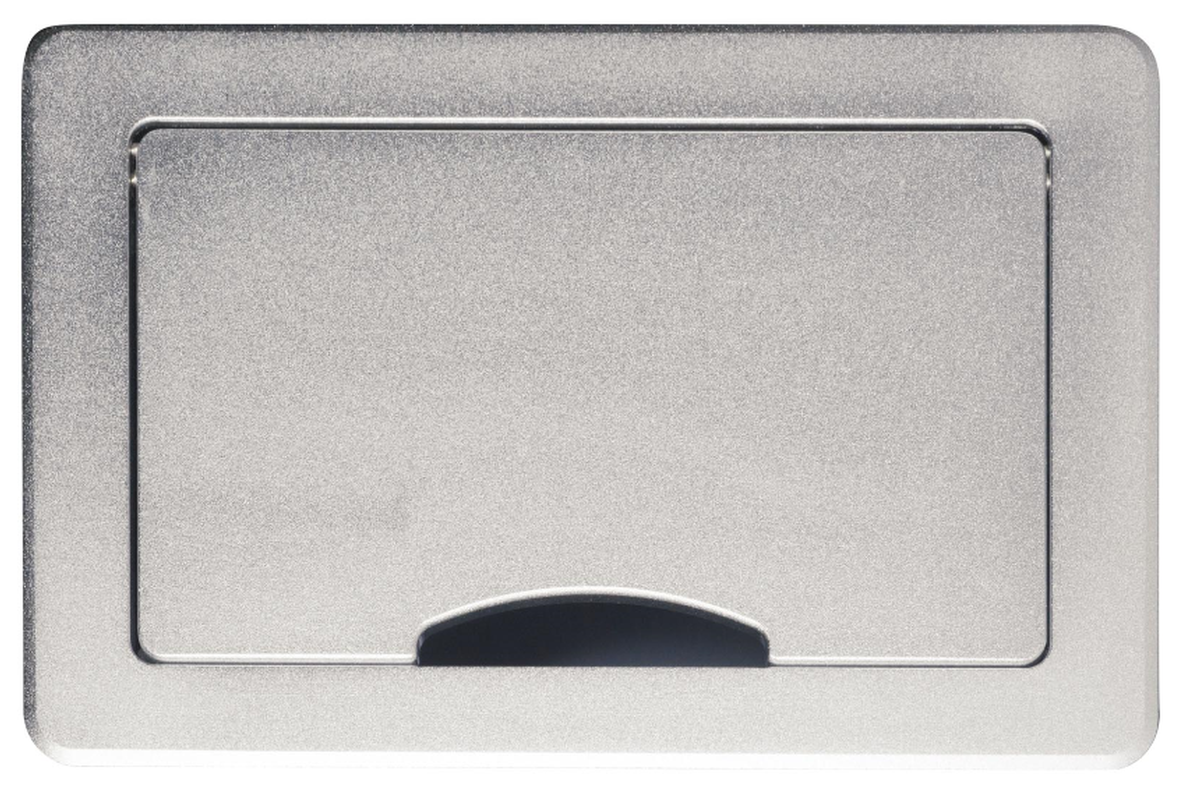

Choose between black anodized aluminum and (silver) clear anodized aluminum.

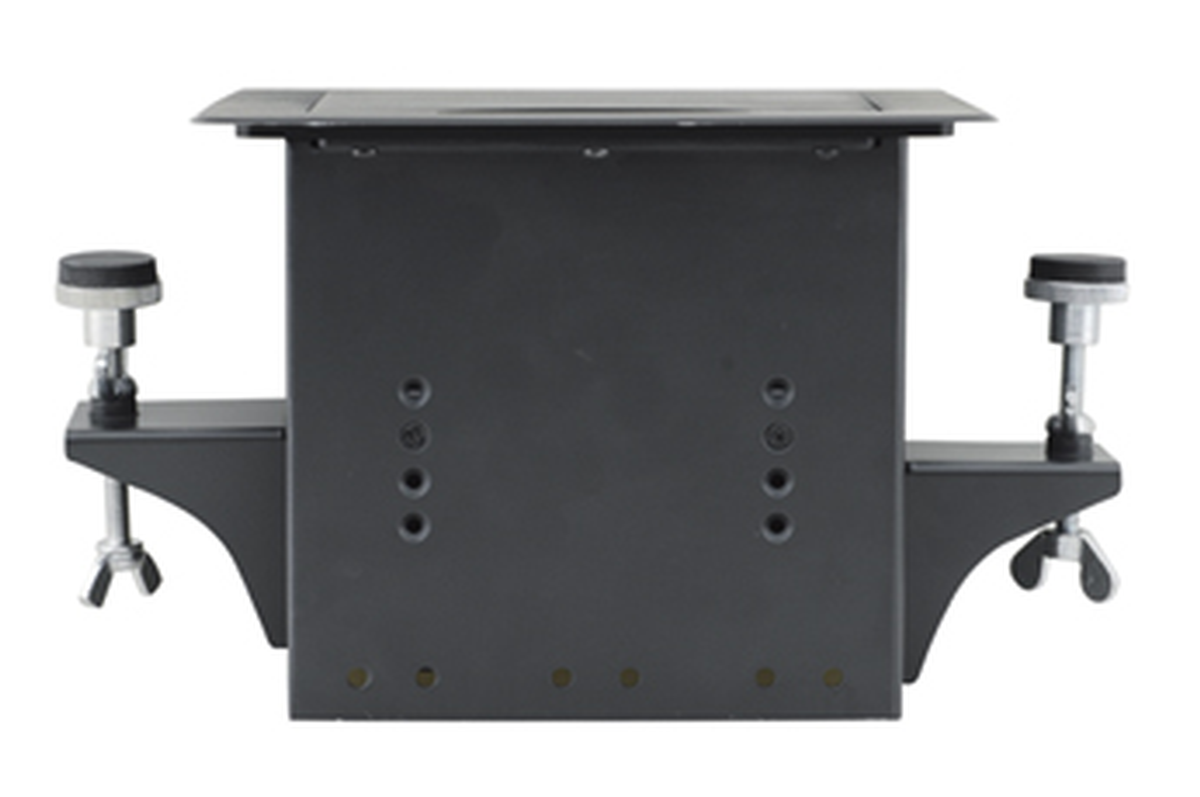

To install just cut your hole, drop it in, and secure with the included clamps to the underside of your table.

In order to ensure a short lead time, minor assembly is required on most TBUS items.

Not seeing the connections you need?  We can help!  To request a different configuration please call us at 888-999-3759, click here to email us, or via Live Chat.


  • Includes TP-580R HDBaseT receiver
  • Bezel dimensions: 10.3" x 6.8"
  • Cutout dimensions: 9.65" x 6.08"
  • The box is 5.1" deep, you can install the connections at different levels in the box in case you need space for cable storage
  • Will work in tables from 3/4" to 3" thick
  • Mounting hardware included
  • Warranty: 7 years
