Kramer AV TBUS-10xl-KIT10
Table Box w/ 4K Auto Switcher with Power, USB, Ethernet

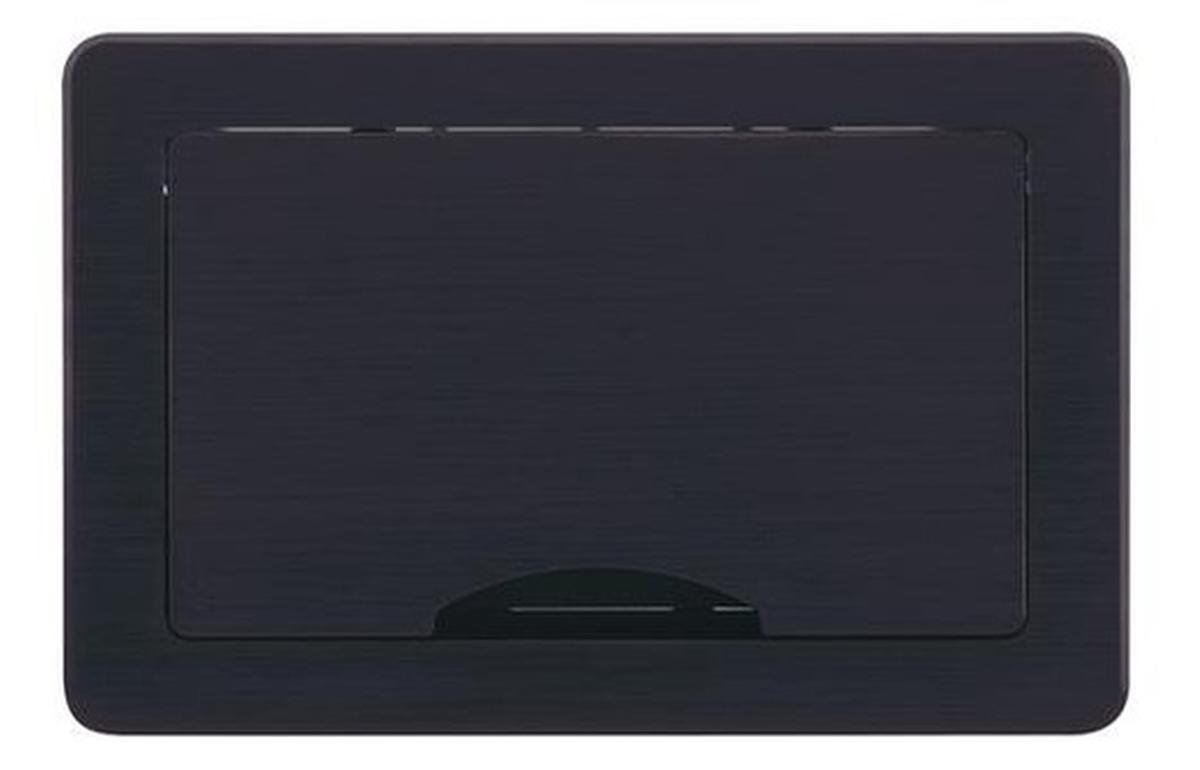

The Kramer TBUS-10xl-KIT10 is a table well box with manual tilt up lid that also retracts down into the unit when needed, this allows the lid to be out of the way for users on either side of the table. The lid also has an opening that allows cables to be plugged in with the lid closed if desired, the material is a stylish high quality anodized aluminum.

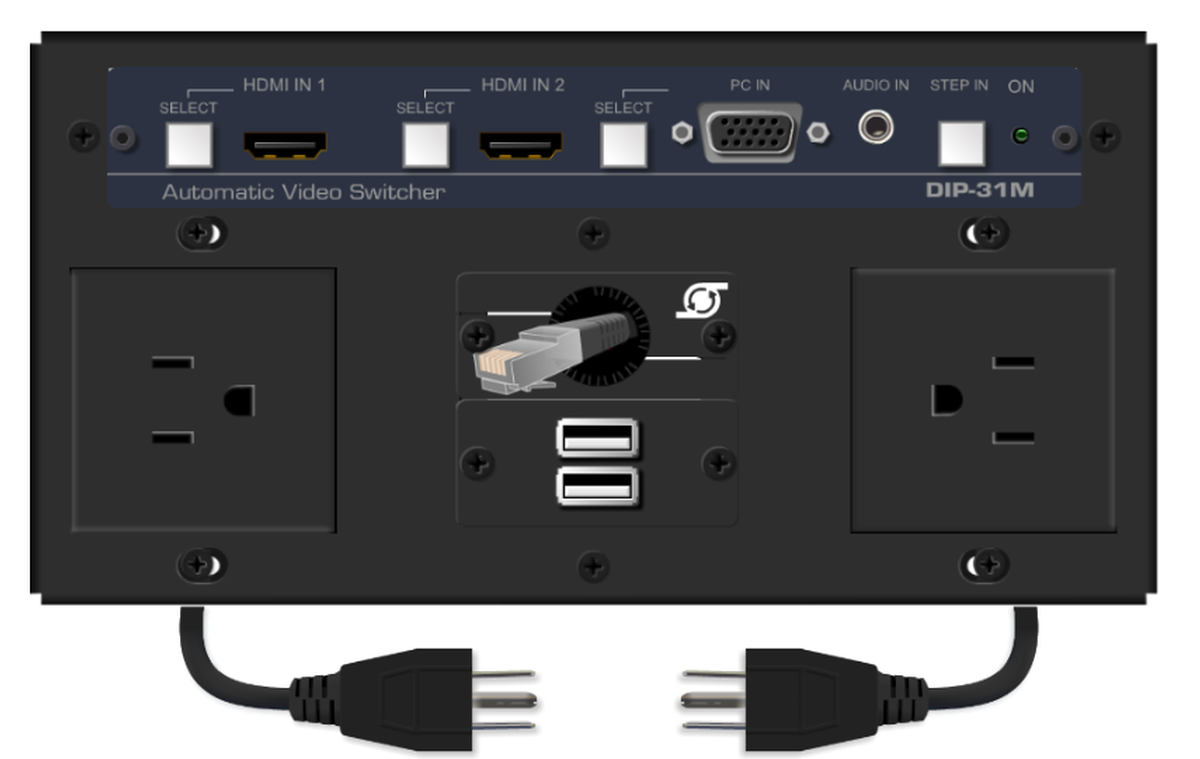

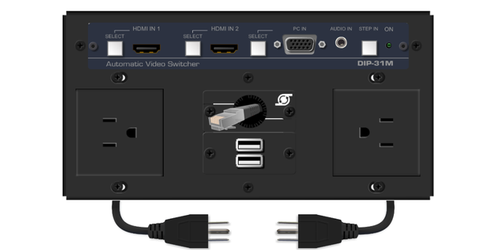

This box includes an integrated 4K auto switcher with Maestro Room Automation, the Kramer DIP-31M, with a single HDMI out. It features 2 HDMI and 1 VGA with audio connection. The switcher takes all these connections and outputs a single HDMI cable with embedded audio, it also provides auto switching. It works by detecting the last plugged in input and automatically switching on your TV, alternatively you can also manually select the inputs via the select button.
The kit also includes 2 power with a dual 6' cord, and dual USB 2.0 ports, and a 5.9' Ethernet retractable cable.
Choose between black anodized aluminum and (silver) clear anodized aluminum.
To install just cut your hole, drop it in, and secure with the included clamps to the underside of your table.
In order to ensure a short lead time, minor assembly is required on most TBUS items.
- Bezel dimensions: 10.3" x 6.8"
- Cutout dimensions: 9.65" x 6.08"
- The box is 5.1" deep, you can install the connections at different levels in the box in case you need space for cable storage
- Will work in tables from 3/4" to 3" thick
- Mounting hardware included
- Warranty: 7 years
