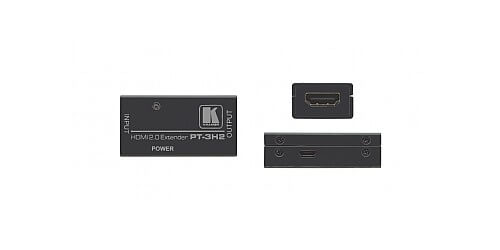

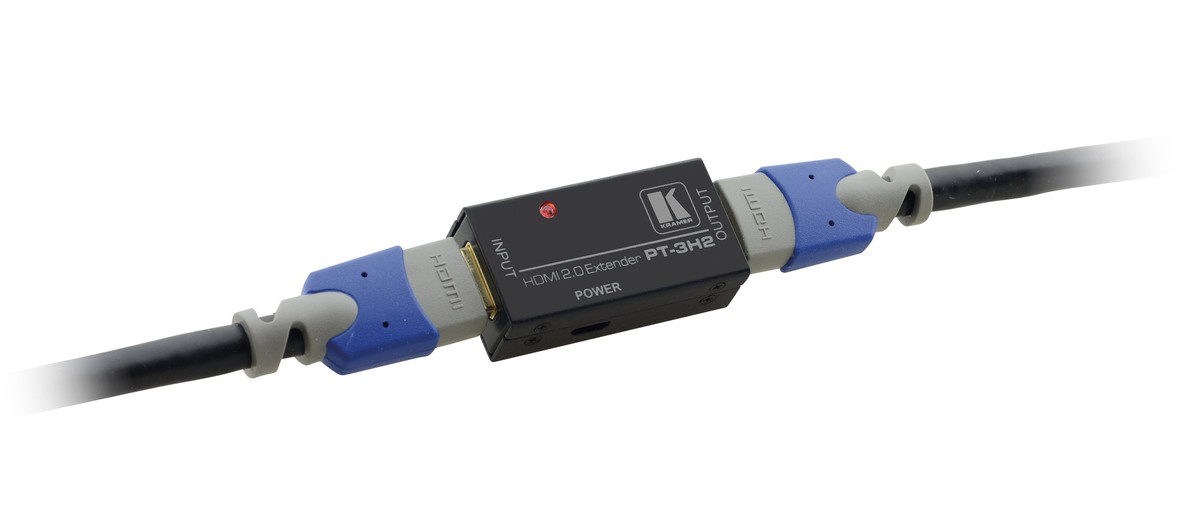

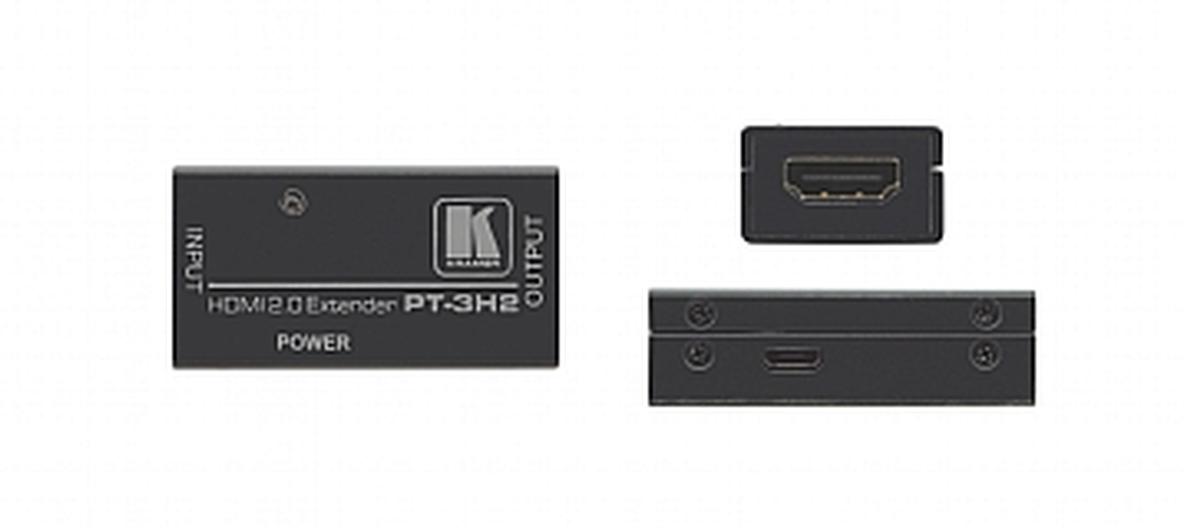

Kramer AV PT-3H2
4K UHD HDMI 2.0 Extender - Up to 66' 4K@60Hz HDCP 2.2

Description

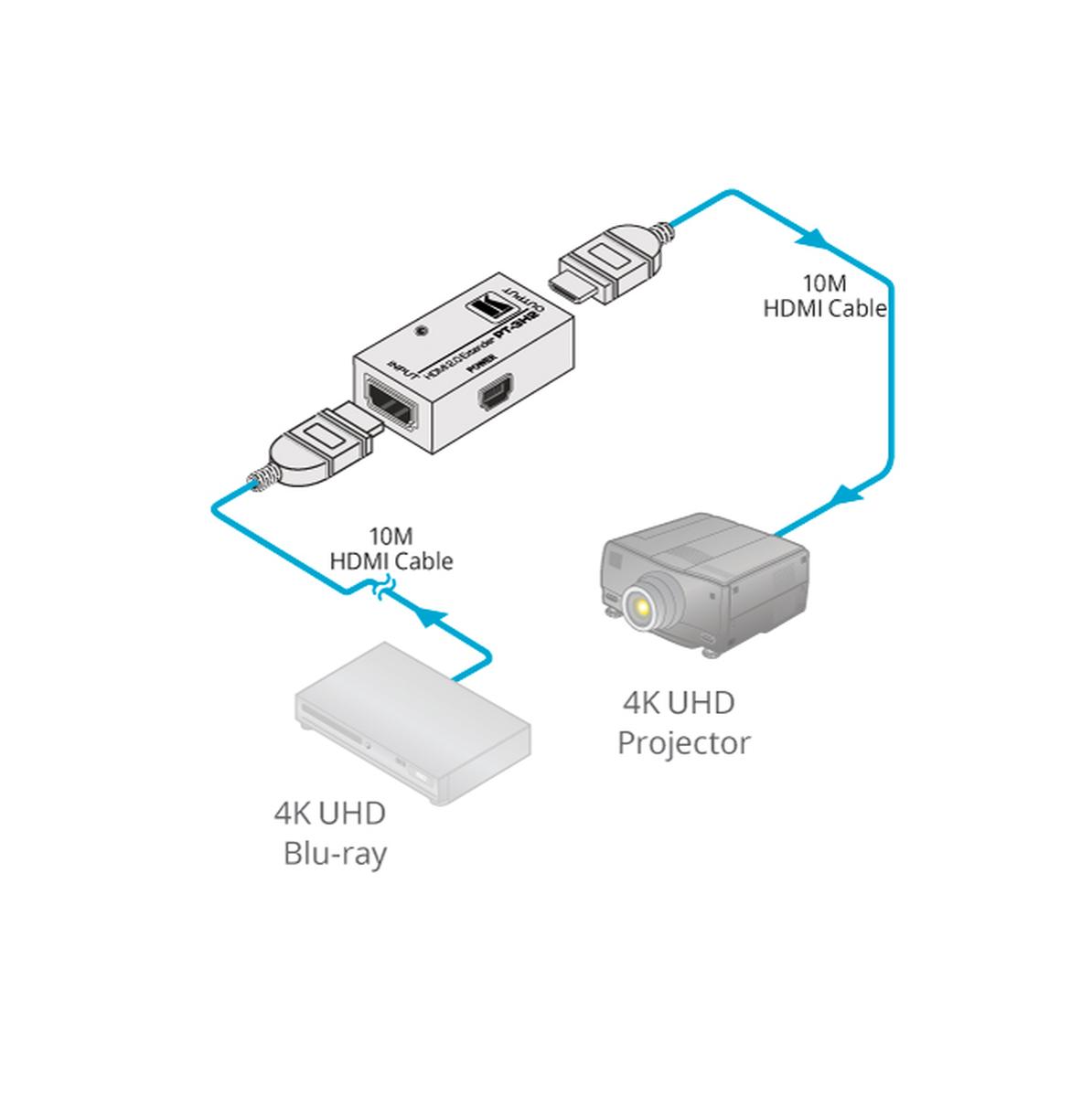

The PT-3H2 by Kramer is a 4K UHD equalizer and line driver for HDMI signals. The unit extends the range when using HDMI cables up to 66' total (max 33' on the input side and a max of 33' on the output side). Best used for use in Multimedia and Home Theater settings, as well as any 4K commercial setting. Providing the ability to extend your HDMI cables over longer runs, you have the option of keeping your input devices at a further or more convenient location from your high-end displays. This is extender is HDCP 2.2 and HDMI 2.0 compatible, with display ratios up to 4K60 (4:4:4) supported. If the HDMI source doesn't put out enough power there is a USB port to help push the signal (6' cable included). Comes backed by Kramer's 7 Year warranty.

Specifications

• Max Range at 4K@60 4:2:0 / 4K@30: 131' (82' to PT-3H2, 49' to display)
• Max Range at 1080p@60: 147' (98 to PT-3H2, 49' to display)
• Data rate: 18Gbps
• Supports ARC and CEC
• If the HDMI source doesn't put out enough power there is a USB port to help push the signal (6' cable included)
• Input: 1 HDMI/DVI-TMDS type-A 19-pin HDMI connector
• Output: 1 HDMI 2.0, HDCP 2.2 type-A 19-pin HDMI connector
• Warranty: 7 Years

Downloads

• Kramer AV PT-3H2 Specifications (PDF)
• Kramer AV PT-3H2 Manual (PDF)
