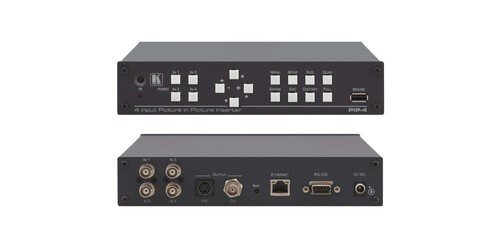

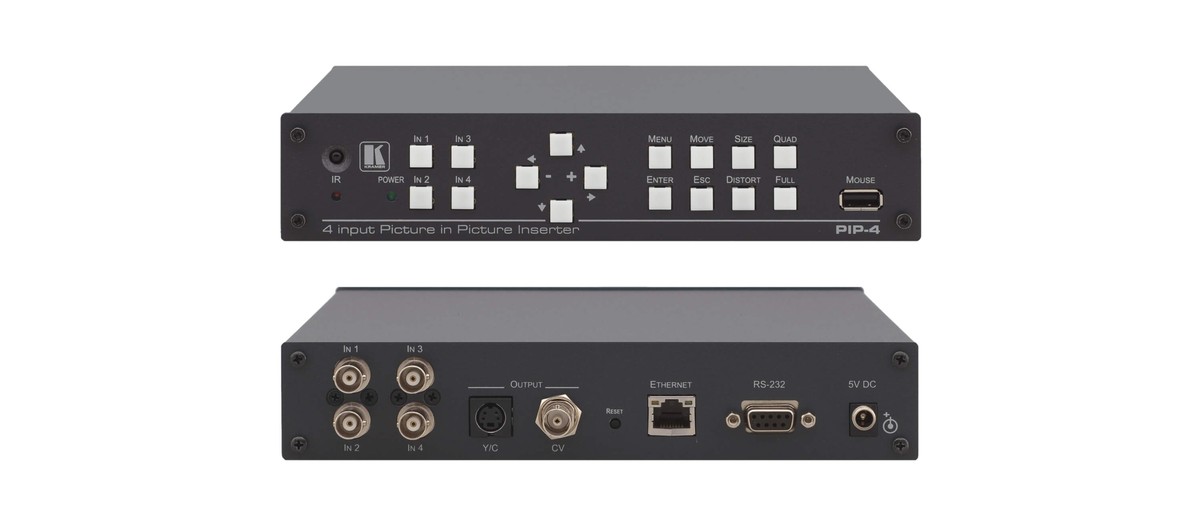

Kramer AV PIP-4
4 Composite Video Picture-in-Picture Inserter

Manufacturer SKU: 60-70957090
Satisfaction Guaranteed!
MSRP: $2,625.00
Our Price: $2,100.00
Free Shipping* | 30 Day Returns* | Authorized Dealer
Top PIP-4 Specifications
  • Inputs: 4 composite video, 1Vpp/75Ohms on BNC connectors
  • Outputs: 1 s Video, 1Vpp, 0.3Vpp/75Ohms on a 4 pin connector, 1 composite video, 1Vpp/75Ohms on a BNC connector
  • Digital Resolution: 10-bit
  • Video Bandwidth: 5.4MHz
"Custom Equipment w/ quick turnaround. CERTIFIED FRESH!"
Contact a product specialist!
Proudly supporting our customers since 2008

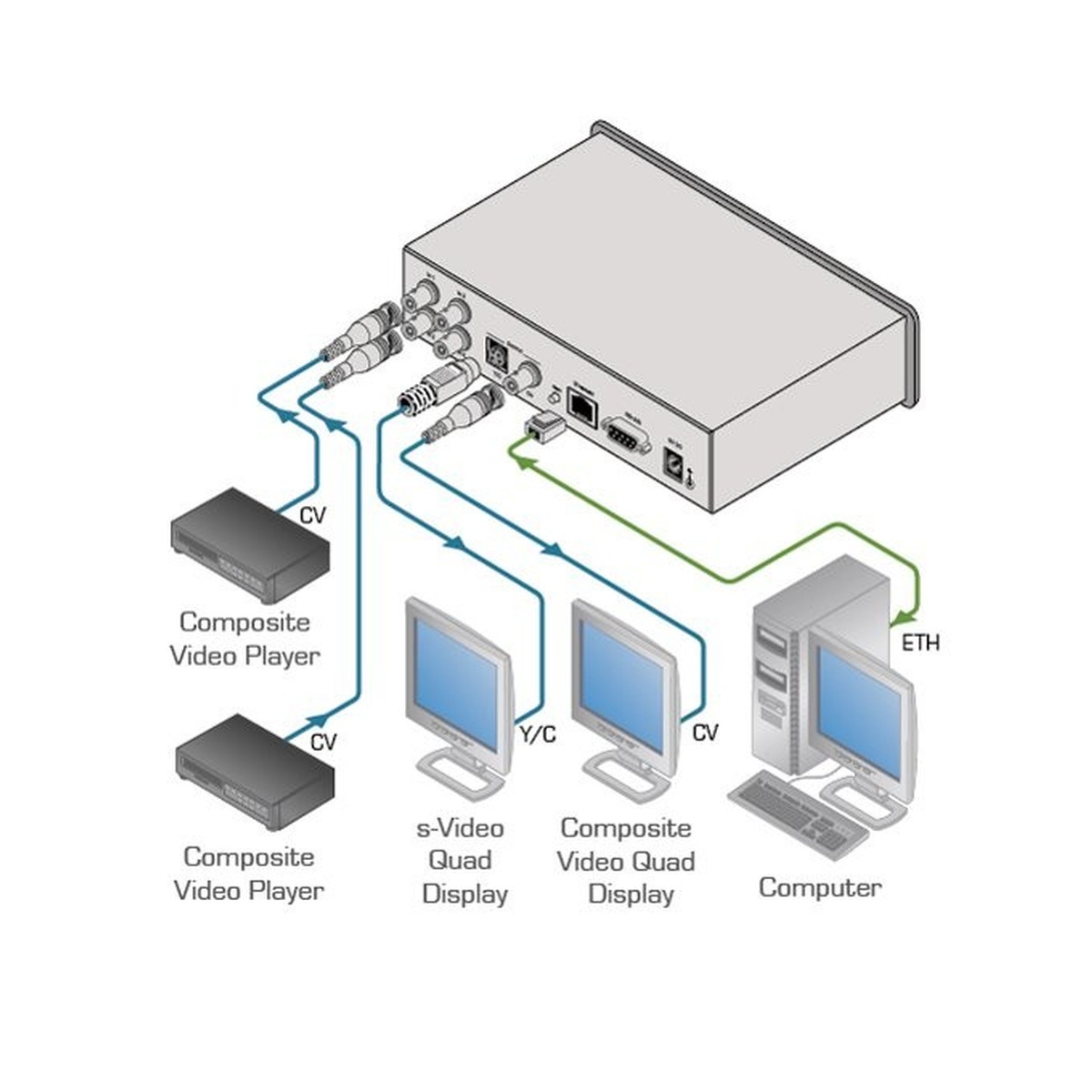

The Kramer PIP-4 is a high-quality picture-in-picture inserter for composite video signals. The PIP-4 was designed to display up to four images simultaneously, each of which can be sized and positioned individually. The picture-in-picture options allow all inputs to be display simultaneously with variable window sizing and positioning and freeze frame capability with Quad button that displays 4 equal sized images. This device features both Multi-format operation for s-Video and composite video outputs, and Multi-standard operation for PAL & NTSC compatible inputs & outputs (no format conversion). Also featured is a USB mouse connector for convenient navigation and control, including the OSD, and a built-in ProcAmp for brightness, contrast, and saturation control of for each input. The PIP-4 comes with easy to use and flexible control options that can be achieved via the front panel buttons, IR remote, mouse (with OSD), or through RS-232 & Ethernet. Making this picture-in-picture inserter and ideal product for use in video production studios for source monitoring, teleconferencing using one screen, home theater multi-channel monitoring, and security type applications.


  • Built In ProcAmp
  • Multi Standard: PAL & NTS
  • No Format Conversion
  • USB Mouse Connector For convenient navigation and control, including the OSD
  • K-Factor: 0.9%
  • S/N Ratio: 64dB
  • Chroma / Luma Delay: <15ns
  • Y/C Separation: Adaptive 4-line digital comb filters
  • Memory: Non-volatile memory for storage of 2 setups
  • Control: Front panel, OSD, RS 232 and Ethernet, video pane size and position
  • Video ProcAmp functions: video zoom, freeze
  • Power Consumption: 5V DC, 560mA
  • Included Accessories: Power supply, RC IR3 Infrared Remote Control, rack "ears"
  • Dimensions: 8.45" x 6.42" x 1.72" (W, D, H)
  • Weight: 2.0 lbs
  • Warranty: 7 Years
