Kramer AV ZUHD60-2EMP
ZyPerUHD60 Encoder, 3x1 Switching Input, Dual LAN with Integrated Management

Description

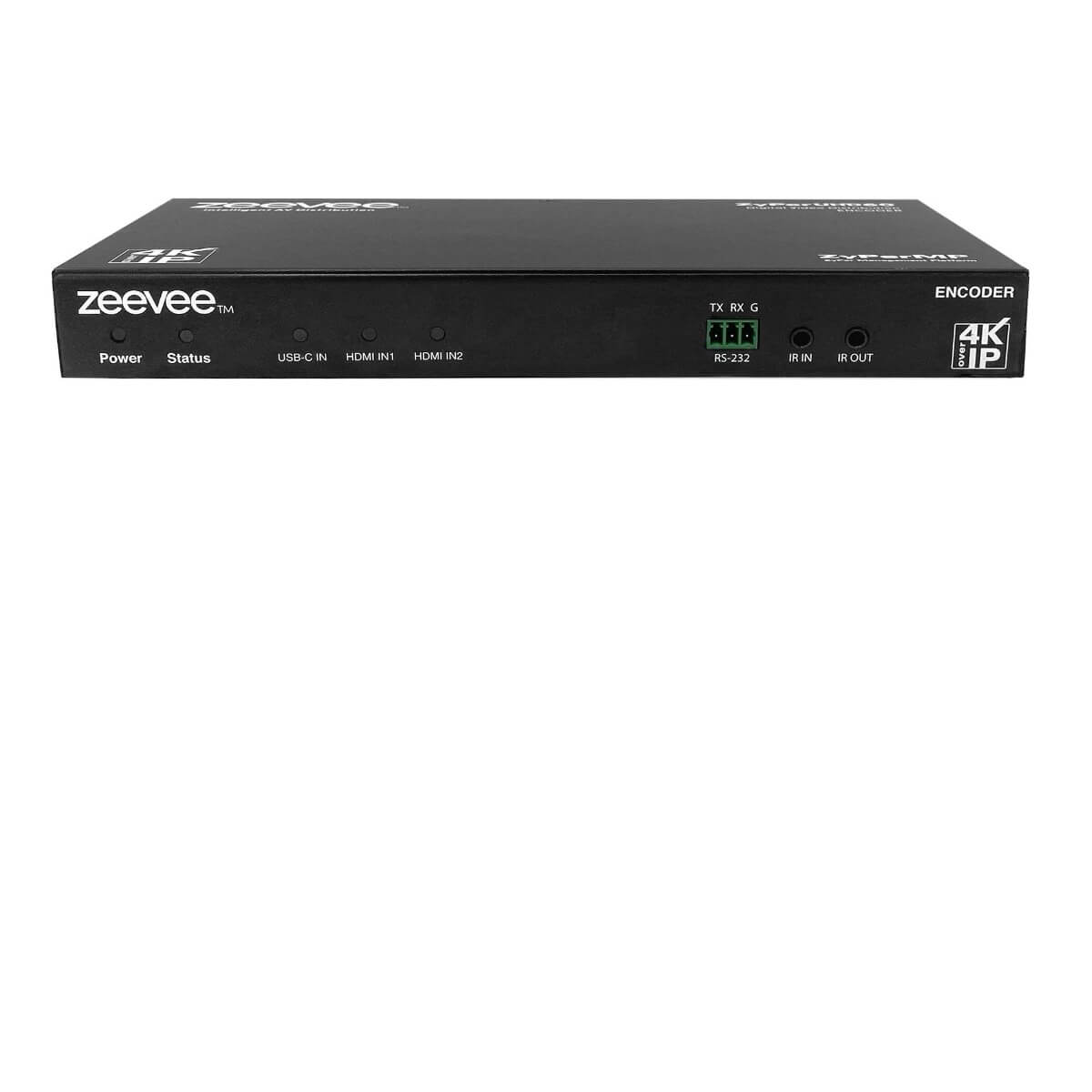

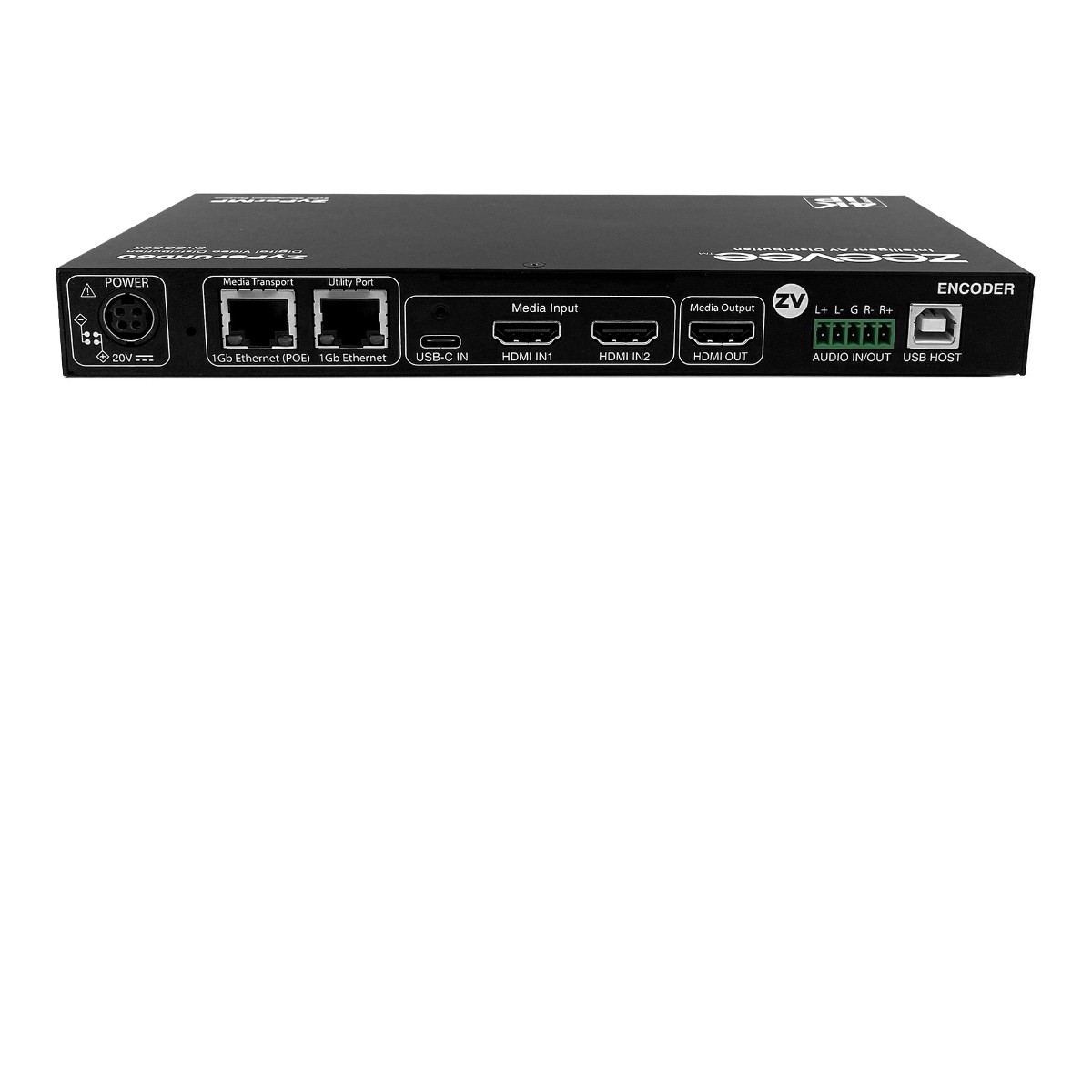

ZUHD60-2EMP is an HDMI 2.0a, Switching, triple-input AVoIP Encoder (Dual HDMI and USB-C) that is part of the ZyPerUHD60 product line. It supports IP streaming up to 4KP60 4:4:4 resolution with embedded and AES67 audio support; HDCP 2.3 and AES-256 encryption. Includes integrated ZyPer Management Platform running on a dedicated processor. This encoder has a 5-pin Phoenix/Euroblock connector for analog audio in/out and gigabit copper. Other features include USB-A, IR, RS-232 (via 3-pin Phoenix/Euroblock), and HDMI loopout. The ZUHD60-2EMP requires a ZyPerUHD60 AVoIP Decoder for operation and comes with an IR emitter, receiver, and wall mount bracket included. Ethernet, HDMI, USB, and audio/serial cables are not included. Can use POE or AC (20v Power supply sold separately).

Specifications

• PoE
• AES67
• Integrated ZMP

Downloads

• Kramer AV ZUHD60-2EMP Specifications (PDF)
