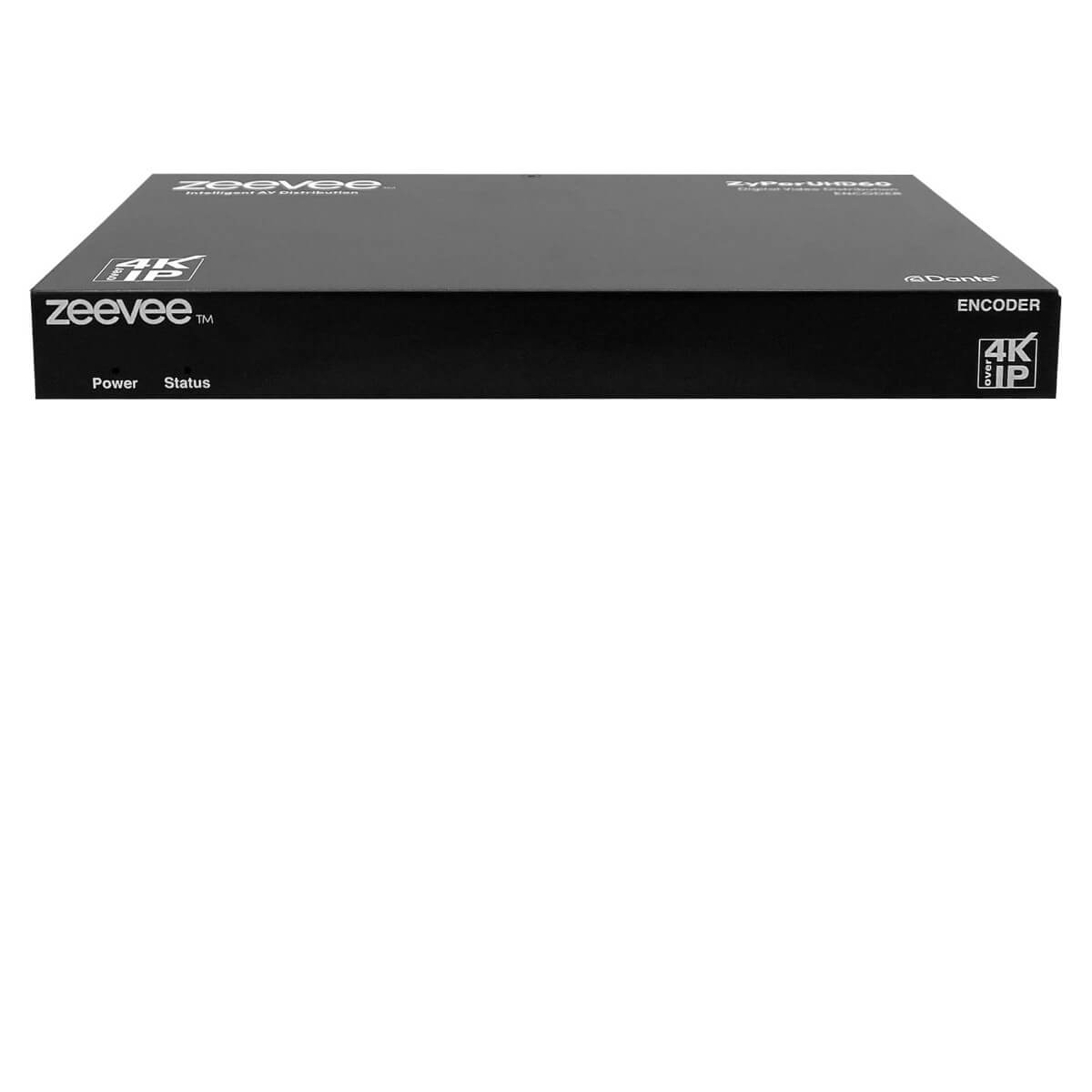

Kramer AV ZUHD60-1EA
ZUHD60 Encoder, Single LAN with Dante, HDMI Loopout

Description

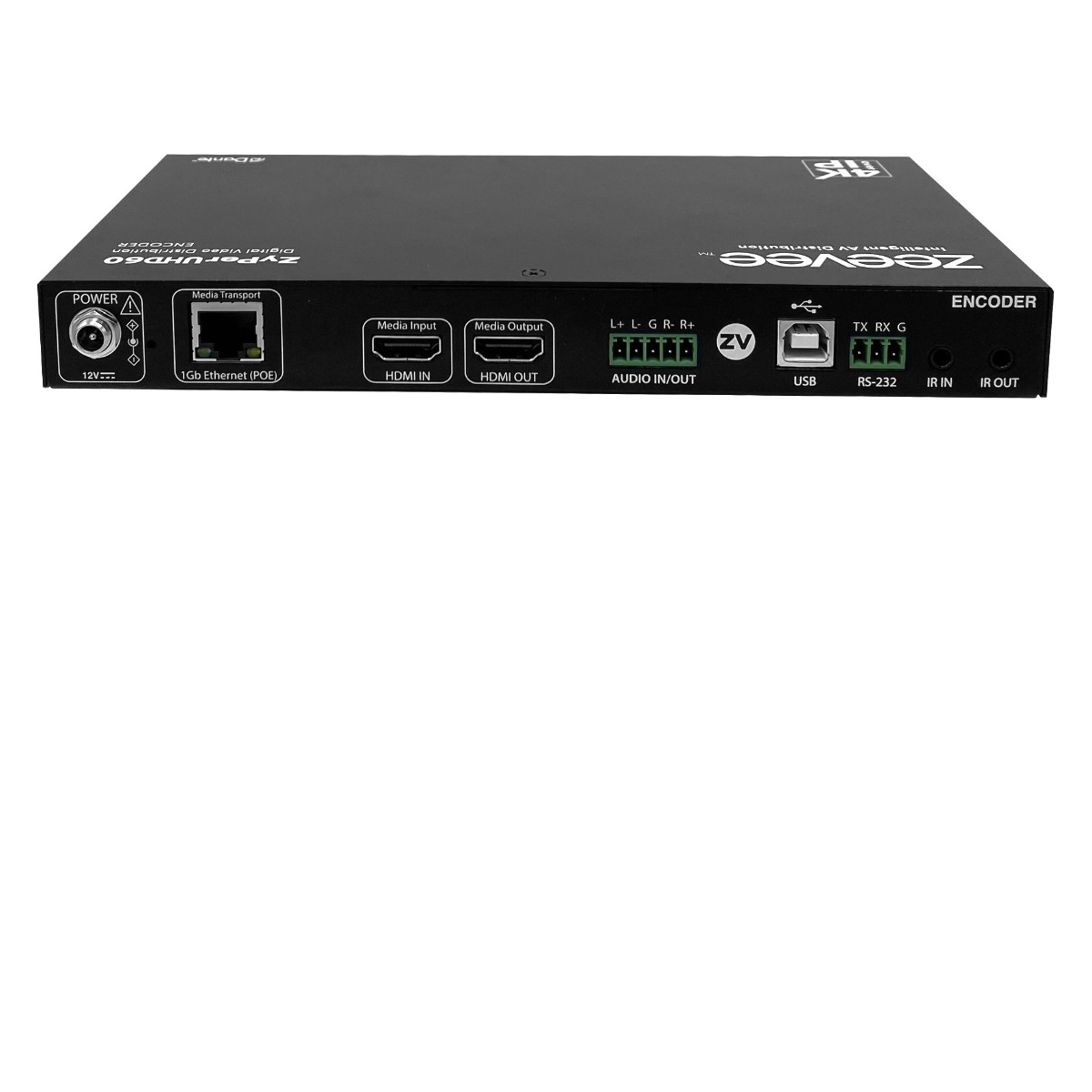

ZUHD60-1EA is an HDMI 2.0a, Dante-enabled AVoIP Encoder that is part of the ZUHD60 product line. It supports IP streaming up to 4KP60 4:4:4 resolution with embedded and AES67 audio support; HDCP 2.3 and AES-256 encryption. This AVoIP encoder has a 5-pin Phoenix/Euroblock connector for analog audio in/out and gigabit copper ethernet interface. Other features include USB, IR, RS-232 (via 3-pin Phoenix/Euroblock), and HDMI loopout. The ZUHD60-1EA requires a ZUHD60 AVoIP Decoder for operation and comes with an IR emitter, receiver, and wall mount bracket included. Ethernet, HDMI, USB, and audio/serial cables are not included. Can use POE or AC (Power supply sold separately).

Specifications

• Dante

Downloads

• Kramer AV ZUHD60-1EA Specifications (PDF)
