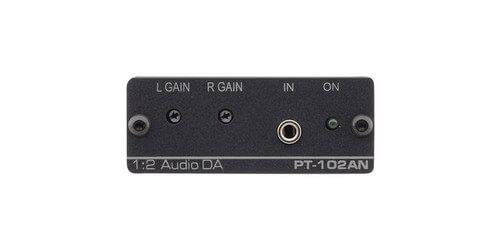

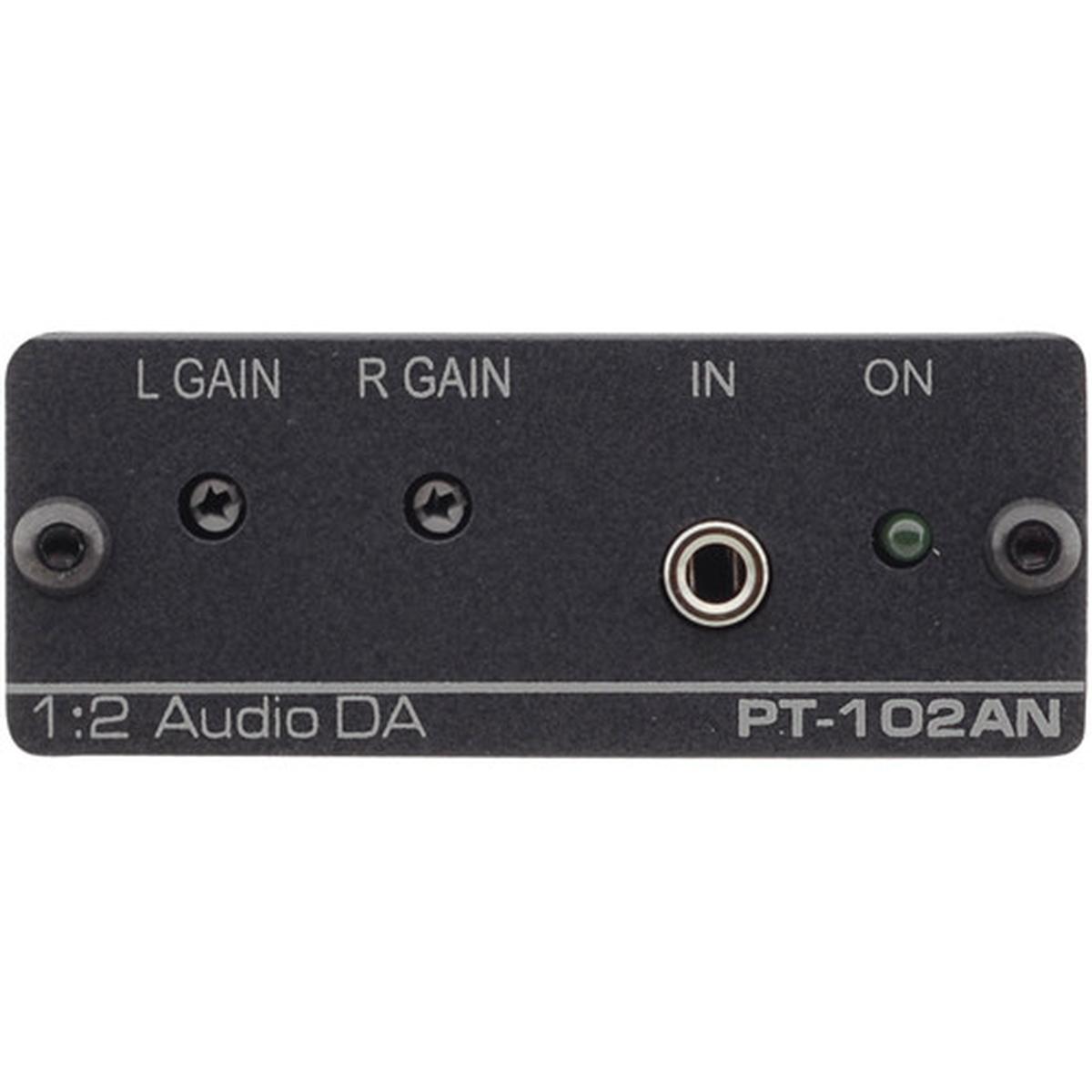

Kramer AV PT-102AN
1:2 Unbalanced Audio Distribution Amplifier

Description

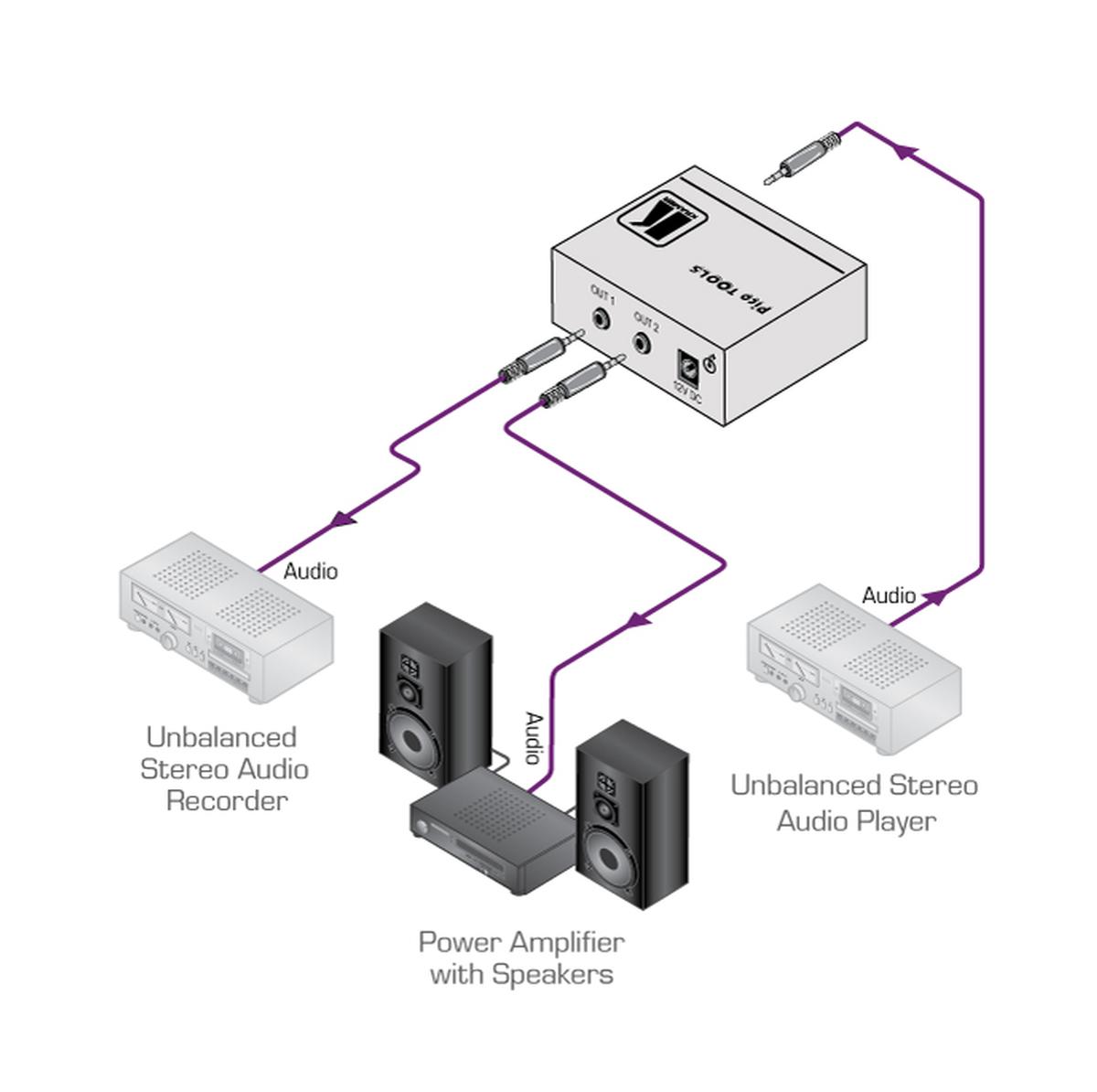

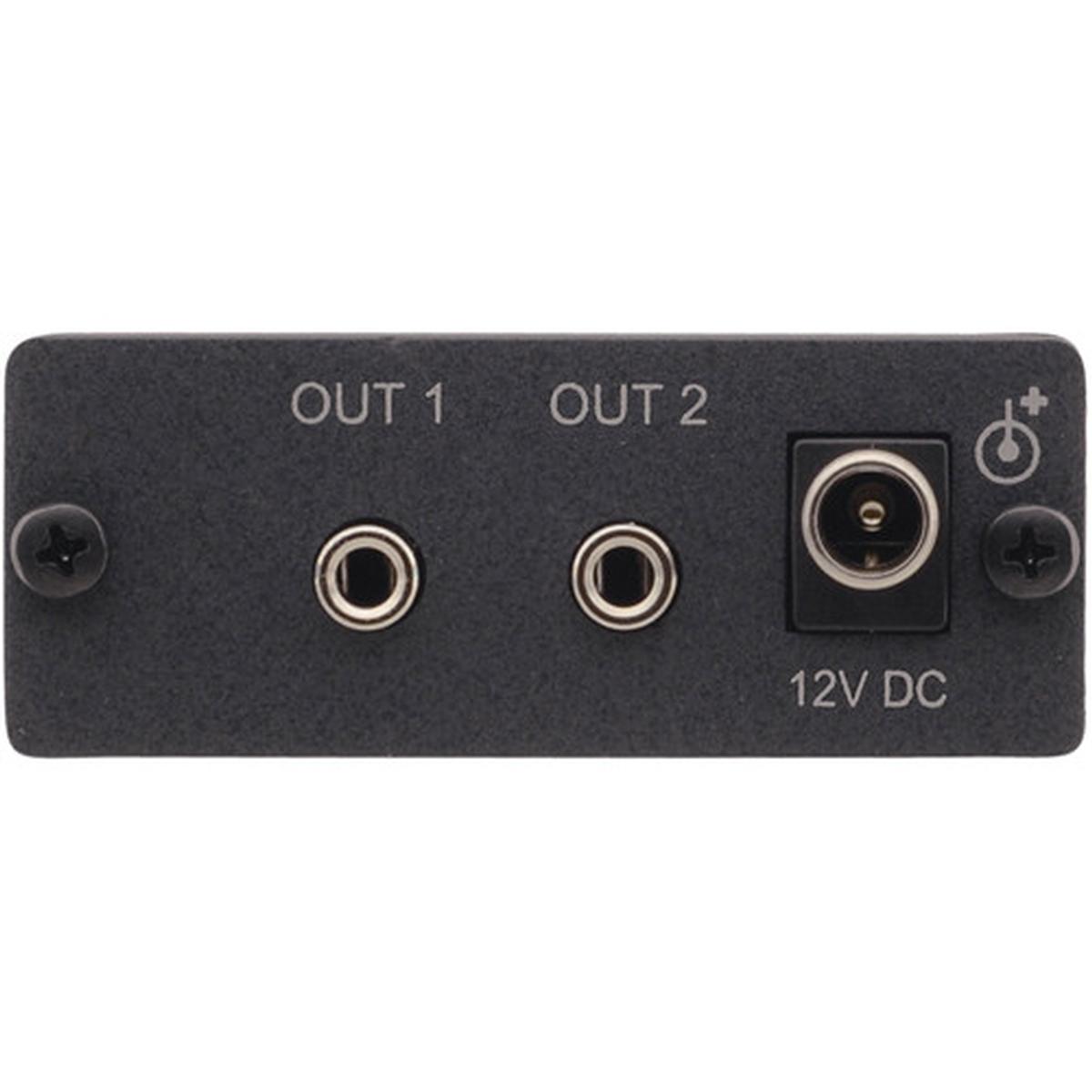

The PT-102AN by Kramer is a high-quality 1x2 audio distribution amplifier for unbalanced stereo signals. This unit will accept a single unbalanced stereo audio input and distribute it to two identical outputs, using a 3.5mm mini connectors. It also features separate left and right gain controls for optimzing signal levels, which makes it a great device for use in audio/visual duplication studios, retail showrooms, home theater systems, and CCTV/security systems. The PT-102AN contains 1 unbalanced stereo audio on a 3.5mm mini jack input, and 2 unbalanced stereo audio outputs on 3.5mm mini jacks. Comes with a 7 year warranty, power supply and mounting brackets, and with the ultra compact size of this device up to four units can be rack mounted side-by-side in a 1U rack space.

Specifications

• Max. Output Level: 5Vpp
• Bandwidth: >100kHz
• S/N Ratio: 85dB @1kHz
• Coupling: AC
• Power Consumption: 12V DC
• Included Accessories: Power Supply & Mounting Bracket
• Warranty: 7 Years

Downloads

• Kramer AV PT-102AN Specifications (PDF)
• Kramer AV PT-102AN Manual (PDF)
