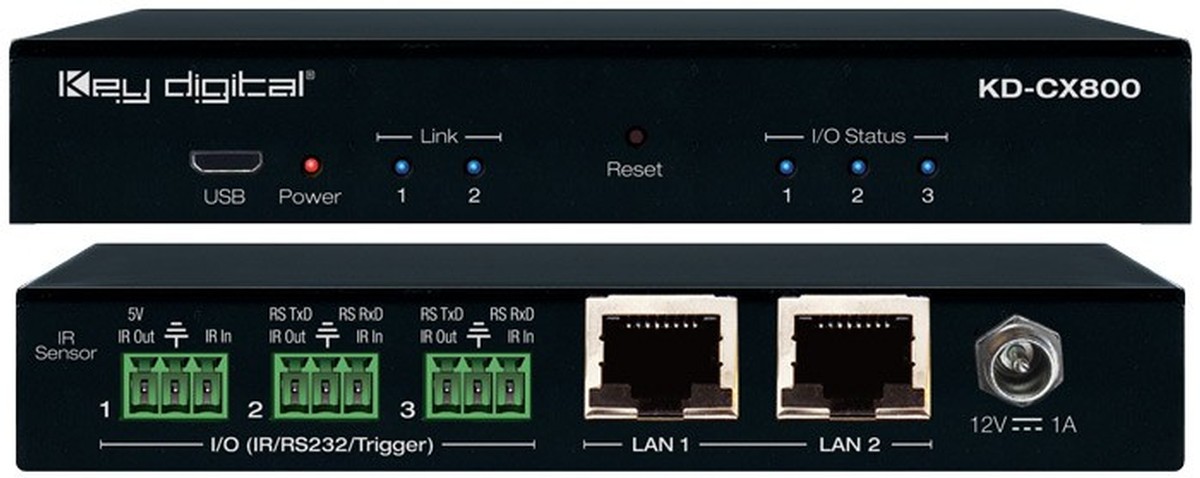

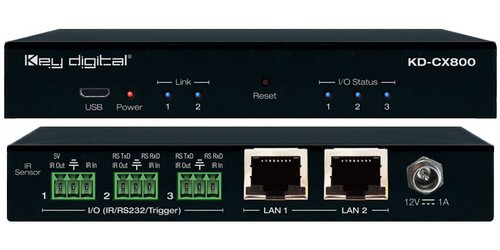

Key Digital KD-CX800
Control Interface with IR and RS-232 Over IP Routing

Part #: KD-CX800
Satisfaction Guaranteed!
Our Price: $529.00
Free Shipping* | 30 Day Returns* | Authorized Dealer
Top KD-CX800 Specifications
  • Device: Control Interface with IR and RS-232 Over IP Routing
  • Ports: Mini USB, 2 x RJ-45, Power, RS-232
  • LED Indicators: 2 x Link Status, 3 x I/O Status, 1 x Power
  • Power Supply: KD-PS12V1ASC, 12V/1A, 100-240VAC, 50-60Hz, Interchangeable head, screw-in connector
"Online ordering was very easy and the automated emails kept me up to date on status of the order until delivery"
Contact a product specialist!
Proudly supporting our customers since 2008

Description

The Key Digital KD-CX800 is a Control Interface that offers IR and RS-232 Over IP Routing. The KD-CX800 provides three multi-function control ports that support bi-directional RS-232, IR out (emitter), IR in (sensor or hardware), voltage trigger, or voltage sensor. This unit offers four modes of operation: Mode 1 acts as a control gateway for Enterprise AV over IP System, Mode 2 offers Compass Control Master Controller, Mode 3 is for Third Part Control via KeyCode Open API, and Mode 4 is a Control Extension via IP.

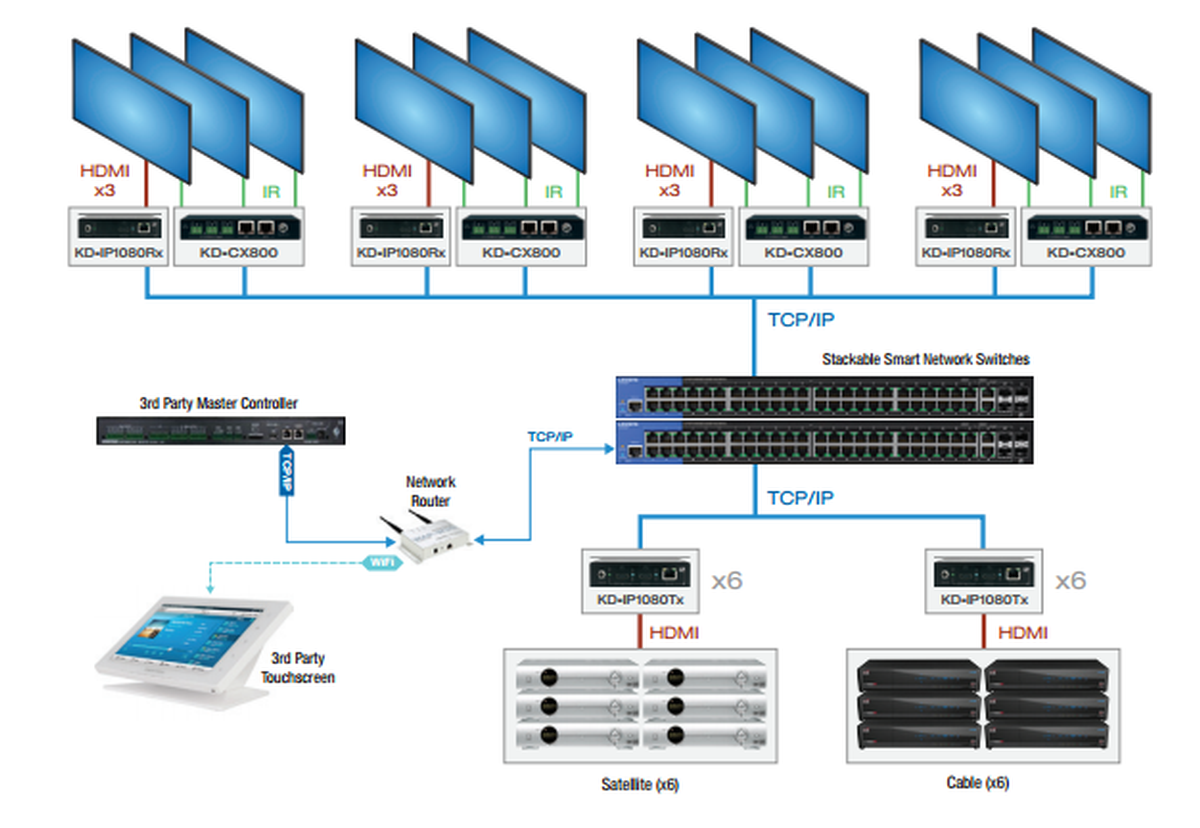

Mode 1: Control Gateway for Enterprise AV over IP system:

  • Enables more third-party control options than other HD Over IP systems
  • Accepts commands from third-party control systems or Compass Control
  • Supports generic RS-232, TCP/IP, and IR Key Digital matrix switching command strings

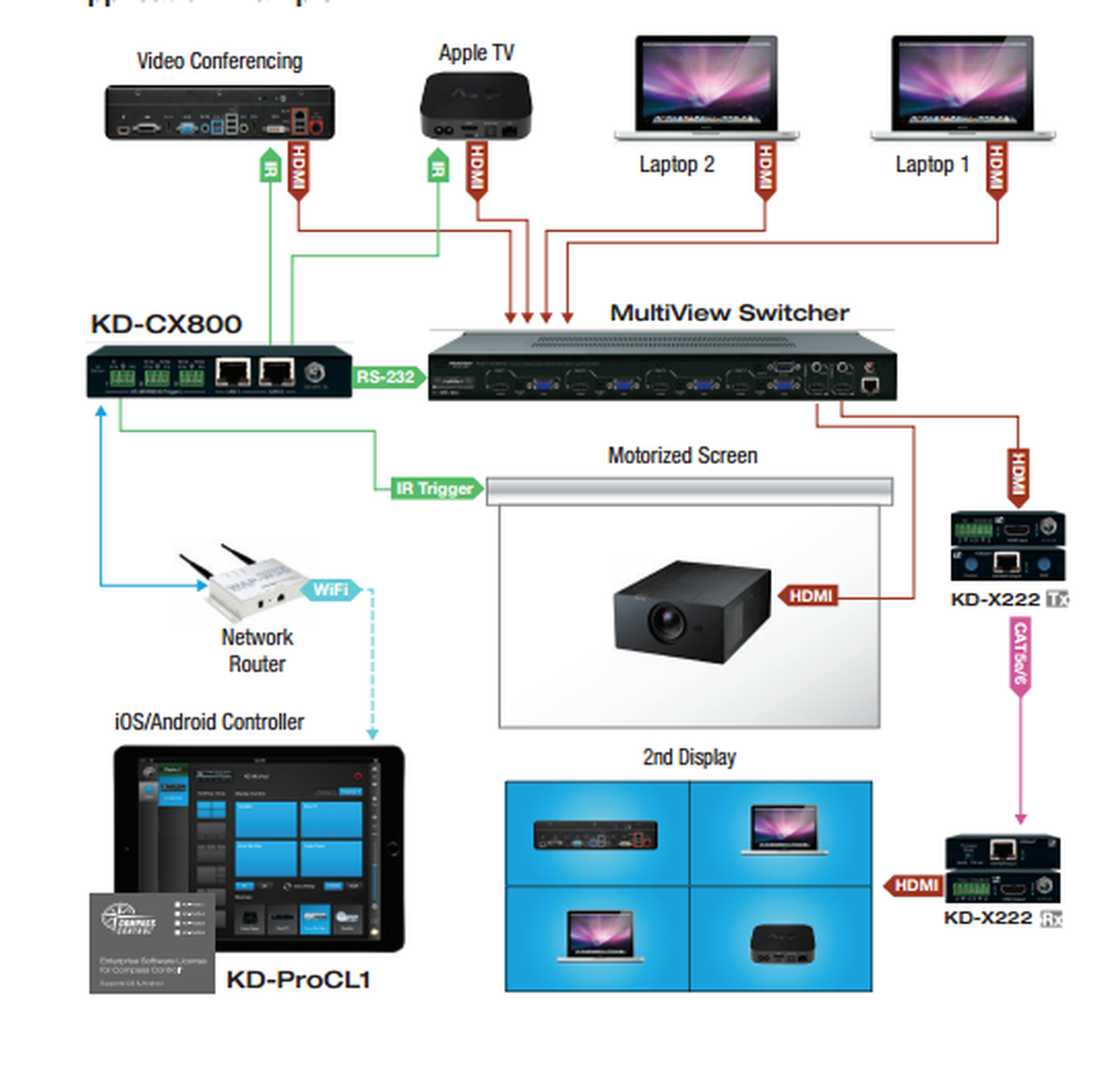

Mode 2: Compass Control Master Controller:

  • Supports communication to/from licensed iOS and Android devices
  • Flexible port configuration (IR, RS-232, trigger, sensor) set in
  • Compass Navigator program
  • IR learner/sensor built-in
  • Supports up to two real-time bi-directional RS-232 ports
  • TCP/IP device control direct from iOS/Android controller – no ports used

Mode 3: Third-Part Control via KeyCode API:

  • Cost-effective control expansion with advanced third-party control systems
  • Adds reliable hardware interface to network-based control apps
  • Enables IR, RS-232, and voltage device control
  • Robust API allows for bi-directional communication

Mode 4: Control Extension via IP

  • Carry any supported combination of IR, RS-232, and voltage triggers over the network
  • Extends control signals up to 400 ft. / 121 m. Greater distances possible with adapters.
  • Supports systems with or without network switches

Specifications

  • Regulation: CE, RoHS, WEEE
  • Enclosure: Black Metal
  • Dimensions: 5 .06" x 3.08" x 0.78"
  • Weight: 0.5lb
  • Warranty: 3 Years
