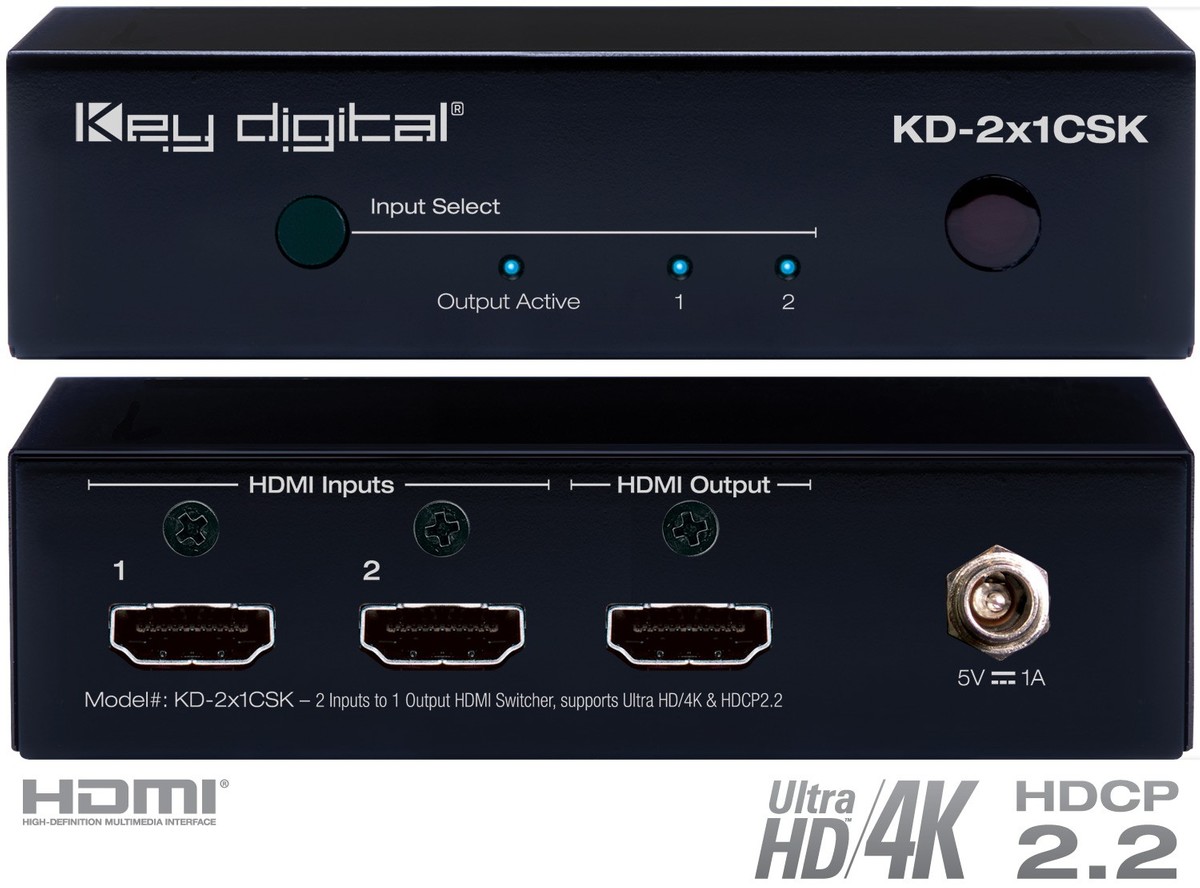

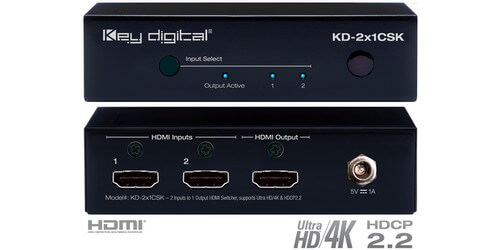

Key Digital KD-2x1CSK
2X1 HDMI Switcher, DCI/UHD 4K60, HDCP 2.2 - 3D Ready
- Inputs: 2 x HDMI
- Outputs: 1 x HDMI
- Supported Resolutions: SD, HD, and VESA up to UHD/4K (4096x2160/60/30/24)
- Ultra HD/4K: Supports Ultra HD/4K Signal transmission
Description

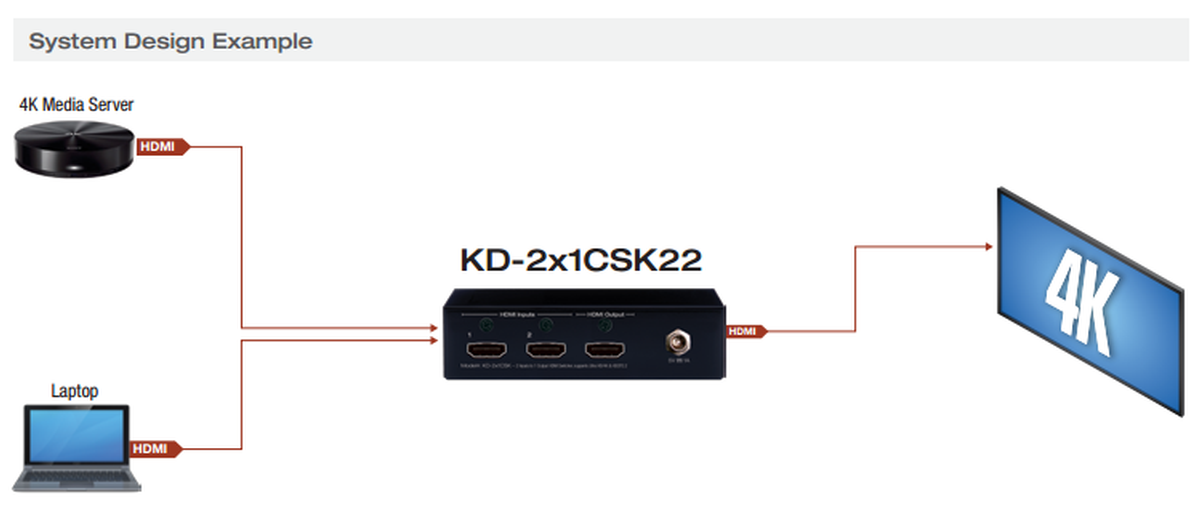

The KD-2x1CSK is a 2x1 DCI/UHD 4K HDMI Switcher with HDCP 2.2 that is a part of Key Digital's Champion Series. This device was designed to switch between two HDMI sources to one HDMI display while maintaining a brilliant pristine picture and high-quality sound, up to UHD 4K/60, without signal degradation. This Champion Series HDMI switcher was engineered for all digital video/audio switching applications, and supports all SD, HD, VESA, and 4K video standards including 4096 x 2160, 1080p60, 1920 x 1200, and 3D. The switcher features to easy options for control, either the front panel push buttons, or optical IR switching, and features status monitoring LEDs, and support for advanced HDMI features to include: 3D and UHD/DCI 4K. Being 3D ready this device has the capability to pass 3D stereoscopic signal formats, and allows for Deep Color Support up to 12-bit/color (up to 8 bits/color@4k/60). A full buffer system manages TMDS re-clocking / signal re-generation, HDCP source and display authentication, Hot Plug Management and EDID control handshake. Supported lossless compressed digital audio formats include: Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio. Furthermore the KD-2x1CSK utilizes an internal library with 16 default EDID configurations for each input, including native EDID data for any output/display.
The KD-2x1CSK from Key Digital's Champion Series Switchers is an ideal solution to add into your smaller business setting, home theater, or digital signage type applications. Offering the latest in Ultra HD and 4K at an extremely reasonable price, this switcher comes highly recommended and is backed by an amazing 3 year warranty from Key Digital.
Specifications
- TMDS Bandwidth: 18 Gbps
- DDC Signal Data: 5 Vpp (TTL)
- HDCP 2.2 Compliant

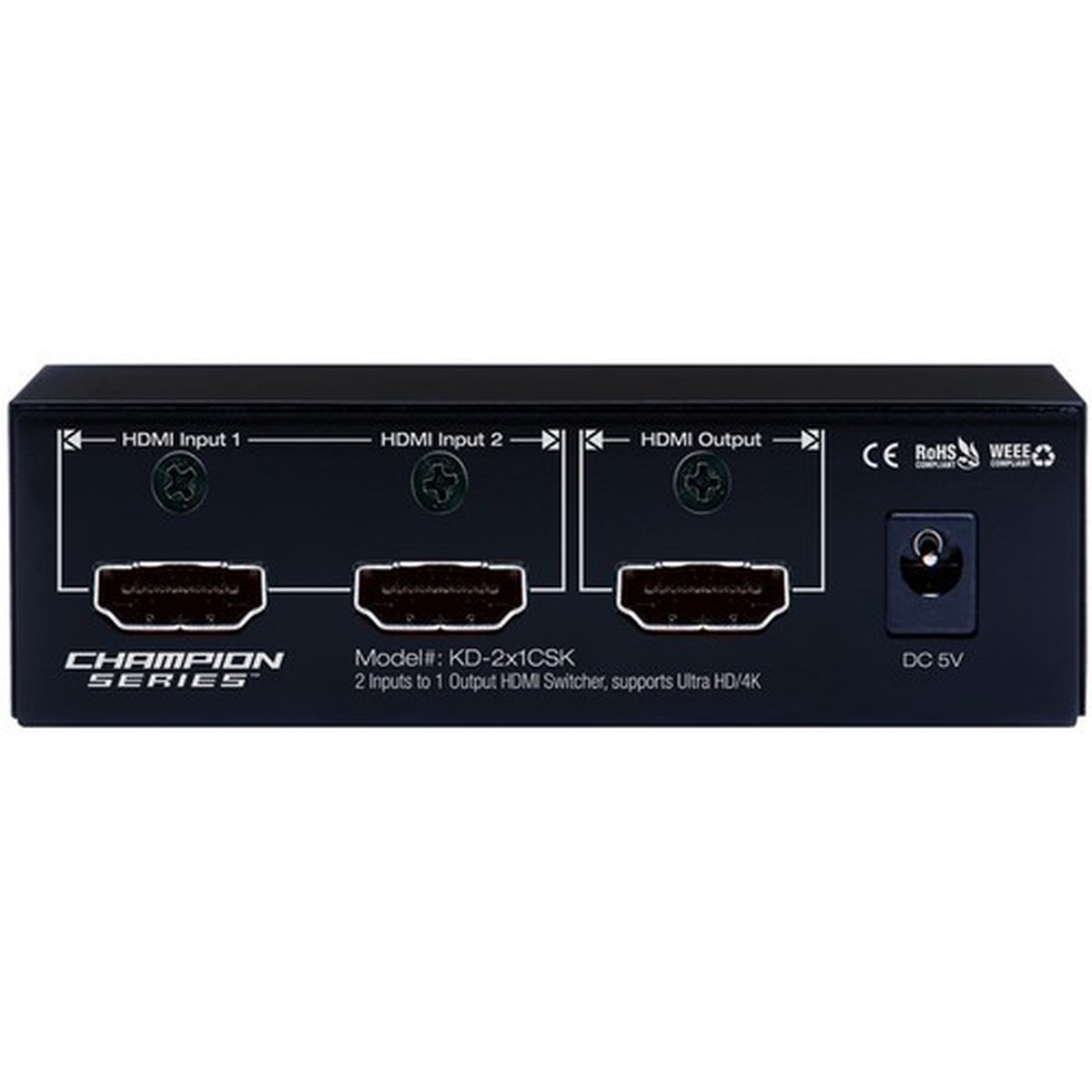

- HDMI Connector: Type A, 19-pin female

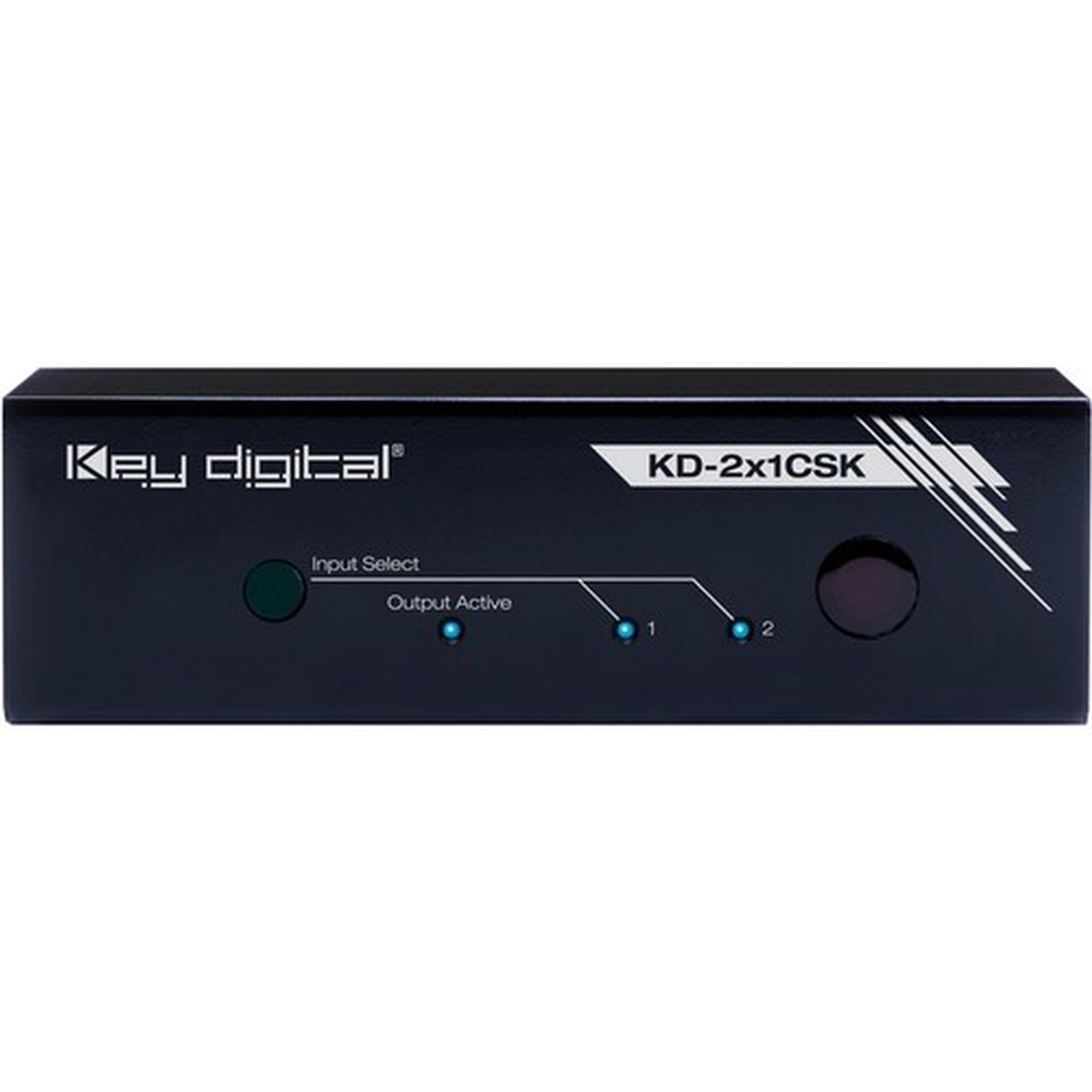

- Controls: Push Button, IR Sensor
- Full Supported CEC
- Regulation: CE, RoHS, WEEE
- Major Control System Support: Compass Control, AMX, Control4, Crestron, KNX, RTI, Savant, URC, Honeywell, HAI, Leviton
- Mounting: Shelf Mount
- Power Supply: 5V/1A, 100 240 VAC, 50 60 Hz, interchangeable head
- Enclosure: Black Plastic
- Dimensions: 3.8 x 1.2 x 2.5"
- Included Accessories: Remote Control, UL Certified Power Supply +5V/2A, HDMI Lacing Clips
- Warranty: 3 Years
