KanexPro MMX-4X4CAT-70M
HDMI 2 0 Matrix 4X4 CAT6 70M 4K60
Description
When designing a large-scale digital signage deployment, corporate boardroom, or multi-zone home theater, distributing pristine 4K video over long distances is often a complex challenge. The KanexPro MMX-4X4CAT-70M simplifies this process, acting as an advanced 18Gbps 4x4 HDMI matrix switcher that seamlessly routes up to four high-definition HDMI sources to as many as eight displays simultaneously.
By combining standard HDMI distribution with powerful HDBaseT extension technology, this matrix provides the ultimate flexibility for commercial and residential AV integrators who refuse to compromise on signal quality or control.
Mirrored Outputs & Long-Range Transmission

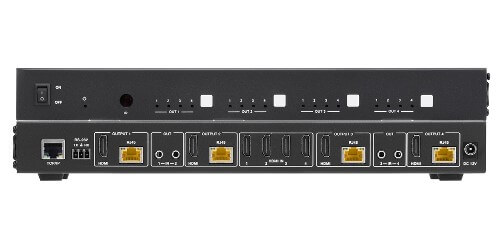

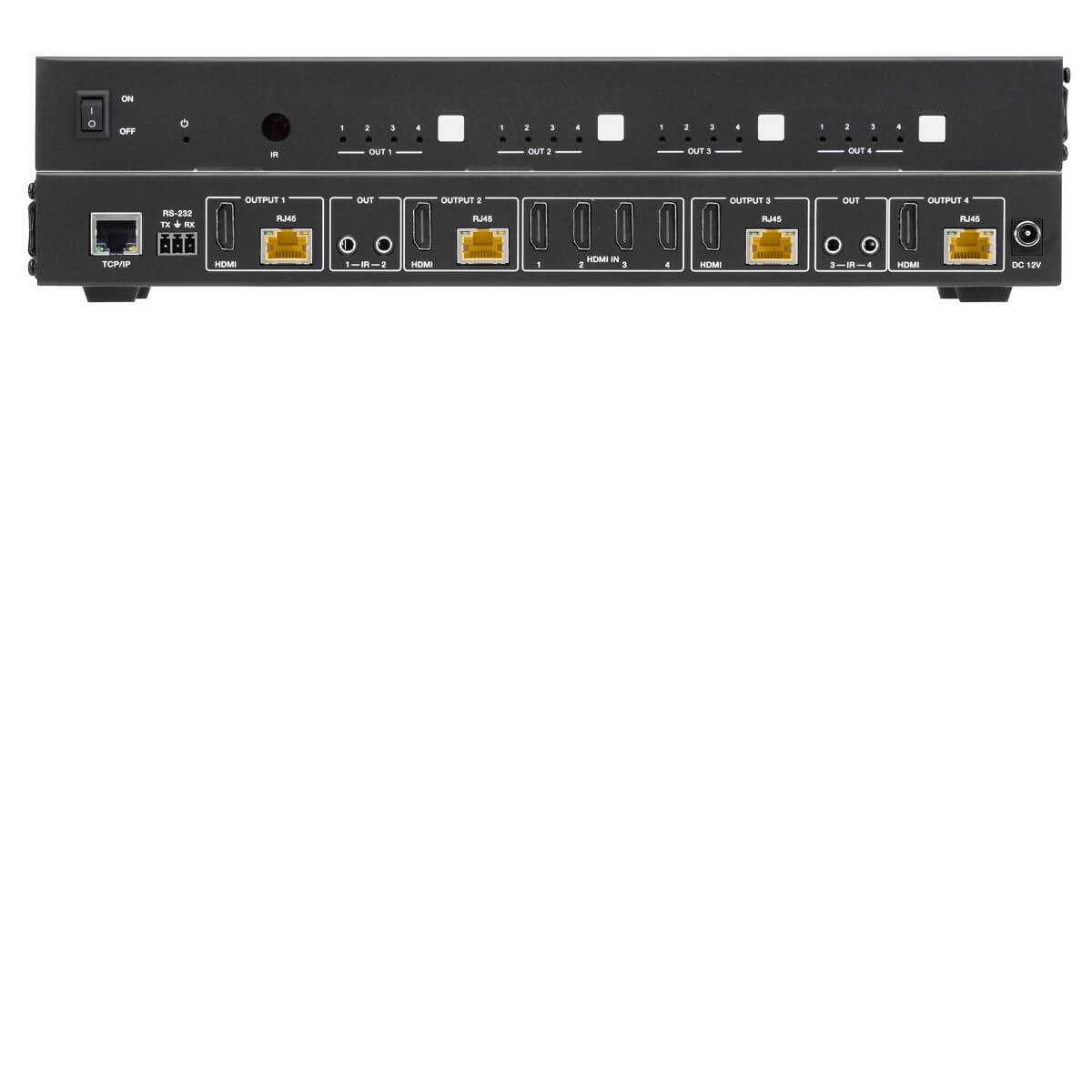

The KanexPro MMX-4X4CAT-70M is built for high-performance expansion. Each of its four output zones features simultaneous mirrored connections, one direct HDMI port for local monitoring, and one RJ45 CAT port for long-range distribution.

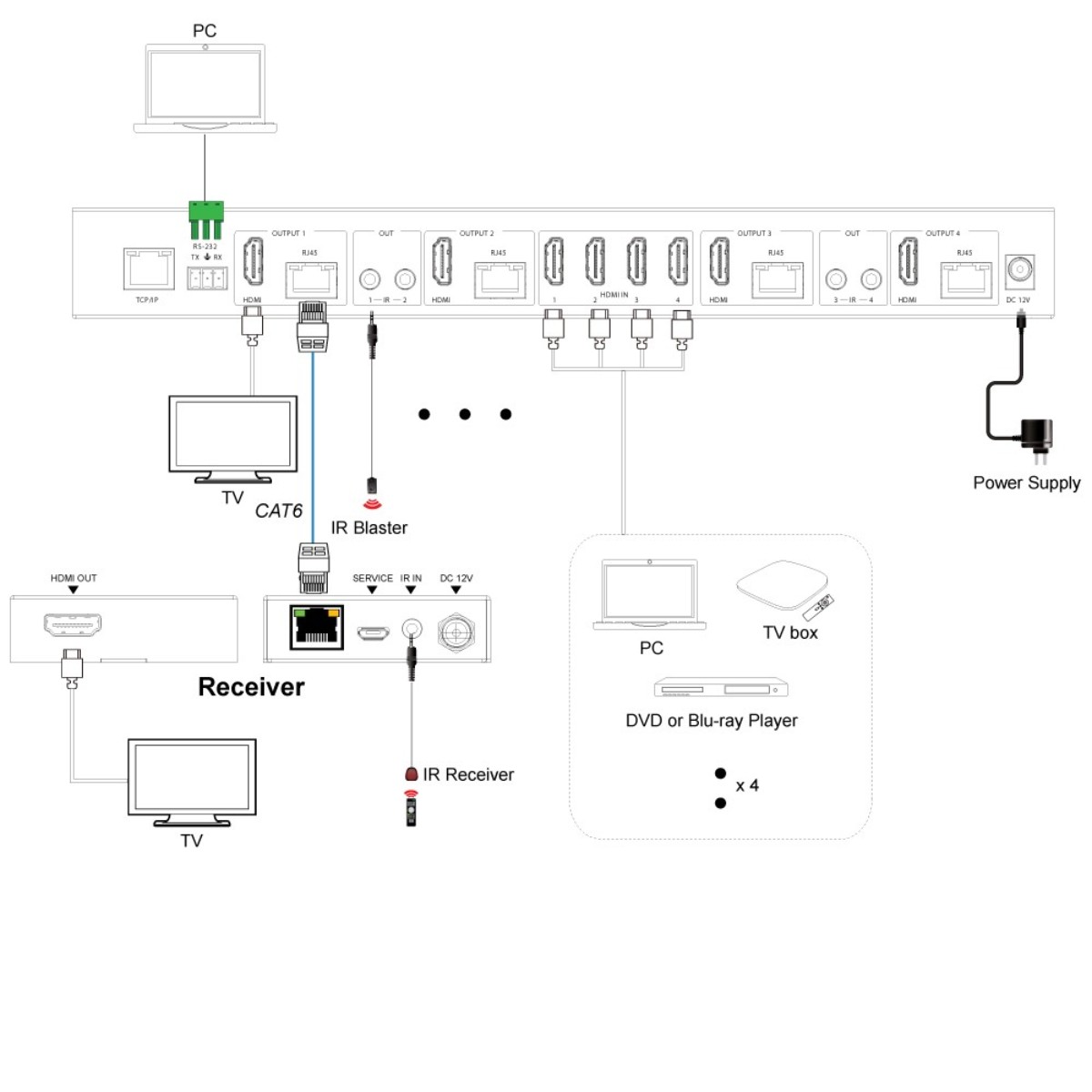

Using standard CAT5e or CAT6 cabling, this matrix transmits uncompressed 4K@60Hz (4:4:4) video and high-definition audio up to an impressive 230 feet (70 meters). Even better, it includes four compact CAT receivers equipped with Power over Cable (PoC) technology.
The matrix sends power directly through the network cable, completely eliminating the need for bulky power supplies behind your remote displays or projectors.
Intelligent Scaling & Flexible Control
Mixed-resolution environments are no longer an issue. Every single output on the MMX-4X4CAT-70M features an independent 4K-to-1080p downscaler. This means you can seamlessly integrate a legacy 1080p monitor in one room without downgrading the stunning 4K feed sent to the rest of the facility.
Ensuring total command over your AV infrastructure, this switcher features comprehensive control options, including advanced EDID management, front-panel buttons, bi-directional IR routing, RS-232, TCP/IP LAN, and an intuitive Web GUI compatible with major automation platforms.
Key Features & Specifications
- 18Gbps Video Bandwidth: Fully compliant with HDMI 2.0b and HDCP 2.2/1.x standards for flawless 4K UHD distribution.
- Simultaneous Routing: Connects 4 HDMI sources to 4 direct HDMI outputs and 4 mirrored CAT outputs (8 displays total).
- HDBaseT Extension: Reaches up to 230ft (70m) over a single CAT6 cable with zero signal degradation.
- PoC Receivers Included: Ships with four 12V PoC-powered receivers for a clean, outlet-free display installation.
- Smart Downscaling: Built-in 4K to 1080p downscaling on each output port supports mixed-display environments.
- Stunning Visuals: Supports HDR10, HDR10+, Dolby Vision, and HLG pass-through for cinema-grade clarity.
Streamline Your Video Matrix
Take total control of your multi-zone video architecture. The KanexPro MMX-4X4CAT-70M provides the robust, high-bandwidth switching and long-range extension your project demands.
