JBL CSR-2SV-WHT
Wall Controller w/2-Position Source Selector & Volume Control - US Version

Description

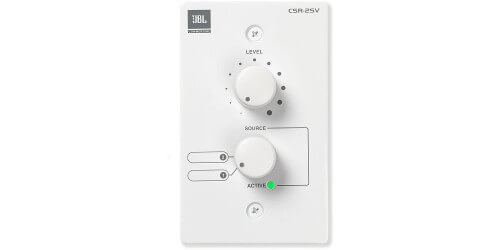

The CSR-2SV-WHT is part of the Commercial Series Remote line by JBL and is built with the practical needs of business users in mind. The CSR-2SV-WHT is a US-format wall-mount controller that provides seamless remote operation for the CSM-21 and CSM-32 Commercial Series Mixers from the JBL audio equipment product range. This wall controller is mounted in a white, single-gang faceplate and provides its users control over both audio source selection and volume attenuation.

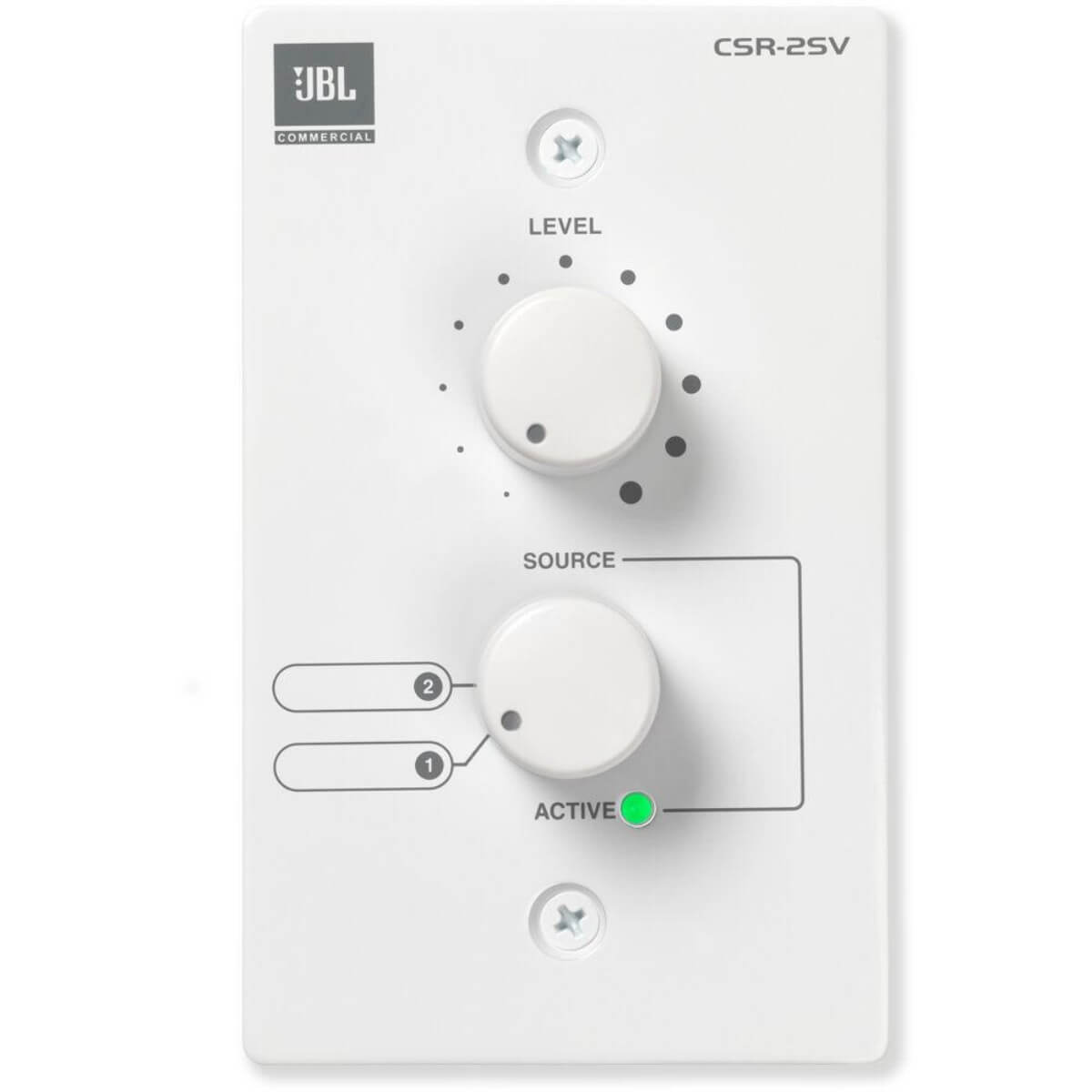

This JBL wall controller features two dials. One is a two-position circular source selector that allows users to easily switch between two input sources and the other is a smooth-turn volume knob to adjust playback levels. The volume control dial is attenuation-only, which means that it reduces volume relative to the maximum level set on the mixer. The two-position source selection and smooth volume control make it a great option for spaces like conference rooms and meeting spaces that need to toggle between two audio inputs, like a PC and a laptop, or a presentation system and a video call setup.

The CSR-2SV-WHT can be connected to compatible mixers using the standard Cat 5 cable with RJ-45 connectors. It provides support for runs up to 1,000 feet, that is 305 meters. The controller uses analog DC voltage for communication and includes a green LED light indicator that lights up when the controller is active. The light visually confirms the successful remote functionality, making the whole control system intuitive and very easy to use.

JBL CSR-2SV-WHT white finish (WHT model) matches most professional office interiors, blending well with light-colored walls and trims. It is ideal for installed sound systems in restaurants, retail environments, and commercial spaces where reliable performance and simple installation in a clean, wall-mounted form are a better option compared to a complicated series of buttons or screens.

Specifications

• Height: 4.5" x Width: 2.8" x Depth: 0.7"
• Compatibility: JBL Commercial Stereo Public Address Mixers: CSM-21 CSM-32

Downloads

• JBL CSR-2SV-WHT Specifications (PDF)
