Intelix AS-1H1DP-WP-W
DisplayPort & HDMI Auto Switching Wall Plate w/ HDBaseT Out

Part #: AS-1H1DP-WP-W
Satisfaction Guaranteed!
MSRP: $675.92
Our Price: $608.33
Free Shipping* | 30 Day Returns* | Authorized Dealer
Top AS-1H1DP-WP-W Specifications
  • Inputs: 1 HDMI, 1 DisplayPort, 1 3.5mm audio
  • Outputs: 1 HDBaseT, also sends embedded audio
  • Dual gang decora, white
  • HDBaseT distance: 196'
"Very nice folks to work with. Quick and good information"
-Jeff A.
Contact a product specialist!
Proudly supporting our customers since 2008

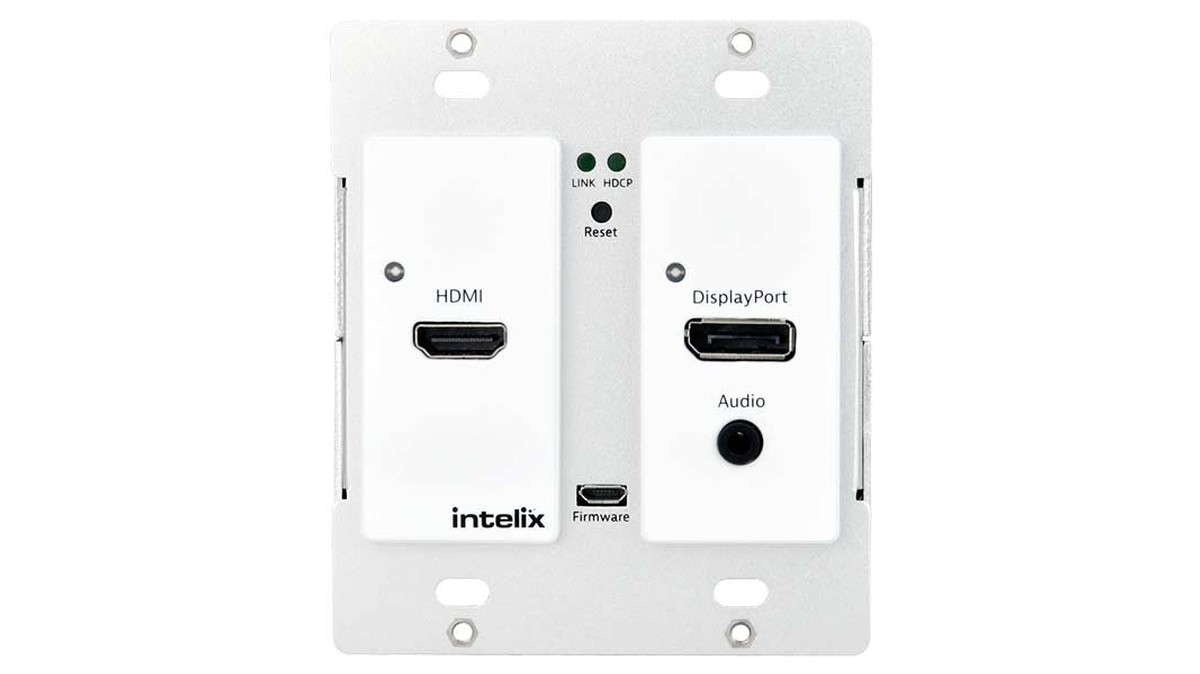

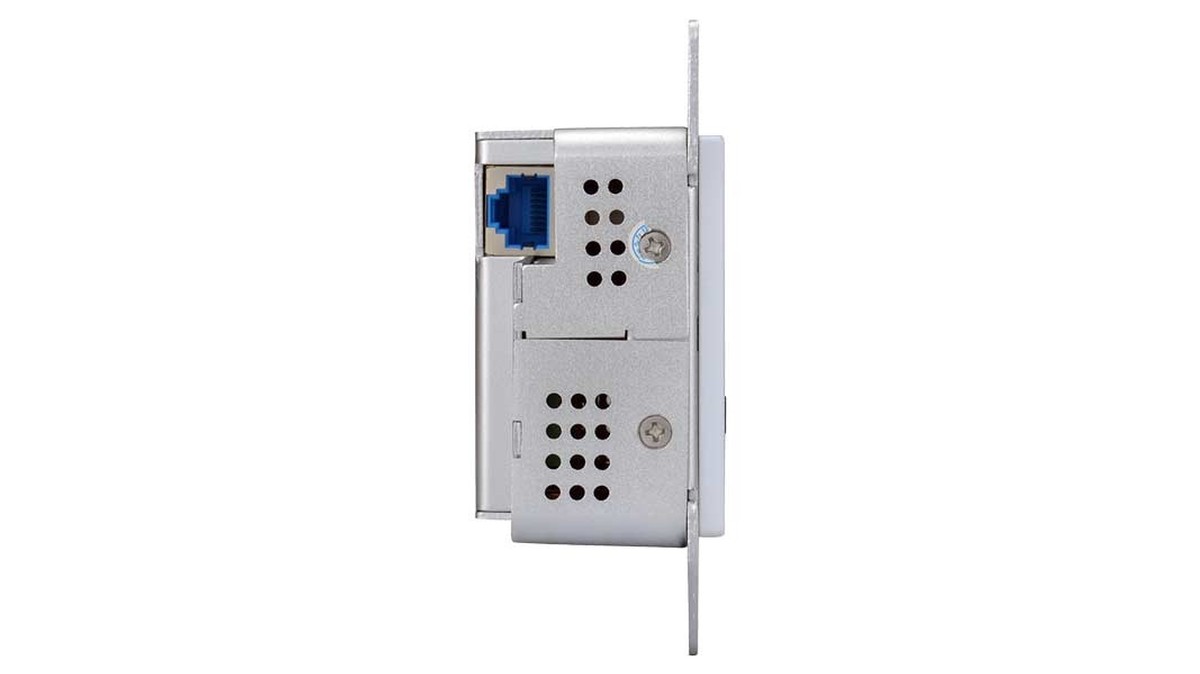

The Intelix AS-1H1DP-WP-W is an auto switching dual gang decora wall plate that accepts both a DisplayPort with audio and HDMI input, the auto switching wall plate will always detect the last plugged in signal and automatically switch on your display to that input. On the rear of the wall plate features an HDBaseT connection, use the HDBaseT out over Cat6 up to 196' away with embedded audio. Send your signal to a compatible receiver such as the optionally purchased DIGI-HD60C-R, this receiver can even power the switcher over PoE.  If PoE isn't used the switcher includes a power cord for local power.

Other features of the AS-1H1DP-WP-W include advanced EDID, there are multiple modes to make display set up and compatibility easy.  There is integrated surge protection for device safety, as well as LED diagnostic lights for a smooth operation.  The switcher has power savings in mind, if video hasn't been detected for 30 minutes it will go into power savings mode.

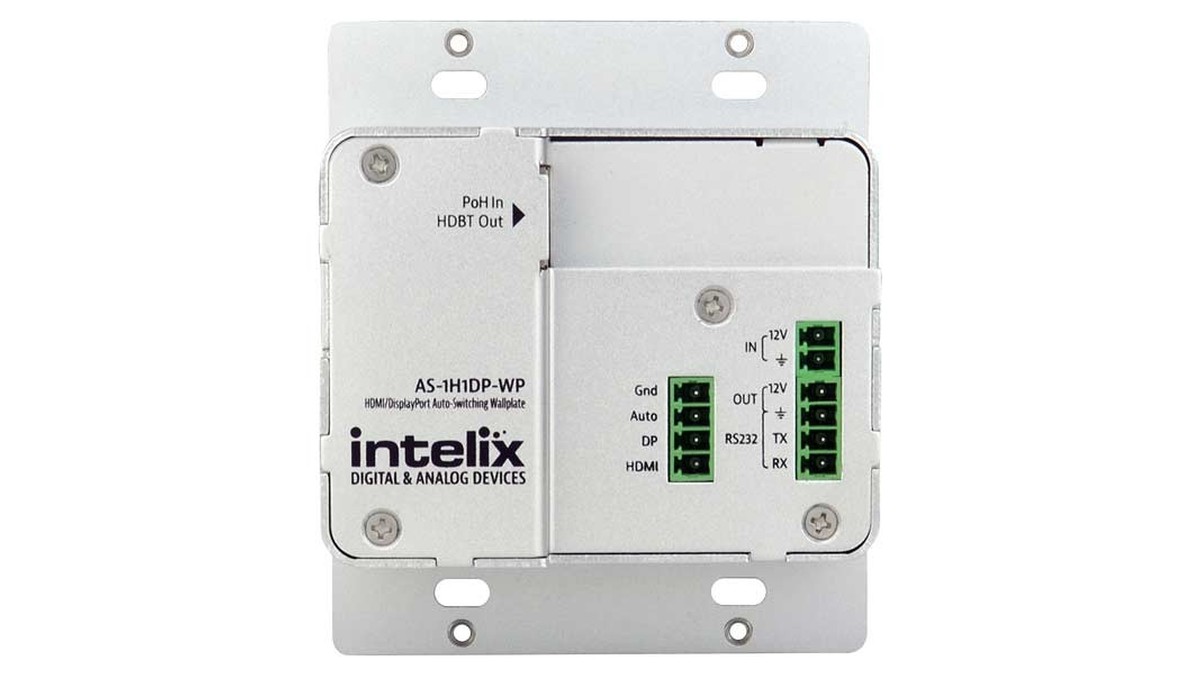

The AS-1H1DP-WP-W can be controlled via contact closures, or RS-232 from the DIGI-HD60C-R receiver or the unit itself.  Using the Intelix Display Control software and RS-232 the switcher can control the display directly so no third party software is needed.  The switcher can be programmed via RS-232 to power on and off the display based on video activity.

The Intelix AS-1H1DP-WP-W can handle your 1080P video and is HDMI 1.4 and HDCP 1.4 compliant.  The wall plate is an ideal choice to handle your HDMI and DisplayPort needs and auto switch them out over HDBaseT.


  • Resolution: Up to 1080P
  • Auto switching: Detects the last plugged in signal and automatically switches, it will also detect if the DisplayPort signal has an embedded audio signal to determine when to access the analog audio input port
  • PoE compatible: Can receive power from optionally purchased DIGI-HD60C-R receiver
  • Multiple EDID modes
  • LED indicator lights for: HDCP, Link, DisplayPort (DP), and HDMI
  • Integrated surge protection
  • Power savings: Automatic sleep mode after 30 minutes of no activity
  • Control: Contact closures, RS-232
  • CEC pass through
  • Compliancy: HDMI v1.4, HDCP v1.4
  • Warranty: 2 years
  • Includes: Power Supply, (2) 4-pin Removable Screw Terminal, 3-pin Removable Screw Terminal, RS232 cable (3-pin to DE9), USB programming cable
  • Firmware upgradeable
