Hall Technologies

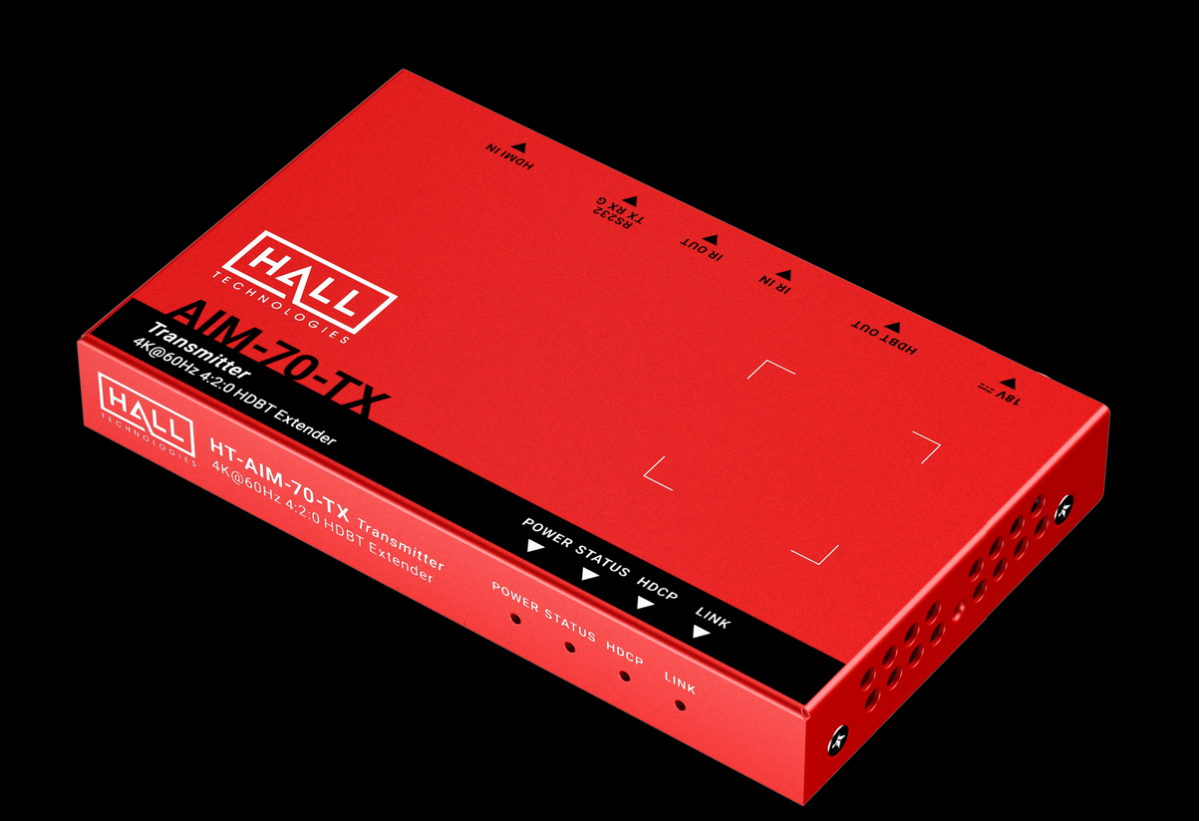

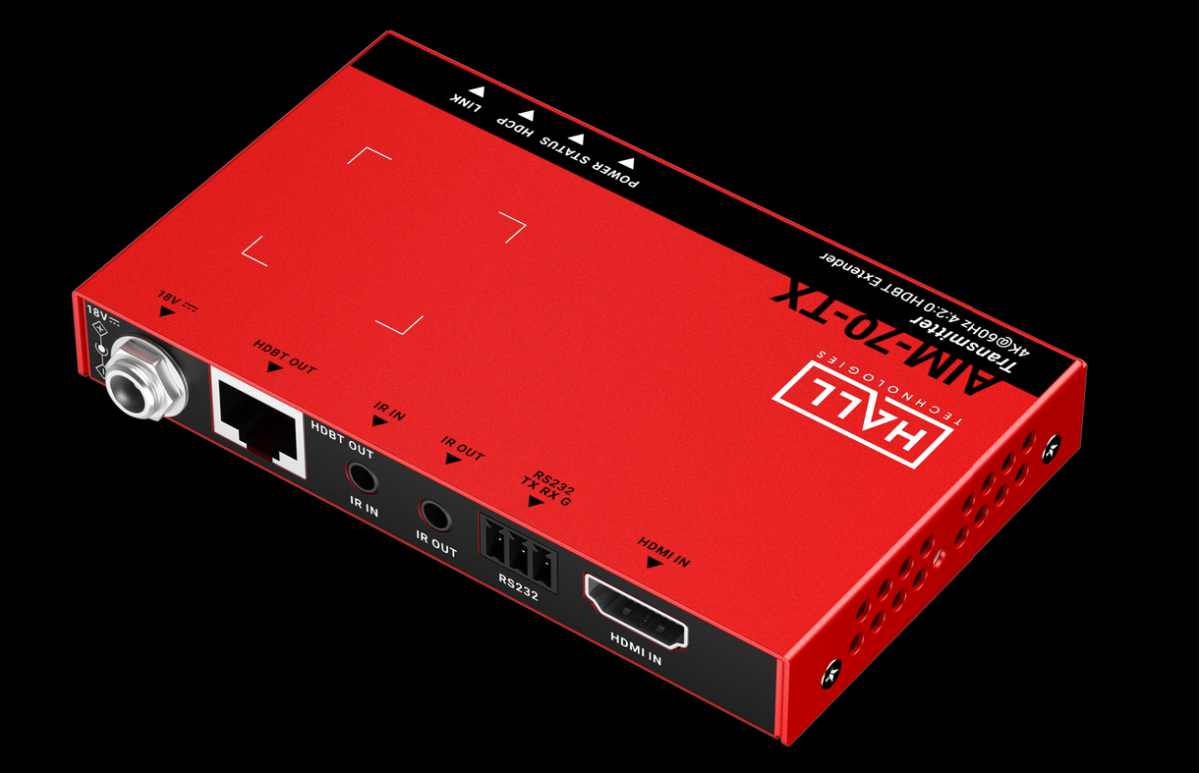

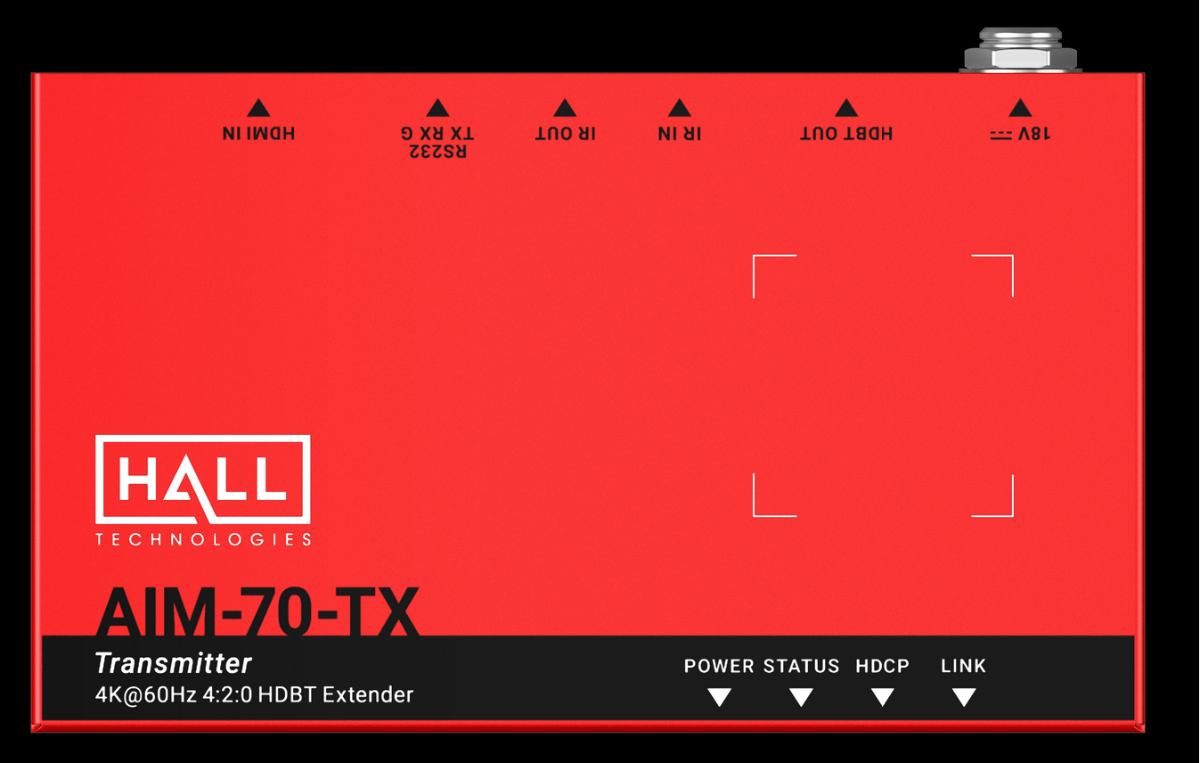

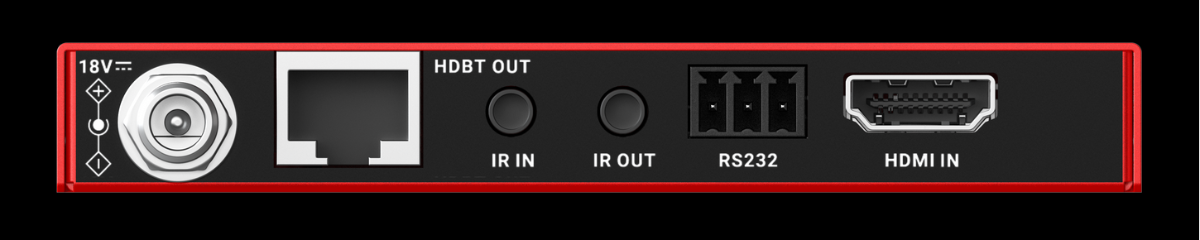

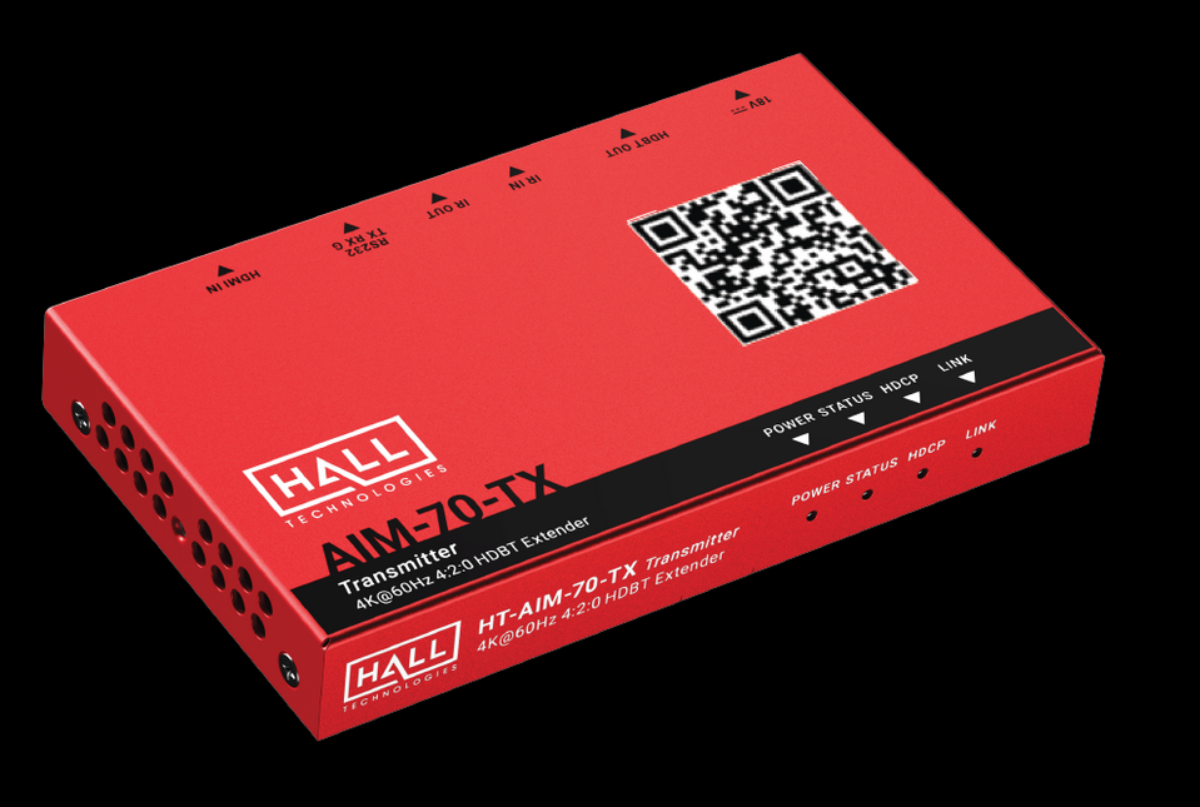

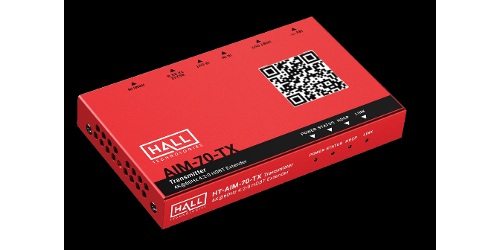

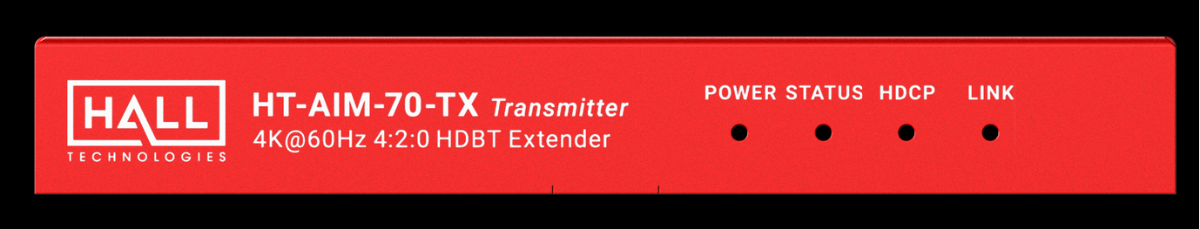

HT-AIM-70-TX
4K@60Hz 4:2:0 HDBT Extender
- Slimline HDBaseT extender for long-distance HDMI transmission
- Supports up to 4K 60Hz (4:2:0 8-bit) video resolution
- Extends 4K 60Hz signals up to 35 meters with CAT6 cabling
- Extends 4K 60Hz signals up to 40 meters and 1080p 60Hz signals up to 70 meters with CAT6A/7 cabling
Description
The HT-AIM-70 transmitter is a versatile and robust solution designed to extend HDMI signals over long distances with uncompromised quality. Capable of delivering 4K UHD video at 60Hz with zero latency, this transmitter ensures high-performance video transmission for professional AV applications. It supports various advanced features such as HDCP 2.2 compliance, EDID management, and audio embedding, making it a perfect fit for installations that require reliable, high-quality video distribution across large spaces. With flexible power options and a compact design, the HT-AIM-70 transmitter is ideal for both small-scale setups and complex AV systems.
With support for CAT6 cables, it can extend 4K 60Hz signals up to 35 meters and 1080p 60Hz signals up to 60 meters. For even greater distances, CAT6A or CAT7 cabling allows the extension of 4K 60Hz signals up to 40 meters and 1080p 60Hz signals up to 70 meters. The transmitter also supports bi-directional Power over Cable (PoC), two-way IR, and RS232 pass-through, ensuring reliable signal transmission and control flexibility.
Specifications
- Bi-directional Power over Cable (PoC) support for flexible power management
- Two-way IR and RS232 pass-through for device control
- Compact design for easy installation in diverse environment
