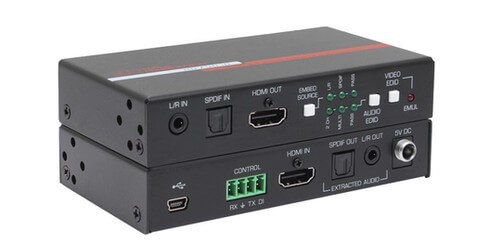

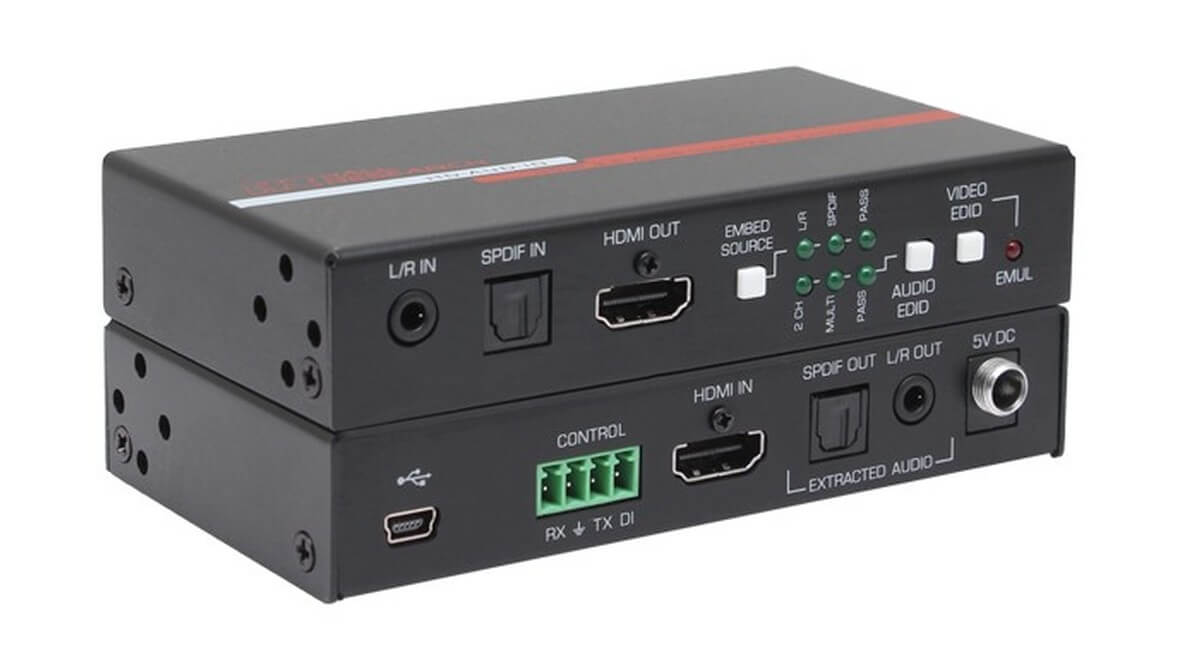

Hall Technologies HD-AUD-IO
HDMI 2.0 Audio Inserter, Extractor, EDID Manager and Equalizer

Part #: HD-AUD-IO
Satisfaction Guaranteed!
MSRP: $223.85
Our Price: $212.66
Free Shipping* | 30 Day Returns* | Authorized Dealer
Coupon
Click for $5 Off!
Top HD-AUD-IO Specifications
  • Video Standards: DVI (single link), HDMI 1.4 and 2.0b video specifications including 12 bit color depth, 3D video, HDCP 2.2
  • Connectors: HDMI Input / HDMI Output
  • Audio Formats: LPCM 2CH Audio (32, 44.1 and 48 KHz sample rate) Digital Audio multi-channel 2.1, 5.1, 7.1
  • Dimensions: 0.9" H x 4.47" W x 2.53" D
"Quick and easy to find what I was looking for."
-Brandon K.
Contact a product specialist!
Proudly supporting our customers since 2008

Description

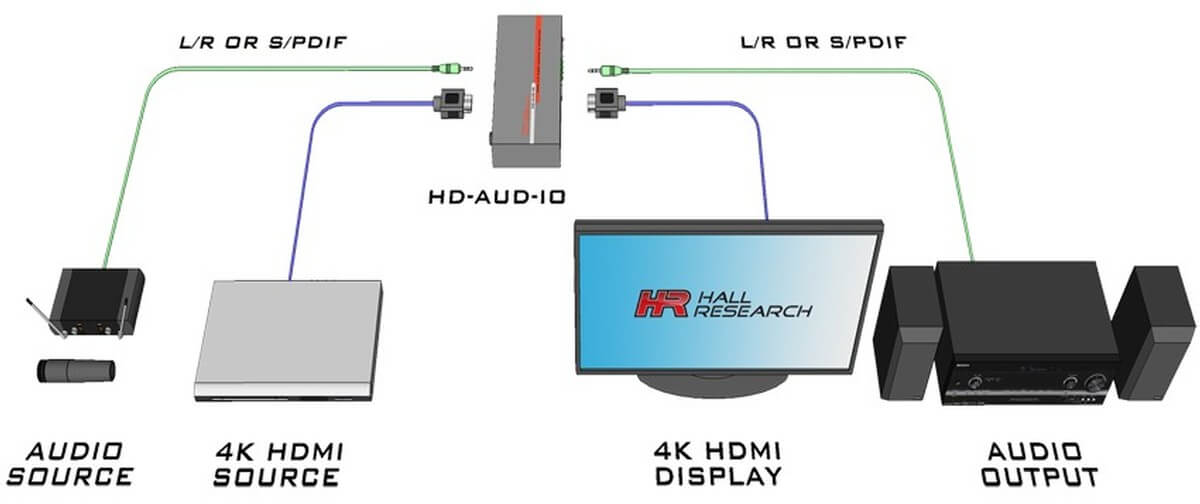

The Hall Research HD-AUD-IO is a high quality HDMI audio extractor (de-embedder) and inserter (embedder). The Audio Inserter provides one HDMI input with a corresponding HDMI output. The HDMI input audio signal simultaneously extracts to both 2-channel L/R analog and Digital SPDIF (TOSLINK). This unit also provides two audio inputs (analog and digital). Users can select which audio to embed in the HDMI output. It can be the same as the original HDMI audio (pass-thru), SPDIF digital, or 3.5mm L/R analog.


Features:

  • Supports 4K/60 4:4:4, HDR, HDCP 2.2 & 1.4
  • Extracts both LR analog and digital audio embedded in the HDMI input
  • Embeds either LR analog or digital audio into the HDMI output
  • Generates HDMI output with embedded audio with no HDMI input
  • Can pass-thru or emulate EDID
  • Configurable digital input for muting audio and/or video
  • 18 Gbps bandwidth for compatibility with HDMI 2.0b
  • Backwards compatible to HDMI 1.4 and DVI Specifications
  • Supports multi-channel digital and 2-channel analog audio
  • EDID management
  • RS-232 controllable

Additional Information:

Advanced EDID management allows users to control the video portion as well as the audio part of the EDID. The EDID presented to the video source connected to the HDMI input can pass from the downstream device or emulate an EDID from internal memory. The device can also “Learn” the EDID connected to its HDMI output. The product has a video bandwidth of 18 Gbps and supports resolutions up to 4K@60 Hz 4:4:4 with HDR. It supports HDCP 2.2 as well as HDCP 1.4 if needed.

The device has the ability to generate and output a blank HDMI signal with audio embedded even if there is no HDMI input; often referred to as “HDMI Audio Bridging”. This is a convenient means to distribute audio only signals over an HDMI network. The HD-AUD-IO has a configurable digital input terminal that can mute the audio and/or video. This allows users to quickly mute the audio on HDMI output by just sensing a contact closure making it ideal for priority page or emergency announcement situations.





Specifications

  • Weight: 0.5lbs
  • Warranty: 3 Years
