SmartFit 6" Poke Through Floor Box, Furniture Feed - Brass
The FSR SF6-CPT-FF-BRS is a 6" fire rated poke-thru furniture feed floor box with brass cover for core holes provide an elegant look in any floor. The entire cover door swings open 180° and the two smaller cable access doors fold down for cable egress while the cover door is secure, the drop down cables access doors reduce trip hazards.

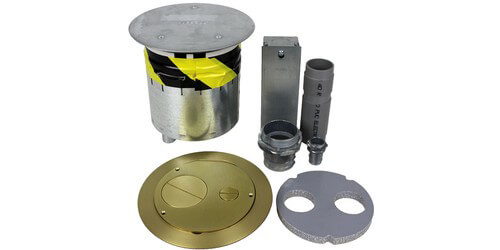

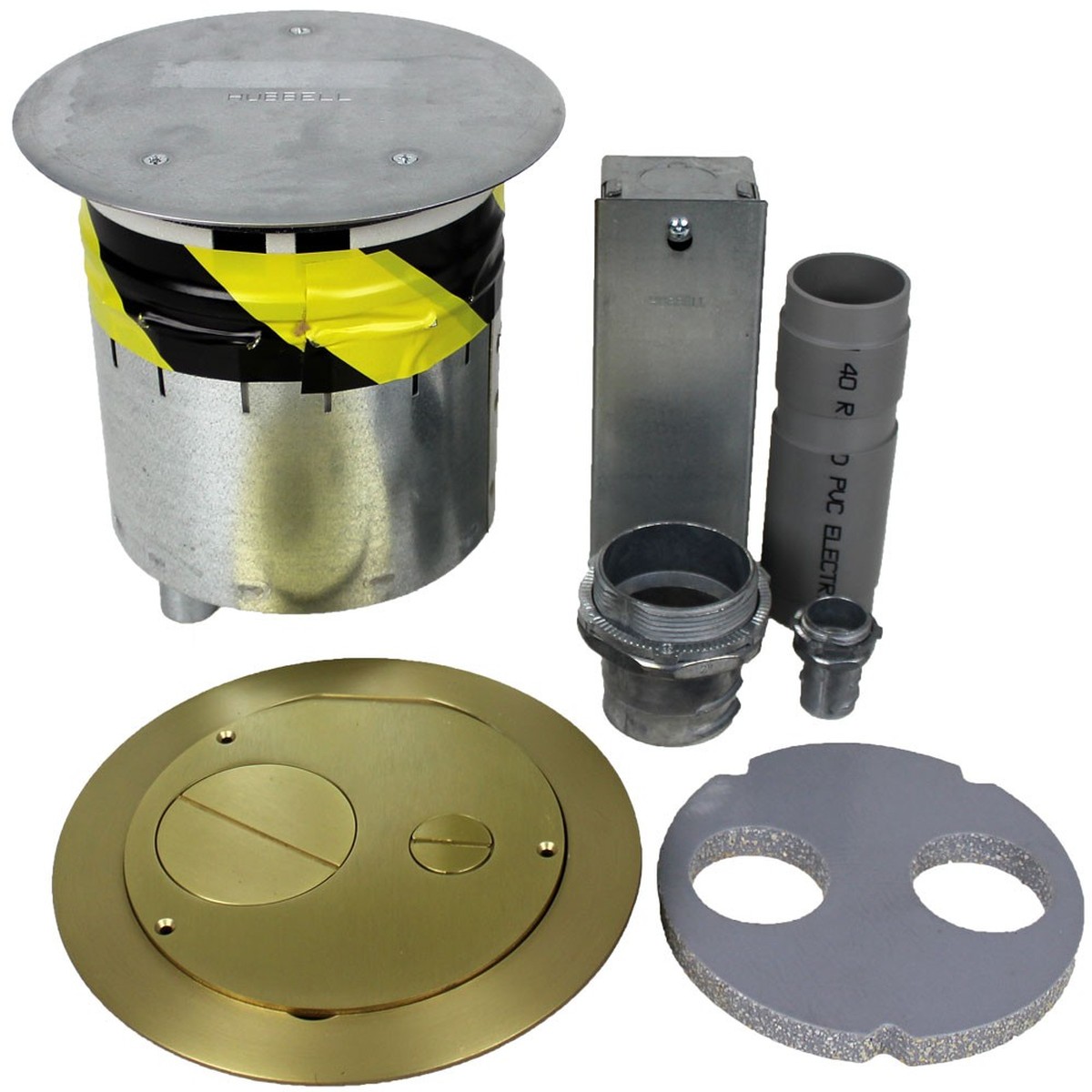

Includes: 6” floor fitting, 2" conduit fitting for data and AV, 3/4" conduit fitting for power, Cover Assembly, and Junction box.
Use the optional SF6-PT pre-pour sleeve first so you don't have to drill out the concrete after.
- 2 hour fire rated
- ADA compliant
- Scrub water rated
- 1000 lb. cover load rating with 2x safety factor
- Cover is 7.5" round
