4" Round Poke Through Floor Box - Brass

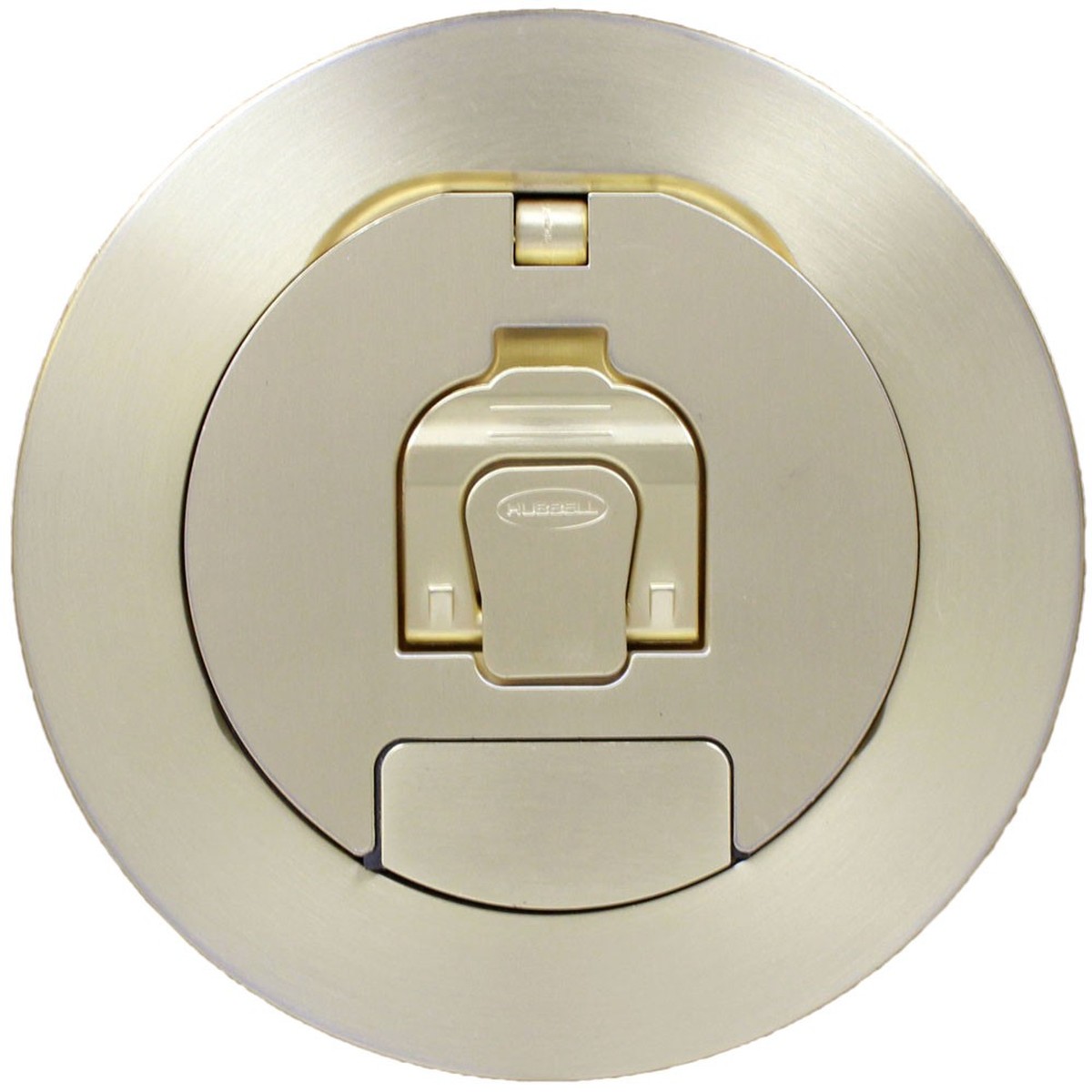

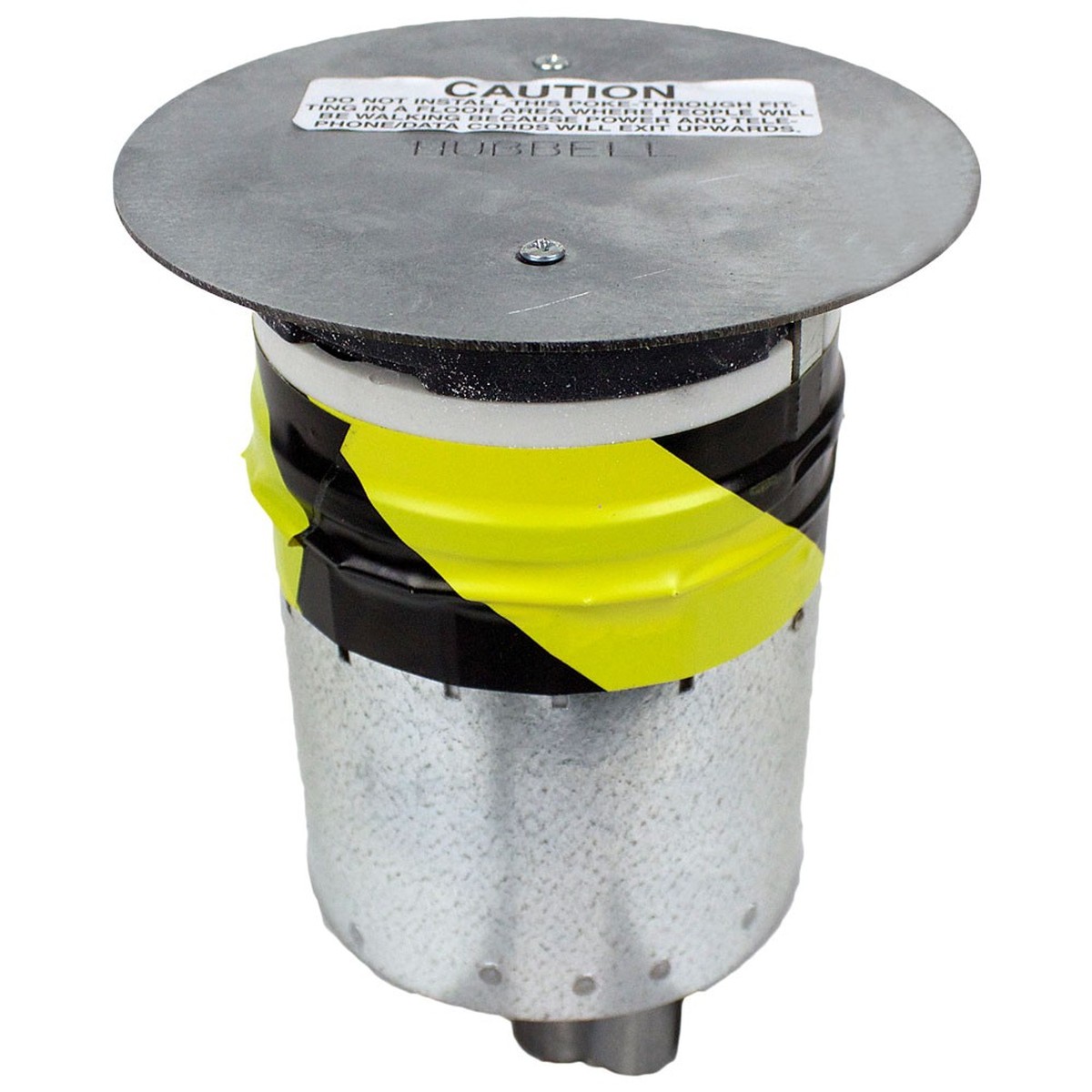

The FSR SF4-PT-BRS is a 4" round floor box poke through with a brass finish cover. The box is fire rated and UL scrub water rated, while the top flange is only .12" thick and is ADA compliant. The entire cover swings open 180 degrees while 2 additional small doors in the cover open to allow cables to pass out of the top.
The FSR SF4-PT-BRS is empty and you will need to choose between the optionally purchased SF4-SPD2S sub plate with a decora opening and 2 keystone jacks, or the SF4-SPD with just a decora opening.
- .12" thick flange is ADA compliant

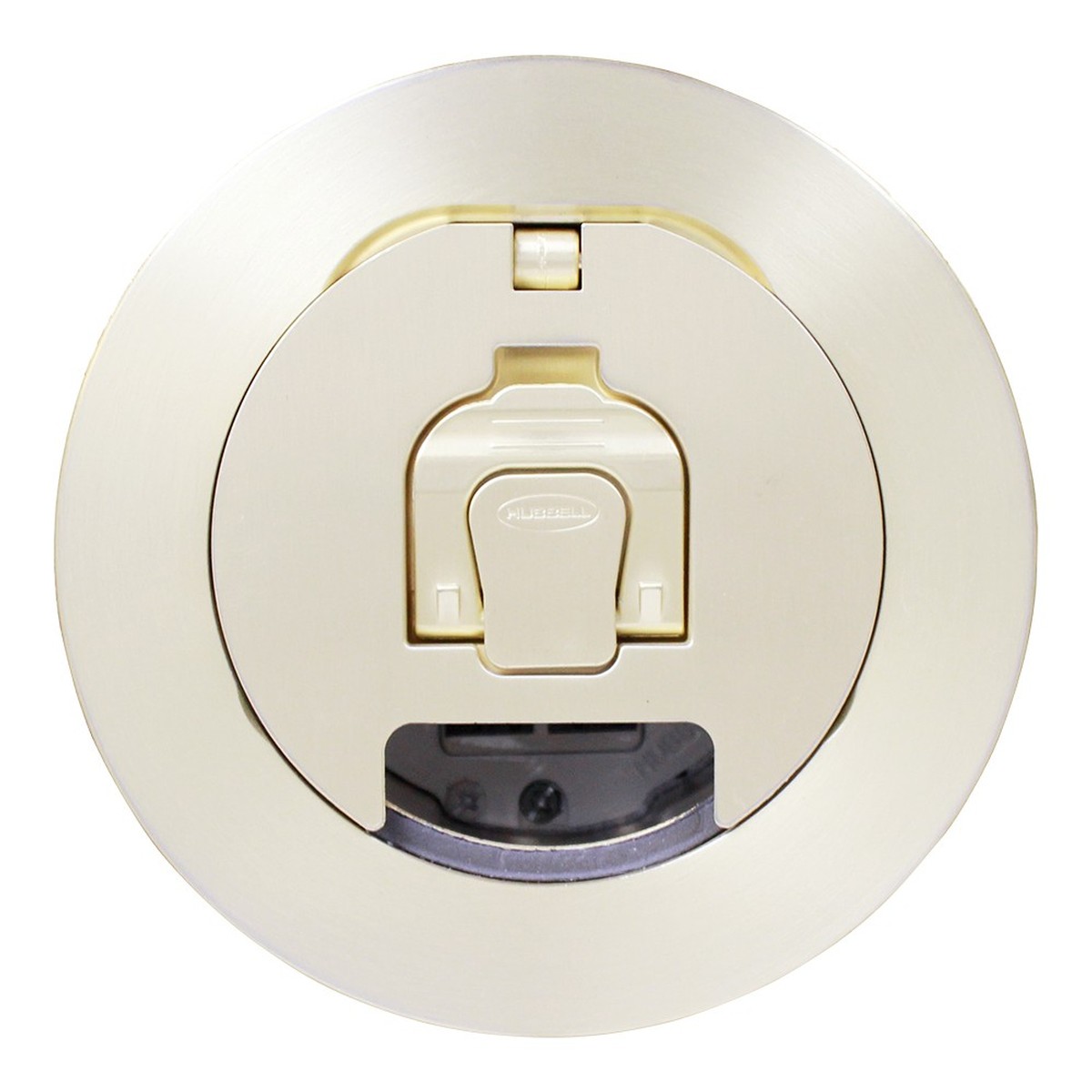

- Cover swings open 180 degrees, 2 additional small doors in the cover open to allow cable pass through

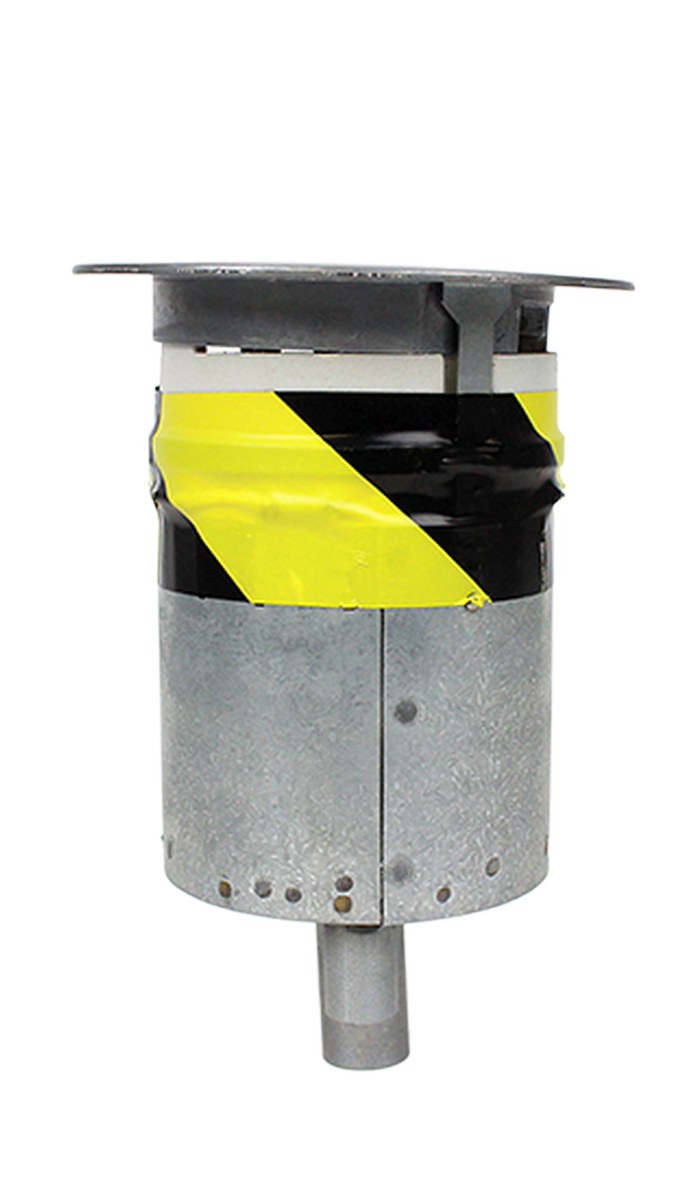

- Pre-pour tubes remove the need for core hole drilling
- One 3/4" conduit for power and two 1/2" conduits for low voltage
- 3" of space between the top and connections
- Bezel dimensions: 5.53"
- Depth: 8.08"
- Includes: Cover, junction box, and dividers
- Warranty: 1 year
This box requires a sub plate, please choose from one of the sub plates below.
