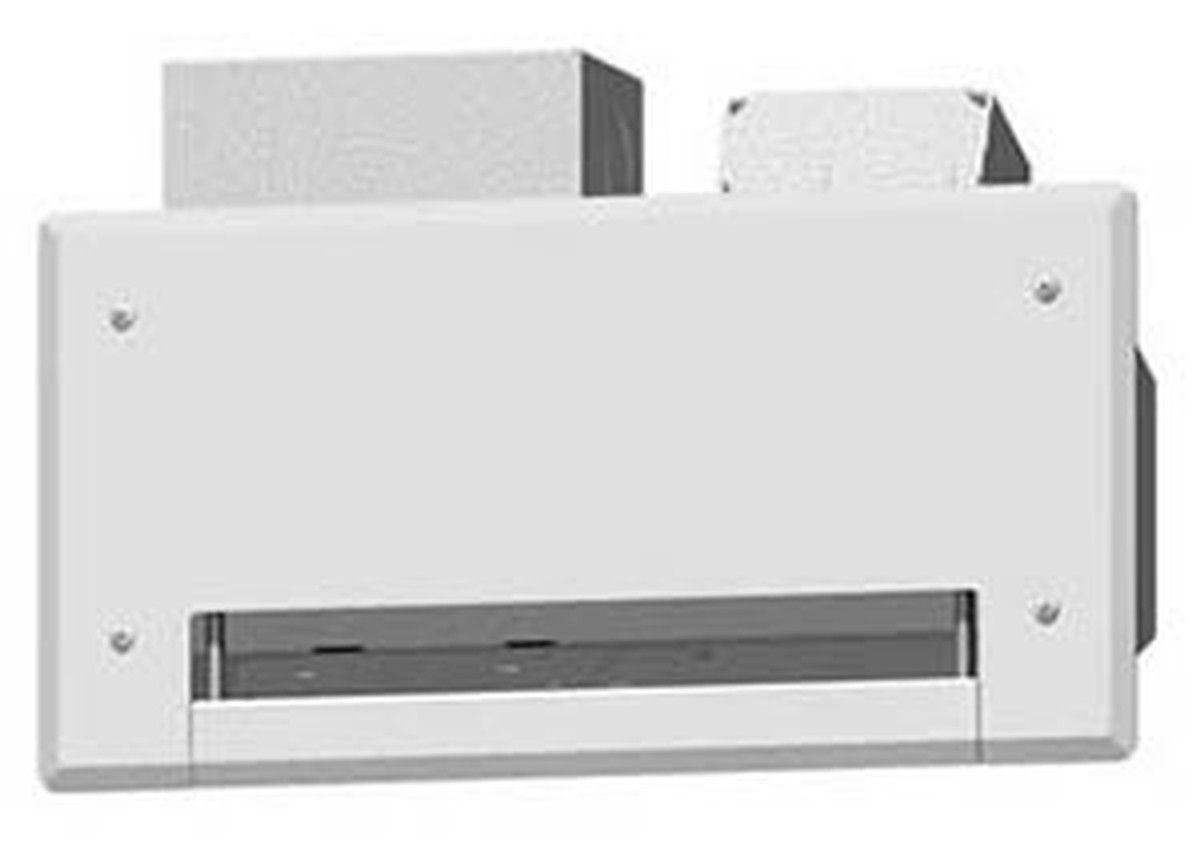

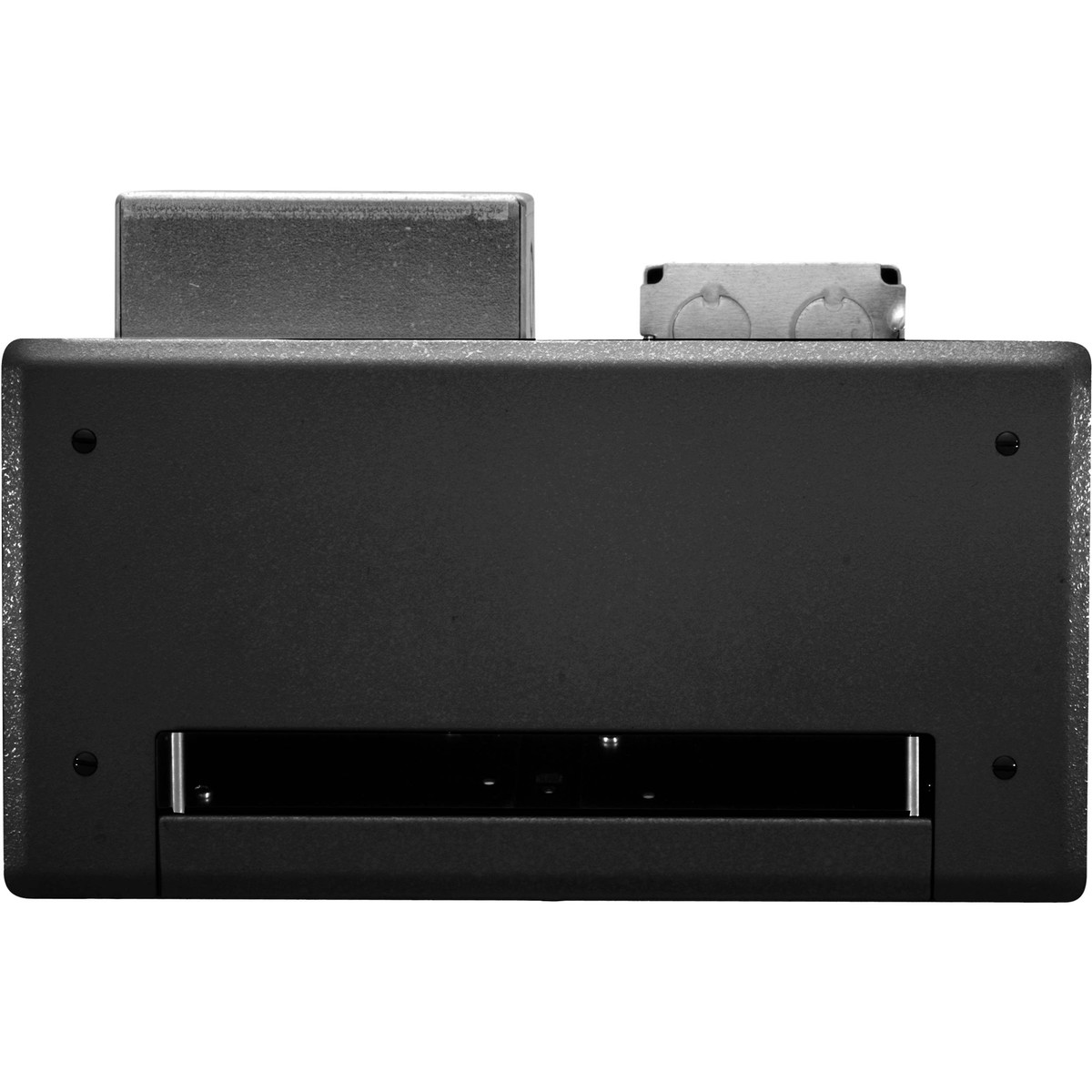

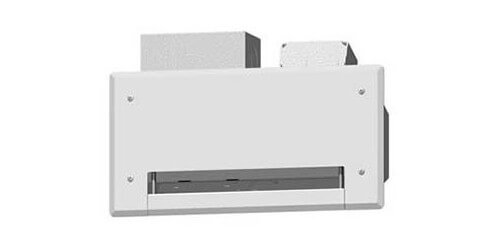

FSR PWB-100-WHT
Flat Panel Display Wall Box

Manufacturer SKU: 16518
Satisfaction Guaranteed!
MSRP: $232.00
Our Price: $212.50
Free Shipping* | 30 Day Returns* | Authorized Dealer
Coupon
Click for $5 Off!
Color choice:
Top PWB-100-WHT Specifications
  • Low voltage back box included
  • Material: 14 gauge steel
  • Can be installed in new or old work (mounting adapters included)
  • Connectors are hidden behind an attractive cover
"Great product. Came as promised. Top quality."
Contact a product specialist!
Proudly supporting our customers since 2008

Description

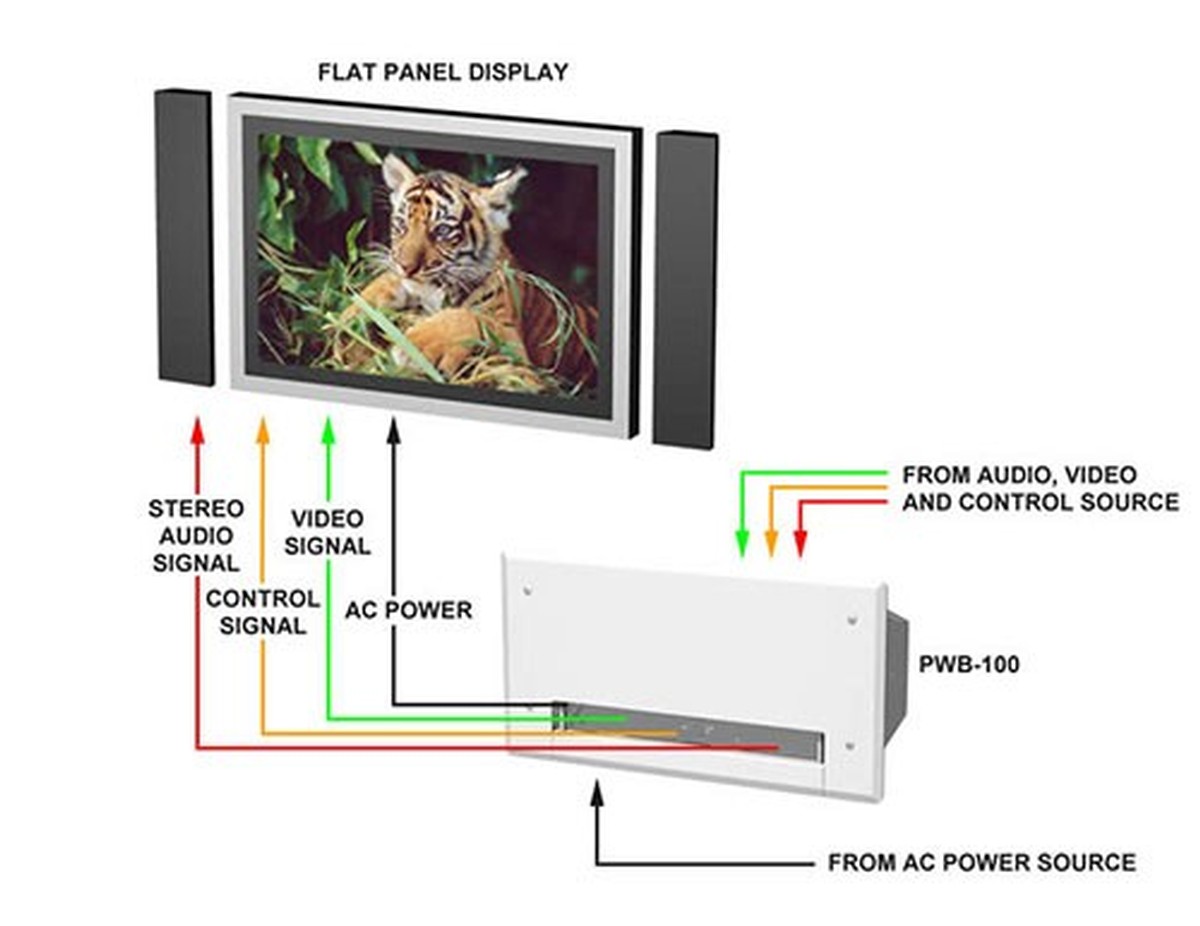

The FSR PWB-100-WHT is an in-wall box designed to hold your power and video connections for your flat panel, choose between black and white colors.  Since the box mounts in the wall it allows the connections to be in the wall, when the connections are made the head of the cable before it can flex is still in the wall. This means that you can mount your TV flush to the wall without the connections in the way.  There is an optional cover sold separately that if desired will allow you to tuck unused cable that exists between the TV and the wall in the box. This allows for a seamless and tidy look on the wall and keeps all your cables tucked away, since you can get the TV up close to the wall there is also the additional benefit of added security.

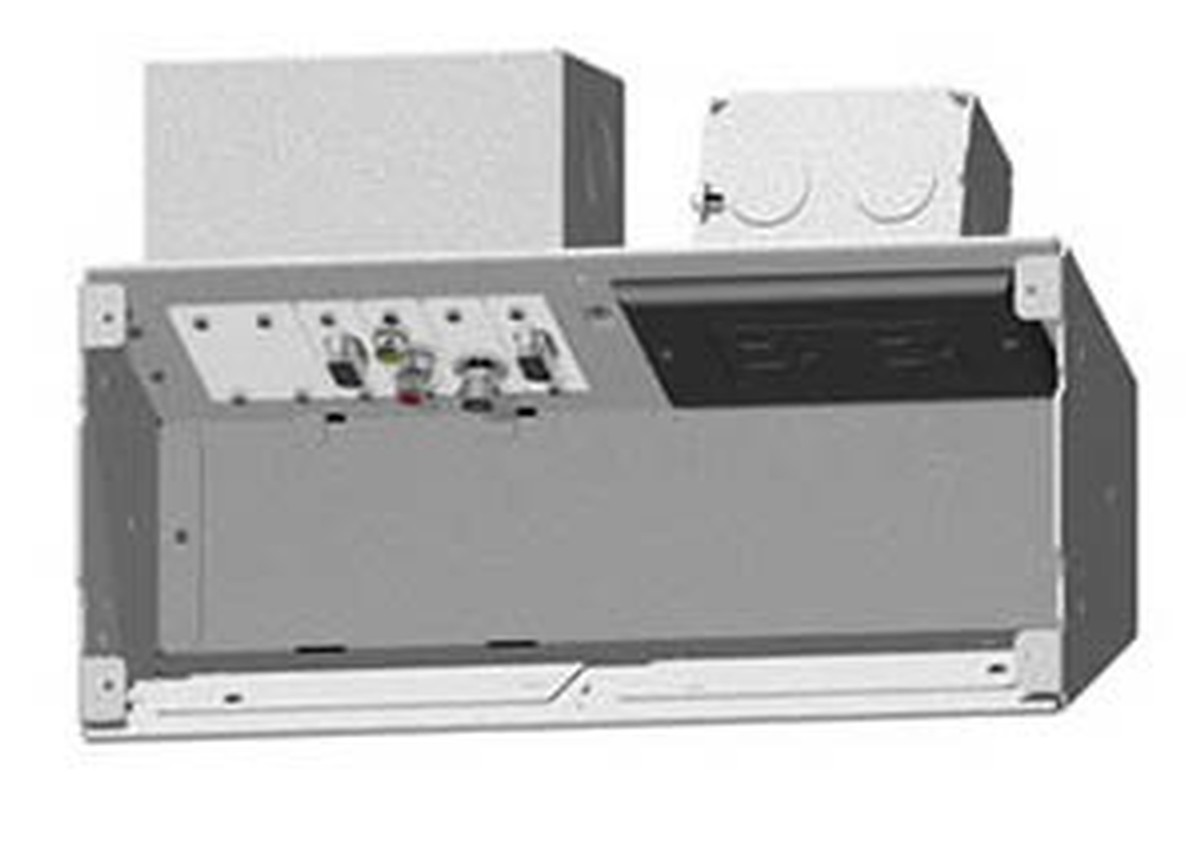

The FSR PWB-100 installs easily between any 2 studs in the wall, cable entry can be on the top or the bottom.  Included is brackets for mounting to studs and surface mount clips for mounting to an existing wall.  When all the connections have been made simply install the door, there is a small gap that allows the cables to pass through.  On the inside of the box is a back box that accepts any standard duplex AC outlet.  Also is 6 openings designed to fit FSR's IPS series of plates, with these plates you can install any connections needed.  If you just need to run a single HDMI cable there is included a grommet plate to pass through your HDMI cable.

The FSR PWB-100 is an economical way to mount your flat panel flush to the wall.

*Does not include cover, power, or audio video connections, these are sold separately.

Specifications

  • Multiple knockouts in a variety of sizes
  • Dimensions: 11"W x 5.25"H x 3.57"D', once populated has an overall height of 7.39"
  • Includes: Black box, block off plates, surface mount clips, IPS grommet plate, stud mount brackets
  • UL listed
  • Warranty: 1 year
