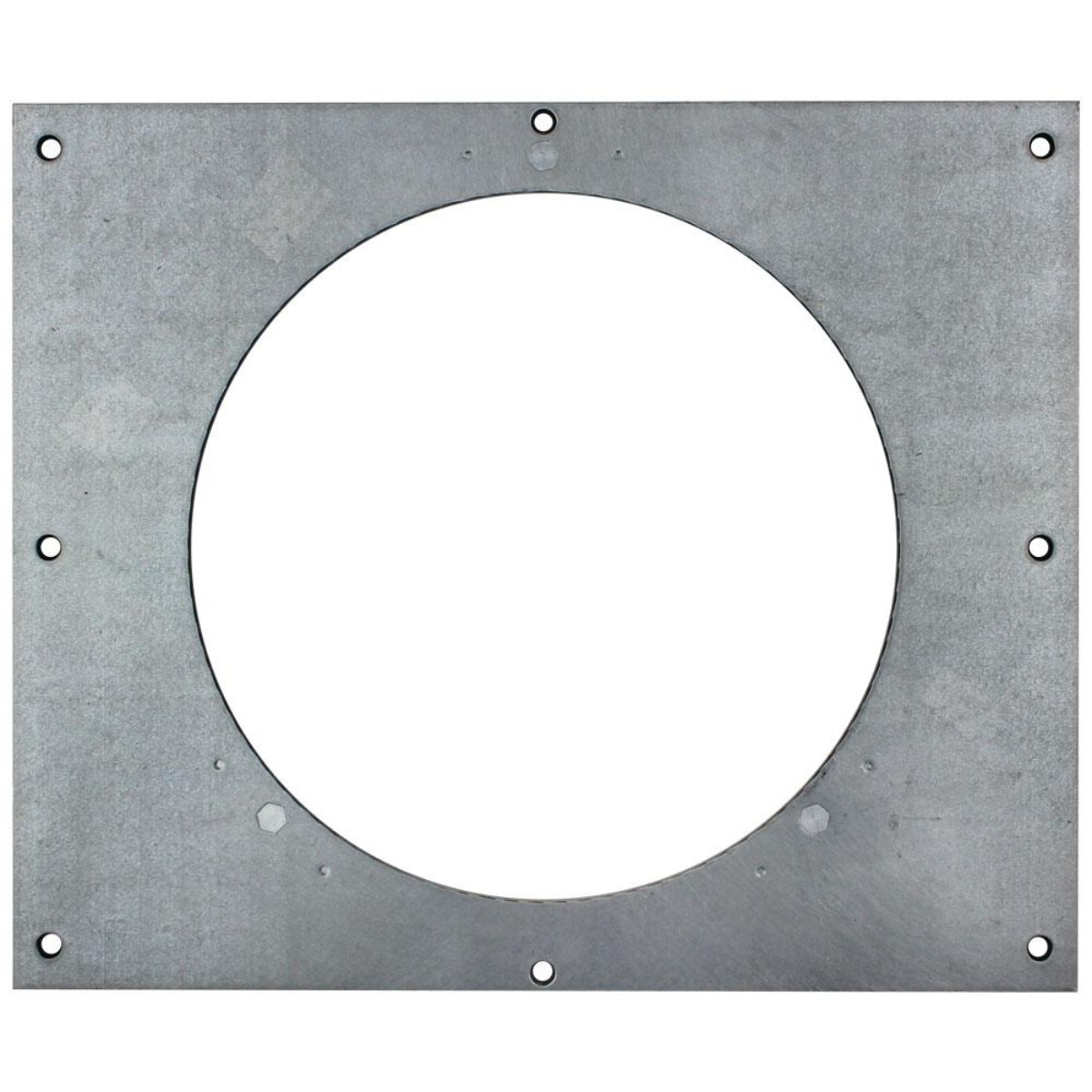

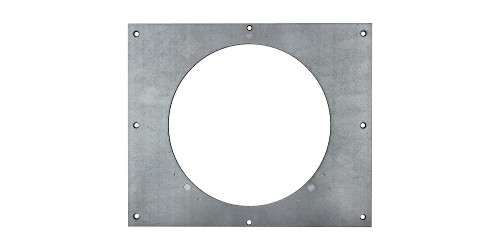

FSR FL-540P-SF8-C
Accessory Bracket for Round Cover Compatibility
-Jeff A.
Description
The FSR FL-540P-SF8-C represents a specialized accessory component designed to expand the versatility of FSR's FL-540P series raised-access floor boxes by enabling the use of round covers in place of standard rectangular configurations. This innovative adapter bracket bridges the gap between FSR's rectangular floor box platform and circular cover designs, providing integrators with enhanced aesthetic options for installations where round floor box covers better complement architectural finishes or coordinate with existing building infrastructure. The SF8-C designation indicates this bracket's specific compatibility with 8-inch round cover systems, making it an essential component for installations requiring this size profile.
Professional integrators appreciate how this accessory bracket maintains the FL-540P series' core advantages including configurable internal mounting brackets, comprehensive knockout patterns, and robust steel construction—while enabling alternative cover aesthetics. The FL-540P floor box series itself is engineered specifically for raised-access carpeted and tiled floors, offering the flexibility to accommodate both high and low voltage standard gang openings through adjustable internal bracketing. By adding the SF8-C bracket, installations gain the ability to present a circular footprint at floor level while retaining all the connectivity flexibility and cable management capabilities that make the FL-540P series a preferred choice for conference rooms, collaborative workspaces, and commercial office environments.
Installation planning benefits from understanding that the FL-540P-SF8-C is an accessory component requiring both the FL-540P floor box back box and a compatible round cover, sold separately. This modular approach allows integrators to specify floor box configurations based on depth requirements and internal connection needs, then select appropriate covers based on aesthetic preferences and floor finish types. The 8-inch round cover compatibility offers a refined, minimalist appearance particularly suited to modern office design schemes where circular elements complement contemporary architectural themes. FSR's engineering ensures the adapter bracket maintains proper structural support and meets applicable safety standards while facilitating this aesthetic transformation.
Frequently Asked Questions
What components are required for a complete installation?
A complete floor box installation using the FL-540P-SF8-C requires three separate components: the FSR FL-540P series floor box back box in your desired depth, the FL-540P-SF8-C adapter bracket itself, and a compatible 8-inch round floor box cover. FSR offers FL-540P back boxes in multiple depths ranging from 2.25 inches to 10 inches, allowing selection based on cable volume and connector requirements. Round covers are available in various finishes including painted silver, black, and brass to coordinate with floor finishes. Each component must be ordered separately, enabling customization while ensuring all elements properly integrate into the complete assembly.
Can this bracket be used with other FSR floor box models?
The FL-540P-SF8-C is specifically engineered for use with FSR's FL-540P series raised-access floor boxes and may not be compatible with other FSR floor box product lines such as the FL-500P, FL-600P, or poke-through boxes due to differences in mounting patterns and dimensions. For optimal fit, structural integrity, and warranty coverage, FSR recommends using this adapter bracket exclusively with FL-540P series back boxes. If your installation requires round cover capability with a different FSR floor box series, consult FSR's product catalog or technical support to identify the appropriate adapter bracket model for that specific product line.
Does using this bracket affect the floor box's capacity?
The FL-540P-SF8-C adapter bracket does not significantly impact the internal cable storage capacity or connector mounting capabilities of the FL-540P floor box. The bracket serves primarily to adapt the rectangular box opening to accept round covers while maintaining access to the internal mounting brackets and knockout patterns. However, integrators should verify that their selected round cover provides adequate access for cable egress and connector installation, as different cover designs may feature varying sizes of hinged access doors or cable exit openings. The FL-540P's configurable internal brackets remain fully functional with the round cover adapter installed.
What environments are suitable for installations using this bracket?
The FL-540P-SF8-C is designed for raised-access floor applications in tiled or carpeted environments where scrub water accumulation is unlikely. Typical installations include corporate office spaces with raised flooring systems, conference rooms, training facilities, and commercial buildings with modular floor construction. The system is not intended for grade-level concrete installations or outdoor applications. For concrete floor applications, FSR recommends their FL-500P series with appropriate pour pans. The raised-access designation indicates this floor box requires an elevated floor structure with accessible underfloor space for cable routing and installation access.
