FSR FL-1300-BLK
Medium Stage Floor Box with Hinged Door in Black Sandtex

Description

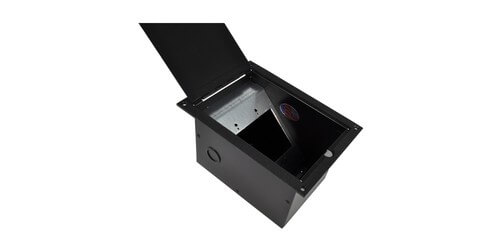

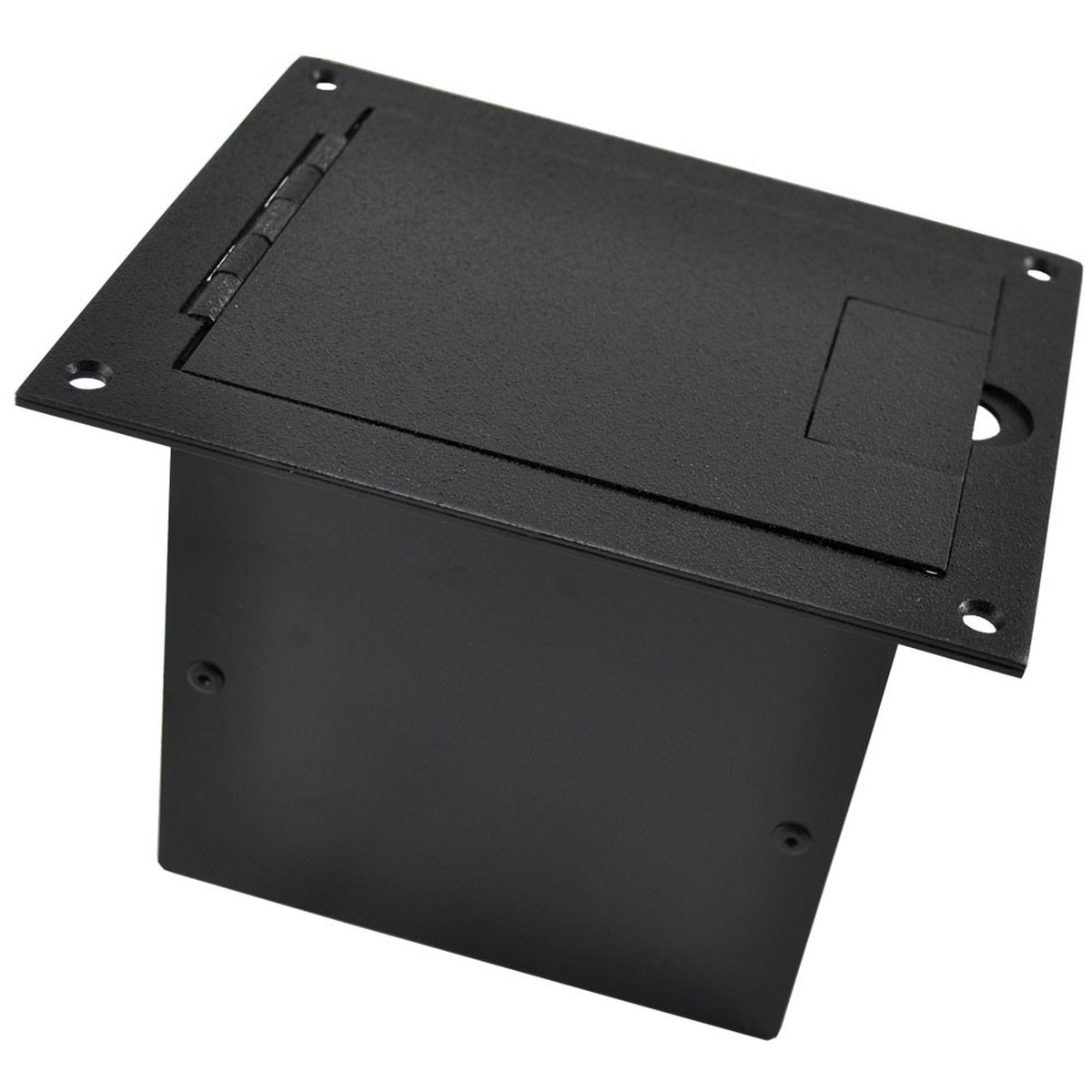

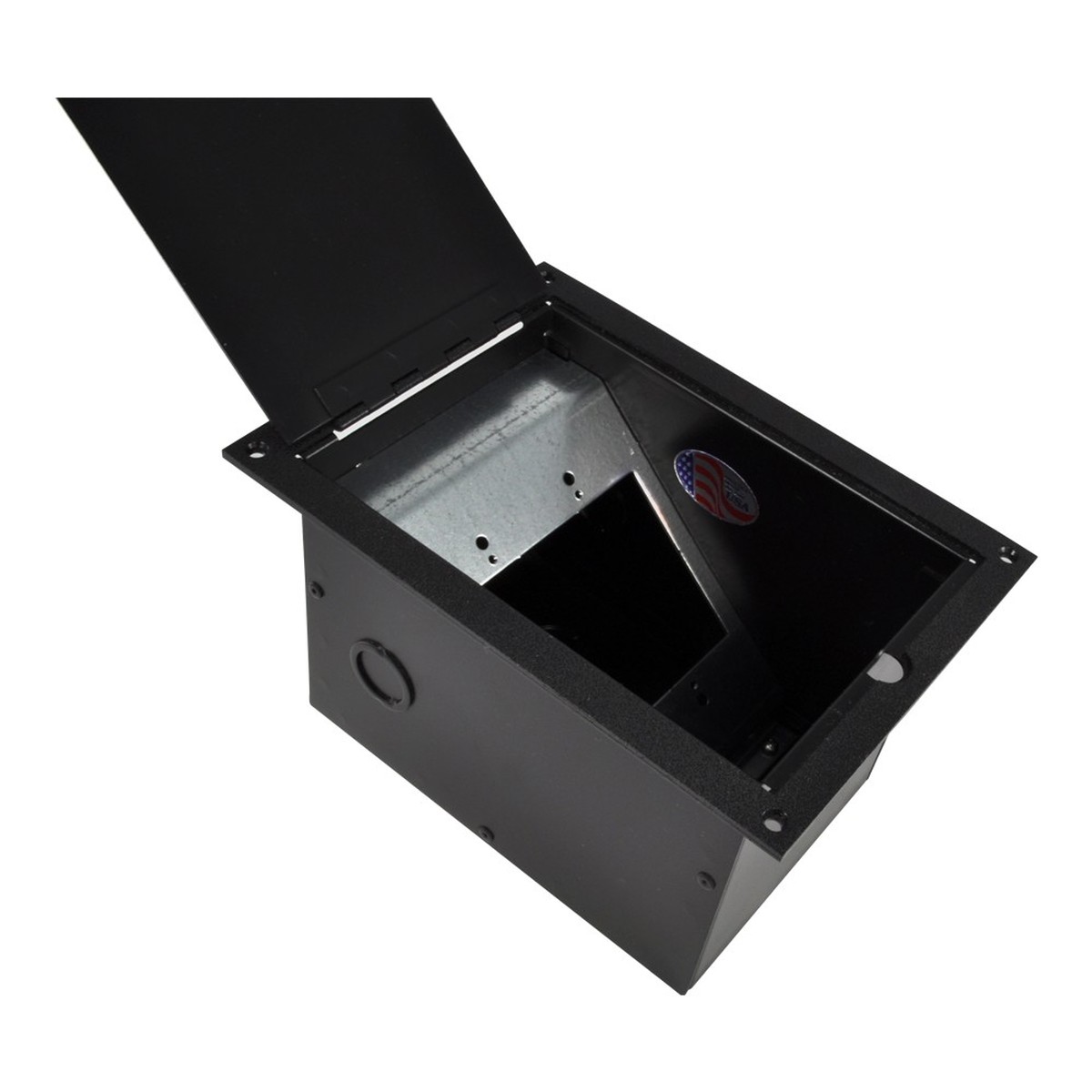

The FSR-1300-BLK is a raised access floor box used in applications such as stage and computer floors, it also features a black sandtex painted hinged cover.  The cover completely opens when needed but also has a small door for when cables are being used.  It features a duplex cutout for your power and audio video needs.   The box is rugged, the one piece all welded design will hold up to the rigors and foot traffic.

Accepts a single dual gang plate.

Specifications

• 2 knockouts on rear 1/2" or 3/4", 1 on the bottom, 1/2" or 3/4", 1 on left and right, 1/2" or 3/4"
• Dimensions: Top: 8-1/2" x 6-1/8" x 1/8"
• Dimensions: Box: 5-1/8" x 7-1/8" x 4-7/8"
• Weight: 5 lbs

Downloads

• FSR FL-1300-BLK Specifications (PDF)
