FSR DR-H2.0-100M
HDMI 2.0 Plenum Rated AOC Digital Ribbon Cable - 328'

Manufacturer SKU: 18152
This product has been discontinued

For further information and alternative products, please call us at 888-999-3759 or click here to contact us.
Top DR-H2.0-100M Specifications
  • 328' long
  • HDMI Active Optical Cable
  • Data Transfer Rate: Up to 18 Gbps
  • Plenum rated - Type CMP/FT6
"Online ordering was very easy and the automated emails kept me up to date on status of the order until delivery"
Contact a product specialist!
Proudly supporting our customers since 2008

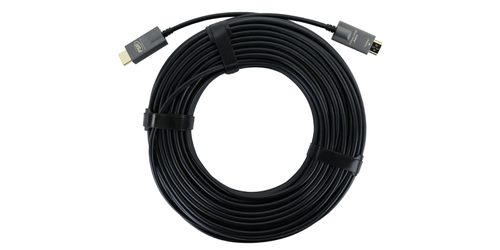

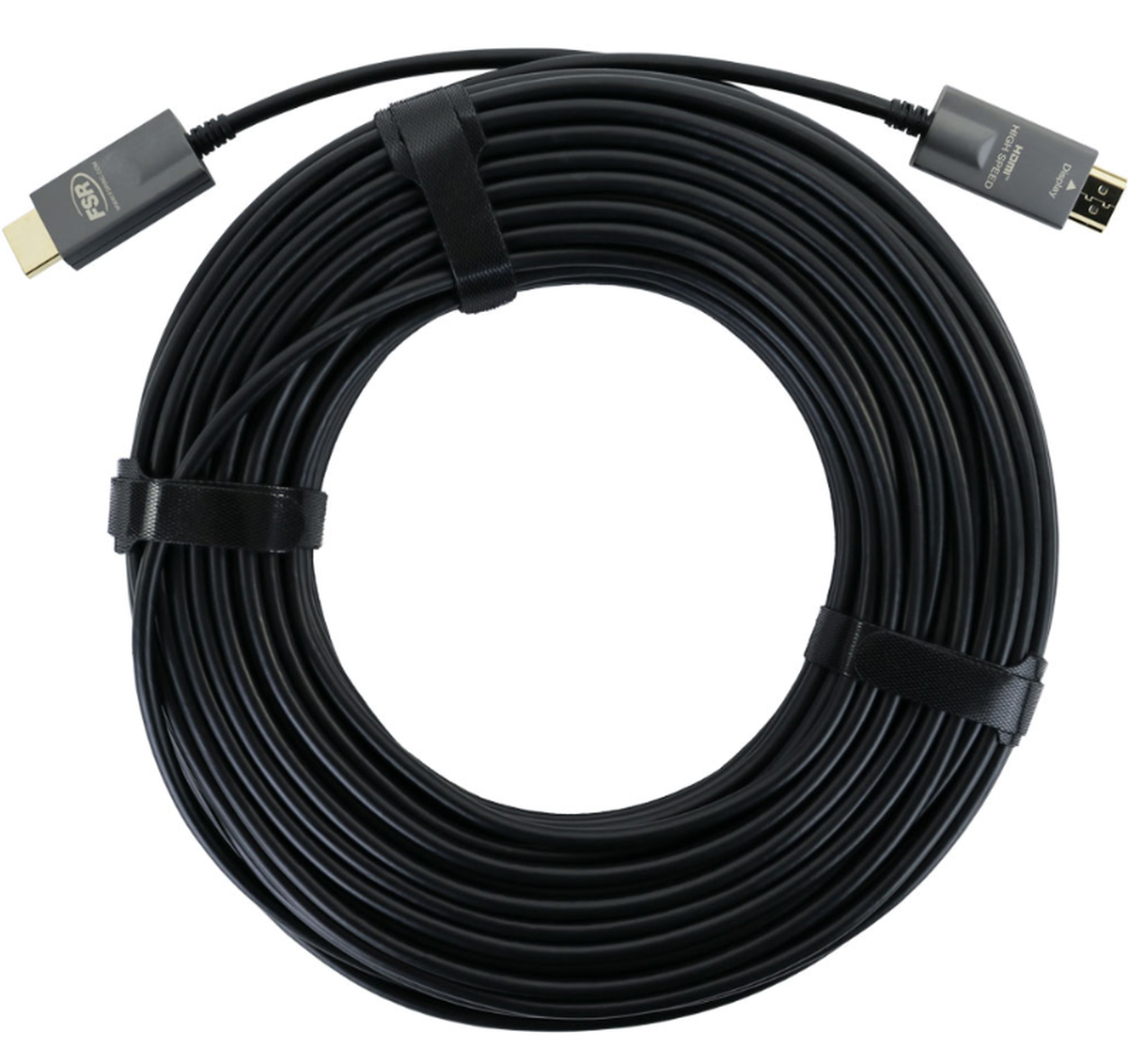

FSR introduces the DR-H2.0-100M, a digital ribbon cable featuring high-speed, high-definition HDMI signal transmission over distances up to 328 feet. The cables come pre-terminated in convenient lengths.

The FSR DR-H2.0-100M cables can easily handle up to 4k 60Hz 4:4:4 HDR uncompressed HDMI video and are ARC compatible. These cables meet HDMI 2.0 and HDCP 2.2 testing standards and support DDC for HDCP and EDID, PCM, Dolby, DTS-HD, and True HD Audio.

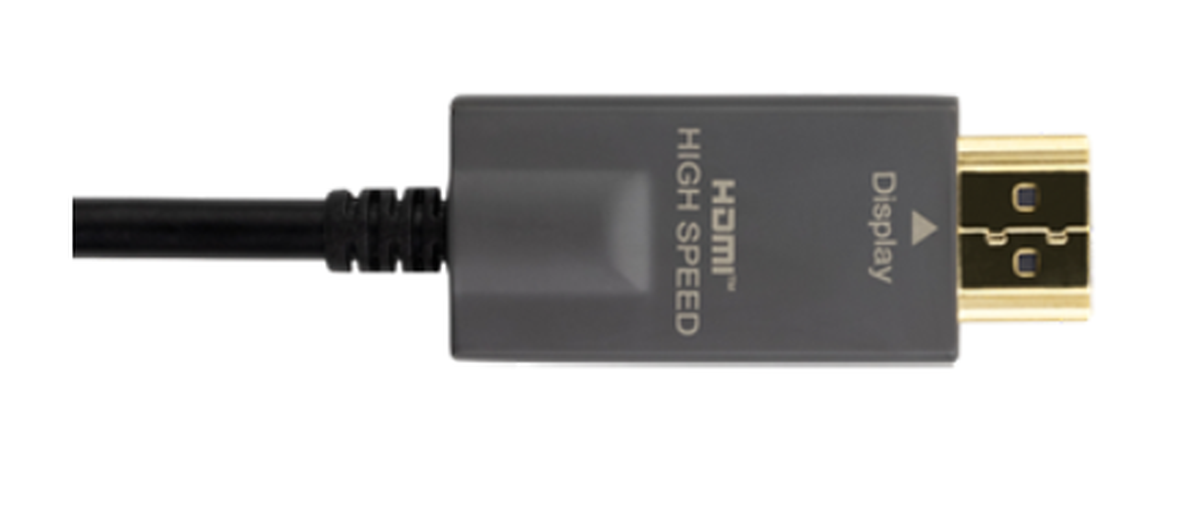

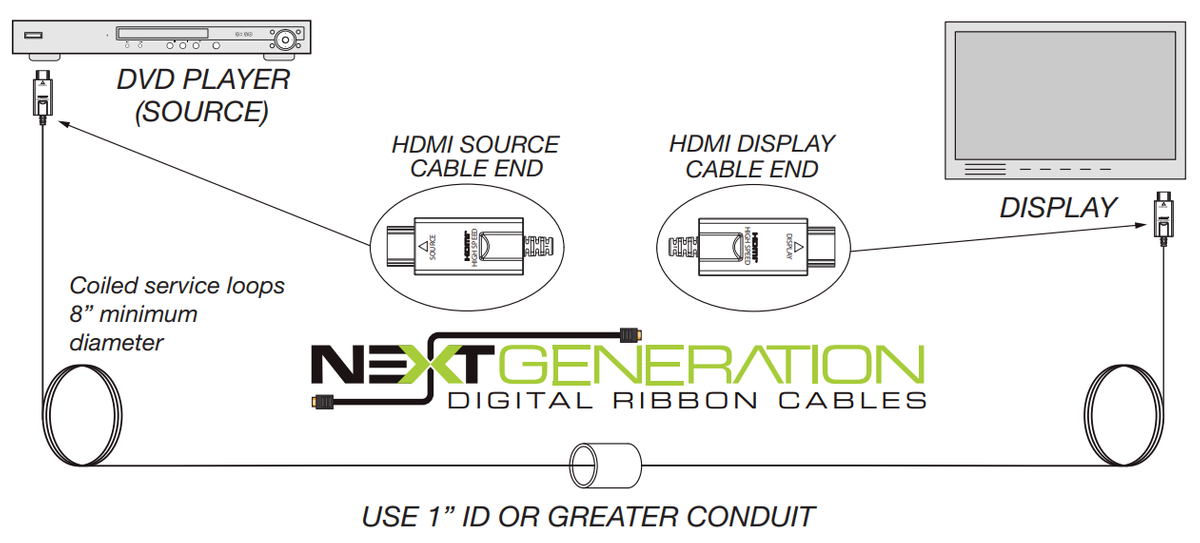

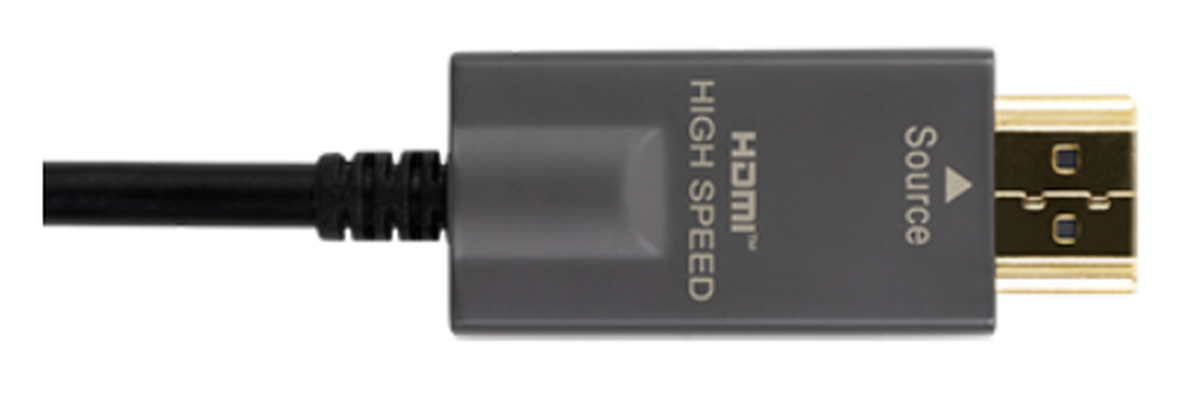

The connector shells are labeled "source" and "display" to aid in proper connection during the installation. Both the cable and connector were designed to easily fit within a 1" conduit.

For a plenum-rated active optical HDMI cable that can handle 4K signals, look no further than the FSR DR-H2.0-100M!


  • No External Power Required
  • Resolution: Up to 4K60 Hz at 4:4:4, Uncompressed
  • Supports: HDMI 2.0, HDCP 2.2, DDC for HDCP and EDID, 3D, Deep Color, ARC compatible
  • HDMI Audio Specs: PCM, Dolby, DTS-HD, and True HD
  • Features a Low 0.5" Bending Radius
  • Warranty: 3 Years
