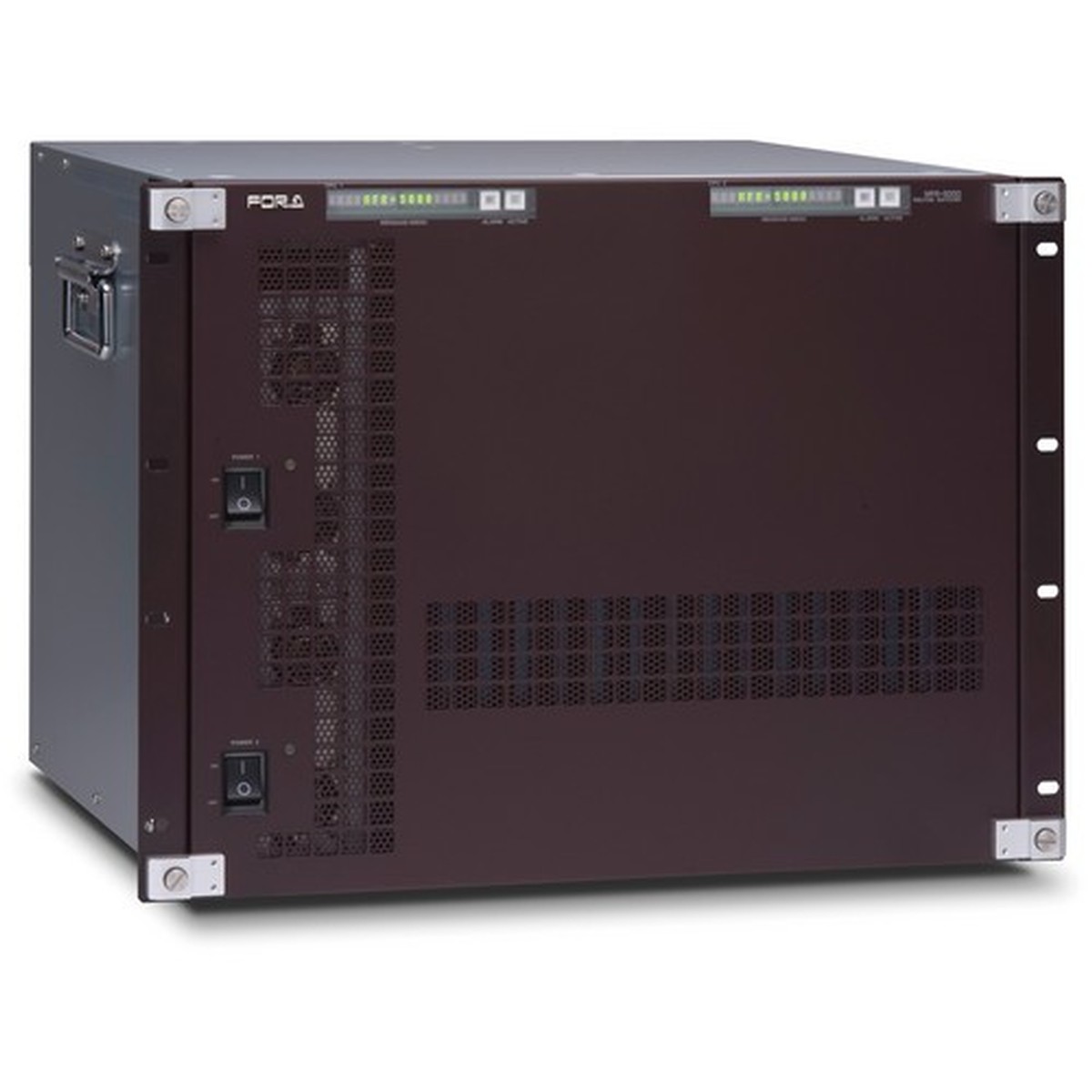

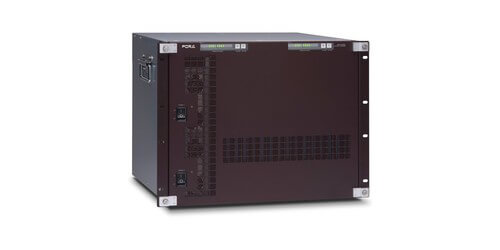

FOR-A MFR-5000
128X128 8RU Modular Routing Switcher Case
- Up to 128x128 I/O Matrix Configuration
- Supports RS-422 interface routing
- Multiple Input and Output cards available
-Timothy J.
Description
The FOR-A MFR-5000 Series 8RU Routing Switcher Case is highly configurable; supporting up to 128 inputs, 128 outputs, and 4 monitoring outputs. It comes with a primary CPU control board and power supply, but otherwise requires you to configure it with optional I/O cards. The unit, with optional I/O cards, supports SD, HD, 3G, and DVB ASI video signals and AES/EBU audio signals. Once the unit is configured with the options, it allows you crosspoint control functions; including button-assigned Salvo, Main unit storage Salvo, Take operation, Chop function, and monitor enable. The switcher supports combining multiple remote control units to make them act as a single large scale control panel. The switcher case supports an optional redundant CPU control board and power supply. Control of the switcher is through either Ethernet or RS-232/RS-422 serial control. The switcher case is rackmountable using the included rackmount clips.
