4 Analog Audio Stereo Output Card, 8 AES Out, 2 SDI

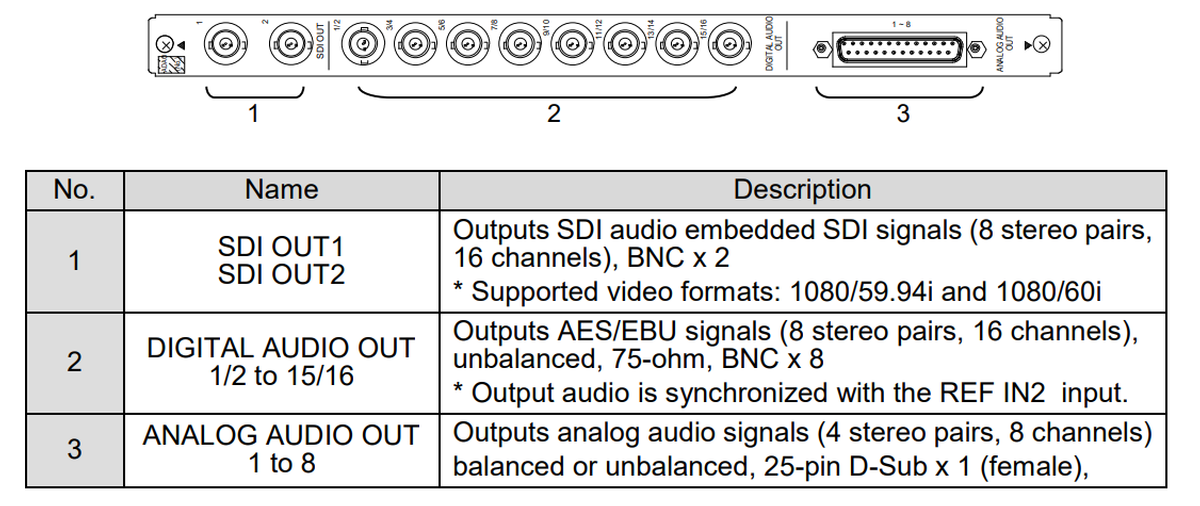

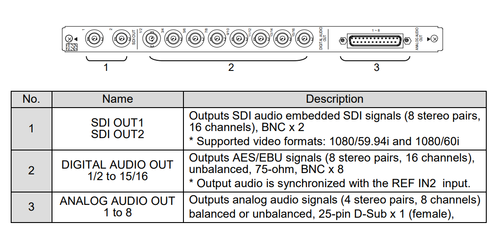

Audio output card for up to 8 stereo pairs with D/A converter (16 channels). MFR-16ADAO is an audio output card with D/A converter. Each card can output the same audio (up to 8 stereo pairs, 16 channels) from 2 SDI, 8 AES/EBU and analog (4 stereo pairs) output connectors.
In addition to audio channels input to MFR-16ADI, embedded audio channels input to MFR-16SDI/16SDIA can output from MFR-16ADAO by de-embedding audio from SDI signals. Note that embedded audio should meet the following requirements. Otherwise, audio output should be choppy or noisy.
- Audio signals at 48kHz sample rates.
- HD-SDI embedded audio signals that are synchronized to the external reference signal
(REF IN2 input). 3G and SD SDI embedded audio signals are not properly synchronized.
