Contemporary Research
QIP-SDI HDMI
QIP-SDI HDMI IPTV Encoder
-Patrick S.
Description

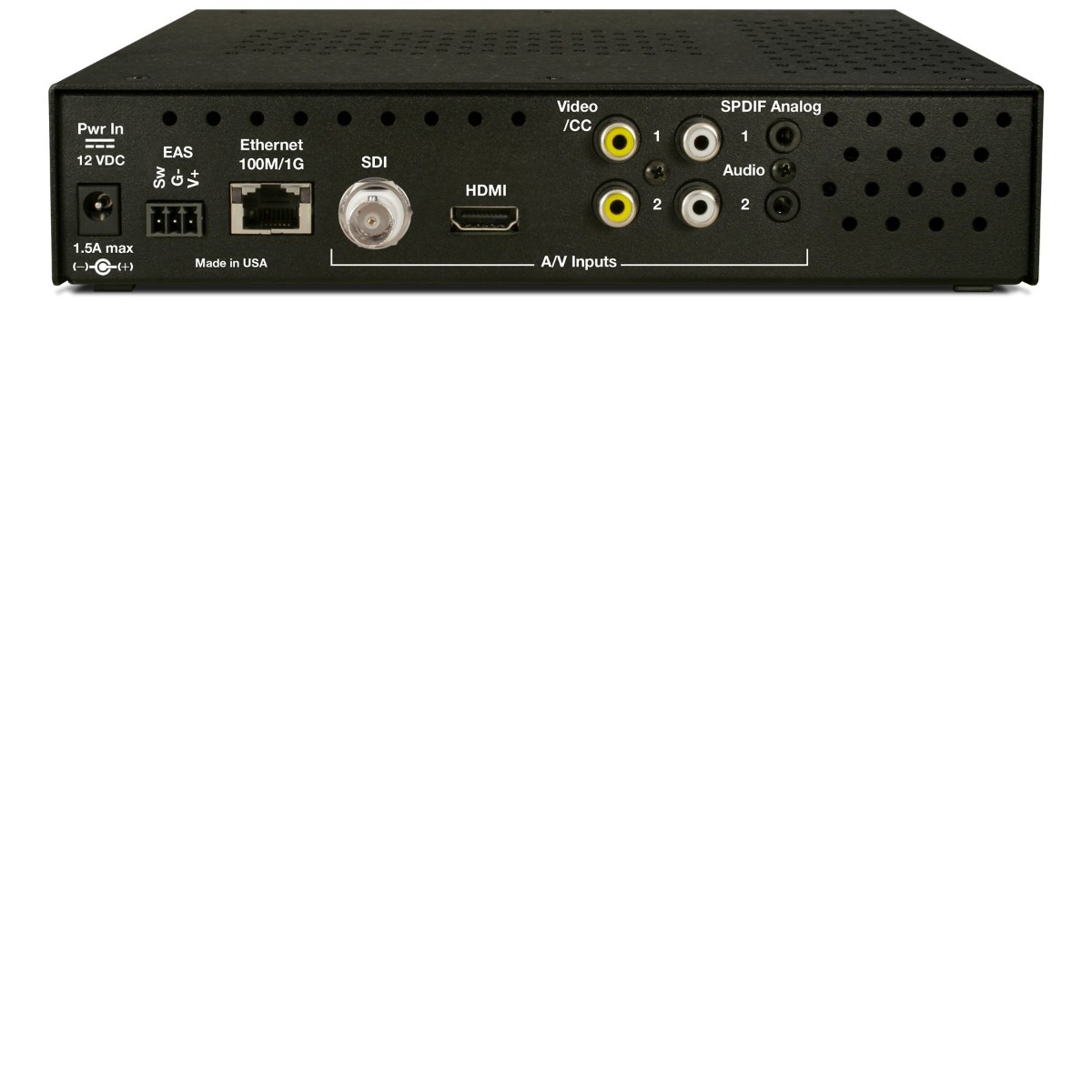

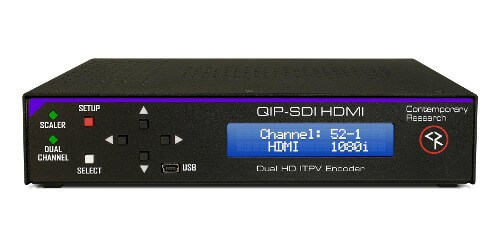

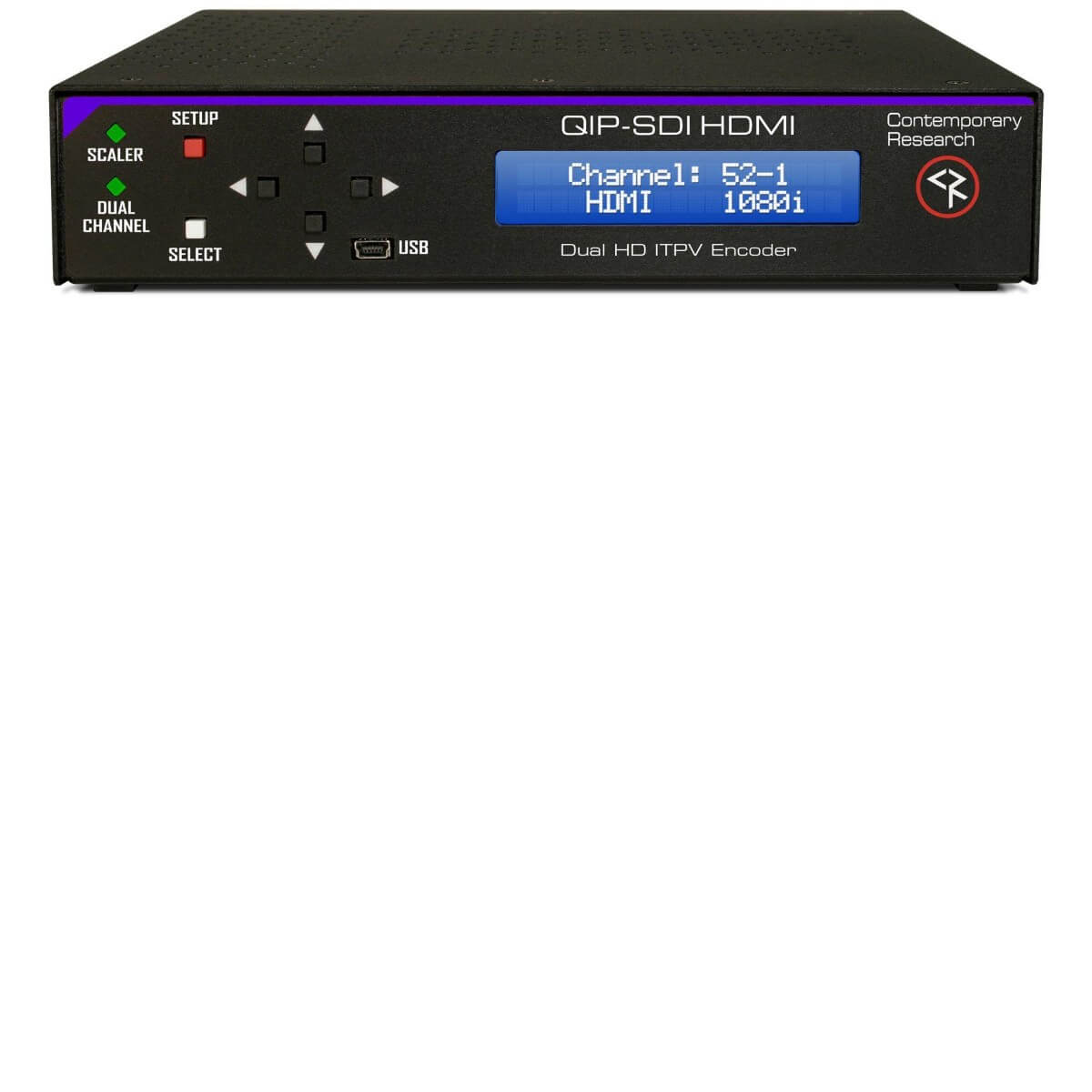

The dual-program QIP-SDI HDMI, with one SDI and one HDMI input, sets a new standard for sports, motion and digital signage encoding. Dual hardware scalers accept content up to 1080p, shapes digital signage for edge-to-edge presentation, and compensates for non-broadcast and PAL refresh rates. Encoding as MPEG-2 or H.264, the QIP-SDI HDMI can output the content as single MPTS or two SPST Multicast or Unicast IPTV streams. Options include dual-language SAP audio, easy front-panel setup and alternate audio and NTSC video inputs. Web setup, monitoring, and firmware updates are available via USB and Ethernet ports. Two-across mounting offers up to four programs per rack space, with the ability to mix models to handle HDMI, SDI, and NTSC video sources.
