Biamp Tesira SERVER-IO
Configurable I/O DSP with up to 48 channels of I/O
- Supports up to 3 DSP cards
- Up to 420 x 420 channels of digital I/O over AVB
- Supports optional 64 x 64 Dante audio networking
- Supports optional 32 x 32 CobraNet audio networking
Description

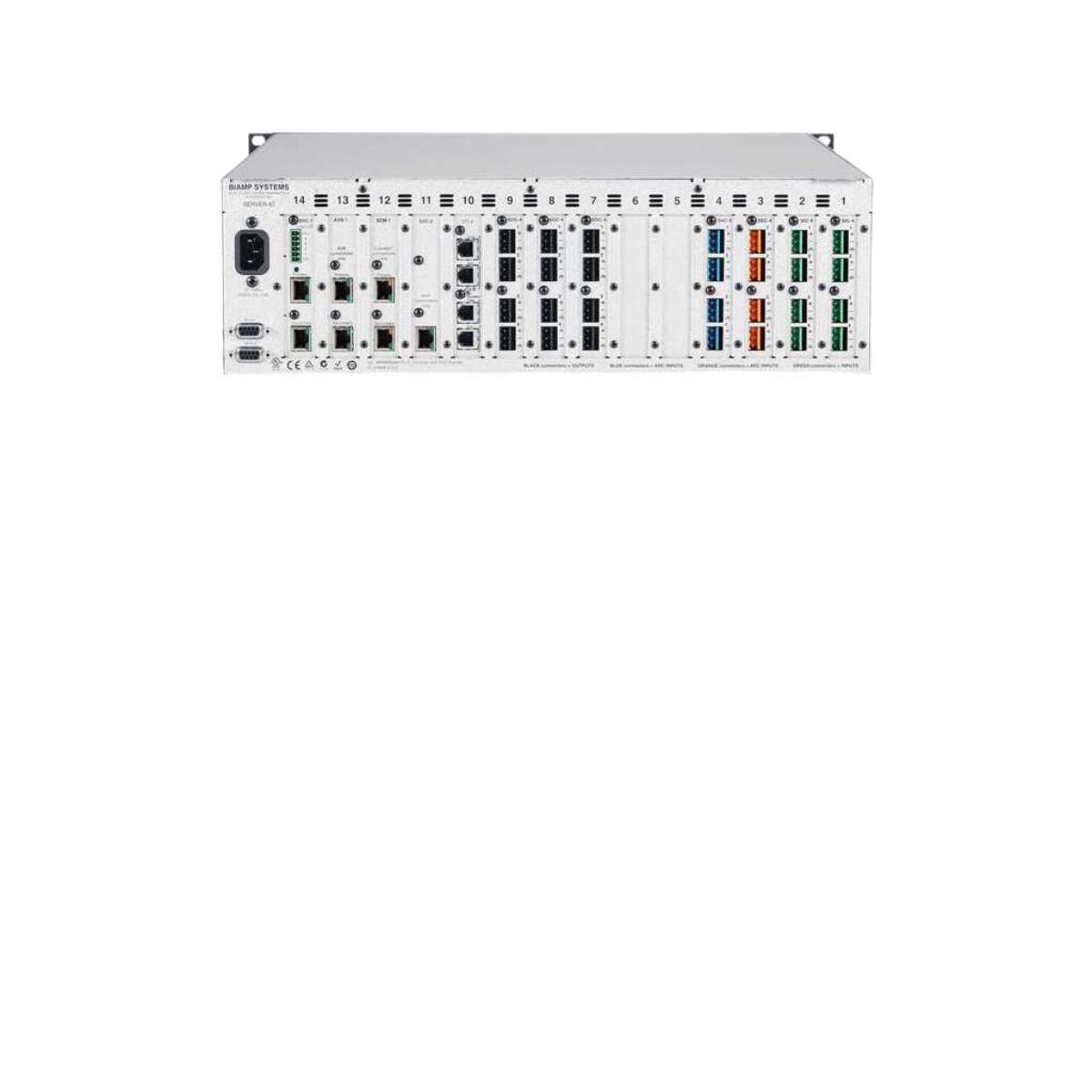

Tesira SERVER-IO is a configurable I/O digital signal processor for use with the Tesira digital audio networking platform. It is factory configured with one DSP card and capable of handling up to two additional DSP cards. The SERVER-IO can be configured with up to three total audio networking cards per chassis. The combinations of networking cards may include one AVB-1 Audio Video Bridging network card, up to two SCM-1 CobraNet network cards, and up to two DAN-1 Dante network cards in any configuration. The SERVER-IO can support up to 12 standard Tesira I/O cards for up to 48 channels of audio I/O (e.g. mic and line level, VoIP, and standard telephone interface). The configurable I/O DSP features a Biamp algorithm, SpeechSense, which enhances speech processing by more accurately distinguishing between human speech and noise. The DSP also provides extensive audio processing, including but not limited to: signal routing and mixing, equalization, filtering, dynamics, and delay as well as control, monitoring and diagnostic tools; all configured through Tesira software.
Specifications
- System configuration and control via Ethernet or serial connection

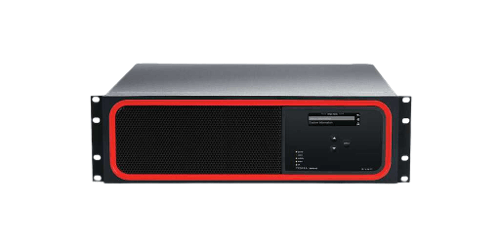

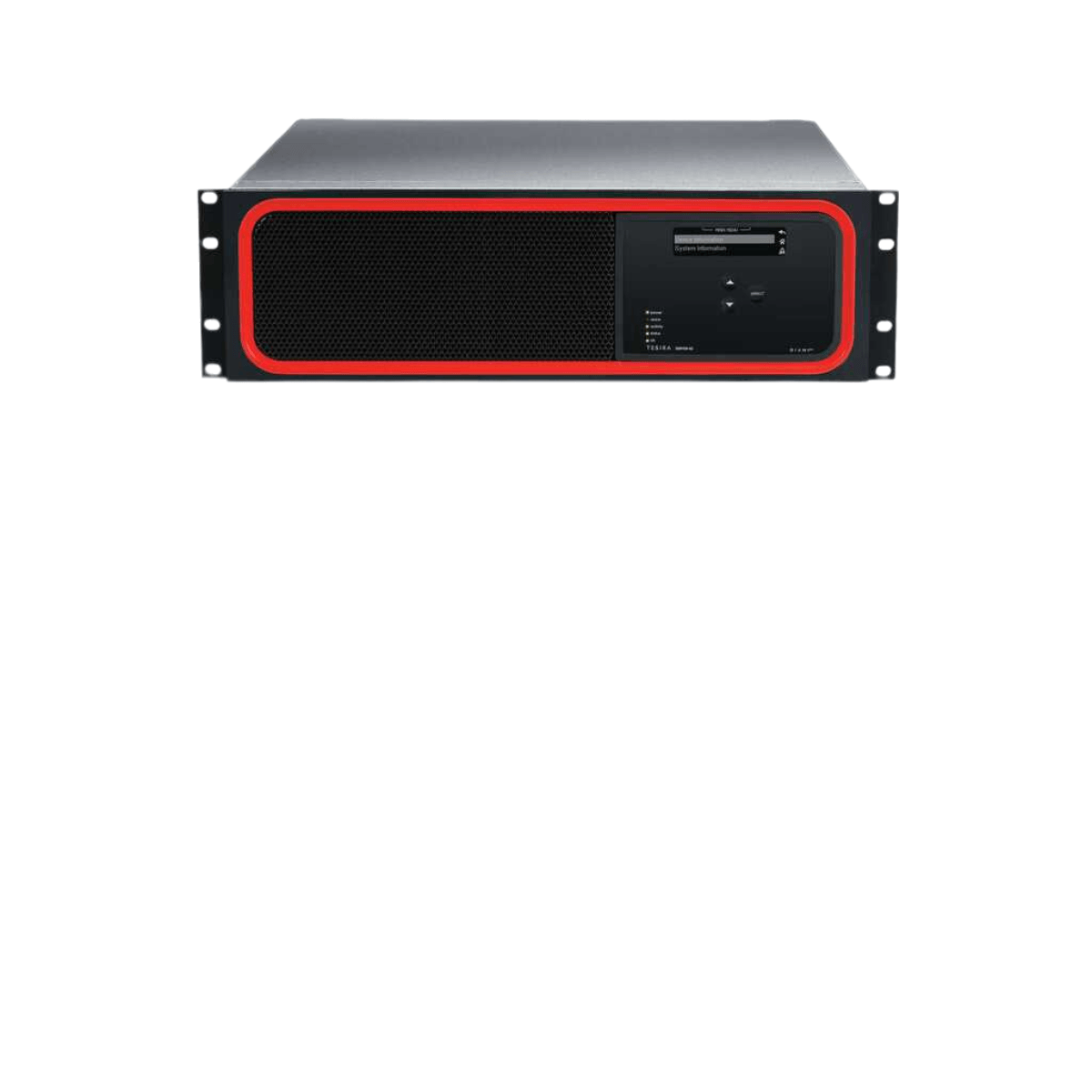

- Front panel OLED display for device and system information
- Processing algorithm: SpeechSense
- Signal processing via intuitive software allows configuration and control for: signal routing and mixing, equalization, filtering, dynamics and delay and much more
- Centralized processing supports multiple spaces and large rooms
- Fully programmable DSP with configurable I/O
- Can support Dante, AVB, and CobraNet in a single chassis
- Configurable with AEC and ANC processing
- Supports port authentication via IEEE802.1X
- Rack mountable (3RU)
- CE marked, UL listed, and RoHS compliant
- 5-year warranty
- Compliant with the US Trade Agreement Act (TAA)
