AVPro Edge MU-STIX-A10
STIX Test Signal Analyzer 10 Pack
- HDMI 2.1b, 8K 48 Gbps (FRL) compliant
- Accepts 720p, 1080p, 4K and 8K signal timings at 8-, 10-, and 12-bit Color Depths, in RGB, 4:2:0, 4:2:2, and 4:4:4 Color Spaces
- Detects signal changes, sync losses, and logs loss time
- OLED screen displays incoming video image, source timing, FRL version or TDMS, color space, color depth, and HDCP version
-Chad R.
Description

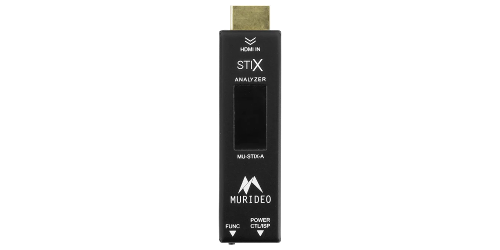

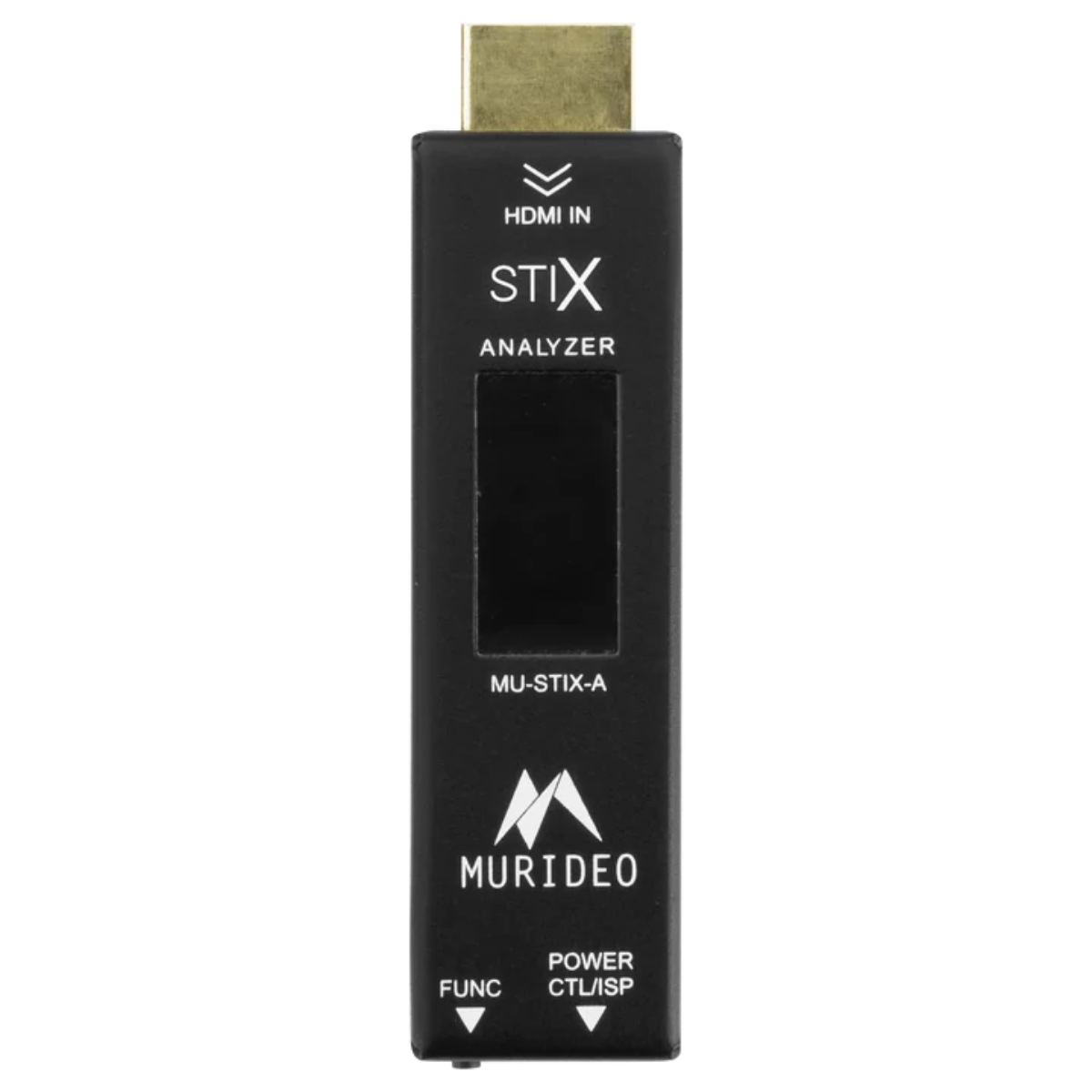

The MU-STIX-A is a thumb drive-sized HDMI pattern analyzer designed for Murideo’s STIX large-deployment evaluation platform. It may also be used for light-duty in-field pass/fail signal transmission verification.
STIX enables rapid yet thorough in-house signal throughput confirmation before site deployment to verify that endpoint devices are correctly functioning, appropriately responding to programming, and aligned with system performance parameters. The Murideo MU-STIX-A onboard display physically corroborates source information parameters when connected to the HDMI output of a receiving device.
For stand-alone use, the MU-STIX-A is a convenient, cost-effective multi-resolution format analyzer for commercial or residential integrators when simple pass-fail transmission path and display capability verification are required. Equipped with one or more MU-STIX-As enables system signal throughput confirmation for display supporting electronics that are installed inside cable and device management in-wall storage enclosures, eliminating potential duplicate labor before the display is mounted.
Specifications
- Displays audio information, including incoming sampling frequency, bit rate size, and audio type
- STIX is compatible with any brand of HDMI devices
