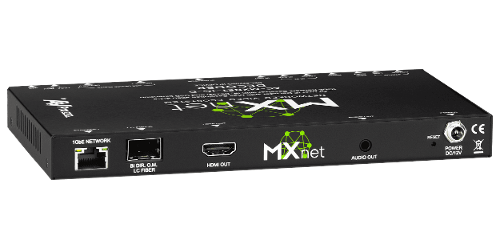

AVPro Edge AC-MXNET-1G-D
Decoder; HDMI, USB, IR, RS232, Fiber & RJ45
- HDMI 2.0
- 18Gbps Bandwidth Support
- HDCP 2.3 (and all earlier versions supported)
- 1G Maximum Data Rate
-Lynn Y.
Description
The AVPro Edge AC-MXNET-1G-D is the original MXnet 1G decoder and receiver, the point in an AV-over-IP system where the signal comes in. Connect it to any HDMI display and it converts the incoming IP stream back into picture and sound. It then easily plugs into the network over Cat 5e or better, or over fiber, and works with the AC-MXNET-SW48 or any compatible multicast-capable managed Layer 3 switch.
It decodes a full 4K 4:2:0 30Hz HDMI signal along with audio, control and power, routed from one encoder through multicast with next to zero latency. JPEG 2000 compression keeps images visually lossless and supports Genlock, so decoders on a video wall stay frame-synced and tear-free. For 4K60 4:4:4 you need the Evolution II AC-MXNET-1G-DV2 decoder instead.
Setup and day-to-day running are designed to be easy. A mini OLED Data Window shows the IP and MAC address or a custom 12-character name, all unit lights can be switched off for discreet installs. Plus the MXnet Mentor tool configures routing, resolution scaling, EDID management and video walls. RS-232 and IR can be routed directly to the decoder, two USB ports support KVM and peripherals back to a selected host encoder.
Key Features
- Decodes 4K 4:2:0 30Hz: visually lossless video with audio, control and power.
- JPEG 2000 and Genlock: tear-free video walls.
- Data Window: OLED display for IP, MAC address or a custom name.
- Full light control: turn off every LED for discreet installations.
- Control routing: RS-232 and IR, plus two USB ports for KVM and peripherals.
- Netgear-tested: AVPro Edge worked with Netgear to confirm compatibility with its switches.
Design and Installation Notes
MXnet is a full ecosystem rather than a single device. Encoders, network switches, control processors and other components work together to build a custom distribution system. The resolution scaling, full EDID management and multifaceted video walls handled from the MXnet Mentor setup and control tool. That makes installation easier for the integrator and gives clients a clean, managed result.
Typical Applications
A fit for existing first-generation MXnet systems, multi-room distribution and video walls where 4K30 is sufficient. See the full AV over IP range, or pair it with the first-generation AC-MXNET-1G-E encoder.
Frequently Asked Questions
Is the AC-MXNET-1G-D compatible with Evolution II encoders?
No. First-generation and Evolution II devices can sit on the same network, but their AV signals are not interoperable. Use this decoder with first-generation encoders.
What is the maximum resolution?
It decodes 4K 4:2:0 at 30Hz. For 4K60 4:4:4, use the Evolution II decoder.
What cabling does it use?
Category cable (Cat 5e or better) or fiber to an MXnet or other compatible managed switch.
Does it support USB and KVM?
Yes. Each decoder has two USB ports, and MXnet Mentor lets you assign the host encoder.
Specifications
- Uses any standard category cable (CAT 5E or better )
- SFP Fiber Connection for Long Runs
- Built-In "Data Window" OLED display
- USB/KVM device support
- Full Exterior Light Control (for discreet installs)
- RS-232 and IR Direct Routing end point
- Encapsulated RS-232 over IP serial passthrough
