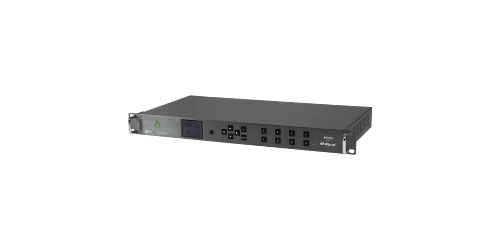

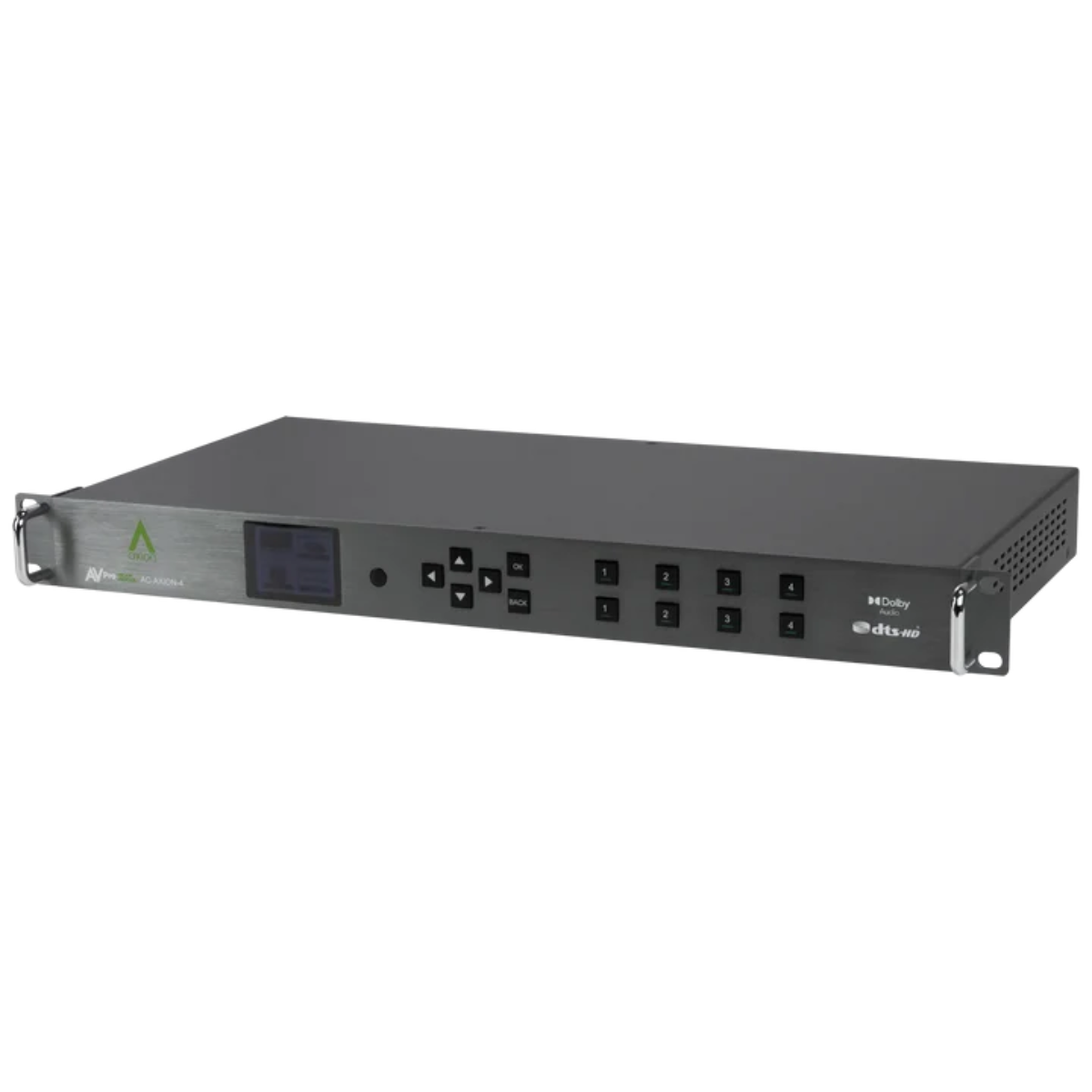

AVPro Edge AC-AXION-4
18Gbps 4x4 HDBaseT Matrix
- AC-AXION-4
Description
The AC-AXION-4 is a high bandwidth audio/video matrix switcher. What makes this product unique is the ability to downmix bitstream audio beyond 7.1 channel into a 2-channel audio signal via all four inputs, including Dolby Atmos and DTS-X. This Matrix switcher's back-end interface has been completely redesigned from the ground up, allowing complete control through this Axion Interface. In a multi-zoned distribution system, every zone can not handle full Dolby Atmos sound. Most zones are going to need 2 channel audio. The AC-AXION-4 Matrix Switcher allows you to deliver 24+ channels to your Dolby Atmos home theater; simultaneously, it provides 2-channel to the rest of the installation. We do this by allowing the downmixing only to affect the de-embedded audio outputs. The four mirrored HDMI/HDBaseT ports leave the audio unimpeded, enabling you to distribute full Dolby Atmos and DTS HD through them. Supporting the full HDMI 2.0 a/b specification and supporting every version of HDR, this matrix will ensure you can get the most out of any system. Controlling the AC-AXION-4 is not a problem with the AXION Interface, as you can manage all the settings and controls. We also offer drivers for all the top control systems. The AC-AXION-4 will become a staple in your large demanding installations!
