 Home > Auto Switchers -> Auto Switching Wall Plates -> Aurora -> DXW-2EU Auto Switching HDBaseT Transmitter Wall Plate: HDMI, VGA, USB, LAN

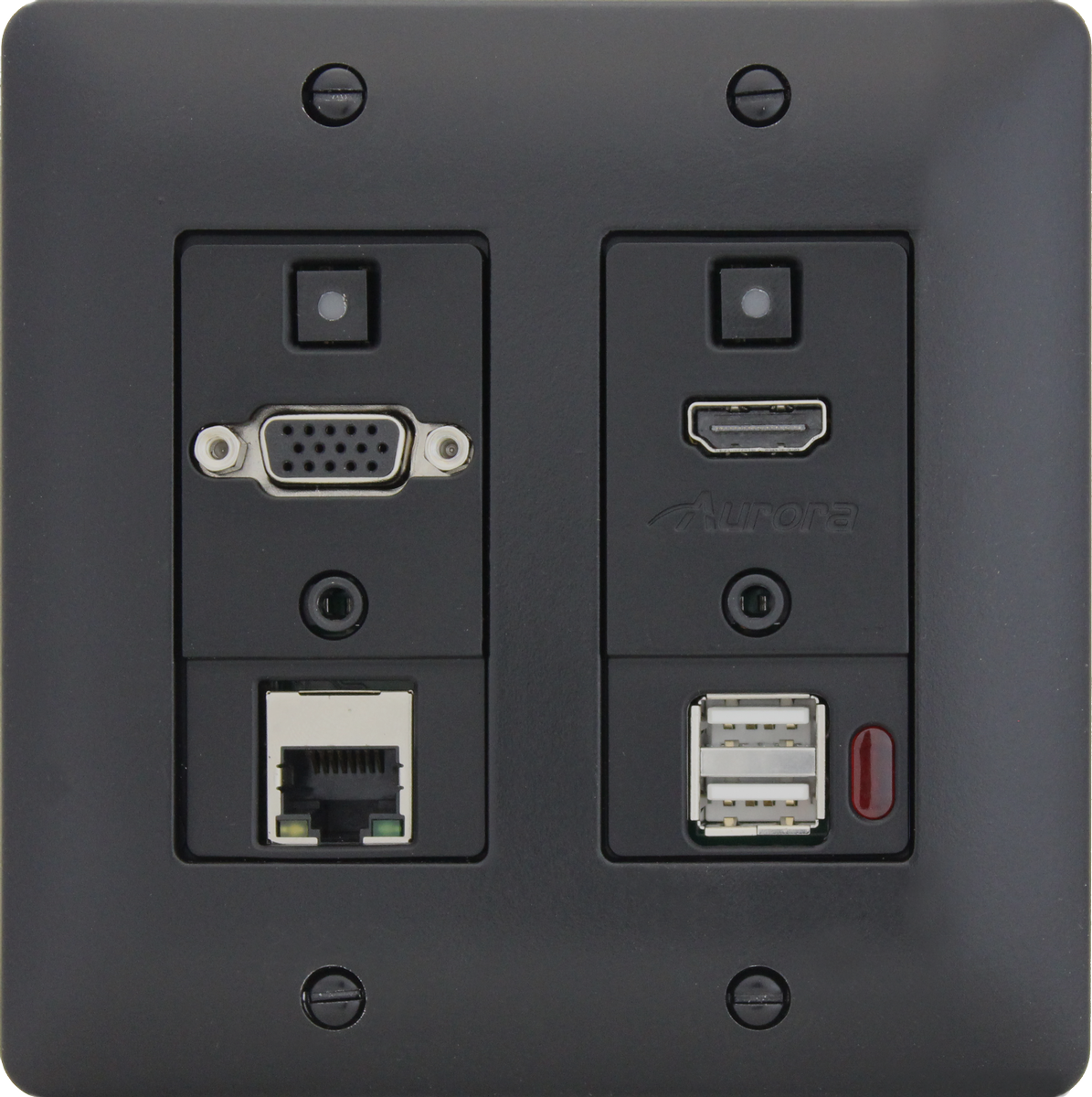

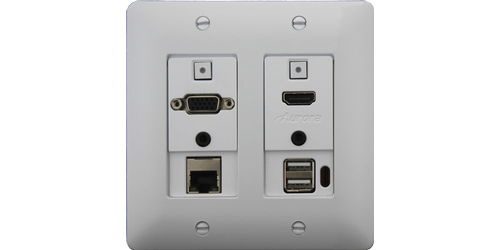

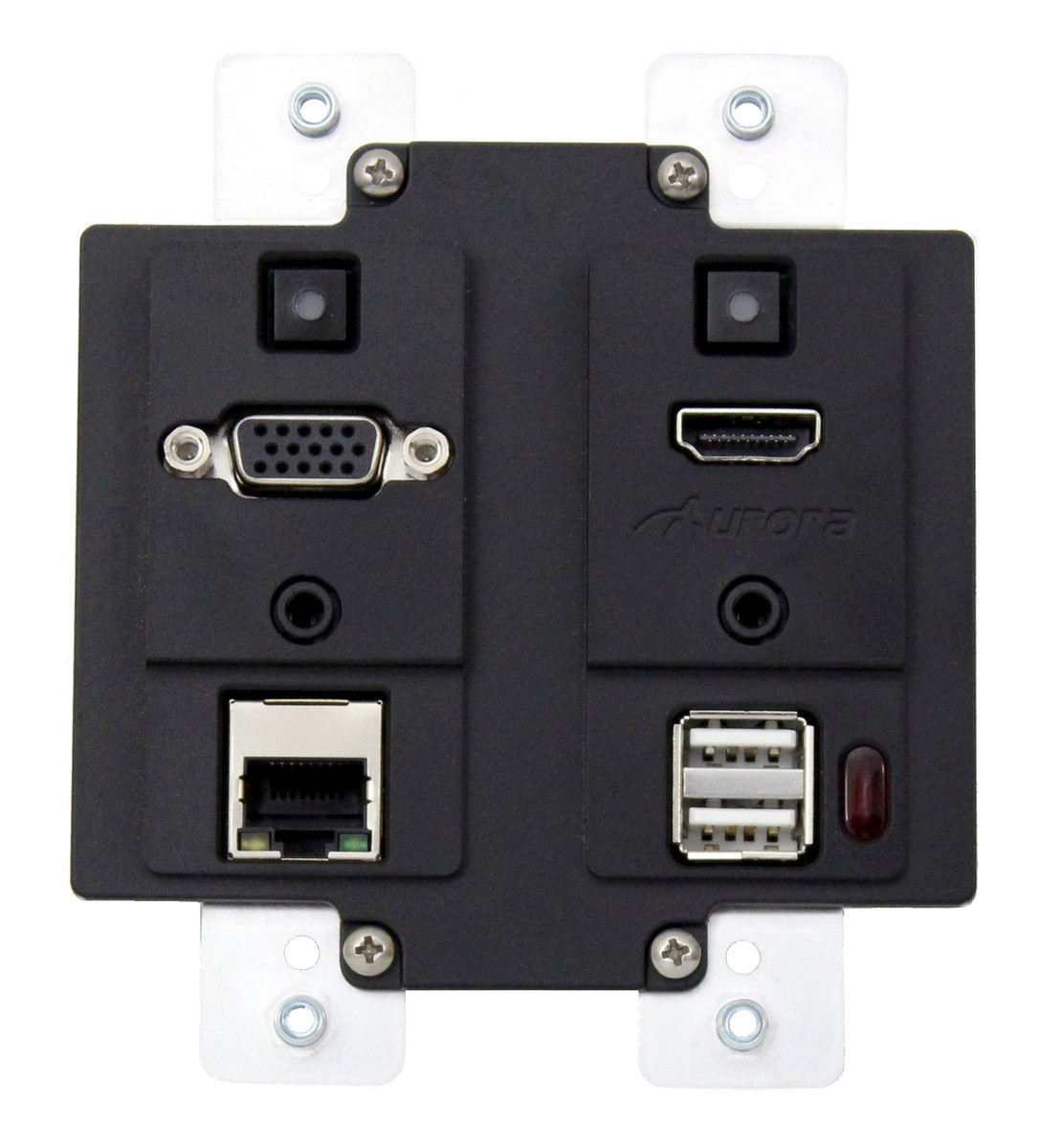

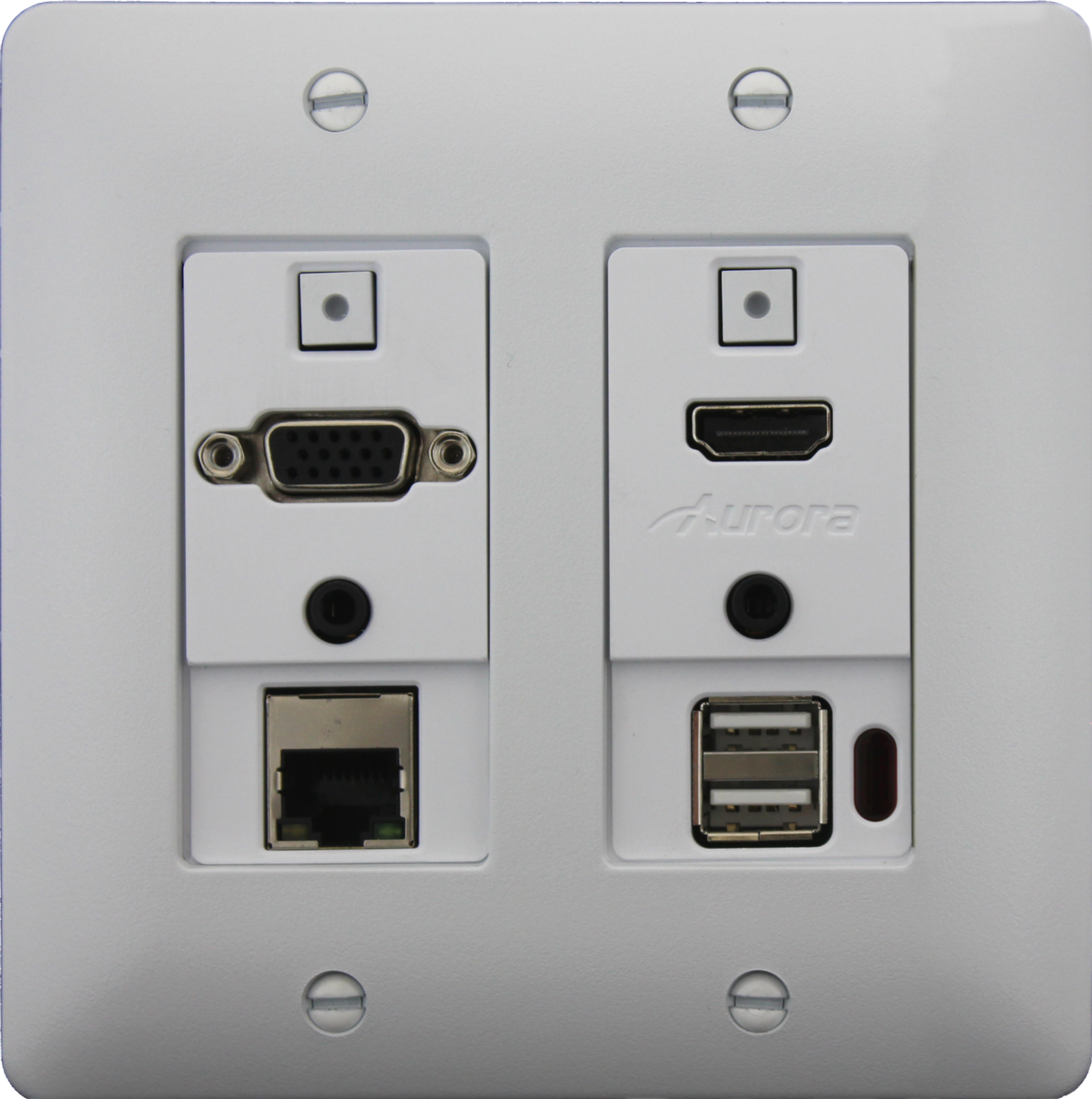

Aurora DXW-2EU
Auto Switching HDBaseT Transmitter Wall Plate: HDMI, VGA, USB, LAN

Part #: DXW-2EU
Satisfaction Guaranteed!
MSRP: $1,559.00
Our Price: $1,186.55
Free Shipping* | 30 Day Returns* | Authorized Dealer
Click for $50 Off!
Color choice:
Top DXW-2EU Specifications
  • Connections: 1 HDMI, 1 VGA, 2 audio, 1 LAN, 1 USB
  • Provides auto switching and input select buttons
  • Distance: 330ft over CAT 5e/6/7 cable (1080p 60Hz 48bit),500ft over CAT 6 cable (1080p 60Hz 24bit), 600ft over one CAT 6a cable (1080p 60Hz 24bit) Fits in standard two gang plate
  • Sends: HD video, IR, RS-232, USB, Ethernet
"Quick and easy checkout and great prices. Will look here again."
Contact a product specialist!
Proudly supporting our customers since 2008


The Aurora DXW-2EU is a wall plate that houses VGA, HDMI, LAN, and USB connections. It takes all these signals as well as embedded audio and can transmit them up to 600' over HDBaseT via an Ethernet cable to a compatible receiver, not only does it send the signal but it even converts and scales the signal. The wall plate is even an auto switcher, it will always detect the last plugged in input and automatically switch on your display.

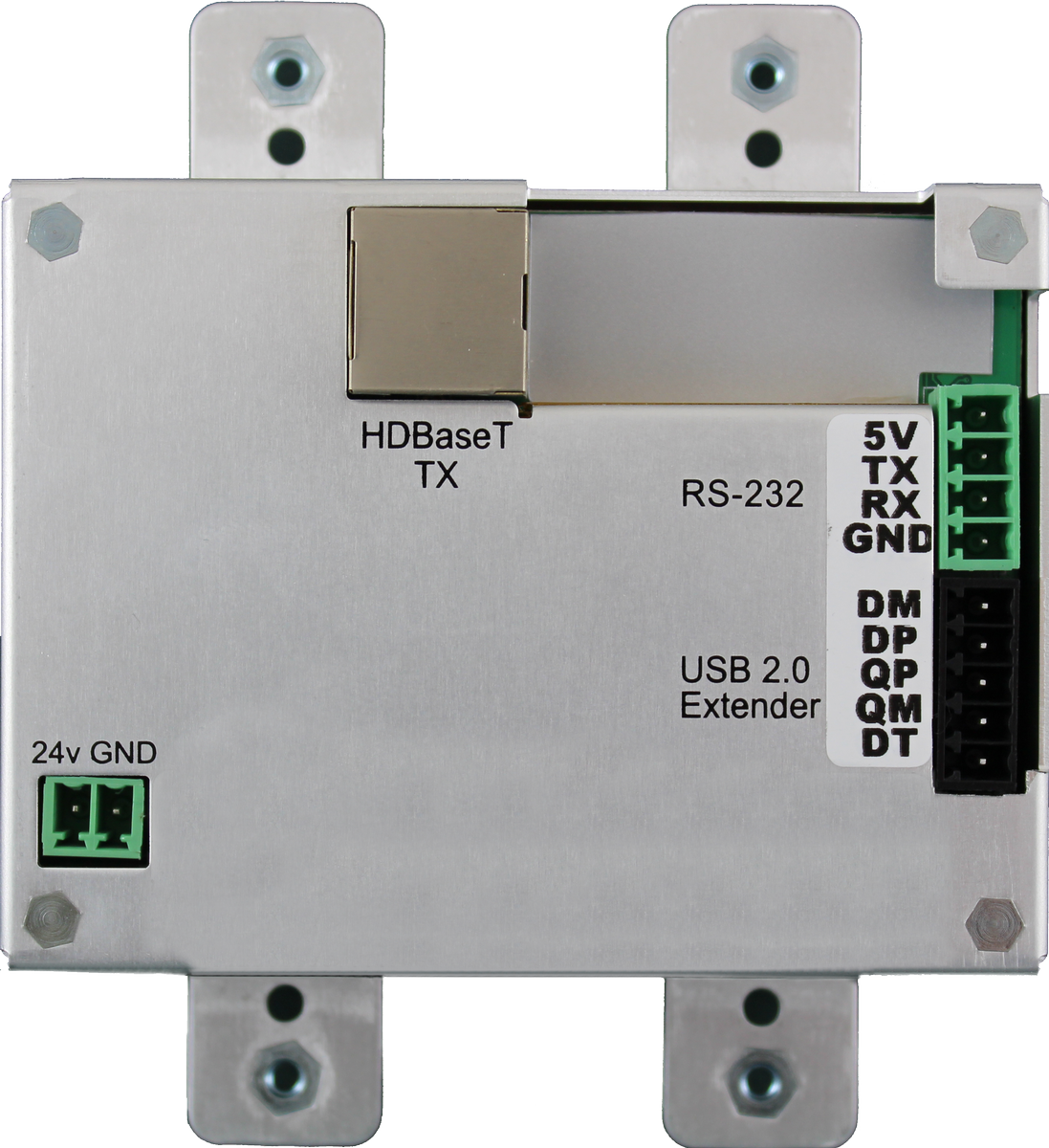

It features support for HD video, IR control, and can be powered locally with an optionally purchased power supply or via the receiver. Push buttons on the front allow for local control of devices if auto switching isn't required. If connected to a compatible receiver the LAN jack is a nice feature not having to have another wall plate for data.  The unit also has two USB ports for powering USB devices and transmitting 480Mbps up to 230ft independently to a different location.

LED backlights on the buttons always let you know which signal is active for ease of use. The DXW-2EU is a fully featured wall plate with auto switching and HDBaseT transmission with bonus LAN and USB extension.


  • Receives power from compatible receiver or local power supply purchased separately
  • Supports 3D pass through
  • HDCP compliant
  • Color depth: 48bit
  • Size: 3.728" x 4.331" x 1.404" (1.04" Box Depth)
  • Includes: Wall plate cover
  • Warranty: 3 year limited
