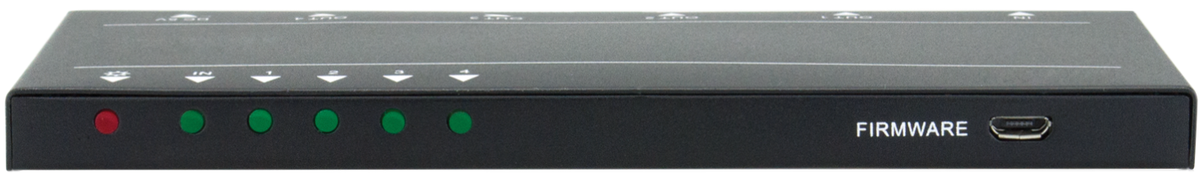

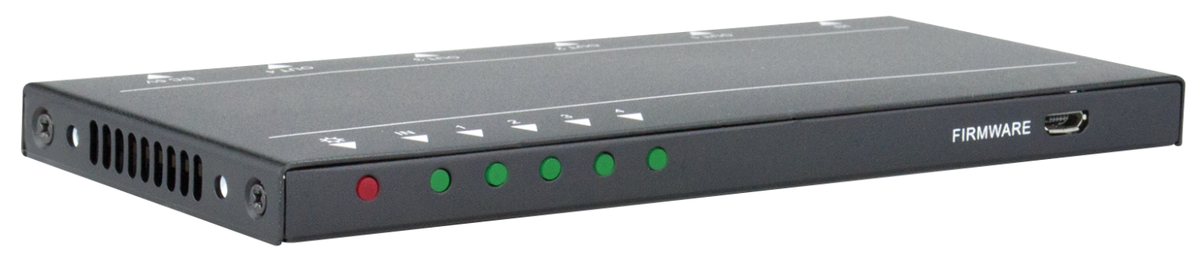

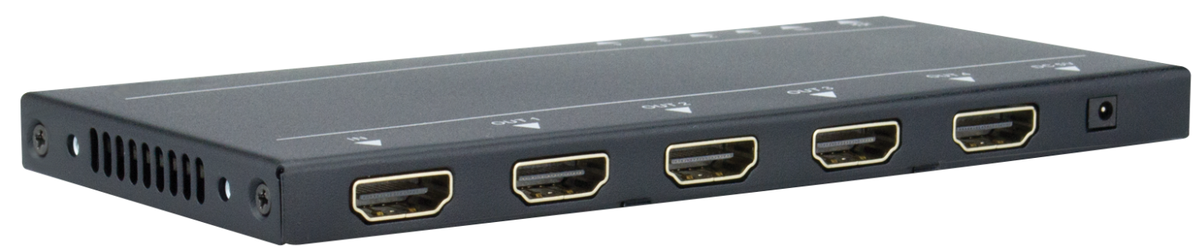

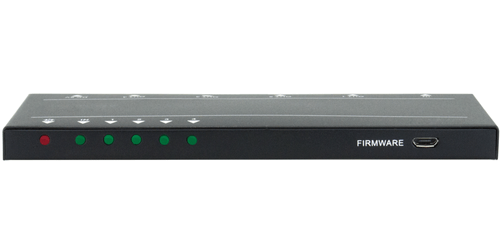

Aurora DXE-142A
1x4 HDMI 4K Splitter
- Input: 1x HDMI
- Output: 4x HDMI
- HDMI/DVI Compliance: HDMI 2.0A Deep Color, full 3D and 4K2K/ DVI 1.0
- HDCP Compliance: HDCP 1.4/2.2
-Maciej Z.
Description
Aurora's DXE-124A is a 1-input to 4-output HDMI 4K splitter. The DXE-124A features auto-EDID management; however, Aurora has customized this splitter to enable it to customize EDID. This customization gives you total control over the source signal and where it goes. The DXE-124A supports all 3D formats and 4K2K video. It also features USB ports, 48-bit deep color video, and high-definition audio. Aurora designed this with you in mind, ensuring that both the power and HDMI connectors are on the same side, making installation seamless.
This splitter is the ultimate in signal distribution, making it a wise addition to any HDMI broadcasting environment, conference rooms, digital signage, and educational settings. Key features of this splitter include the following:
- Supports HDMI 2.0A Deep Color, xvYCC, x.v.Color
- 3D/DVI 1.0 compliant
- HDCP 1.4/2.2 compliant
- 25MHz~600MHz frequency range
- 18Gbps video bandwidth
- Resolution up to 4K2K @ 60Hz
- Auto EDID Management
- EDID Emulation and Customizable EDID
- Supports Dolby Digital, DTS-HD, and Dolby TrueHD audio
- Ultra-low profile to fit behind displays
Specifications
- Video Bandwidth: Single-link 600MHz (18Gbps)
- Video Support: Up to 4K2K @60
- HDMI Output Distance: 4K up to 7.5m (Note: Cable quality may impact distance)
- Audio Support: DTS-HD Master Audio, Dolby TrueHD Dolby Digital, DTS, DVD-Audio, LPCM, SACD, MPCM
- Firmware Update: Mini-USB port
- EDID: Auto Management
- Housing: Metal enclosure
- Dimensions [L x W x H]: 5.91"x2.76"x0.433
- Weight: 4.23oz
- Mounting: Attachable ears
- Power Supply: 5V 1A DC
- Power Consumption: 3.6 Watts (max)
- Operation Temperature: 0~55 C
- Storage Temperature: -20~60 C (-4~140 F)
- Relative Humidity: 10~90% RH (no condensation)
