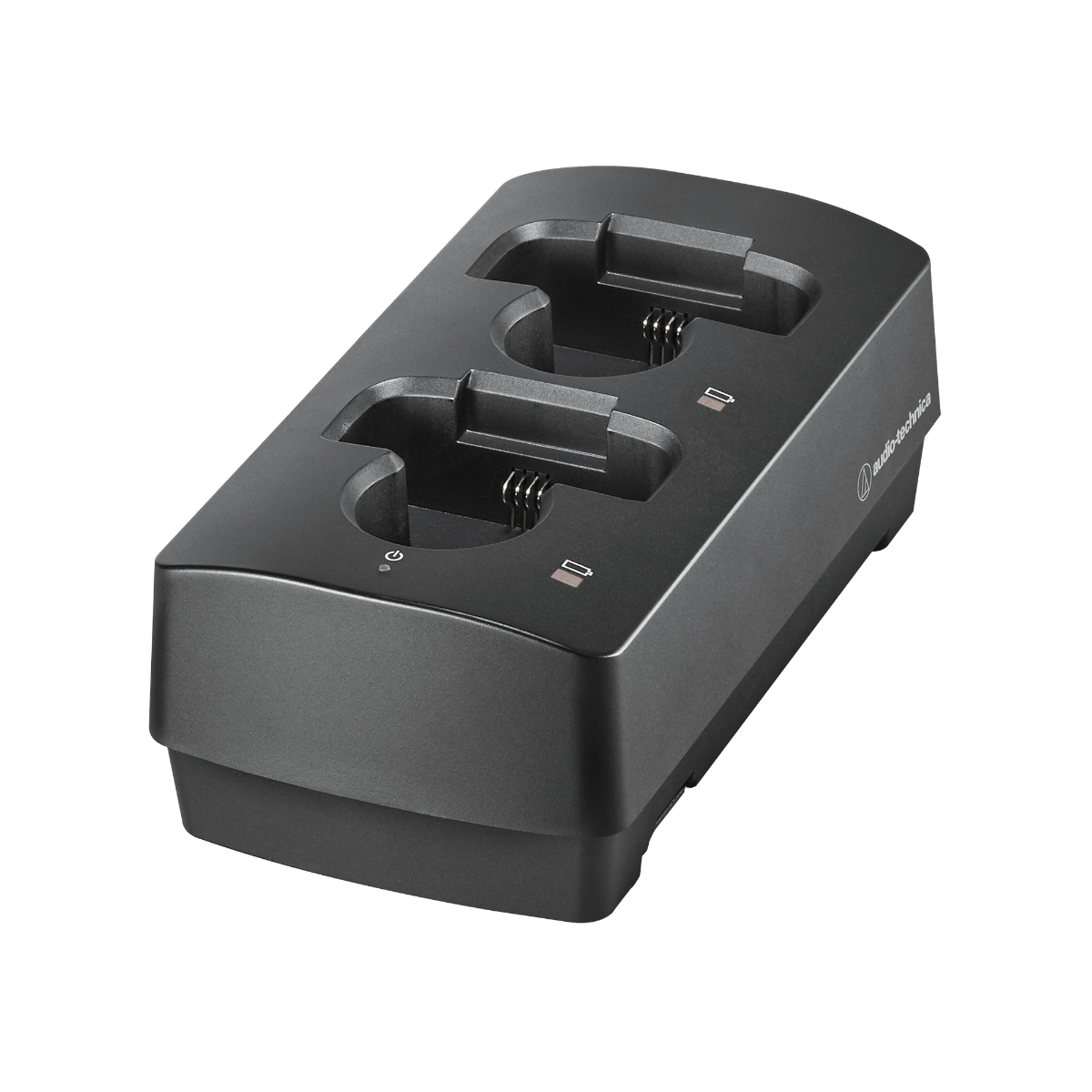

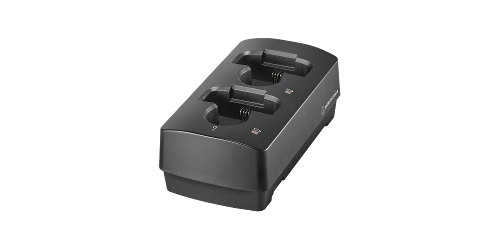

Audio Technica ATW-CHG3A
Two-Bay Charging Station
- Power Requirements: 12V DC 3.0 A
- Charging Output: 3.6V DC 500 mA (x2)
- Power Consumption: 4.9 W (when 2 transmitters are charging)
- 27.4 W (when 5 units are connected and 10 transmitters are charging)
Description
The ATW-CHG3a is a two-bay charging station for use with 3000 Series transmitters, 3000 Series IEM receiver, and System 20 PRO transmitters. The station charges NiMH batteries (not included) while they are housed within a transmitter or receiver. It will automatically shut off if alkaline or damaged batteries are detected. Once fully charged, a maintenance charging function ensures that batteries retain their full power for as long as the transmitter remains in the charging station.
The ATW-CHG3a is equipped with power and charging status indicator LEDs for easy monitoring.
Using the AT8687 link kit and AD-SA1230XA AC adapter, up to five ATW-CHG3a charging stations can be linked and powered by a single power supply. The AT8687 and AD-SA1230XA may be purchased separately or bundled with an ATW-CHG3 (see bundles separately).
Specifications
- Charging Time: Approx. 6.5 hours (1,900 mAh rechargeable battery)
- Depending on battery type and use pattern.
- Operating Temperature Range: 0 C to 40 C (32 F to 104 F)
- Dimensions: 185 mm (7.28") x 99 mm (3.90") x 68.5 mm (2.70") (W x D x H)
- Net Weight: 400 g (14.1 oz)
