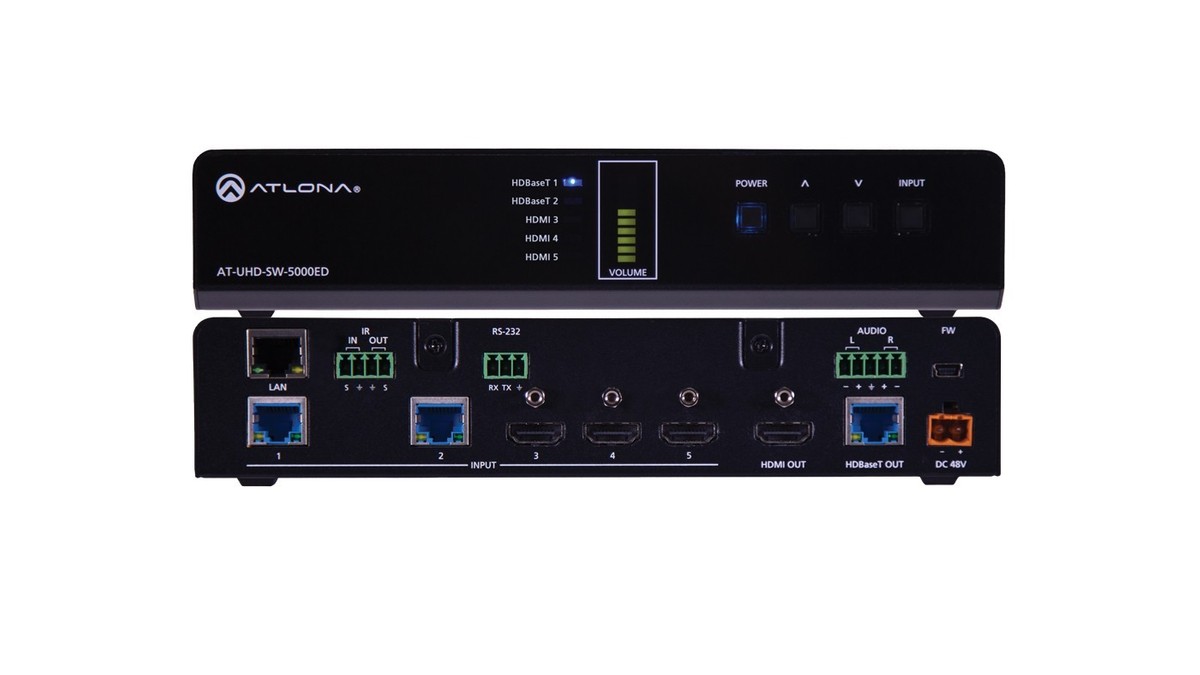

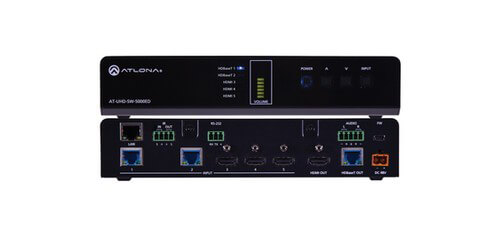

Atlona AT-UHD-SW-5000ED
5 Input Auto Switcher with HDMI and HDBaseT Mirrored Out

Part #: AT-UHD-SW-5000ED
Satisfaction Guaranteed!
Our Price: $2,284.00
Free Shipping* | 30 Day Returns* | Authorized Dealer
Click for $15 Off!
Top AT-UHD-SW-5000ED Specifications
  • Inputs: 3 HDMI and 2 HDBaseT inputs
  • Dual mirrored outputs, 1 HDMI and 1 HDBaseT
  • Resolution: Up to 4K60 at 4:2:0 8-bit color
  • HDBaseT distance: 328'
"Quick and easy to find what I was looking for."
-Brandon K.
Contact a product specialist!
Proudly supporting our customers since 2008

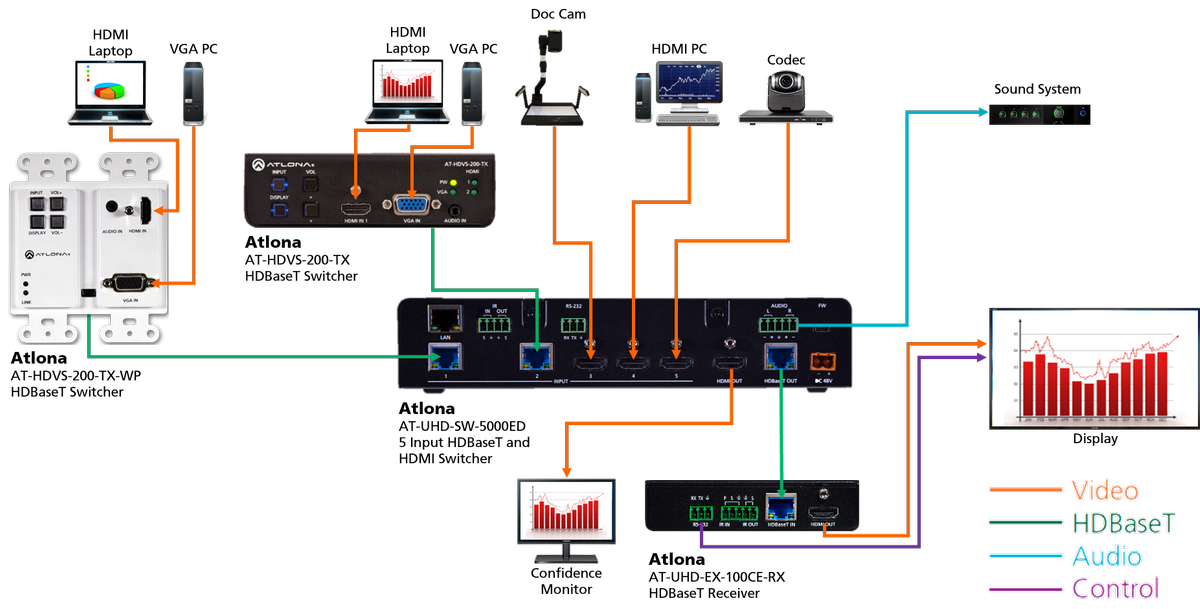

The Atlona AT-UHD-SW-5000ED is an HDCP compliant 5x2 HDMI switcher that can handle resolutions up to 4K Ultra HD, It features 3 HDMI inputs and 2 HDBaseT inputs, and 1 HDMI and 1 HDBaseT out for dual mirrored outputs.  The HDBaseT output is ideal when you have a long run, pair with the AT-UHD-EX-100CE-RX HDBaseT receiver to transmit your HDMI video, and RS-232 over CAT6 cabling up to 330'. The switcher also powers the receiver so no power is required for the receiver.  There are numerous ways to control the AT-UHD-SW-5000ED, it can be used as an auto switcher meaning it will always switch on your display to the last plugged in HDMI cable.  It can also be controlled via RS-232, front panel buttons, TCP/IP, or with the included IR remote.

The AT-UHD-SW-5000ED is easy to install, set up, and maintain.  There is a web based GUI that can control your EDID and HDCP, priority input switching, and your RS-232 settings.  You can send your audio out via balanced 2 channel analog, the AT-UHD-SW-5000ED also supports pass through of Dolby TrueHD and DTS-HD Master Audio.  The switcher is also rack mountable and includes rack ears.  From the front panel you can also adjust the volume up and down of your output to your sound system with easy to read LED indicator lights.

The Atlona AT-UHD-SW-5000ED is an exceptional value with numerous features including dual mirrored outputs with 1 HDMI and 1 HDBaseT, the 3 HDMI inputs and 2 HDBaseT inputs give you numerous installation options.


  • HDCP complaint
  • Supports 3D pass through
  • Control: Auto switching, RS-232, CEC, IR with included remote, front panel buttons, and TCP/IP
  • Adjust output volume
  • Balanced audio 2 channel out
  • Enables Display Control over IP, RS232 and CEC
  • AMS ready
  • EDID and HDCP management
  • Dimensions: 1.73 x 8.75 x 10.28
  • Weight: 1.4lbs
  • Warranty: 10 years
  • Includes: Power supply, rack ears, and IR remote control

Q & A

This product has no questions - ask one!

Ask a Question


There are currently no reviews for this product.

Write a Review
