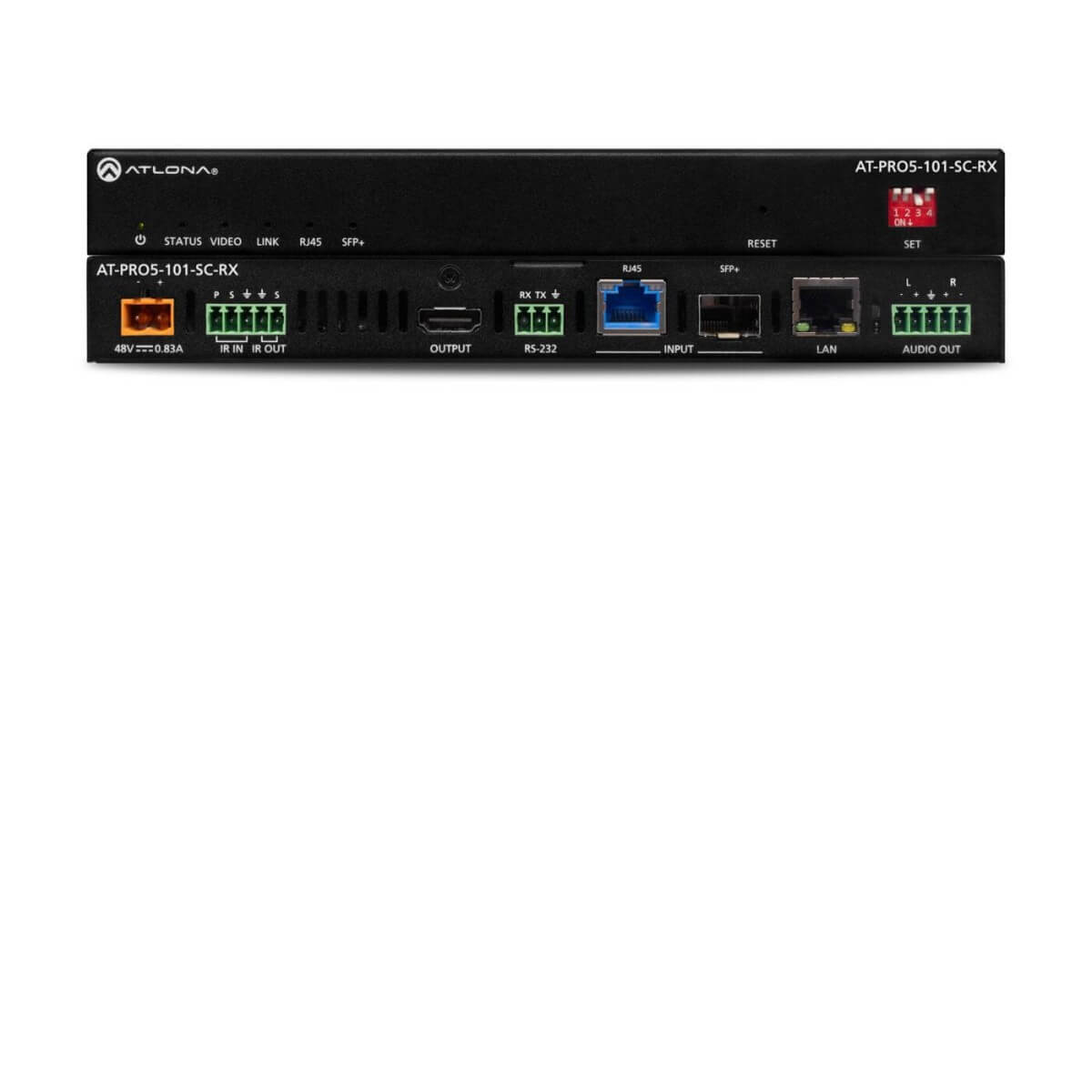

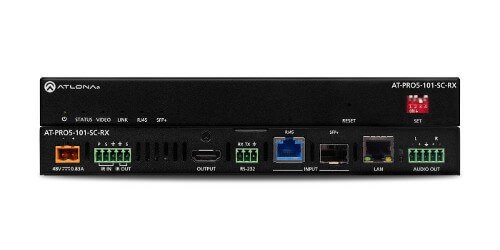

Atlona AT-PRO5-101-SC-RX
4K HDR SDVoE Receiver with Scaler for PRO5 Matrix Switcher
Description
The Atlona AT-PRO5-101-SC-RX is an AV extension receiver with integrated video processing, featuring SDVoE 10GbE connectivity for receiving ultra-high definition video and audio from the AT-PRO5-MX810 matrix switcher. Part of the PRO5 Series, the PRO5-101-SC-RX is HDCP 2.3 compliant, and supports 4K/60 4:4:4 and HDR at HDMI data rates up to 18 Gbps. It features an RJ45 port, and an SFP+ cage for copper or fiber optic connectivity to receive video, embedded audio, Gigabit Ethernet, and RS-232 and IR control signals from the matrix switcher. The RJ45 port allows extension up to 330 feet (100 meters) over CAT6a UTP cable, along with PoE for powering the PRO5-101-SC-RX, while the SFP+ cage can be used with a compatible fiber optic module to extend from 38 meters up to 10 kilometers over fiber optic cable. This receiver features high-performance video processing which includes 4K video upscaling and downscaling with frame rate conversion, and video wall processing for 2×2, 1×3, and 2×4 display arrays. The PRO5-101-SC-RX SDVoE scaling receiver, together with the PRO5-MX810 HDMI to SDVoE matrix switcher, is ideal for a wide range of commercial applications requiring multi-zone AV distribution with long-distance signal extension.
