Atlona AT-OME-ST31A-KIT
HDBaseT TX/RX for HDMI and USB-C
- HDBaseTTM extender kit for AV, Ethernet, power, and control up to 330 feet (100 meters)
- 3×1 HDBaseT switcher with HDMI and USB-C inputs
- USB-C input for AV and device powering (does not support data
- requires optional AT-PS-245-D4 power supply for USB-C power)
-Brandon K.
Description

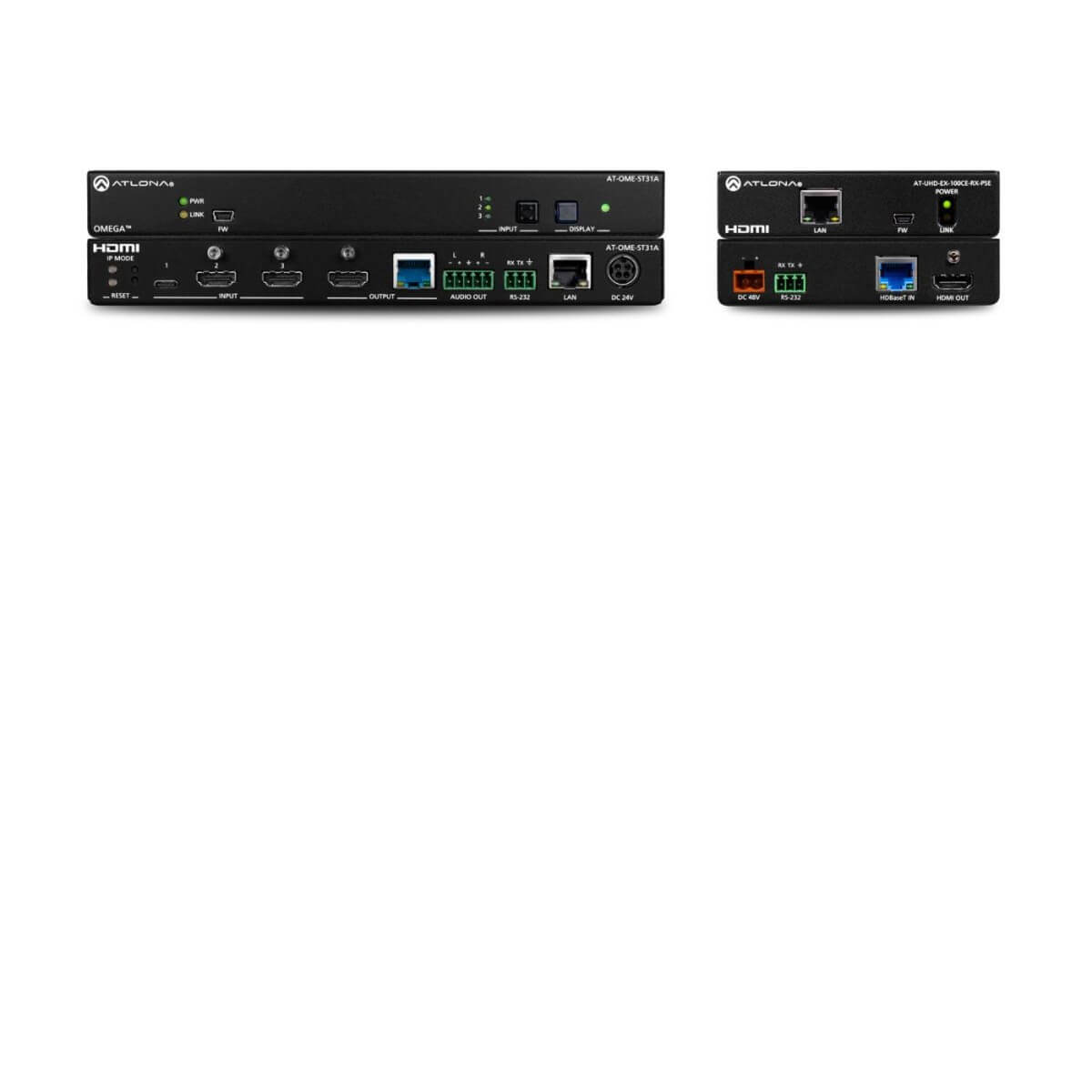

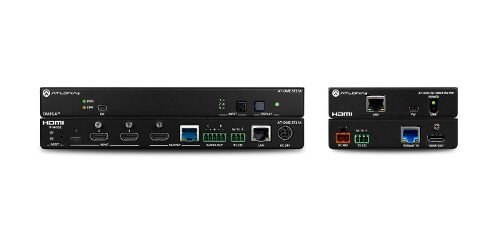

The Atlona AT-OME-ST31A-KIT is an HDBaseT transmitter and receiver combination that delivers a complete integration solution with 4K video extension, automatic switching for the HDMI and USB-C inputs, and automatic display control. It includes the Omega Series AT-OME-ST31A three-input HDBaseT switcher and AT-OME-RX11 HDBaseT receiver. The OME-ST31A features audio de-embedding, mirrored HDMI and HDBaseT outputs, and selectable 4K downscaling to 1080p for the HDMI output. The OME-RX11 features a compact, low-profile enclosure that can easily be concealed behind a wall-mounted display or above a projector. This HDBaseT extender solution extends AV, Ethernet, and control up to 330 feet (100 meters) over category cable. Audio de-embedding is available at the transmitter and receiver
Specifications
- 4K/UHD capability @ 60 Hz with 4:2:0 chroma subsampling
- Mirrored HDMI output at transmitter with selectable 4K to 1080p downscaling
- Transmitter powered by receiver over HDBaseT
- Automatic input selection and automatic display control
- Audio de-embedding at transmitter and receiver
