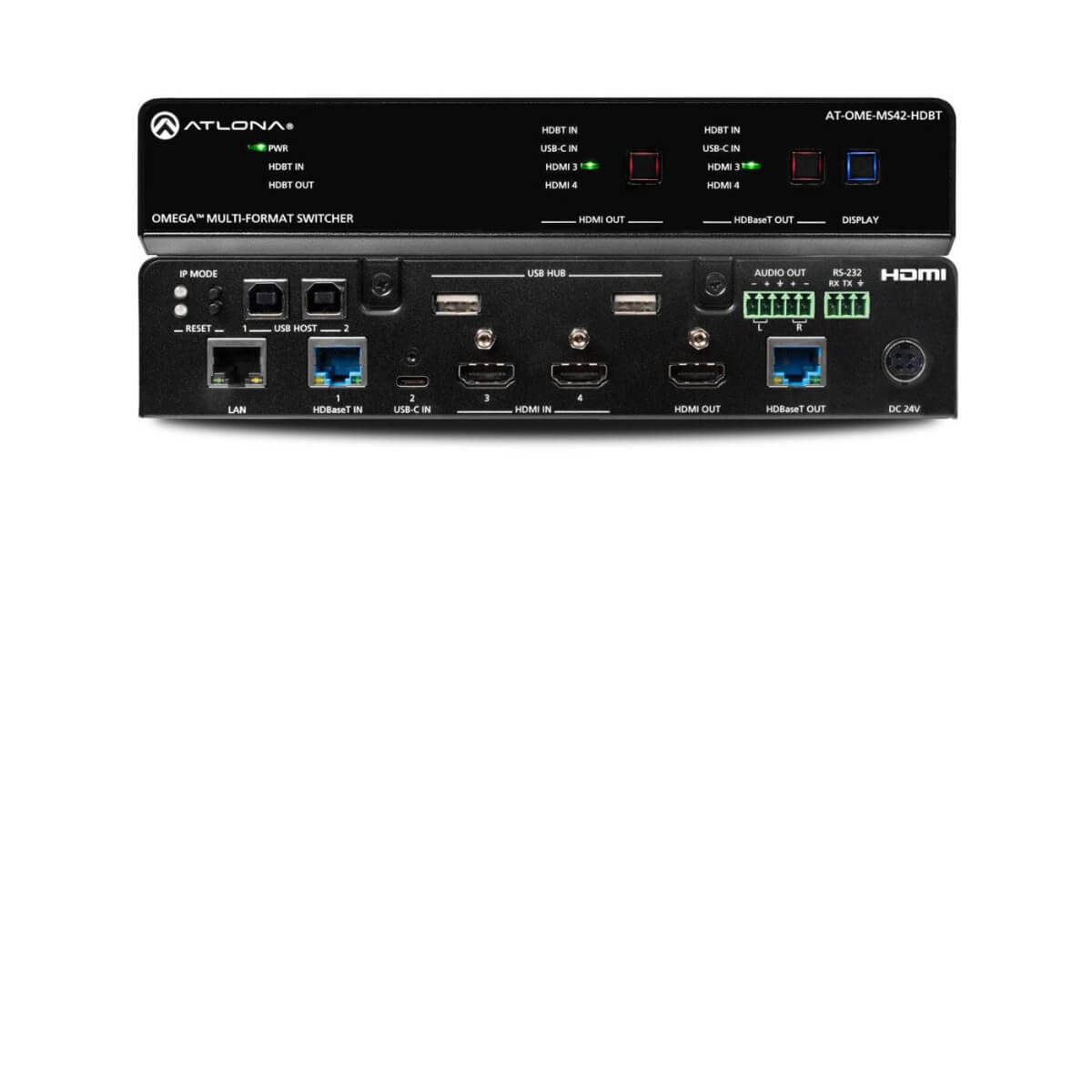

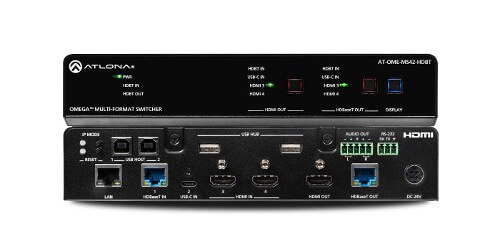

Atlona AT-OME-MS42-HDBT
4x2 Matrix Switcher with USB Hub and HDBaseT Input
- 4x2 AV matrix switcher with USB-C, HDBaseTTM, and HDMI inputs
- USB-C input for AV, USB data, and device charging (up to 60 watts)
- HDBaseT and HDMI outputs with selectable AV switching modes
- USB 2.0 interfacing and extension up to 330 feet (100 meters)
-Jeff A.
Description
The Atlona AT-OME-MS42-HDBT is a 4x2 matrix switcher with USB-C, HDBaseT, and HDMI inputs, plus HDMI and HDBaseT outputs. Part of the Omega Series of integration products for modern AV communications and collaboration, the OME-MS42-HDBT is HDCP 2.2 compliant and features HDBaseT extension for video up to 4K/60 4:2:0, plus embedded audio, control, Ethernet, and USB over distances up to 330 feet (100 meters). The local HDMI and USB-C inputs, and HDMI output support 4K HDR and 4K/60 4:4:4 at data rates up to 18 Gbps. Additionally, 4K downscaling to 1080p @ 60, 30, or 24 Hz is available for the HDMI output when connected to an HD sink. The integrated USB extension addresses the challenge of connecting between USB devices at remote locations, and is ideal for software video conferencing and touch or interactive displays. The OME-MS42-HDBT features switching for up to four host PCs through USB 2.0 type B and USB-C ports, and remotely over HDBaseT. A built-in USB 2.0 hub provides connectivity for two peripheral devices such as a camera, microphone, speakerphone, or keyboard and mouse.
Specifications
- 4K/UHD capability @ 60 Hz with 4:4:4 chroma sampling (local ports)
- Selectable 4K to 1080p downscaling
- Also available: AT-OME-MS42
