Wallplate HDBaseT TX/RX for HDMI with USB

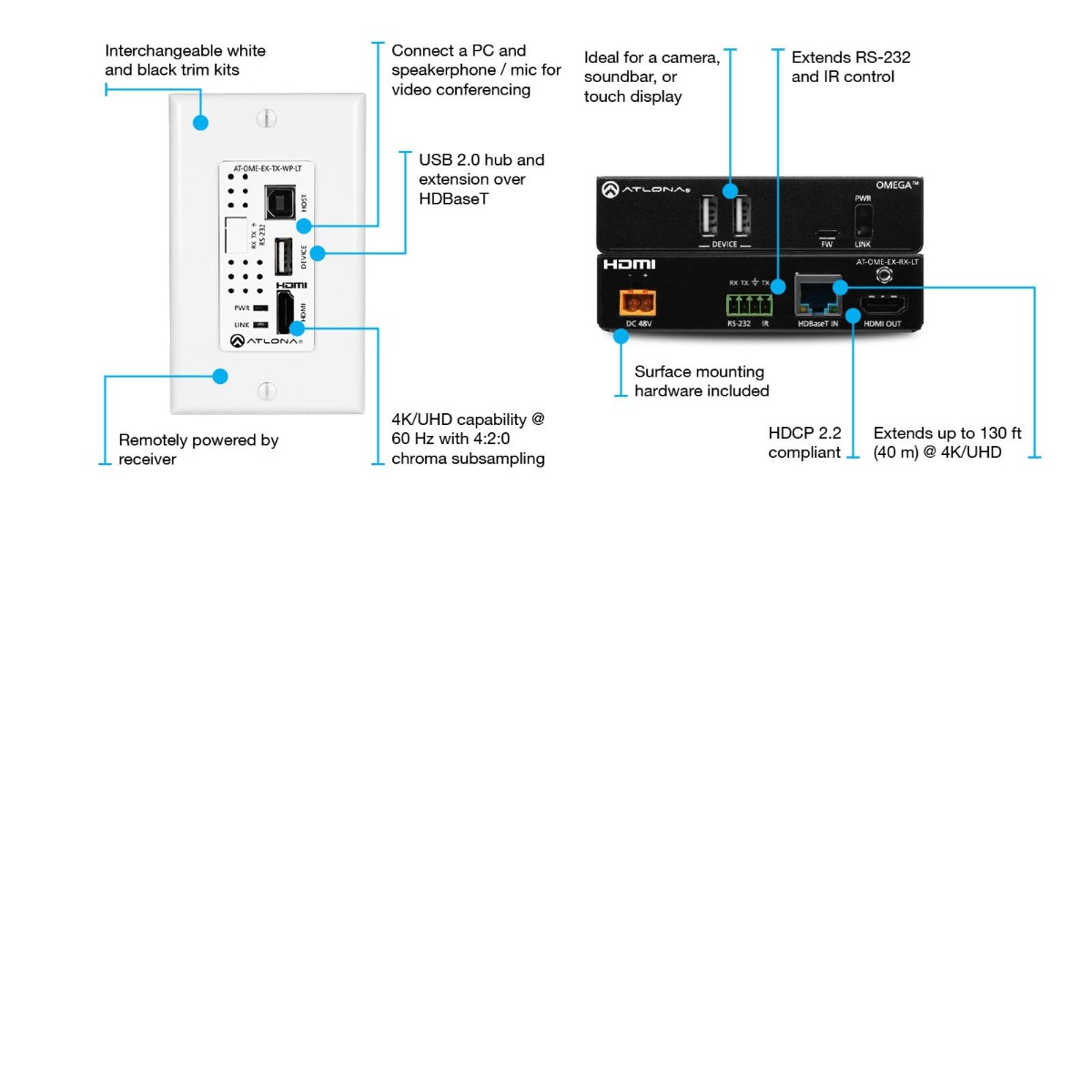

- HDBaseT extender kit for HDMI, power, control, and USB
- USB 2.0 interfacing and extension up to 230 feet (70 meters)
- US one-gang enclosure for wallplate openings interchangeable black or white trim kits
- 4K/UHD capability @ 60 Hz with 4:2:0 chroma subsampling

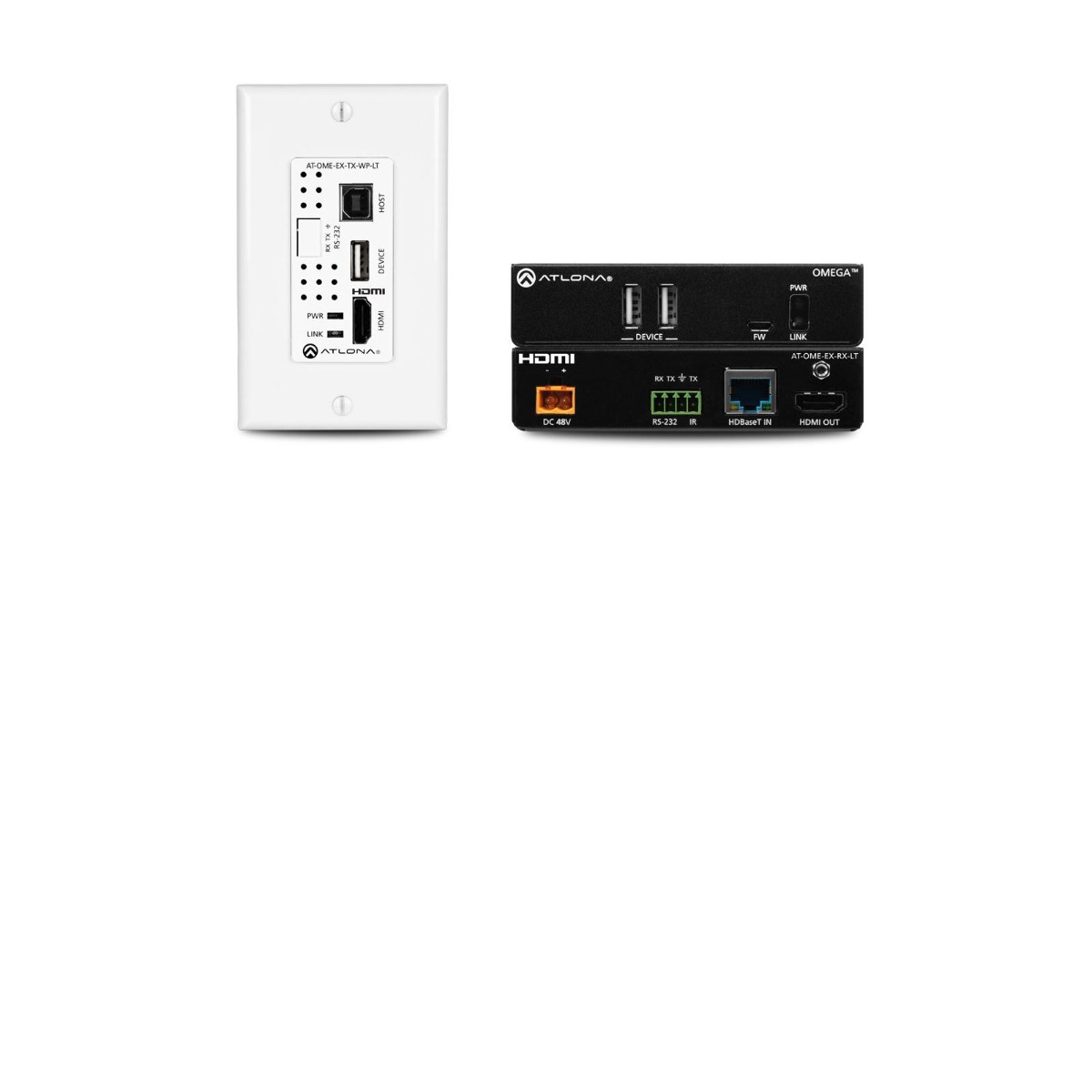

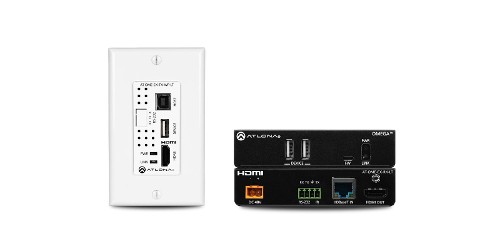

The Atlona AT-OME-EX-WP-KIT-LT is an HDBaseT extender for video up to 4K/60 4:2:0, plus embedded audio, control, and USB over distances up to 130 feet (40 meters) for 4K/UHD, and up to 230 feet (70 meters) for 1080p/60 video. The transmitter features a US one-gang, wallplate form factor, and includes interchangeable black and white wallplates and faceplates. Part of the Omega™ Series of integration products for modern AV communications and collaboration, the OME-EX-WP-KIT-LT is HDCP 2.2 compliant and extends RS-232 control signals. The integrated USB extension addresses the challenge of connecting between USB devices at remote locations, and is ideal for software video conferencing and touch or interactive displays. The transmitter includes a USB 2.0 host interface for a PC, plus a peripheral device such as a speakerphone, microphone, or keyboard and mouse. The receiver provides two USB interfaces for devices such as a camera, soundbar, or display.
The OME-EX-WP-KIT-LT incorporates many popular integration convenience features, while delivering excellent performance and value for 4K presentation and video conferencing applications. The receiver remotely powers the transmitter over HDBaseT.
- HDCP 2.2 compliant
- Transmitter powered by receiver over HDBaseT
