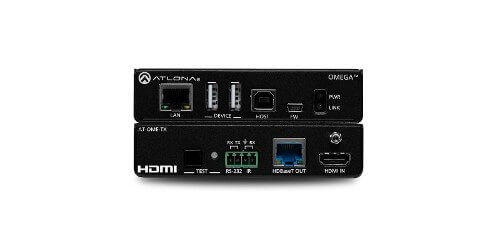

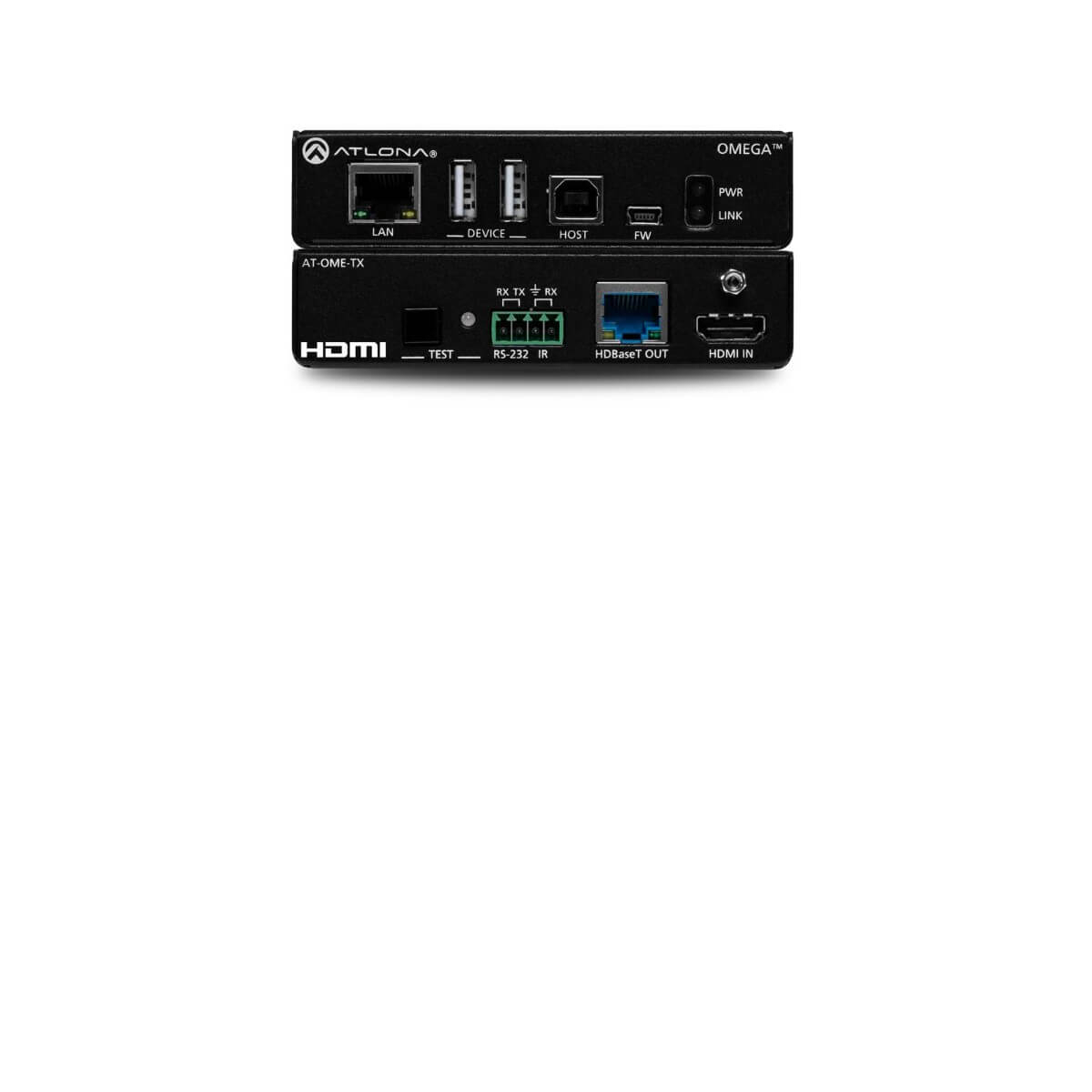

Atlona AT-OME-EX-TX
Omega 4K HDMI Over HDBaseT Transmitter with USB, Control. PoE

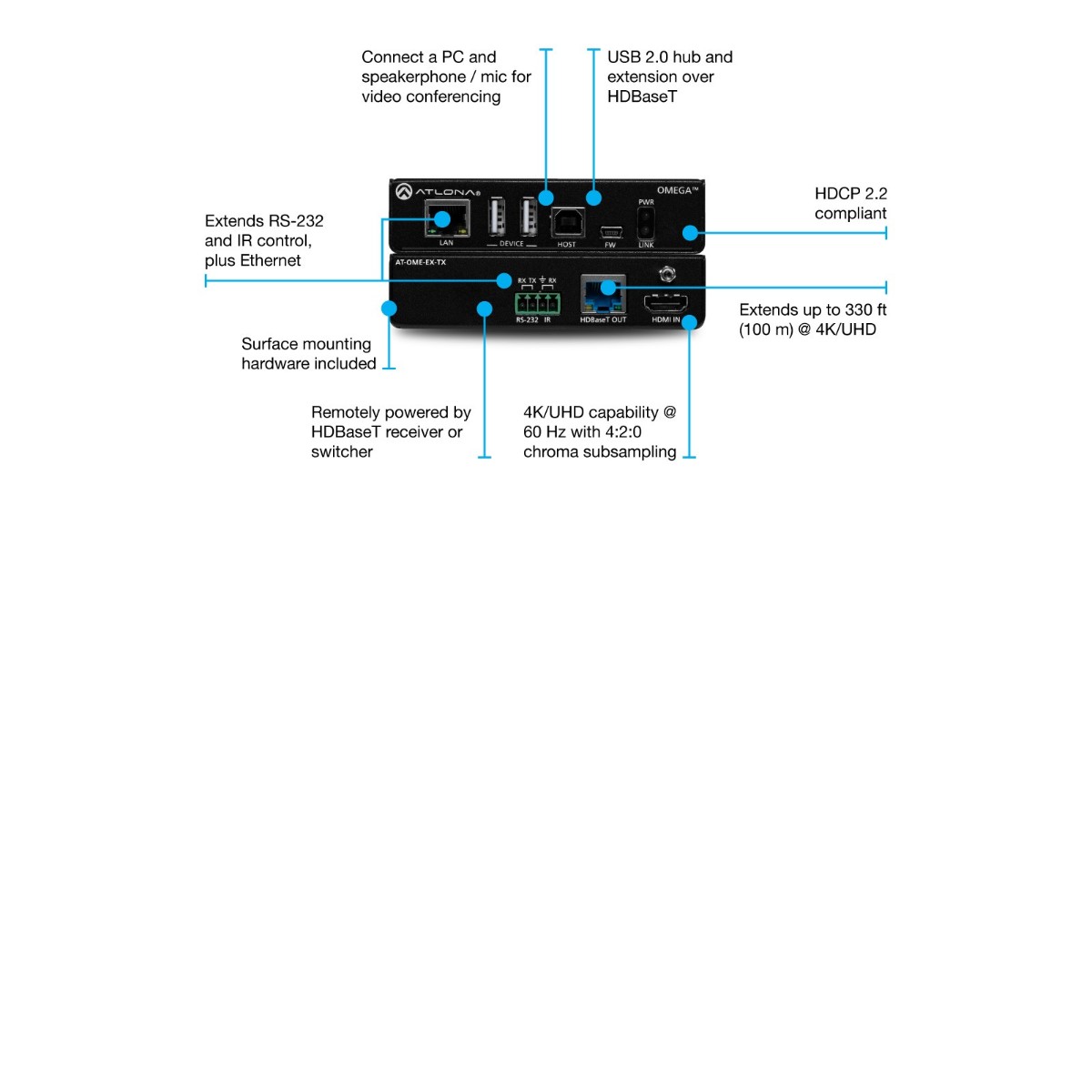

- HDBaseTTM transmitter for HDMI , Ethernet, power, control, and USB
- USB 2.0 interfacing and extension up to 330 feet (100 meters)
- 4K/UHD capability @ 60 Hz with 4:2:0 chroma subsampling
- HDCP 2.2 compliant
Description
The Atlona AT-OME-EX-TX is an HDBaseT transmitter for video up to 4K/60 4:2:0, plus embedded audio, control, Ethernet, and USB over distances up to 330 feet (100 meters). Part of the Omega™ Series of integration products for modern AV communications and collaboration, the OME-EX-TX is HDCP 2.2 compliant and transmits IR, RS-232, and IP control signals.
With a matching HDBaseT receiver, the integrated USB extension addresses the challenge of connecting between USB devices at remote locations, and is ideal for software video conferencing and touch or interactive displays. The OME-EX-TX includes a USB 2.0 host interface for a PC, plus two peripheral devices such as a speakerphone, microphone, or keyboard and mouse. This transmitter is ideal for use with Omega Series receivers as well as switchers with HDBaseT inputs. Also available is the OME-EX-KIT which includes the OME-EX-TX and OME-EX-RX.
Applications:
Complete system integration – The OME-EX-TX and OME-SR21 together provide a compact, yet comprehensive and cost-effective integration solution, with 4K scaling, display control, HDBaseT link testing, and audio system interfacing provided by the receiver.
Larger system applications – This transmitter is ideal for extending AV connectivity from an OME-PS62 in a central equipment rack to a meeting table or lectern, where presenters can easily access the system.
Video conferencing – The OME-EX-TX and a compatible Omega Series receiver or switcher are ideal for soft codec and web-based conferencing applications, with the ability to integrate with PCs, cameras, speakerphones, and microphones.
Specifications
- HDMI Specification: HDMI 2.0, HDCP 2.2
- TMDS Clock 300 MHz
- UHD/HD: 4096 2160(DCI)@60*/30/24 Hz
- Color Space: YUV, RGB Chroma Subsampling: 4:4:4, 4:2:2, 4:2:0 Color Depth: 8-bit, 10-bit, 12-bit
- USB Signal: 2.0
- USB Maximum Data Rate: 120 Mbps
- HDMI IN: 1 Type A, 19-pin female
- FW: 1 mini-USB
- HDBaseT OUT: 1 RJ45
- HOST: 1 USB Type-B
- DEVICE: 2 USB Type-A
- LAN: 1 RJ45, 10/100 Mbps
- RS-232 / IR: 1 captive screw, 4-pin
