Atlona AT-HDVS-CAM
PTZ Camera for HDVS-300 Soft Codec Conferencing System

Description

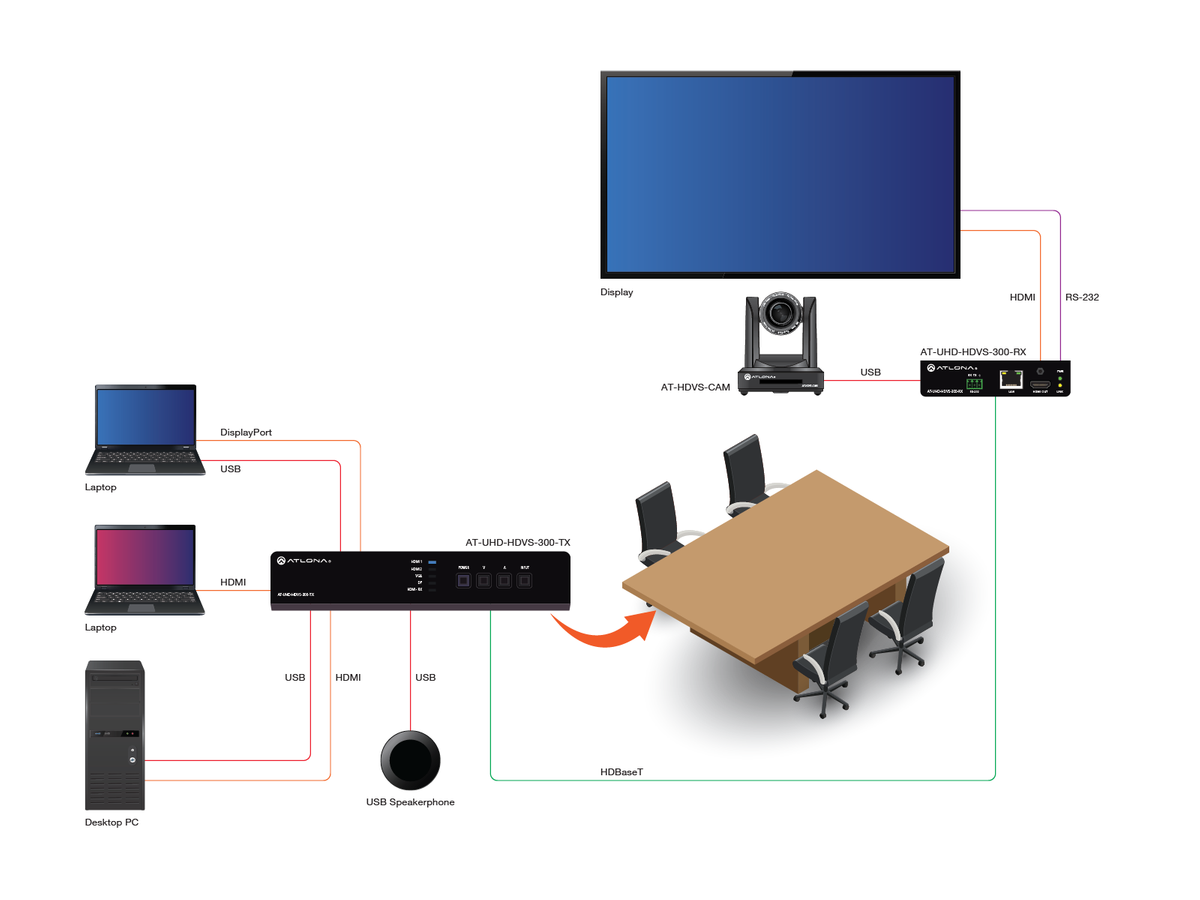

Introducing the AT-HDVS-CAM PTZ Camera for HDVS-300 Soft Codec Conferencing System from Atlona. This camera is designed for use in soft codec conferencing applications with the AT-UHD-HDVS-300-KIT. It seamlessly integrates with the above listed kit for a complete, automated conferencing system that includes AV as well as USB extension. The USB interface features video and camera control, with automatic input selection and, when a PC is connected, display powering.

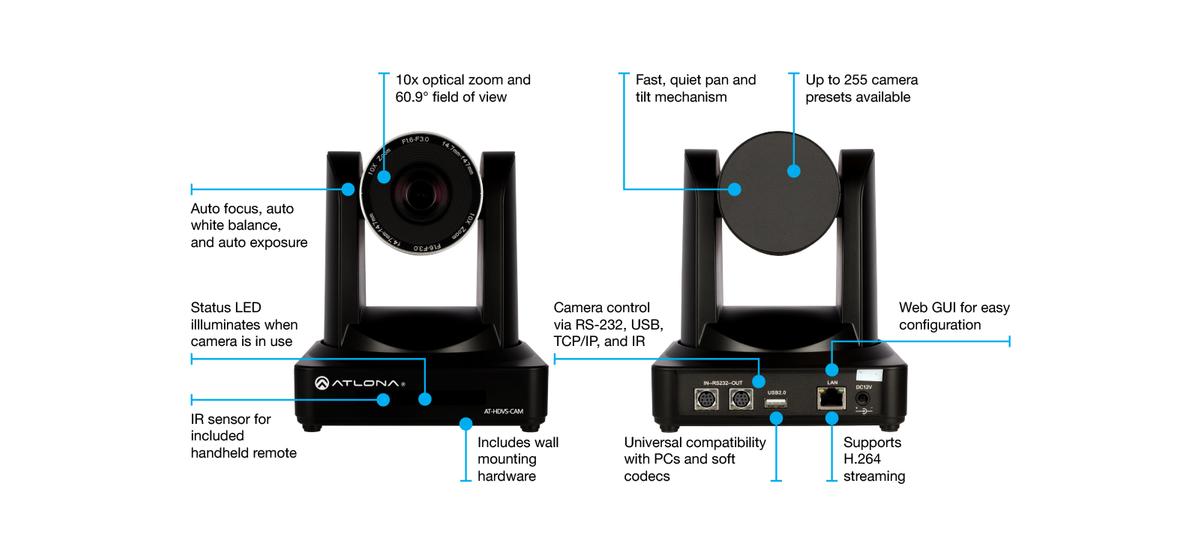

This device delivers high quality 1080p resolutions @ 30 Hz in addition to quick & accurate auto-focusing and quiet yet fast pan and tilt. It can stream H.264-encoded video over TCP/IP, making this camera extremely versatile for a variety of applications including centralized helpdesk monitoring, lecture capture, and distance learning. Ideal settings include a wide range of small to medium-sized meeting spaces, training rooms, conference rooms and classrooms.

Specifications

• AV: F1.6 - F3.0
• Minimum Illumination: 0.5 lm, F1.8 with Automatic Gain Contol ON
• Video Compression: H.264, H.265
• Control Protocol: VISCA/Pelco-D/Pelco-P
• Network Protocol: RTSP/RTMP, ONVIF
• Pan Rotation: 170
• Tilt Rotation: -30 ~ 90
• Pan Control Speed: 0.1 - 180 / sec
• Tilt Control Speed: 0.1 - 80 / sec
• Power Consumption: 12 W
• Power Supply: Input: 110 - 220V AC 50/60 Hz, Output: 12V DC, 1 A
• Certification: CE, FCC
• Weight: 3.08 lbs.
• Dimensions (HxWxD): 6.59 x 5.90 x 5.90"
• Included Items: IR Remote, Mounting Hardware, USB Type-A (Male to Male) Cable, Lens Cap, External Universal Power Supply, Installation Guide
• Warranty: 10 years

Downloads

• Atlona AT-HDVS-CAM Specifications (PDF)
