Atlona AT-HDR-EX-70C-TX
4K HDR HDBaseT Transmitter with Control

Description

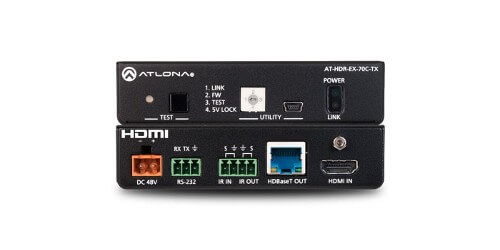

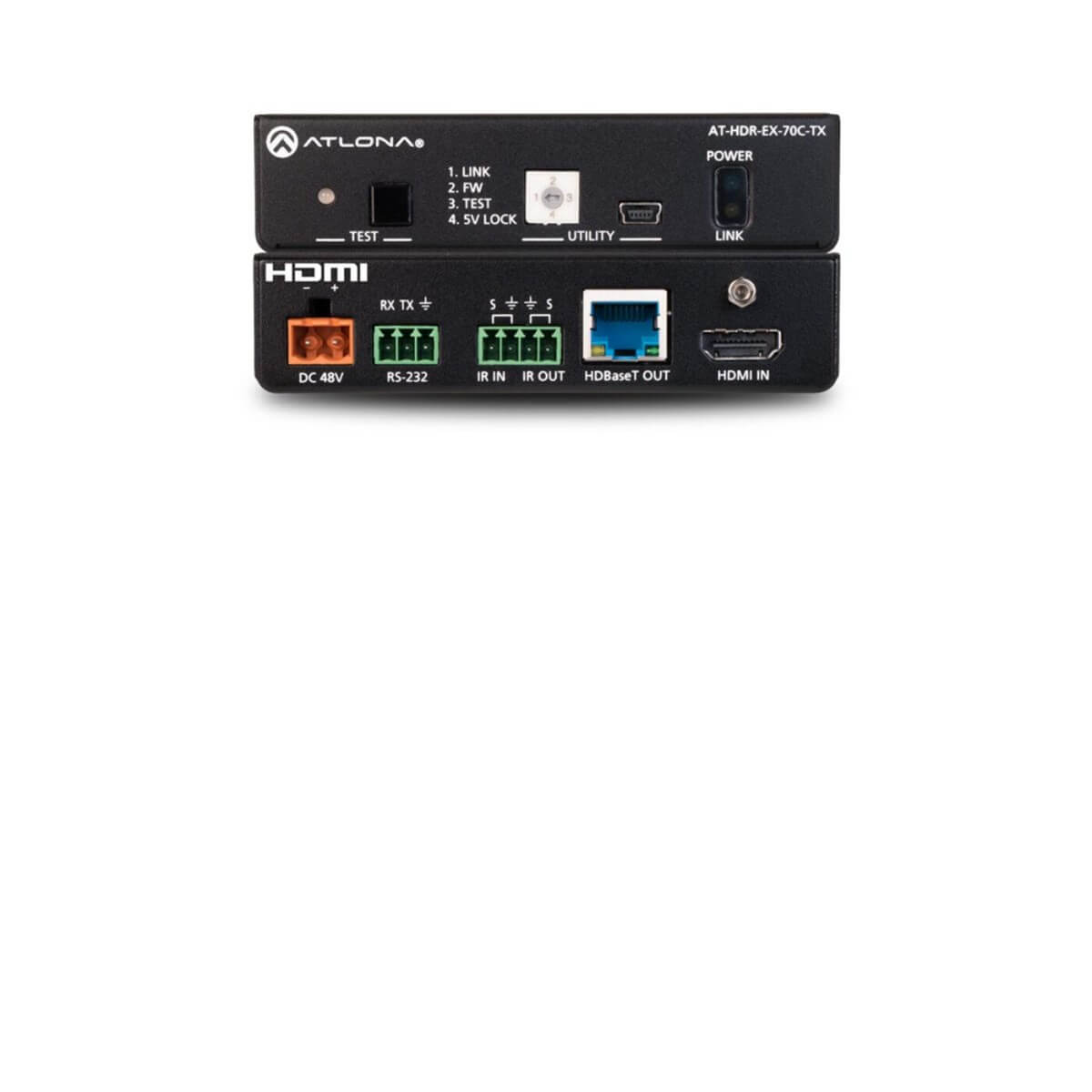

The Atlona AT-HDR-EX-70C-TX is a HDBaseT transmitter for 4K and high dynamic range (HDR) content. It supports extension of 4K/UHD video @ 60 Hz with 4:4:4 chroma sampling plus HDR data, multi-channel audio, control signals, and power up to 130 ft (40 m) or 1080p up to 230 ft (70 m) over Category 6/6A cable. The HDR-EX-70C-TX is ideal for use with the AT-HDR-EX-70C-RX receiver for transmitting 4K HDR in point-to-point applications. It can also be used with the AT-UHD-CLSO-824 and AT-UHD-SW-5000ED for transmitting 4K/UHD @ 60 Hz 4:2:0 signals to the switchers from a remote source. Housed in a compact enclosure, it can be conveniently mounted in furniture, a lectern, or an equipment rack.

Specifications

• HDBaseT output transmits AV, control signals, and power up to 130 feet (40 meters) for 4K HDR or 230 feet (70 meters) for 1080p with Category 6/6A
• Extends bidirectional RS-232 and IR control signals over HDBaseT
• Provides remote power over HDBaseT to compatible receivers such as the AT-HDR-EX-70C-RX
• Compliant with HDCP 2.2, the latest specification for passing protected content between devices
• Multi-channel audio pass-through
• HDBaseT link status testing allows verification of cable, termination, and link quality for more reliable installations
• Front panel Power and Link status LEDs
• Front panel USB port for firmware updates
• Rear panel connections simplify wire management and save installation time
• Compact enclosure can be mounted in furniture, a lectern, or an equipment rack
• Compatible with AT-UHD-SW-5000ED switchers for transmission of 4K/UHD @ 60 Hz 4:2:0 signals
• Included accessories – power supply, surface mount hardware, and captive screw connectors

Downloads

• Atlona AT-HDR-EX-70C-TX Specifications (PDF)
