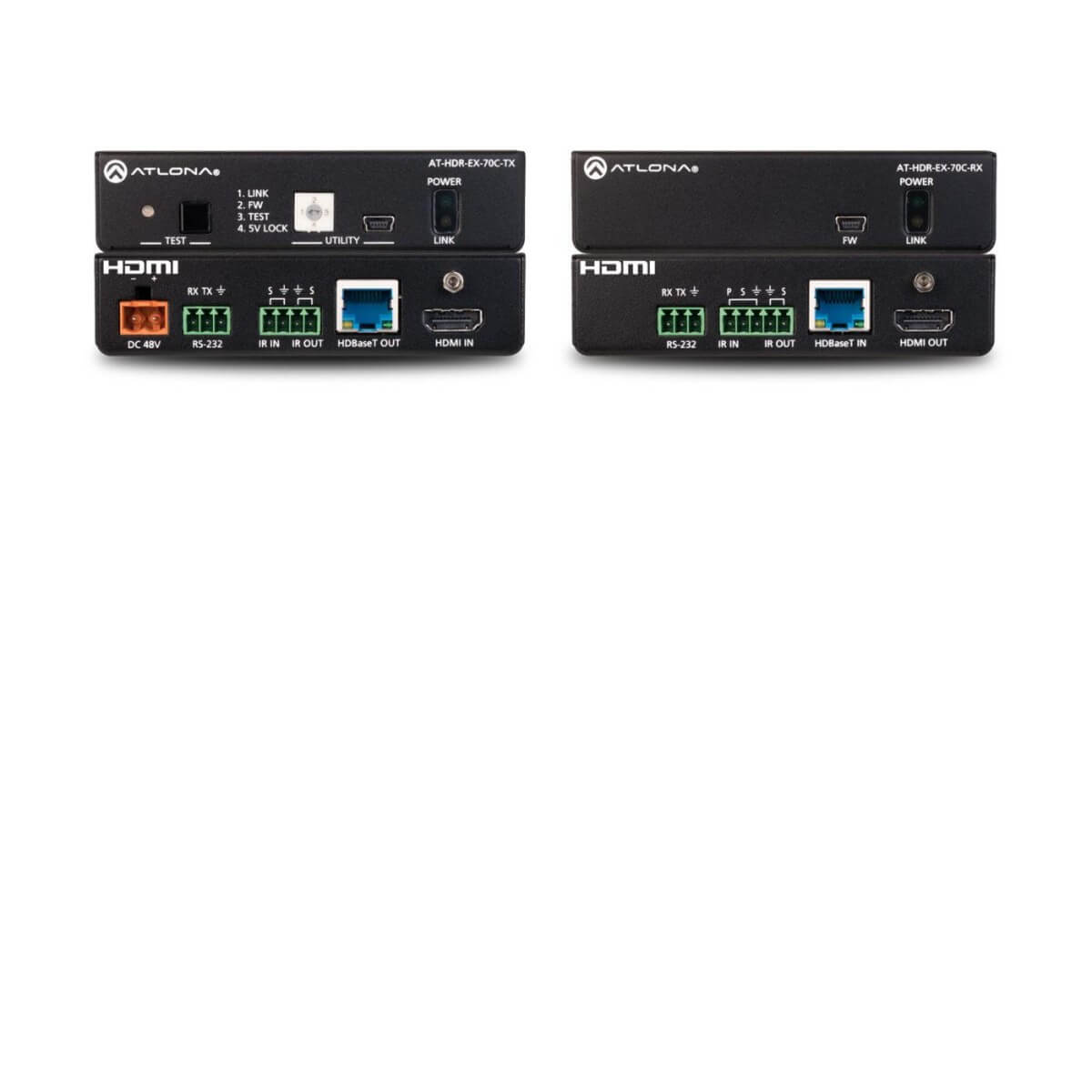

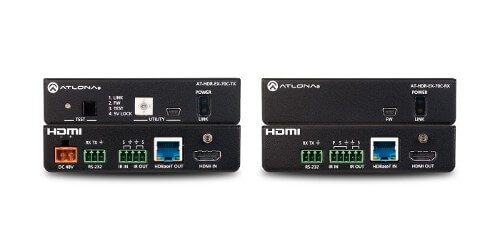

Atlona AT-HDR-EX-70C-KIT
4K HDR HDMI Over HDBaseT TX/RX with Control and PoE
- 4K/UHD capability @ 60 Hz with 4:4:4 chroma sampling, plus support for HDR formats
- HDCP 2.2 compliant
- HDBaseTTM extender kit for HDMI, power, and control up to 230 feet (70 meters)
- Receiver powered by transmitter via PoE (Power over Ethernet)
Description
The Atlona AT-HDR-EX-70C-KIT is an HDBaseT transmitter/receiver kit for high dynamic range (HDR) formats.
The kit is HDCP 2.2 compliant and supports 4K/UHD video @ 60 Hz with 4:4:4 chroma sampling, as well as HDMI
data rates up to 18 Gbps. The HDR-EX-70C-KIT provides transmission of HDMI, as well as bidirectional IR and
RS-232 control signals up to 230 feet (70 meters) for 1080p video, and up to 130 feet (40 meters) for 4K HDR over
CAT6a/7 cable. This extender kit features visually lossless compression with no latency to enable HDR and 4K/60
4:4:4 video signal extension over HDBaseT. For additional integration convenience, the transmitter remotely powers the receiver through Power over Ethernet (PoE). The HDR-EX-70C-KIT delivers a cost-effective solution for HDMI and control signal extension, and includes surface mounting hardware for discreet installation.
Specifications
- Extends RS-232, IR, and CEC control signals over HDBaseT
- HDBaseT link status testing
