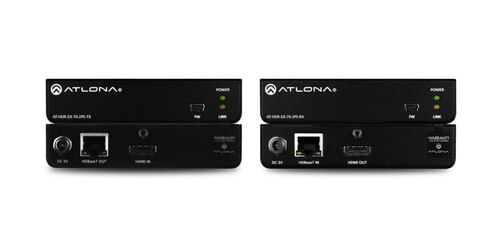

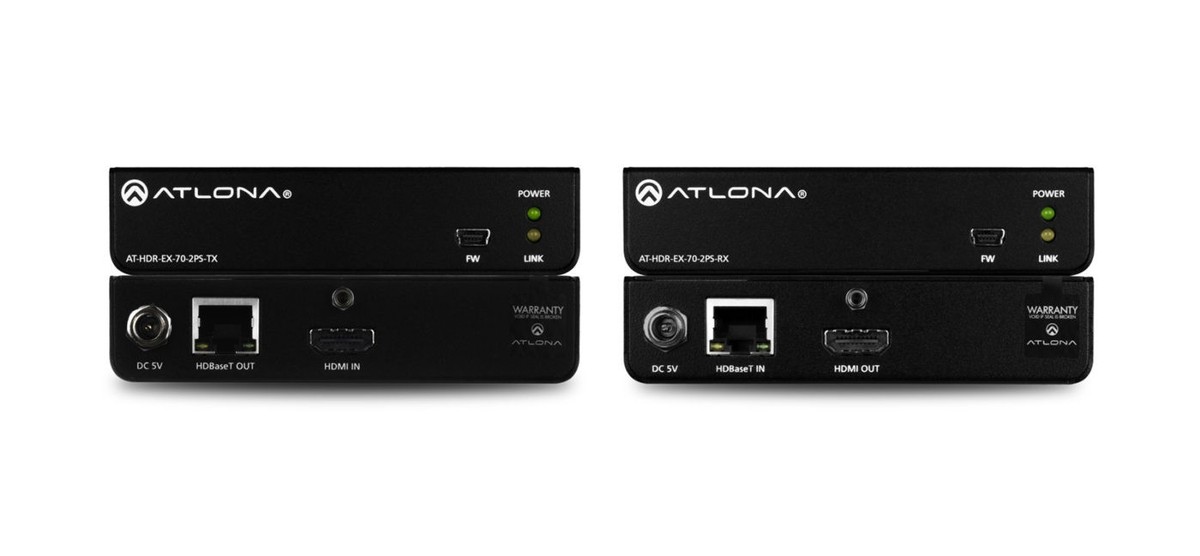

Atlona AT-HDR-EX-70-2PS
4K HDR HDMI Over HDBaseT TX/RX Kit - HDCP 2.2

Part #: AT-HDR-EX-70-2PS
Satisfaction Guaranteed!
Our Price: $562.00
Free Shipping* | 30 Day Returns* | Authorized Dealer
Click for $15 Off!
Top AT-HDR-EX-70-2PS Specifications
  • Resolution/Distance (Cat6a/7): 4K60 - 130', 1080p - 230'
  • Bandwidth: 18 Gbps
  • HDCP 2.2 Compliant VESA: Up to 2560 2048
  • Color Space: YUV, RGB
"Great support and help from technical support!"
-Patrick S.
Contact a product specialist!
Proudly supporting our customers since 2008


The latest in innovation for Atlona's UHD-EX Series of HDBaseT Extenders

Taking HDMI signals to great lengths at 4K/60 4:4:4 HDR resolutions is the latest from Atlona, the HDR-EX-70-2PS. This amazing HDMI over HDBaseT Transmitter/Receiver kit boasts super high-quality video resolutions and the latest in HDCP encryption up to version 2.2, while at the same time being a highly functional cost effective solution. This kit is ideal for applications requiring the latest as well as emerging 4K/UHD and HDR sources and displays. Not only will it handle the latest in 4K resolutions it can equally handle all lower resolutions, making this a great device to implement now, and future proof your system for your next system upgrade. Additionally it is compatible with all audio and color space formats supported in the HDMI 2.0a specification, with the ability to pass metadata for HDR content.


Innovation Meets Practicality to Offer 4K HDR over HDBaseT

As resolutions continue grow, data rates become taxed. With HDR and 4K/60 4:4:4 video formats requiring data rates that easily exceed 10Gbps and up to 18Gbps, the Atlona HDR-70-2PS over comes this problem by implementing a visually lossless video compression technology that applies extremely lights compression with virtually zero latency. The result is pristine transmission of HDR and 4K video quality over a single category cable.

High-quality Video Designed for Your Application, Now and in the Future

The Atlona HDR-EX-70-2PS has been designed and costed to be used in both Residential applications as well as Professional grade applications. Whether you are wanting to use this range extension solution in the home utilizing the latest Ultra HD Bluray players, or in full-motion, highly detailed 4K graphics presentations, 3D renderings or simulations, this device can do it all. Furthermore is can be used as a reliable content distribution system to televisions that you want to show case the quality and appeal of true 4K video resolutions. The HDR-EX-70-2PS includes Atlona’s award-winning 10 year limited product warranty and customer support services, so that integrators can specify, purchase, and install with confidence.

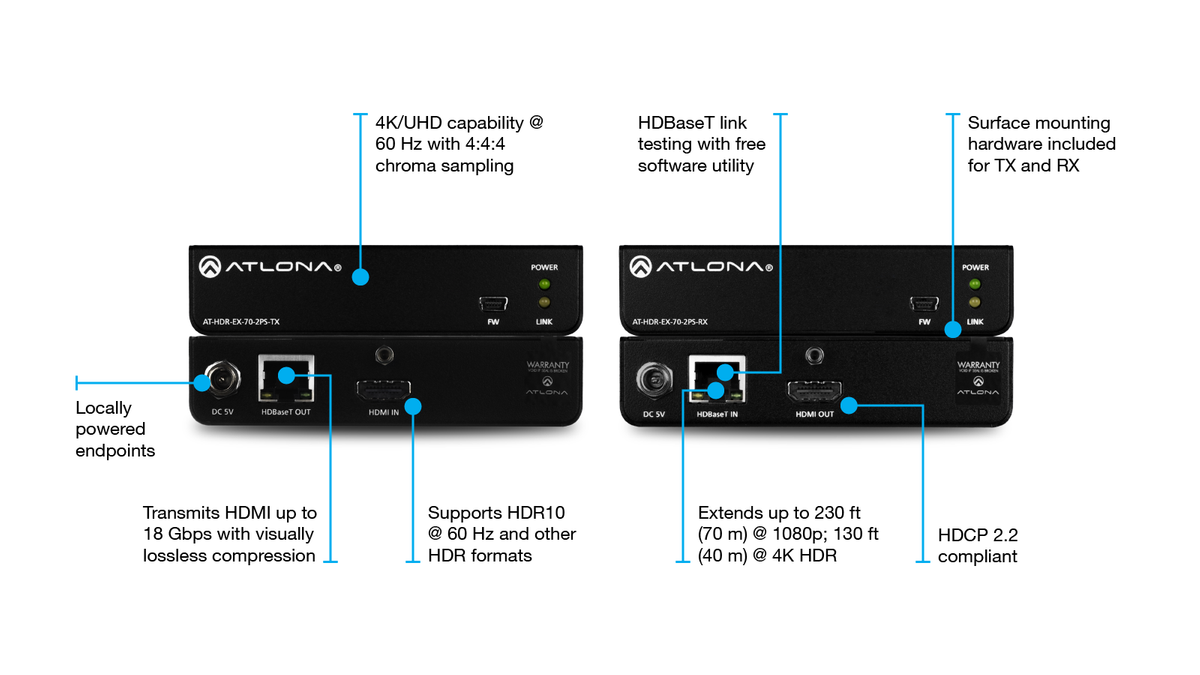

Key Features

4K/UHD capability @ 60 Hz with 4:4:4 chroma sampling, plus support for HDR format

HDCP 2.2 compliant

HDBaseT extender kit for HDMI up to 230 feet (70 meters)


  • Chroma Subsampling: Up to 4:4:4
  • Color Depth: Up to 12-bit
  • Audio Formats: PCM 2Ch, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital Plus, Dolby TrueHD, DTS-HD, Master Audio, Dolby Atmos, DTS:X
  • Sample Rate: Up to 192 kHz
  • Bit Rate: 24-bit (max.)
  • Input Power: 100 - 240 V AC, 50/60 Hz
  • Output Power: 5V DC
  • Certification: CE, FCC
  • Dimensions (HxWxD): 1 x 4.3 x 3"
  • Included Accessories: Install Guide, Mounting Brackets, 2x External Universal Power Supplies
  • Warranty: 10 years
