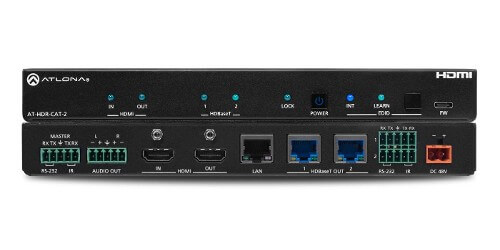

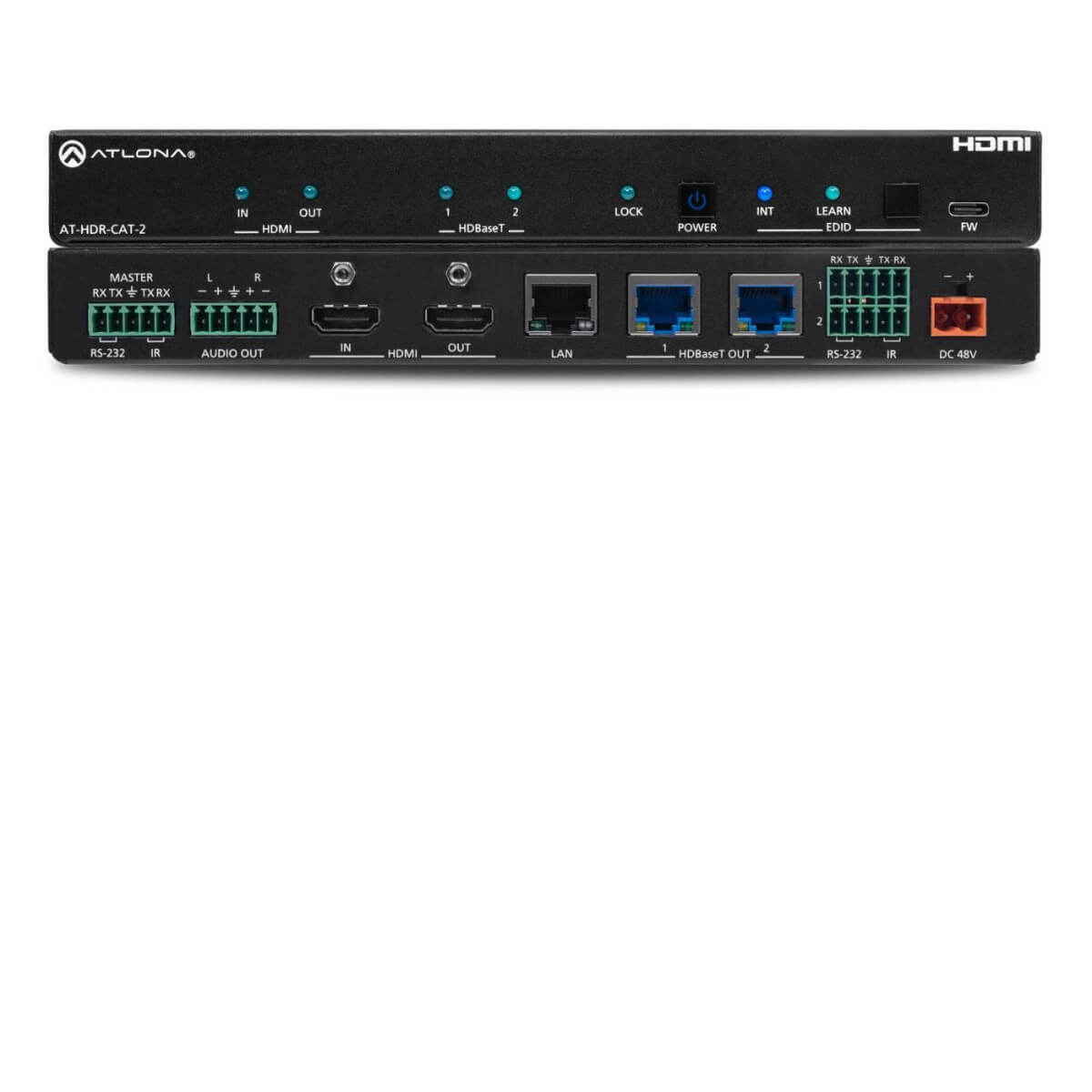

Atlona AT-HDR-CAT-2
Two-Output 4K HDR HDMI to HDBaseT Distribution Amplifier
- One HDMI input and two HDBaseT outputs
- Extend 4K/60 4:4:4 up to 130' (40 m)
- Supports HDR10, HLG, and Dolby Vision
- Pass-through HDMI output
-Patrick S.
Description
The Atlona AT-HDR-CAT-2 is a high dynamic range (HDR) distribution amplifier with one HDMI input and two HDBaseT outputs. Each output transmits 4K/UHD video @ 60 Hz with 4:4:4 chroma sampling plus support for HDR formats, multi-channel audio, control signals, and power up to 130 ft. (40 m) or 1080p up to 230 ft. (70 m) over Category 6/6A cable. The HDR-CAT-2 features sophisticated integration capabilities designed for commercial AV distribution applications including HDMI pass-through, audio de-embedding, EDID management, CEC display control, RS-232 and IR control extension, remote power for receivers, and HDBaseT link testing. It offers compatibility with any TCP/IP or RS-232 control system and is housed in a low-profile enclosure with external universal power supply. The HDR-CAT-2 is ideal for sending HDR and 4K/60 4:4:4 content to AT-HDR-EX-70C-RX receivers.
Specifications
- CEC display control on each output
- Audio de-embedding with volume control
- Also available with 4 outputs, 8 outputs, or 4 extended distance outputs
