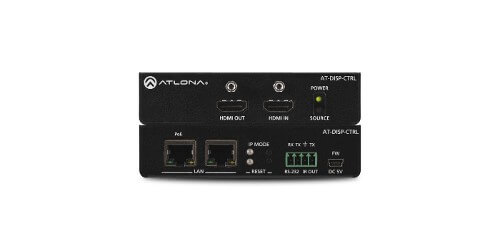

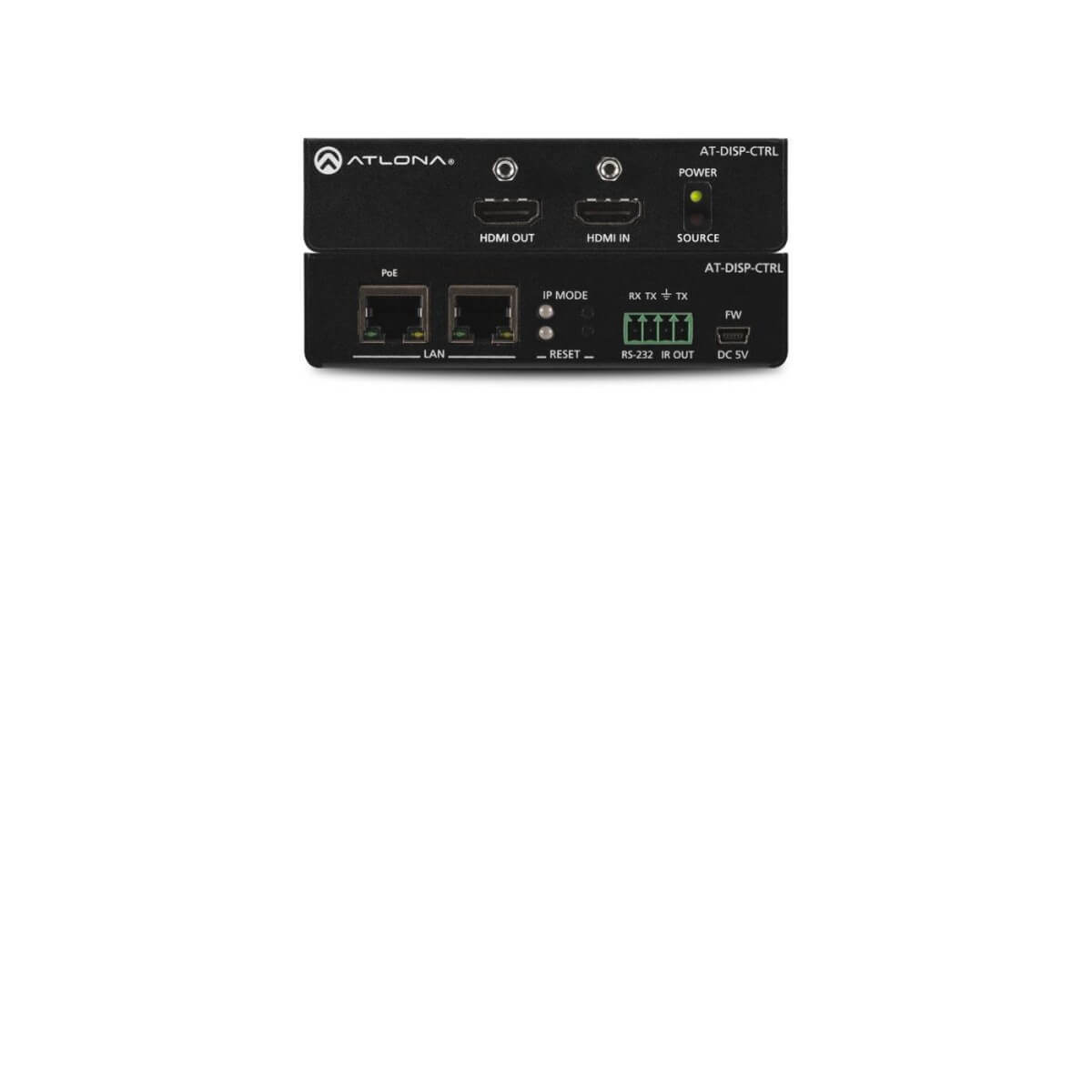

Atlona AT-DISP-CTRL
Display Controller
- Simple, automated display control via IP, RS-232, IR, or CEC
- Programmable display control modes
- 4K/UHD capability @ 60 Hz with 4:4:4 chroma sampling, plus support for HDR formats
- Local or PoE (Power over Ethernet) powering
-Timothy J.
Description
The Atlona AT-DISP-CTRL is a compact display controller, designed for small meeting spaces and huddle rooms. The DISP-CTRL detects connection of a source device with an active signal, and then automatically sends a control command to power up a display. Similarly, when the device is disconnected, the DISP-CTRL delivers a command to power down the display. The DISP-CTRL can be configured to deliver pre-stored or user-programmed display control commands through TCP/IP, RS-232, IR, or CEC. Additionally, this controller includes EDID and HDCP management features, and can be powered locally or through Power over Ethernet (PoE). The DISP-CTRL is HDCP 2.2 compliant and supports 4K/UHD video @ 60 Hz with 4:4:4 chroma sampling, as well as HDMI data rates up to 18 Gbps.
Specifications
- Comprehensive display driver selection from the VelocityTM System database
- Dual Ethernet ports and integrated network switch
