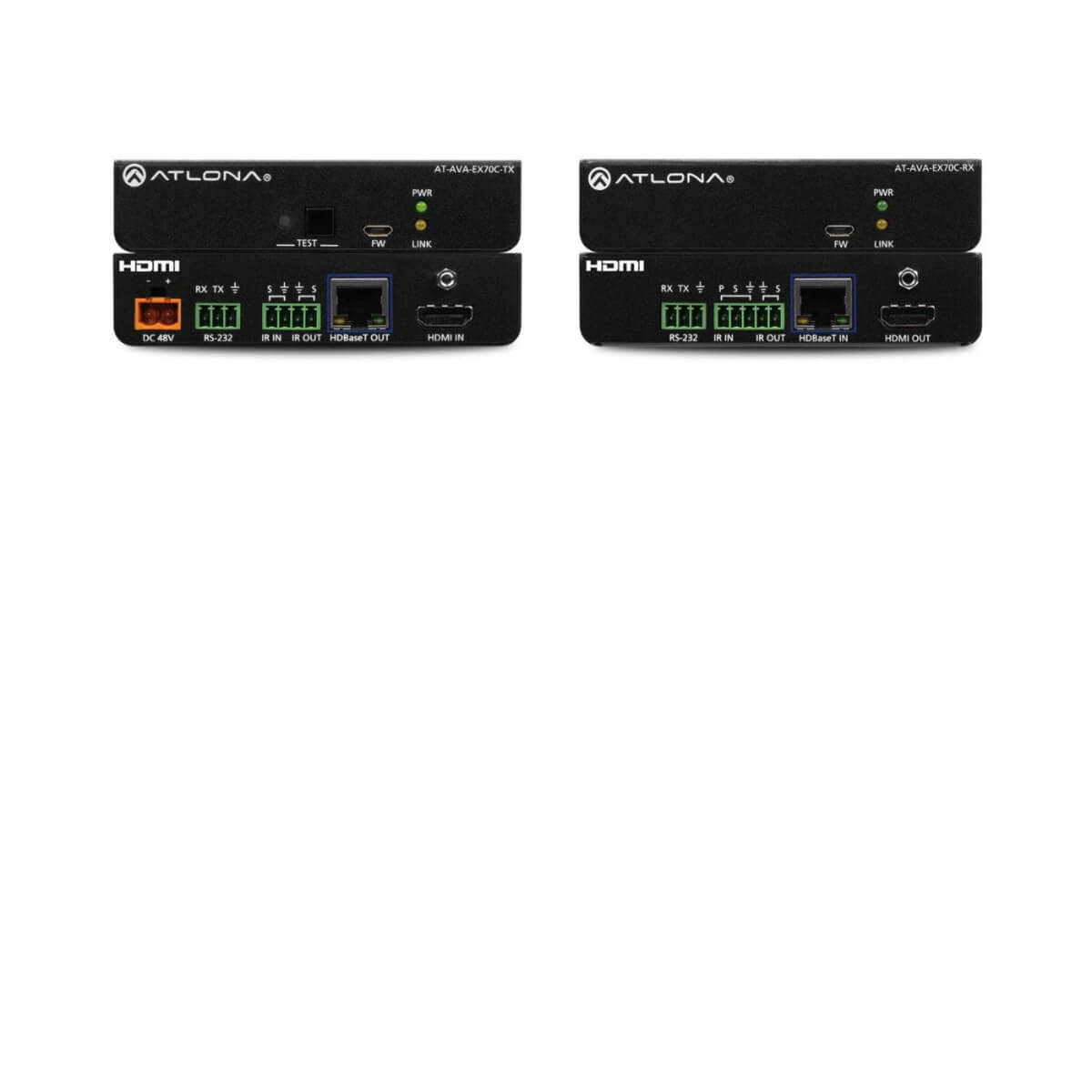

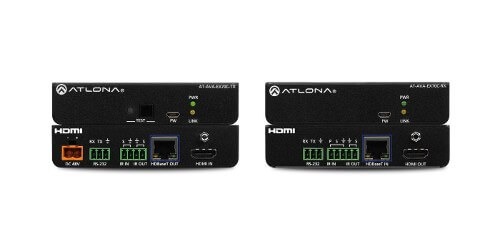

Atlona AT-AVA-EX70C-KIT
Avance 4K/UHD HDMI Extender Kit with Control and Remote Power
- Supports resolutions up to 4K/UHD 60 Hz 4:2:0
- Extends bidirectional RS-232 and IR control signals
- Remote power, transmitter powers receiver over HDBaseT
- EDID filtering prevents extension of unsupported resolutions
-Maciej Z.
Description
The Atlona AT-AVA-EX70C-KIT is an Avance Series HDBaseT extender kit that supports control pass-through and remote power capability. The kit transmits 4K/UHD 60 Hz 4:2:0 video up to 130 feet (40 meters) or 1080p 60 Hz video up to 230 feet (70 meters). In addition to video with embedded multi-channel audio, RS-232 and IR control signals, and remote power from the transmitter to the receiver are supported on the single Category 6/6A cable. EDID filtering and clock stretching ensure video transmission integrity and stable connections. Integrated HDBaseT link test allows quick verification of cable, termination, and link quality. The AT-AVA-EX70C-KIT includes both transmitter and receiver endpoints. Compact enclosures and included brackets allow the devices to be surface mounted in furniture or behind a display. The AT-AVA-EX70C-KIT delivers a cost-effective solution for extension of video, audio, control, and receiver power at resolutions up to 4K/UHD.
Specifications
- HDBaseT link test verifies cable, termination, and link quality
- HDCP 2.2 compliant
