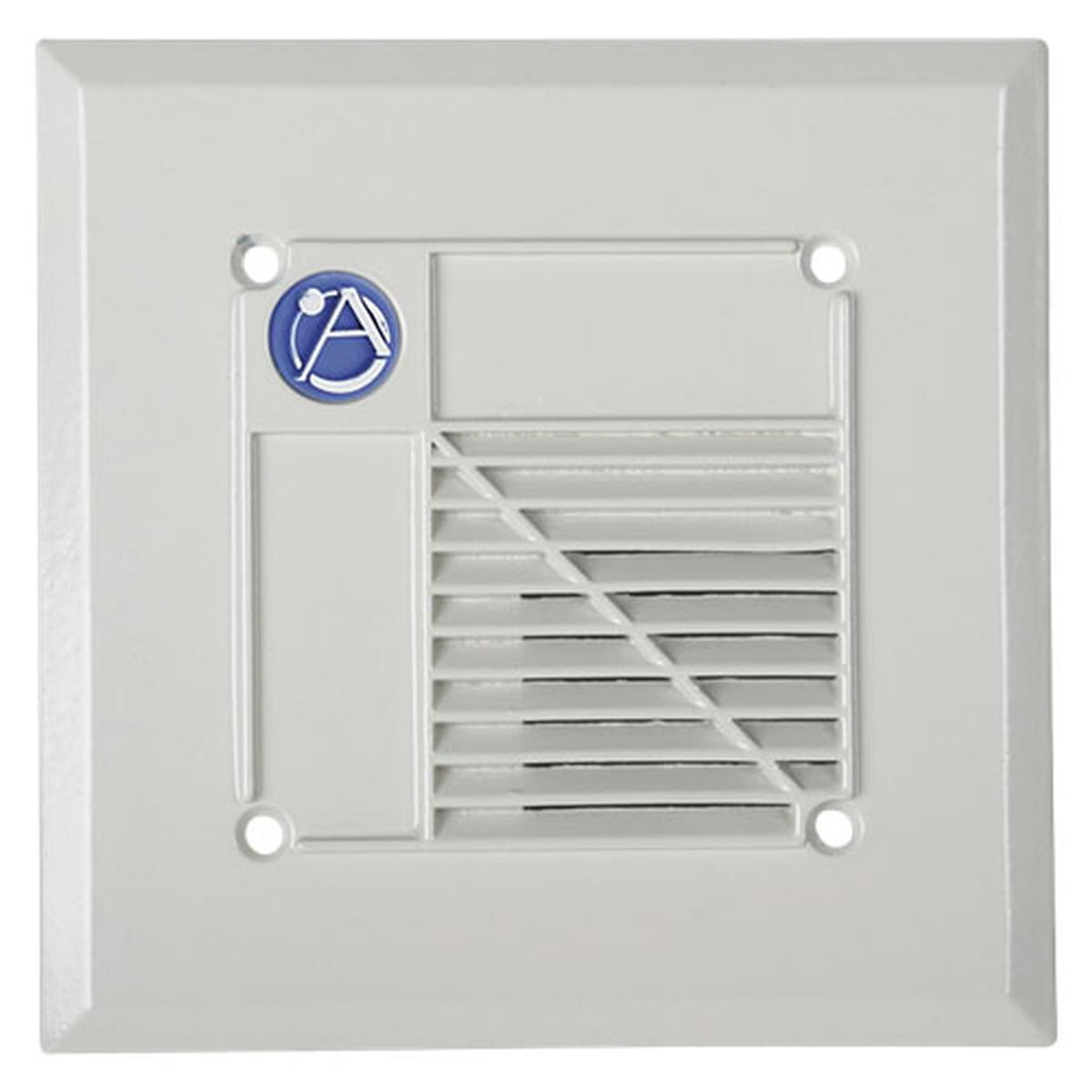

AtlasIED VTF-157UCN
Life Safety Voice/Tone Gray Recessed 70V,15W Compression Driver

Our Price: $146.99

Request a Quote

Top VTF-157UCN Specifications

Description

VTF-157UCN Voice/Tone Recessed Compression Driver Loudspeaker 70.7V 15W in Neutral Gray Color, Through proven performance, patented VT/VTF Series have earned worldwide acclaim for service reliability. These cost-effective units offer compact size, functional flexibility, optimum intelligibility, effective sound distribution, and high-level output.

All models contain a high efficiency compression driver with maximum acoustic conversion efficiency. (A quality which reduces number of units needed to attain specified sound pressure levels and provides substantial savings in amplification-power requirements and labor costs.) Die-cast, water-sealed construction withstands vandalism, vermin, moisture, corrosion, and vibration during indoor or outdoor use. Selection includes a basic 8-ohm version and 70.7 or 25-volt transformer models with DC blocking capacitor (C) where noted.

All models terminate via barrier strips. VT Series models are surface-mount units; VTF Series are flush-mount units for recessed installation. VT Series mounts standard 4" E.O. Boxes; VTF Series mount 4" or 411/16" SQ back boxes and require model AR or MR adapter rings respectively (order separately) Optional mounting accessories are offered including: indoor and outdoor enclosures, a bi-directional housing, adapter plates and rings.

Specifications

• Frequency Response 600 Hz - 5500 Hz ( 5dB)
• Power Taps 15, 8, 4, 2
• Dispersion > 190 (- 6dB pt., 1 and 2 kHz octave bands)
• Sensitivity 96.9dB (1 watt, 1 meter)
• Transformer 70.7 V
• UL Listed/Standard 1480

Downloads

• AtlasIED VTF-157UCN Specifications (PDF)

Q & A

Reviews

Image Gallery

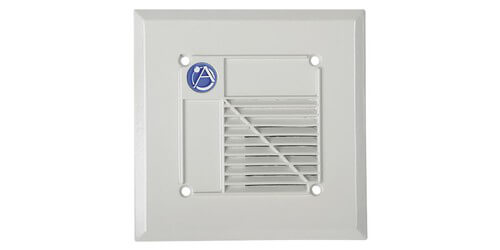

Atlas Sound VTF-157UCN

•
